Z100-2005-0141-Z: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size287KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

Z100-2005-0141-Z Overview

Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug

Z100-2005-0141-Z Parametric

Parameter Name	Attribute value
Objectid	304390973
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	LOCATING POSTS
body width	0.12 inch
subject depth	0.181 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	50 Cycles
maximum insertion force	.556 N
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	Z100
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.556 mm
Plating thickness	15u inch
Rated current (signal)	1 A
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	20

Preview

Download Datasheet

View All

A = (1.27 x # of Contacts + 0.4)

B = (A - 1.67) + 0.25

ELECTRICAL:

CURRENT RATING: 1A

CONTACT RESISTANCE:

<30 Milliohm Max

INSULATION RESISTANCE:

>5000 Megaohm Min

DIELECTRIC WITHSTANDING VOLTAGE:

600V (RMS) AC for 1 Minute

OPERATING TEMPERATURE: -40°C to +105°C

MATERIAL:

INSULATOR: LCP

CONTACT: Phosphor Bronze

MATERIAL:

DURABILITY: 50 Cycles

RETENTION FORCE: 300g Min

INSERTION FORCE: 56g

SOLDERABILITY: Per MIL-STD-202F Method 208D

MAX. PROCESSING TEMPERATURE: 260°C for 10 seconds

Rev

0

Issued

A

Revised for RoHS Compliance

B

Revised footprint from 5.10 to 4.80

SCALE

TOL. DEC.

.X +/- 0.3

.XX +/- 0.2

.XXX +/- 0.1

Z

1

0

0 - X

X

0

5

- 0

1

X

X - Z

NO OF POSITIONS

06-98

A0=100

TYPE

05 - Surface Mount/

No Polorization

With Mounting Ear

PACKAGING

RoHS COMPLIANT

1 - In Tube

2 - With Cap In Tube

3 - With Film In Tube

4 - With Cap; Tape & Reel

5 - With Film; Tape & Reel

CONTACT PLATING

Selective Gold

Full Gold

1 - Gold Flash 6 - Gold Flash

3 - 10u" Gold 7 - 10u" Gold

4 - 15u" Gold 8 - 15u" Gold

5 - 30u" Gold 9 - 30u" Gold

Drawn Checked Approved

MDH

S.M.

B.S.

S.M.

B.S.

S.M.

Date

09/29/04

9/19/07

11/14/07

SMP TECHNOLOGY, INC.

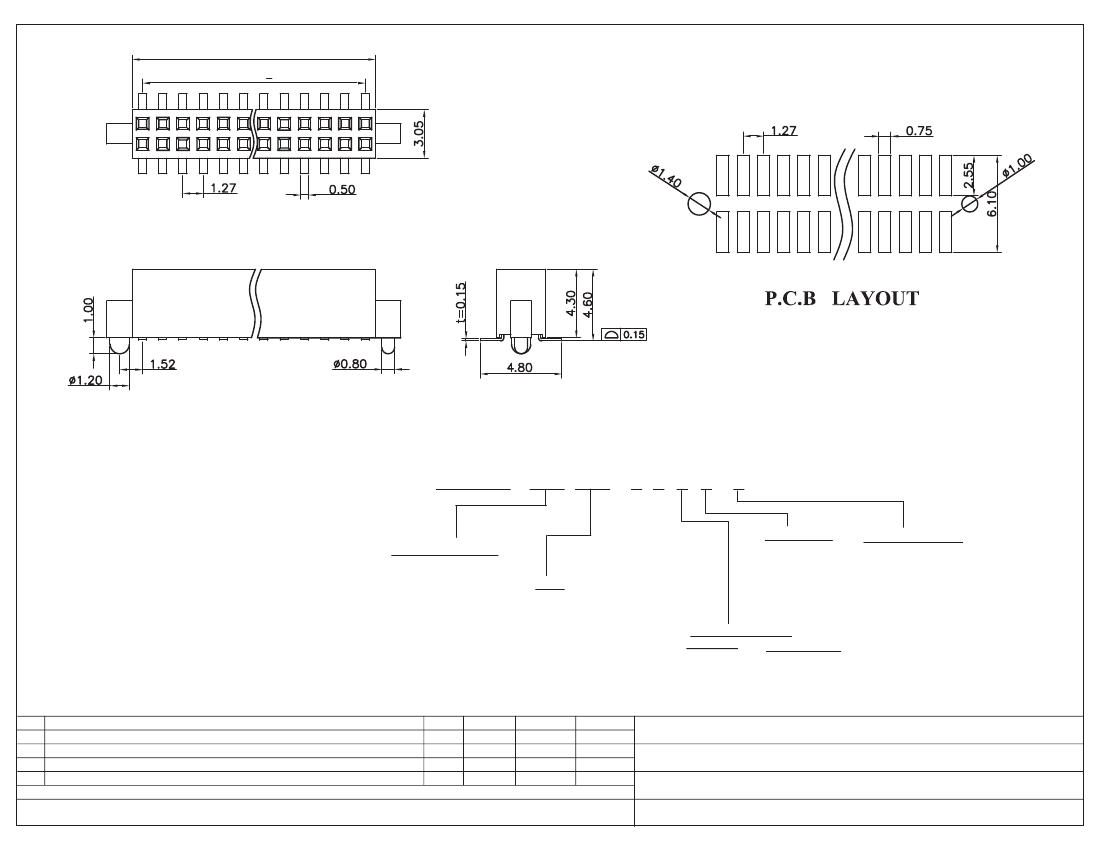

Receptacle Assembly; 1.27mm x 1.27mm; Top Entry; Surface

Mount; 4.3mm Height

ANGLE +/-

5°

UNIT: mm

P/N: Z100-XX05-01XX-Z

Pg: 1
