5962-01-252-1180 datasheet, PDF

5962-01-252-1180: DescriptionBus Driver, 1-Func, 4-Bit, True Output, TTL, CDIP14,; Categorylogic logic; File Size199KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

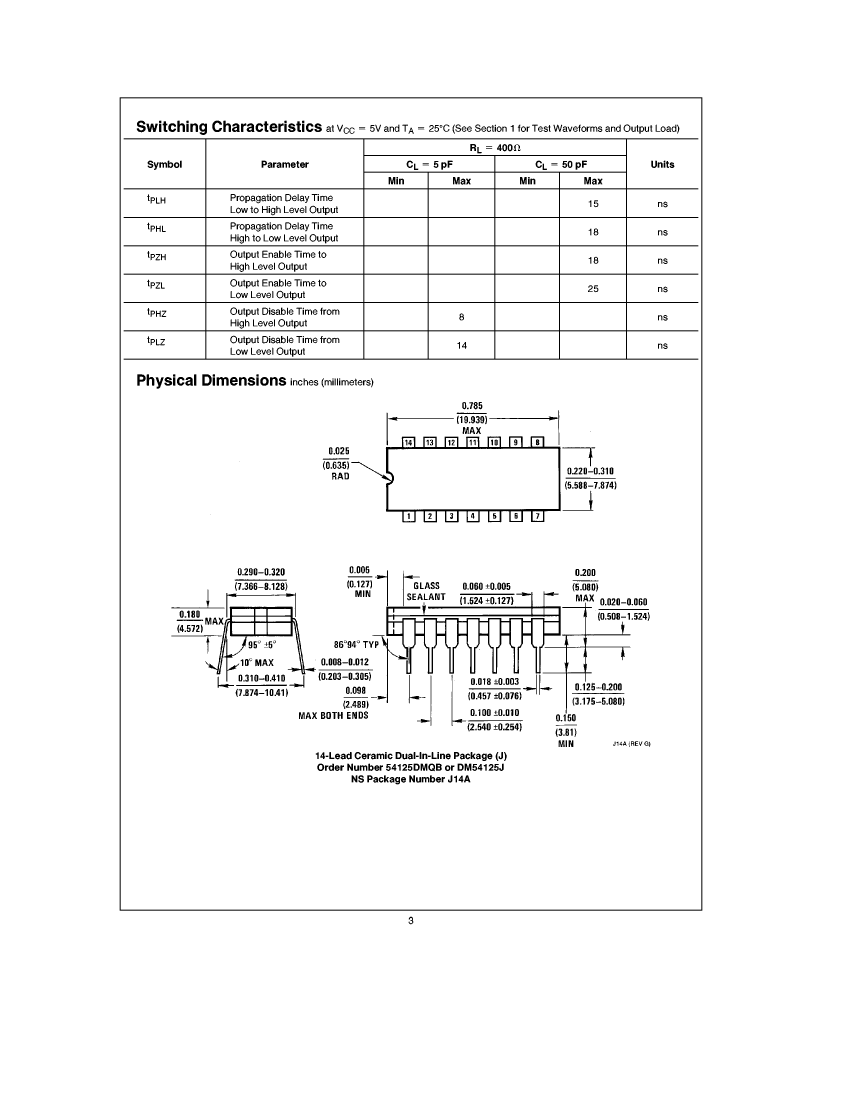

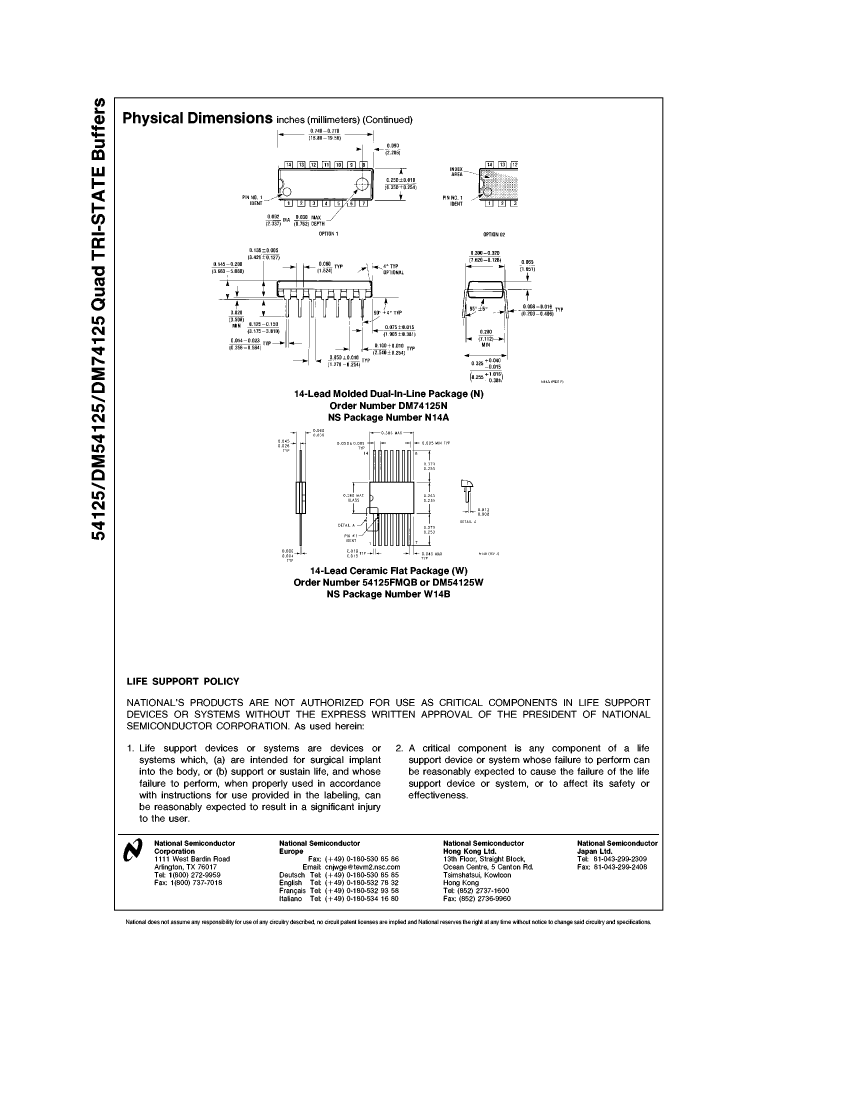

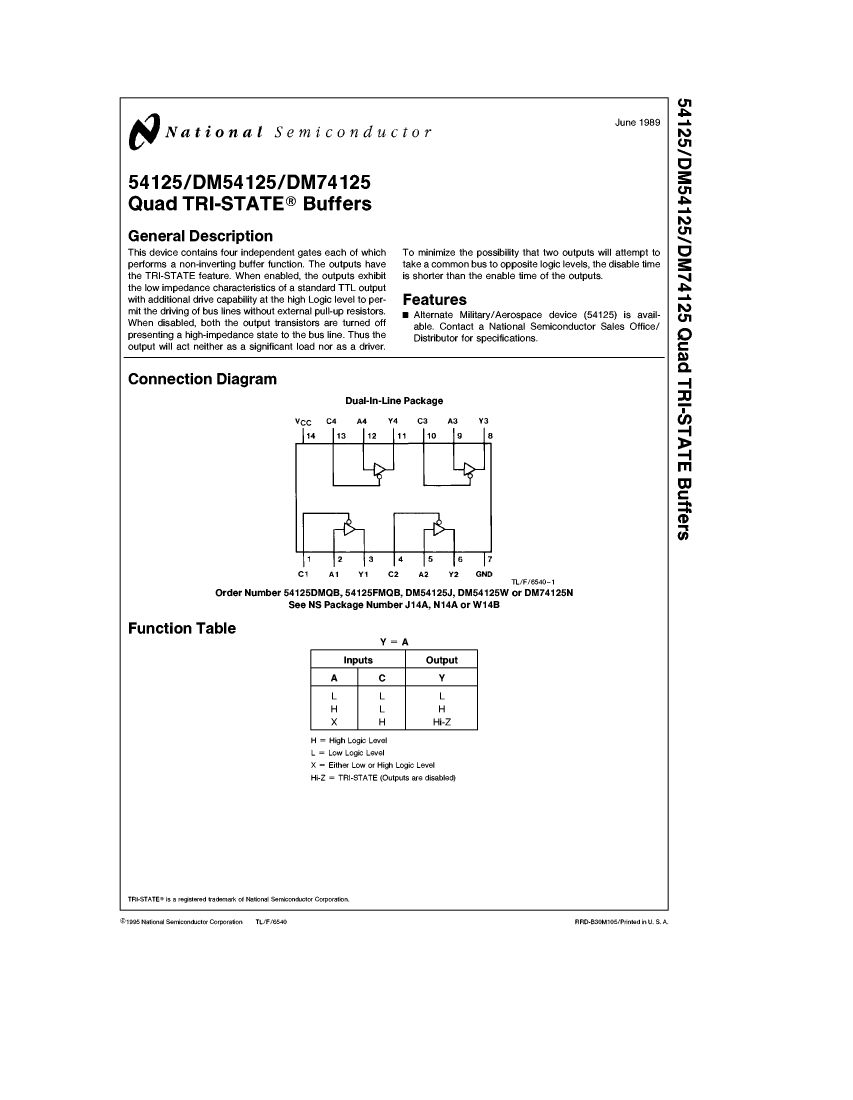

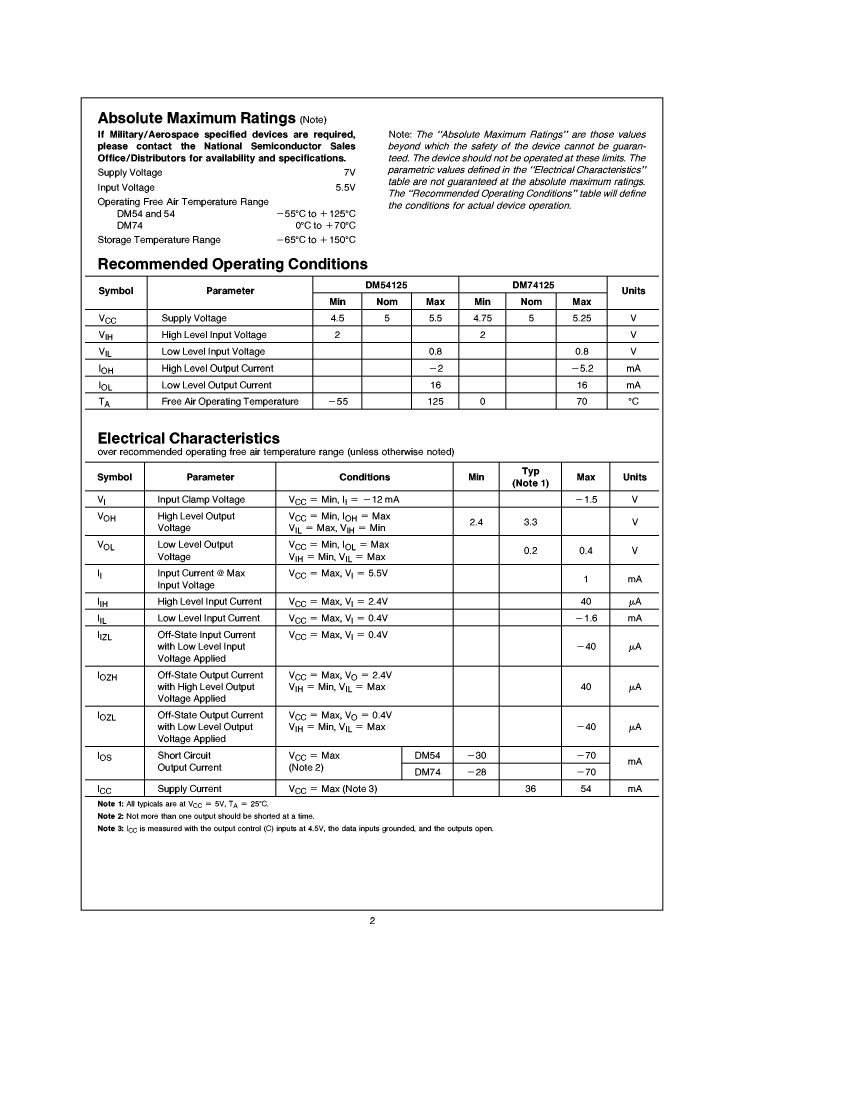

5962-01-252-1180 Overview

Bus Driver, 1-Func, 4-Bit, True Output, TTL, CDIP14,

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP14,.3
Reach Compliance Code	compliant
Control type	ENABLE LOW
JESD-30 code	R-XDIP-T14
Logic integrated circuit type	BUS DRIVER
Humidity sensitivity level	2A
Number of digits	4
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1
