* Melting point temp. depends on solder properties
The recommended reflow profile is provided as a guideline. Optimal profile may differ due to oven type, assembly layout or other design or process variables.
Customers should verify actual device performance in their specific application and reflow process. Please contact Piher if you require additional support.
Connections scheme.
Simple analog output version connection scheme.
Pin
8
7 6 5
Description
Supply voltage
Supply voltage
Switch output*
Switch output*
Signal output**
Signal output**
Ground
Ground
1
2
3
4
5
6
7
8
1
2 3 4
* If the feature is not used in the application, please connect to ground
** Piher can supply the recommended wiring diagram
Piher Sensors & Controls
Our product competencies and services:
Potentiometers
|
Position / angle sensors
| Rotary switches | Incremental encoders
Printed circuit resistors | Mechatronics | Value added assemblies
-Page 4 of 5-
Magnetic rotary angle and position sensor-control.
Mechatronics
Electromechanical
Sensors
Controls
Contactless sensor.

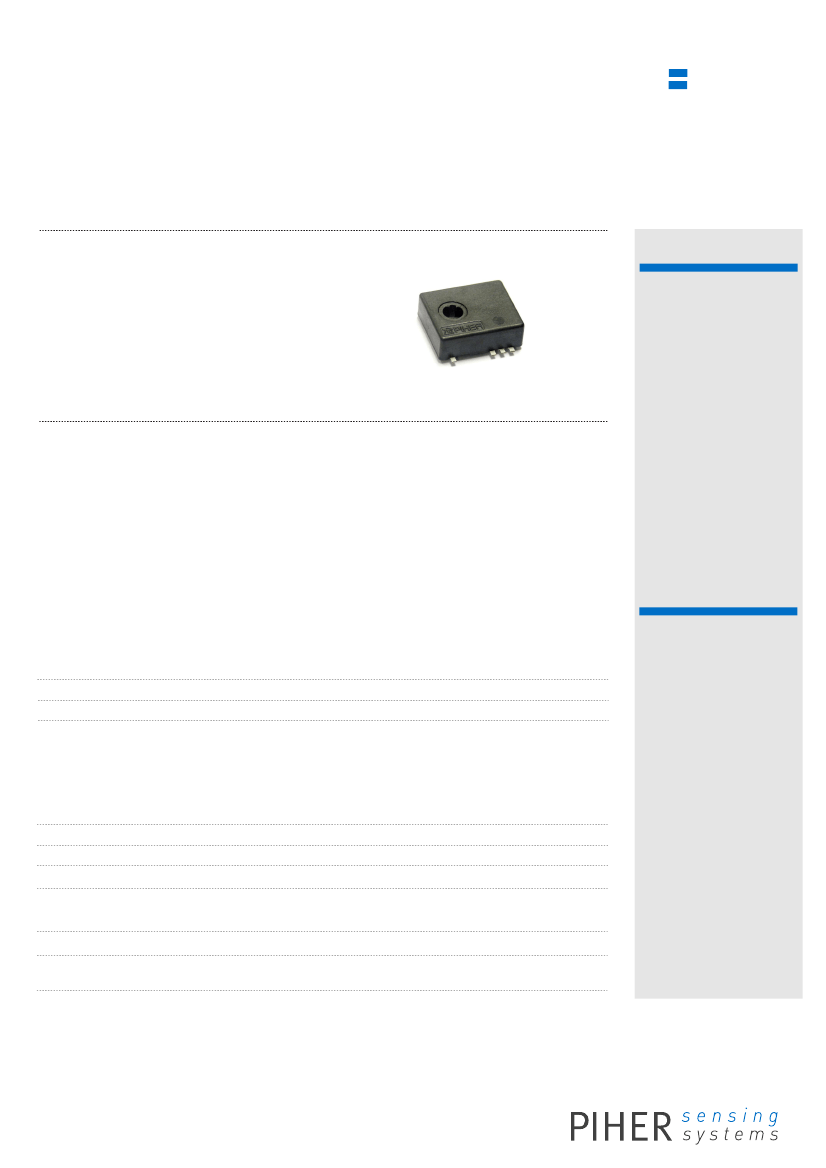

MTS-360
Output.
C0000
100%
90%
CW
C0002
(redundancy)
100%
90%
CW
%
%
10%
0%
0º
90º
180º
270º
360º
0º
90º
180º
270º
360º
50%
50%
10%
0%
C0001
100%
90%
C0003
(redundancy)
CW
100%
90%
CW
%
%
50%
45%
20%
10%
0%
0º
90º
180º
270º
360º
10%
0%
0º
90º
180º
270º
360º
Disclaimer
The product information in this catalogue is for reference purposes. Please consult for the most up to date and accurate design information.
Piher Sensors & Controls S.A., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Piher”), disclaim any and all liability for any errors,
inaccuracies or incompleteness contained herein or in any other disclosure relating to any product described herein.
Piher disclaims any and all liability arising out of the use or application of any product described herein or of any information provided herein to the maximum extent permitted by
law. The product specifications do not expand or otherwise modify Piher’s terms and conditions of sale, including but not limited to the warranty expressed therein, which apply
to these products.
No licence, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Piher.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications unless otherwise expressly indicated. Customers using or selling Piher
products not expressly indicated for use in such applications do so entirely at their own risk and agree to fully indemnify Piher for any damages arising or resulting from such use
or sale. Please contact authorised Piher personnel to obtain written terms and conditions regarding products designed for such applications.
Product names and markings noted herein may be trademarks of their respective owners.
Information contained in and/or attached to this catalogue may be subject to export control regulations of the European Community, USA, or other countries. Each recipient of this
document is responsible to ensure that usage and/or transfer of any information contained in this document complies with all relevant export control regulations. If you are in any
doubt about the export control restrictions that apply to this information, please contact the sender immediately. For any Piher Sensors & Controls SA. Exports, Note: All products
/ technologies are EAR99 Classified commodities. Exports from the United States are in accordance with the Export Administration Regulations. Diversion contrary to US law is
prohibited.
Piher is an Amphenol
TM
company.
Contact
ISO 14001
BUREAU VERITAS
Certification
Tel: +34-948-820450
sales@piher.net
www.piher.net
Note: All Piher products can be adapted to meet customer´s requirements.
Due to continuous process improvement, specifications are subject to change without notice.
Please always use the datasheets published at our website www.piher.net for the most up-to-date information.
v261118
Piher Sensors & Controls
Our product competencies and services:
Potentiometers
|
Position / angle sensors
| Rotary switches | Incremental encoders
Printed circuit resistors | Mechatronics | Value added assemblies
