THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
NOTES:
1. BRAIDED STRAP IS #4 AWG STRANDED COPPER, TIN PLATED
FERRULES ARE TIN PLATED COPPER.
L
D
2. DIMENSIONS IN PARENTHESIS ARE MILLIMETERS.
3. PARTS ARE UL LISTED AND CSA CERTIFIED FOR BONDING
APPLICATIONS ONLY.
C
US
LISTED
S
C
2 PLCS
H DIA
C
PANDUIT
PANDUIT
US
C
US
W
FERRULE
LENGTH
T
05
04
03
02
01
00
REV
6/11
2/09
1/09
1/09
2/08
DATE
JHNU JHNU
REVISED TONGUE MARKINGS: cULus WAS UL
JHNU JHNU
REMOVED CSA SYMBOL FROM DRAWING
JHNU JHNU
REMOVED AMPERE RATING FROM TABLE
JHNU JHNU
REVISED NOTES
ADDED FERRULE INFORMATION TO TABLE
#4 AWG WAS #6, REMOVED NOTE 2
N11002BF-C41745
RGB
RGB

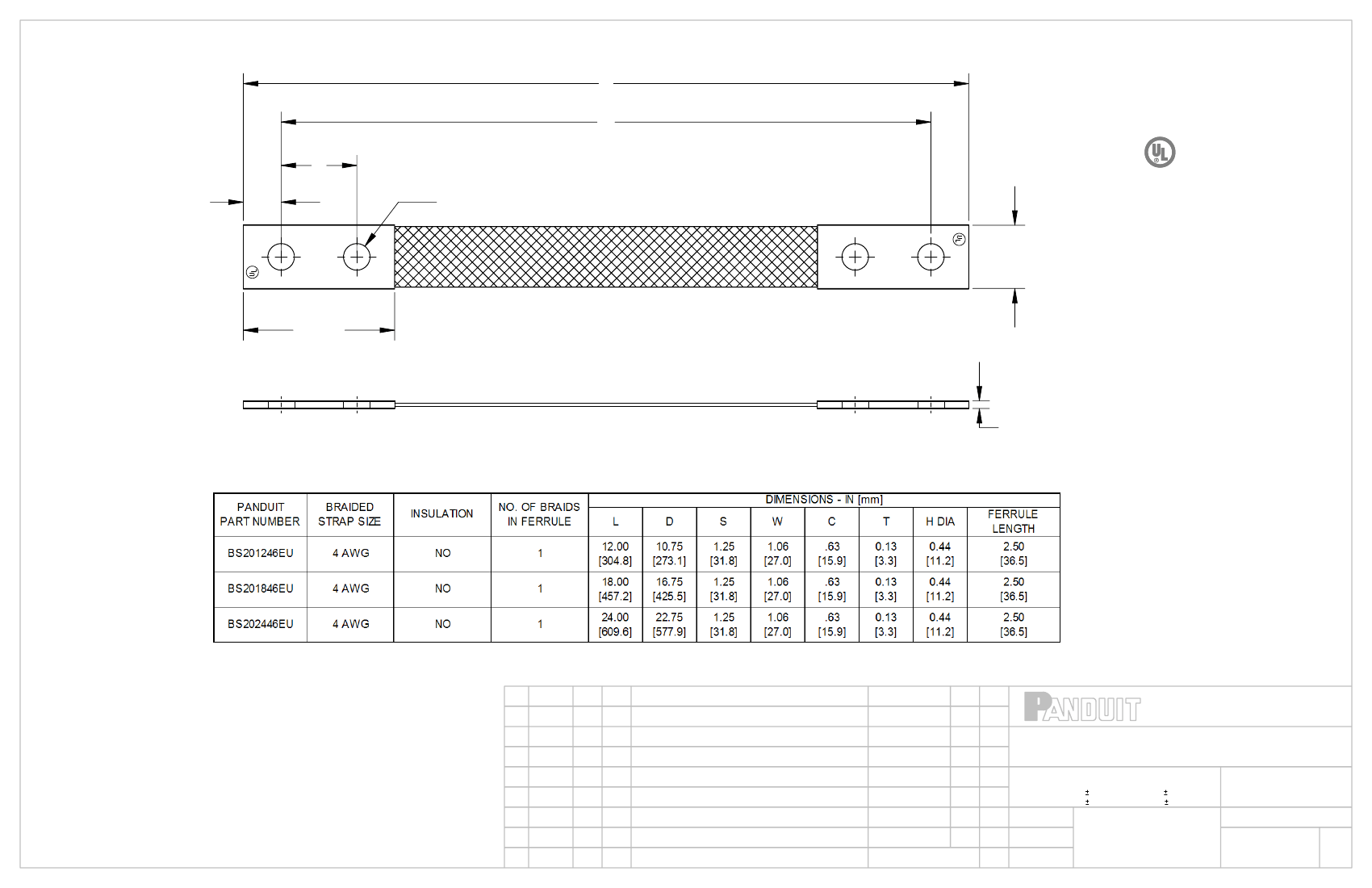

TWO-HOLE BRAIDED BONDING STRAPS
CUSTOMER DRAWING
UNLESS OTHERWISE SPECIFIED
DIMENSIONAL TOLERANCES ARE:
(.X)
(.XXX)
(.XX)
ANGLES
CORP.
TINLEY PARK, ILLINOIS
UNLESS OTHERWISE SPECIFIED,
ALL DIMENSIONS ARE GIVEN IN
INCHES, THIRD ANGLE PROJECTION
10/08
JHNU DWDA
REVISED NOTE 1:
JHNU DWDA
DRAWN BY
DATE
JHNU
2/08
MAT'L:
SCALE
NONE
DWG
SIZE
DRAWING RELEASED
DESCRIPTION
ECN
-R
SUP
DRAWING NO / CAD FILE
BY
CHK
CHK'D
C41745_05
B
