Part Number

Search

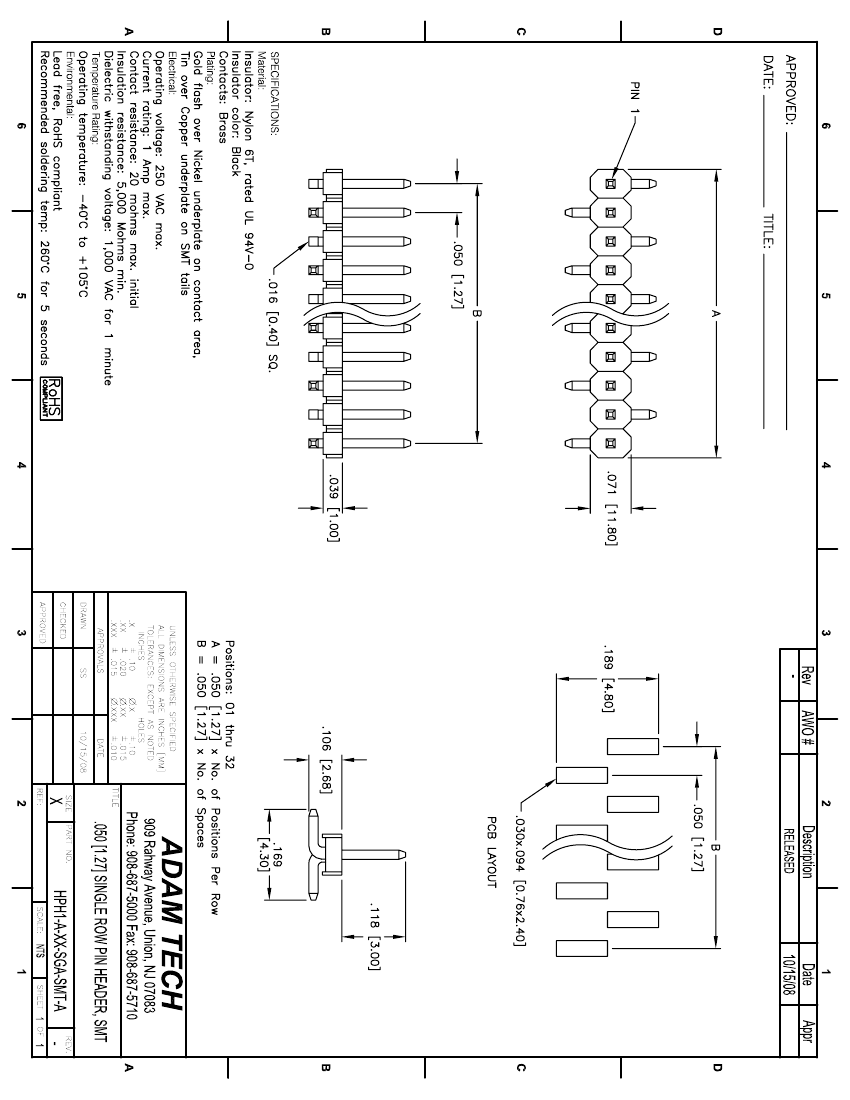

HPH1-A-22-SGA-SMT-A

Description
Board Connector, 22 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size92KB,1 Pages
ManufacturerAdam Tech
Environmental Compliance
Download Datasheet Parametric View All

HPH1-A-22-SGA-SMT-A Overview

Board Connector, 22 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

HPH1-A-22-SGA-SMT-A Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1159636521
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresROHS COMPLIANT
body width0.071 inch
subject depth0.106 inch
body length1.1 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTin (Sn)
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1000VAC V
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialPOLYAMIDE
JESD-609 codee3
Manufacturer's serial numberHPH1
Plug contact pitch0.05 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternSTAGGERED
PCB contact row spacing2.3876 mm
Plating thicknessFLASH inch
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal pitch2.54 mm
Termination typeSURFACE MOUNT
Total number of contacts22
