Shielding Enclosure
Expansion Tool Kits
58241-1, -2, and -4
PROPER USE GUIDELINES
Instruction Sheet
408-9199
10 Feb 09
Rev B
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations is available.
1. INTRODUCTION

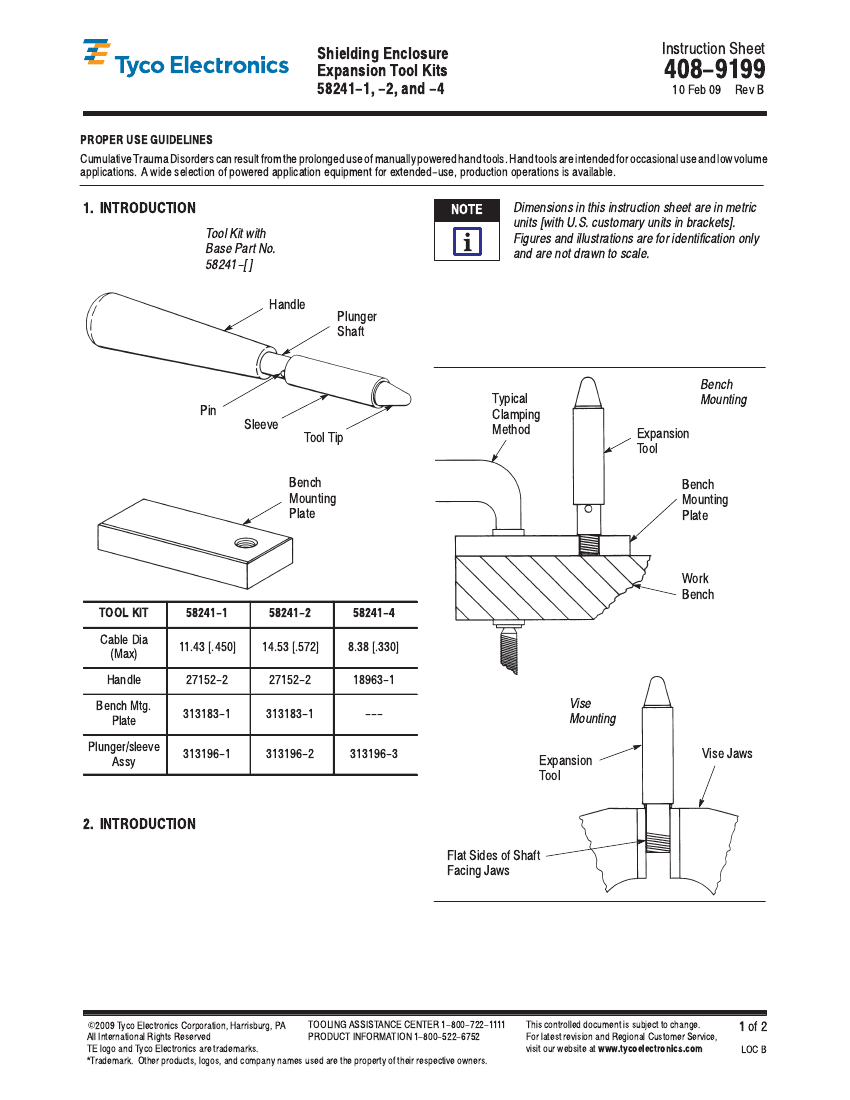

Tool Kit with
Base Part No.
58241-[ ]
Handle
Plunger
Shaft
NOTE
i
Dimensions in this instruction sheet are in metric
units [with U.S. customary units in brackets].
Figures and illustrations are for identification only
and are not drawn to scale.
Read these instructions thoroughly before using the
cover extraction tool.
Reasons for reissue of this instruction sheet are
provided in Section 5, REVISION SUMMARY.
Typical
Pin
Sleeve
T
ool Tip
Clamping
Method
Expansion
T
ool
Bench
Mounting
Bench
Mounting
Plate
Bench
Mounting
Plate
Work
Bench
TOOL KIT
Cable Dia
(Max)
58241-1
11.43 [.450]
58241-2
14.53 [.572]
58241-4
8.38 [.330]
Handle
27152-2
27152-2
18963-1
Bench Mtg.
Plate
313183-1
313183-1
---
Vise
Mounting
Expansion
T
ool
Vise Jaws
Plunger/sleeve
Assy
313196-1
313196-2
313196-3
Figure 1
2. INTRODUCTION
This instruction sheet covers use and maintenance of
Shielding Enclosure Expansion Tool Kits 58241–1,
58241–2, and 58241–4. These tools are used to
expand the cable outlet of shielding enclosures for
AMPLIMITE* connectors, allowing the enclosure to be
inserted easily over cable.
Flat Sides of Shaft
Facing Jaws
Figure 2
E
2009 Tyco Electronics Corporation, Harrisburg, PA
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
1
of 2
LOC B
www.tycoelectronics.com
*Trademark. Other products, logos, and company names used are the property of their respective owners.
Shielding Enclosure Expansion Tool Kits
408-9199

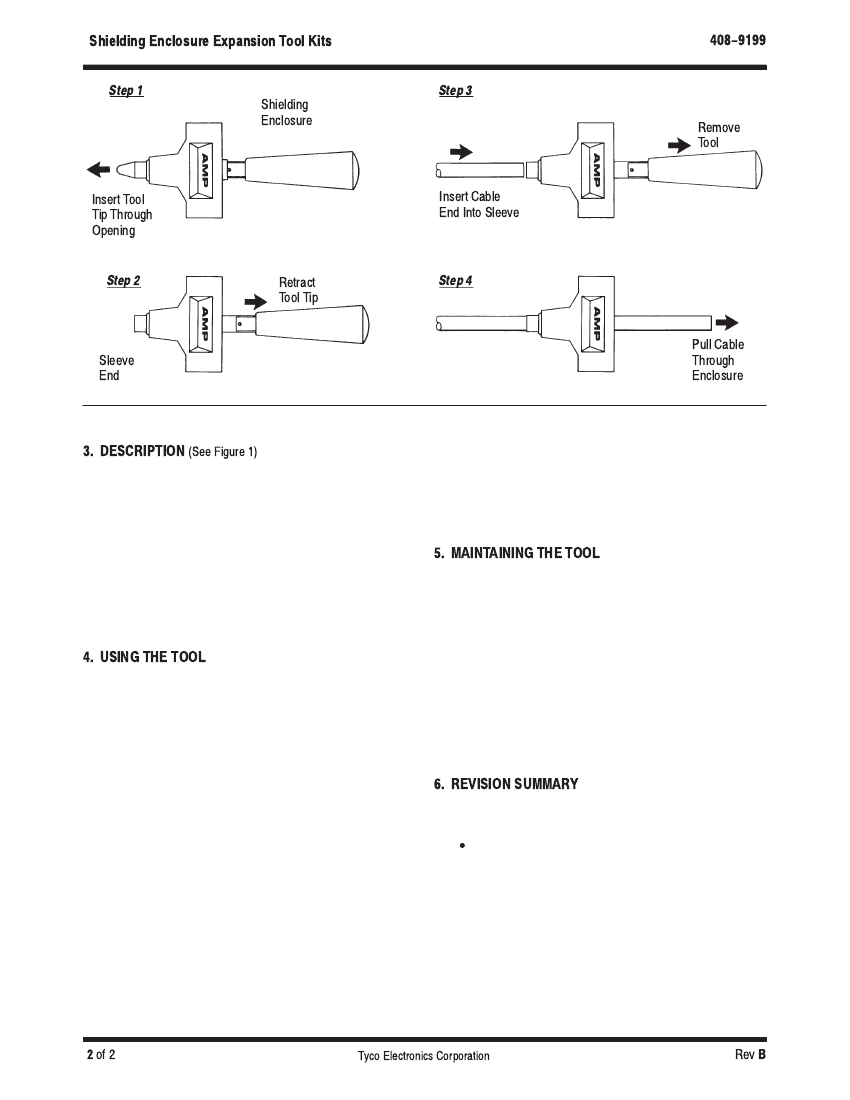

Step 1
Shielding
Enclosure
Step 3
Remove
Tool
Insert Cable
End Into Sleeve
Insert Tool
Tip Through
Opening
Step 2
Retract
Tool Tip
Step 4
Sleeve
End
Figure 3
Pull Cable
Through
Enclosure
3. DESCRIPTION
(See Figure 1)
The tools feature a metal plunger and sliding sleeve.
There is a pin in the plunger shaft that limits how far
the plunger can extend past the end of the sleeve.
The plunger shaft is threaded to receive a plastic
handle, or to be used with a bench mounting plate.
The handle and mounting plate are included in the kit.
The threaded end of the plunger is flat on both sides
so that it can also be mounted in a vise. Figure 2
shows typical bench and vise mountings.
4. Carefully slide cable through enclosure so that
enough cable protrudes to apply the connector and
shielding. Instruction sheet 408–9172 covers
connector application procedures; and 408–9218
covers shielding.
5. MAINTAINING THE TOOL
Inspect the tool when you receive it and occasionally
thereafter. When not in use, store tool in a clean, dry
area. If parts are lost or damaged, refer to Figure 1
for the correct part numbers, and order replacements
from:
CUSTOMER SERVICE (38–35)
TYCO ELECTRONICS CORPORATION
P.O. BOX 3608
HARRISBURG, PA 17105–3608
For tool repair service, please contact a Tyco
Electronics representative at 1–800–526–5136.
4. USING THE TOOL
Figure 3 shows the steps for using the tool. Steps are
the same whether tool is hand held or mounted. Make
sure tool and cable diameter are compatible
according to the table in Figure 1. Then:
1. Insert extended tool tip and sleeve through
cable opening of shielding enclosure.
2. Retract tool tip into sleeve.
3. Insert cable end into sleeve. Hold enclosure in
position on cable, and remove tool from the
enclosure.
6. REVISION SUMMARY
Since the previous release of this sheet, the following
changes were made:
S
Updated document to corporate requirements
2
of 2
Tyco Electronics Corporation
Rev
B
