One selectable frequency output of 66.6 or 75MHz (with
Double Drive Strength output).
Zero PPM synthesis error in all clocks.
Ideal for Network switches.
3.3V operation.
Available in 8-Pin 150mil SOIC
.
PLL650-06
*: bi-directional pin
+ : double strength output
DESCRIPTION
The PLL 650-06 is a low cost, low jitter, and high
performance clock synthesizer. Using PhaseLink’s
proprietary analog Phase Locked Loop techniques, this
device can produce one 50MHz output clock and one
selectable 75MHz or 66.6MHz output clock from a single
low cost 25.0MHz crystal. This makes the PLL650-06 ideal
for networking applications.
FREQUENCY TABLE
FS
0
1
Pin 6
75MHz
66.6MHz
BLOCK DIAGRAM
50MHz
XIN
XOUT
XTAL
OSC
Control
Logic
FS
1
75MHz/66MHz
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
www.phaselink.com
Rev 09/03/04 Page 1
PLL650-06
Network LAN Clock
PIN DESCRIPTIONS
Name
XIN
XOUT
50MHz/FS
75MHz / 66MHz
VDD
GND
Number
1
2
4
6
5, 8
3, 7
Type
I
I
B
O
P
P
Description
25MHz fundamental crystal input (20pF C
L
parallel resonant).
Crystal connection pin.
50MHz outputs. This pin latches the FS input value at power-up. It has a
60kΩ internal pull up resistor.
75MHz or 66.6MHz outputs with double drive strength. The output frequency
is determined by the value of FS (see pin 4).
3.3V power supply.
Ground.
FUNCTIONAL DESCRIPTION
Selectable spread spectrum and output frequencies
The PLL650-06 provides selectable output frequencies. Selection is made by connecting the selector pin to a logical “zero” or
“one”, or by leaving it not connected (internal pull-up) according to the frequency selection table shown on page 1.
Pin 4 (FS) is a bi-directional pin used to select the output frequency of pin 6 (75MHz or 66.6MHz) according to the Frequency
Selection Table on page 1. The description of how to connect this bi-directional pin follows in the next paragraph.
Connecting a bi-directional pin
A bi-directional pin serves as input upon power-up, and as output as soon as the inputs have been latched. The value of the
input is latched-in upon power-up. Depending on the pin (see pin description), the input can be tri-level or a standard two-level.
Unlike unidirectional pins, bi-directional pins cannot be connected directly to GND or VDD in order to set the input to "0" or "1",
since the pin also needs to serve as output. In the case of two level input pins, an internal pull-up resistor is present. This allows
a default value to be set when no external pull down resistor is connected between the pin and GND (by definition, a tri-level
input has a the default value of "M" (mid) if it is not connected). In order to connect a bi-directional pin to a non-default value, the
input must be connected to GND or VDD through an external pull-down/pull-up resistor.
Note:
when the output load presents a
low impedance in comparison to the internal pull-up resistor, the internal pull-up resistor may not be sufficient to pull the input up
to a logical “one”, and an external pull-up resistor may be required.
For bi-directional inputs, the external loading resistor between the pin and GND has to be sufficiently small (compared to the
internal pull-up resistor) so that the pin voltage be pulled below 0.8V (logical “zero”). In order to avoid loading effects when the
pin serves as output, the value of the external pull-down resistor should however be kept as large as possible. In general, it is
recommended to use an external resistor of around one sixth to one quarter of the internal pull-up resistor (see Application
Diagram).
Note:
when the output is used to drive a load presenting an small resistance between the output pin and VDD, this
resistance is in essence connected in parallel to the internal pull-up resistor. In such a case, the external pull-down resistor may
have to be dimensioned smaller to guarantee that the pin voltage will be low enough achieve the desired logical “zero”. This is
particularly true when driving 74FXX TTL components.
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
www.phaselink.com
Rev 09/03/04 Page 2
PLL650-06
Network LAN Clock

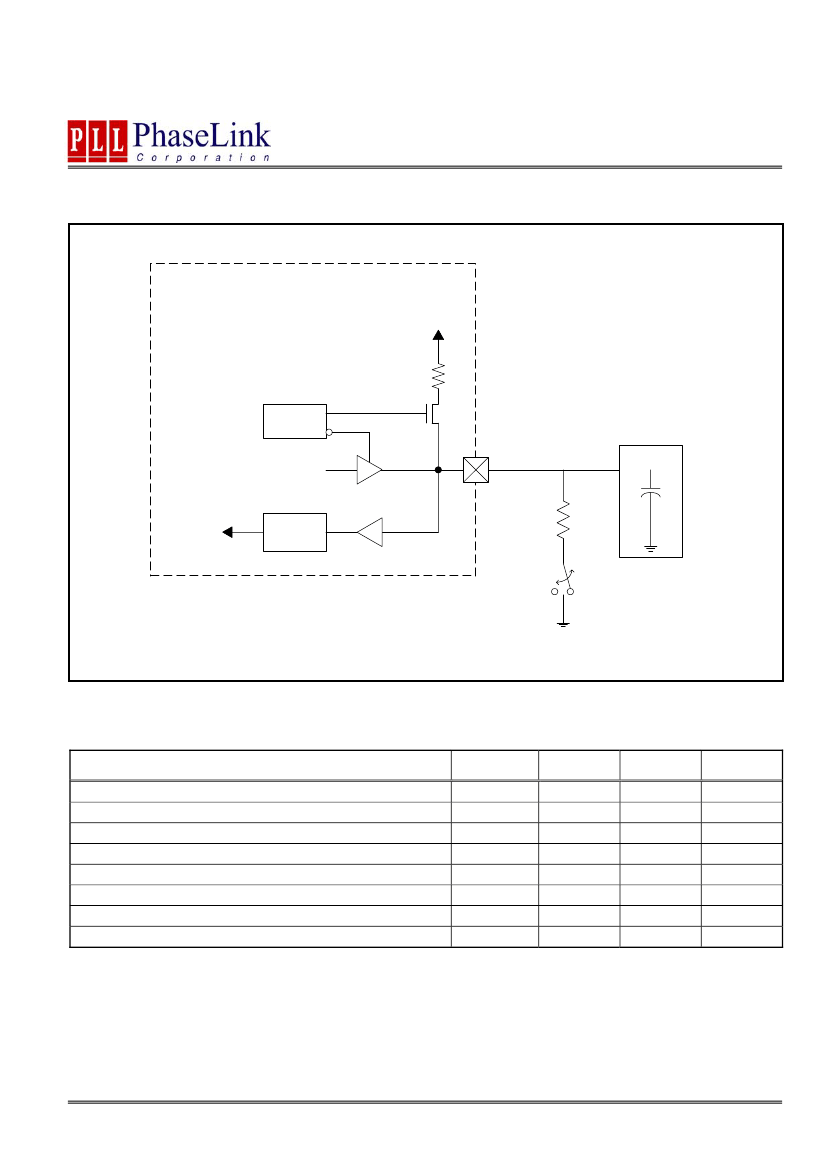

APPLICATION DIAGRAM
Internal to chip
VDD
External Circuitry
R
up
Power Up
Reset
R
RB
Output
EN
Bi-directional pin
Clock Load
Latched
Input
Latch
R
UP
/
4
Jumper options
NOTE:
Rup=60kΩ . R starts from 1 to 0 while RB starts from 0 to 1.
Electrical Specifications
1. Absolute Maximum Ratings
PARAMETERS
Supply Voltage
Input Voltage, dc
Output Voltage, dc
Storage Temperature
Ambient Operating Temperature*
Junction Temperature
Lead Temperature (soldering, 10s)
ESD Protection, Human Body Model
SYMBOL
V
DD
V
I
V
O
T
S
T
A
T
J
MIN.
-0.5
-0.5
-65
-40
MAX.
4.6
V
DD
+0.5
V
DD
+0.5
150
85
125
260
2
UNITS
V
V
V
°C
°C
°C
°C
kV
Exposure of the device under conditions beyond the limits specified by Maximum Ratings for extended periods may cause permanent damage to the device
and affect product reliability. These conditions represent a stress rating only, and functional operations of the device at these or any other conditions above
the operational limits noted in this specification is not implied.
*
Note:
Operating Temperature is guaranteed by design for all parts (COMMERCIAL and INDUSTRIAL), but tested for COMMERCIAL grade only.
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
www.phaselink.com
Rev 09/03/04 Page 3
PLL650-06
Network LAN Clock
2. AC Specifications
PARAMETERS
Input Frequency
Output Rise Time
Output Fall Time
Duty Cycle
Max. Absolute Jitter
Max. Jitter, cycle to cycle
CONDITIONS
0.8V to 2.0V with no load
2.0V to 0.8V with no load
@ 50% V
DD
Short term
MIN.
10
TYP.
25
MAX.
27
1.5
1.5
55
80
UNITS
MHz
ns
ns
%
ps
ps
45
50
±150
3. DC Specifications
PARAMETERS
Operating Voltage
Input High Voltage
Input Low Voltage
Input High Voltage
Input Low Voltage
Input High Voltage
Input Low Voltage
Output High Voltage
Output Low Voltage
Output High Voltage At
CMOS Level
Operating Supply Current
Short-circuit Current
Nominal output current*
Nominal output current*
Internal pull-up resistor
Internal pull-up resistor
SYMBOL
V
DD
V
IH
V
IL
V
IH
V
IL
V
IH
V
IL
V
OH
V
OL
V
OH
I
DD
I
S
I
out
I
out
R
up
R
up
CONDITIONS
MIN.
2.97
TYP.
V
DD
/2
V
DD
/2
MAX.
3.63
V
DD
/2 - 1
0.5
UNITS
V
V
V
V
V
V
V
V
V
V
For all Tri-level input
For all Tri-level input
For all normal input
For all normal input
I
OH
= -25mA
I
OL
= 25mA
I
OH
= -8mA
No Load
CMOS output level
TTL output level
Pins 5,7
Pin 2
V
DD
-0.5
2
0.8
2.4
0.4
V
DD
-0.4
35
35
20
±50
40
25
60
120
mA
mA
mA
mA
kΩ
kΩ
*: Output strengths are doubled (i.e. min. CMOS level is 70mA, typ. CMOS level is 80mA) on pin 6 (output for 75MHz or 66.6MHz)
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
www.phaselink.com
Rev 09/03/04 Page 4
PLL650-06
Network LAN Clock

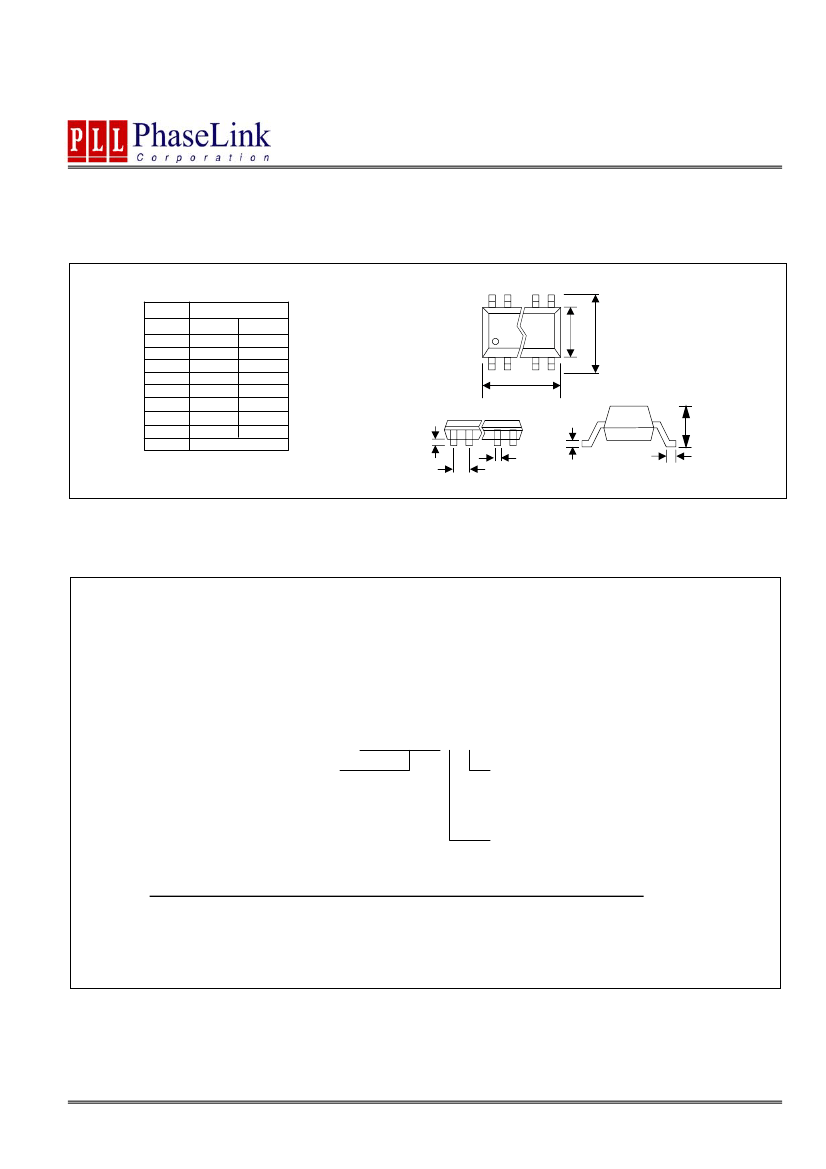

PACKAGE INFORMATION
8 PIN ( dimensions in mm )
Narrow SOIC
Symbol
A
A1
B
C
D
E
H
L
e
Min.
1.47
0.10
0.33
0.19
4.80
3.80
5.80
0.38
1.27 BSC
Max.
1.73
0.25
0.51
0.25
4.95
4.00
6.20
1.27
A
1
e
B
A
C
L
D
E
H
ORDERING INFORMATION
For part ordering, please contact our Sales Department:
47745 Fremont Blvd., Fremont, CA 94538, USA
Tel: (510) 492-0990 Fax: (510) 492-0991
PART NUMBER
The order number for this device is a combination of the following:
Device number, Package type and Operating temperature range
PLL650-06 S C
PART NUMBER
TEMPERATURE
C=COMMERCIAL
I=INDUSTRAL
PACKAGE TYPE
S=SOIC
Order Number
PLL650-06SC-R
PLL650-06SC
Marking
P650-06SC
P650-06SC
Package Option
SOIC - Tape and Reel
SOIC - Tube
PhaseLink Corporation, reserves the right to make changes in its products or specifications, or both at any time without notice. The information
furnished by Phaselink is believed to be accurate and reliable. However, PhaseLink makes no guarantee or warranty concerning the accuracy of said
information and shall not be responsible for any loss or damage of whatever nature resulting from the use of, or reliance upon this product.
LIFE SUPPORT POLICY:
PhaseLink’s products are not authorized for use as critical components in life support devices or systems without the
express written approval of the President of PhaseLink Corporation.
