12-27 MHz XO IC with 3 Pairs of LVDS and 1 CMOS Outputs
FEATURES
•
•
•
•
•
•
•
Low jitter XO for the 12MHz to 27MHz range.
Integrated crystal load capacitor: no external
load capacitor required.
3 pairs of LVDS outputs and 1 CMOS output.
12-27 MHz fundamental crystal input.
Low jitter (RMS): 2.5 ps period jitter (1 sigma).
2.5V to 3.3V operation.
Available in 16-Pin SSOP package.
PIN CONFIGURATION
(Top View)
VDDBUF
VDDANA
VDDANA
XOUT
XIN
GNDBUF
GNDANA
CMOS_CLK
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
LVDS1BAR_CLK
LVDS1_CLK
GNDBUF
LVDS2BAR_CLK
LVDS2_CLK
VDDBUF
LVDS3BAR_CLK
LVDS3_CLK
16 - pin SSOP
PLL602-89T
DESCRIPTION
The PLL602-89T is a high performance multiple output XO IC chip. It provides 3 pairs of LVDS and 1 CMOS out-
puts. The chip combines a crystal oscillator (XO) with a multiple-output buffer. It accepts a low cost fundamental
parallel resonant mode crystal from 12MHz to 27MHz, which is reproduced at the outputs. The very low jitter (2.5
ps RMS period jitter) makes this chip ideal for data and telecommunication applications.

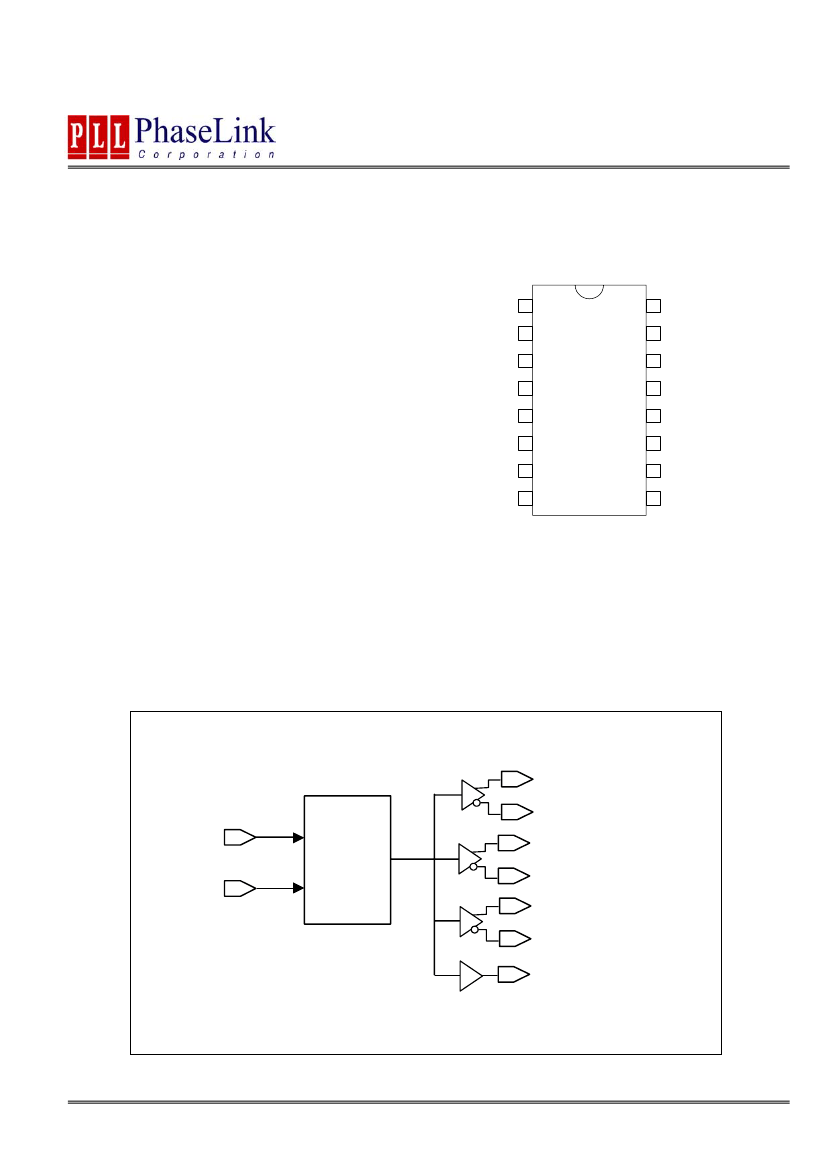

BLOCK DIAGRAM
LVDS1_CLK
LVDS1BAR_CLK
XIN
XOUT
Oscillator
Amplifier
LVDS2_CLK
LVDS2BAR_CLK
LVDS3_CLK
LVDS3BAR_CLK
CMOS_CLK
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
www.phaselink.com
Rev 09/03/04 Page 1
Preliminary
PLL602-89T
12-27 MHz XO IC with 3 Pairs of LVDS and 1 CMOS Outputs
PIN DESCRIPTION
Name
VDD
XOUT
XIN
GND
CMOS_CLK
LVDS3_CLK
LVDS3BAR_CLK
LVDS2_CLK
LVDS2BAR_CLK
LVDS1_CLK
LVDS1BAR_CLK
Pin
Number
1,2,3,11
4
5
6,7,14
8
9
10
12
13
15
16
Type
P
I
I
P
O
O
O
O
O
O
O
Description
+3.3V VDD connection. VDDANA and VDDBUF should be decoupled sepa-
rately.
Crystal out connector. This is the output of the crystal oscillator circuitry.
The crystal should be mounted as close to the IC as possible, with minimum
parasitic capacitance.
Crystal in connector. This is the input of the crystal oscillator circuitry. The
crystal should be mounted as close to the IC as possible, with minimum
parasitic capacitance.
Ground connection.
CMOS output signal.
LVDS output.
LVDS complementary output.
LVDS output.
LVDS complementary output.
LVDS output.
LVDS complementary output.
ELECTRICAL SPECIFICATIONS
1. Absolute Maximum Ratings
PARAMETERS
Supply Voltage
Input Voltage, dc
Output Voltage, dc
Storage Temperature
Ambient Operating Temperature*
Junction Temperature
Lead Temperature (soldering, 10s)
ESD Protection, Human Body Model
SYMBOL
V
DD
V
I
V
O
T
S
T
A
T
J
MIN.
-0.5
-0.5
-65
-40
MAX.
4.6
V
DD
+0.5
V
DD
+0.5
150
85
125
260
2
UNITS
V
V
V
°C
°C
°C
°C
kV
Exposure of the device under conditions beyond the limits specified by Maximum Ratings for extended periods may cause permanent damage to the
device and affect product reliability. These conditions represent a stress rating only, and functional operations of the device at these or any other
conditions above the operational limits noted in this specification is not implied.
* Note:
Operating Temperature is guaranteed by design for all parts (COMMERCIAL and INDUSTRIAL), but tested for COMMERCIAL grade only.
2. Crystal Specifications
PARAMETERS
Crystal Resonator Frequency
Crystal Loading Rating
Recommended ESR
SYMBOL
F
XIN
C
L (xtal)
R
E
CONDITIONS
Parallel Fundamental Mode
MIN.
12
TYP.
21.5
MAX.
27
30
UNITS
MHz
pF
Ω
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
www.phaselink.com
Rev 09/03/04 Page 2
Preliminary
PLL602-89T
12-27 MHz XO IC with 3 Pairs of LVDS and 1 CMOS Outputs
3. General Electrical Specifications
PARAMETERS
Operating Voltage
Supply Current, Dy-
namic (with Loaded
Outputs)
Short Circuit Current
SYMBOL
V
DD
I
DD
CONDITIONS
CMOS outputs
loaded with 15pF,
LVDS outputs loaded
with 100
Ω
Fout = 12 MHz
Fout = 25 MHz
MIN.
2.25
TYP.
15
20
±50
MAX.
3.63
20
25
UNITS
V
mA
mA
4. AC Electrical Specifications
PARAMETERS
Input Crystal Frequency
Output Clock Rise Time
Output Clock Fall Time
Output Clock Duty Cycle
t
r
t
r
t
f
t
f
0.8V ~ 2.0V with 10 pF load
0.3V ~ 3.0V with 15 pF load
2.0V ~ 0.8V with 10 pF load
3.0V ~ 0.3V with 15pF load
Measured @ 1.25 V (LVDS)
Measured @ 50% V
DD
(CMOS)
SYMBOL
CONDITIONS
MIN.
12
TYP.
MAX.
27
1.5
5
1.5
5
55
55
UNITS
MHz
2
2
50
50
ns
45
45
%
5. Jitter Specifications
PARAMETERS
Period jitter RMS
Peak to Peak jitter
CONDITIONS
With capacitive decoupling between
VDD and GND.
With capacitive decoupling between
VDD and GND. Over 10,000 cycles.
FREQUENCY
25MHz
25MHz
MIN.
TYP.
2.5
18
MAX.
4
30
UNITS
ps
ps
6. CMOS Output Electrical Specifications
PARAMETERS
Output
Output
Output
level
Output
High Voltage
Low Voltage
High Voltage at CMOS
drive current
SYMBOL
V
OH
V
OL
V
OHC
CONDITIONS
I
OH
= -12mA
I
OL
= 12mA
I
OH
= -4mA
At TTL level
MIN.
2.4
TYP.
MAX.
0.4
UNITS
V
V
V
mA
V
DD
– 0.4
10
7. CMOS Switching Characteristics
PARAMETERS
Output Clock Rise/Fall Time
(Standard Drive)
SYMBOL
CONDITIONS
0.8V ~ 2.0V with 10 pF load
0.3V ~ 3.0V with 15 pF load
MIN.
TYP.
1.15
2.4
MAX.
UNITS
ns
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
www.phaselink.com
Rev 09/03/04 Page 3
Preliminary
PLL602-89T
12-27 MHz XO IC with 3 Pairs of LVDS and 1 CMOS Outputs

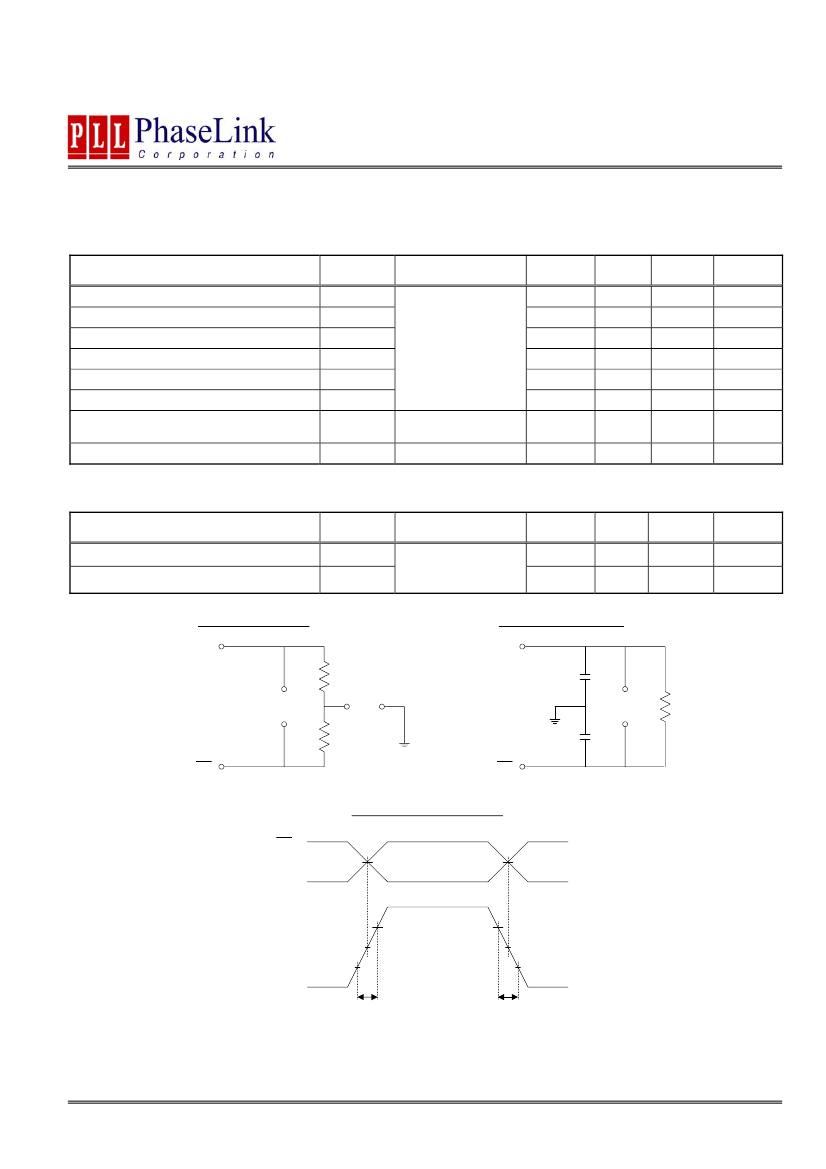

8. LVDS Electrical Characteristics
PARAMETERS
Output Differential Voltage
V
DD
Magnitude Change
Output High Voltage
Output Low Voltage
Offset Voltage
Offset Magnitude Change
Power-off Leakage
Output Short Circuit Current
SYMBOL
V
OD
∆V
OD
V
OH
V
OL
V
OS
∆V
OS
I
OXD
I
OSD
CONDITIONS
MIN.
247
-50
TYP.
355
1.4
1.1
1.2
3
±1
-5.7
MAX.
454
50
1.6
1.375
25
±10
-8
UNITS
mV
mV
V
V
V
mV
uA
mA
R
L
= 100
Ω
(see figure)
0.9
1.125
0
V
out
= V
DD
or GND
V
DD
= 0V
9. LVDS Switching Characteristics
PARAMETERS
Differential Clock Rise Time
Differential Clock Fall Time
LVDS Levels Test Circuit
OUT
SYMBOL
t
r
t
f
CONDITIONS
R
L
= 100
Ω
C
L
= 10 pF
(see figure)
MIN.
0.2
0.2
TYP.
0.7
0.7
MAX.
1.0
1.0
UNITS
ns
ns
LVDS Switching Test Circuit
OUT
50Ω
C
L
= 10pF
V
OD
V
OS
V
DIFF
R
L
= 100Ω
50Ω
C
L
= 10pF
OUT
OUT
LVDS Transistion Time Waveform
OUT
0V (Differential)
OUT
80%
V
DIFF
20%
0V
80%
20%
t
R
t
F
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
www.phaselink.com
Rev 09/03/04 Page 4
Preliminary
PLL602-89T
12-27 MHz XO IC with 3 Pairs of LVDS and 1 CMOS Outputs

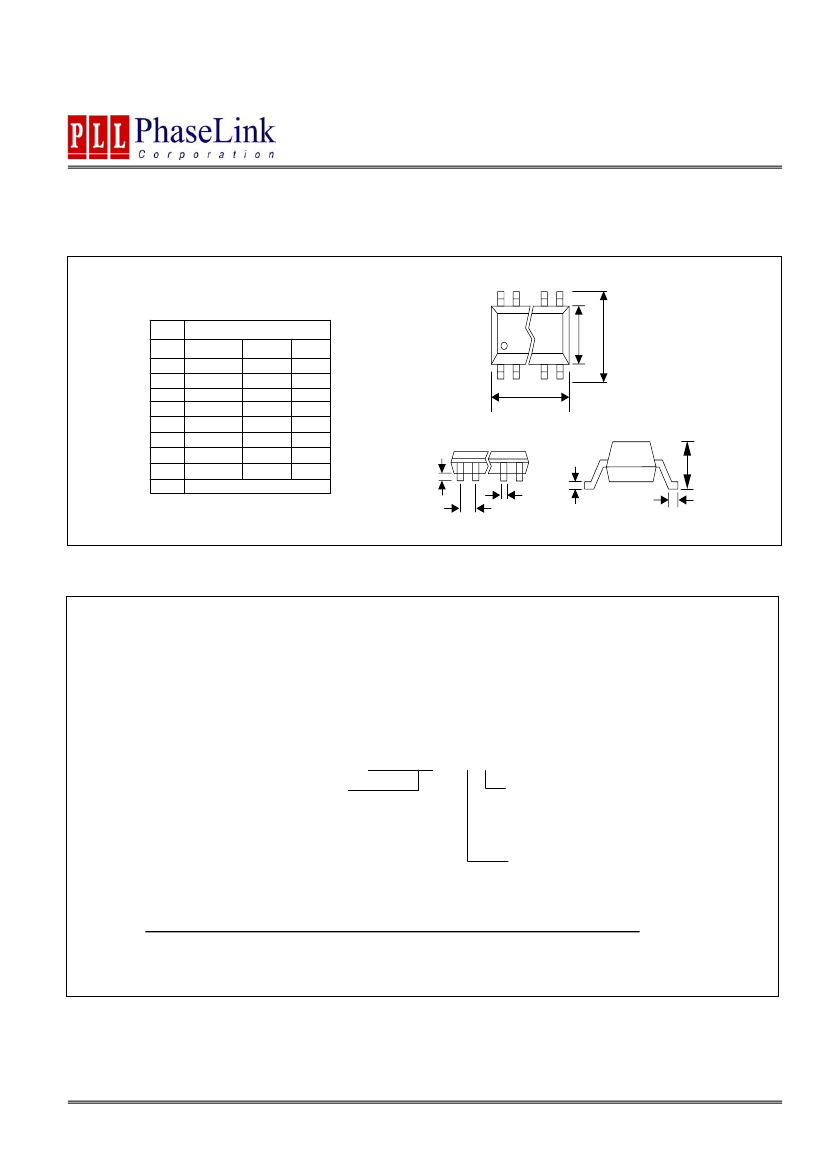

PACKAGE INFORMATION
16 PIN SSOP ( inch )
SSOP
Symbol
A
A1
B
C
D
E
H
L
e
Min.
.053
.004
.008
.007
.189
.150
.228
.016
Nom.
.064
.006
-
-
.193
.154
.236
.025
.025 BASIC
Max.
.069
.010
.012
.010
.197
.157
.244
.050
A1
B
C
L
e
A
D
E
H
ORDERING INFORMATION
For part ordering, please contact our Sales Department:
47745 Fremont Blvd., Fremont, CA 94538, USA
Tel: (510) 492-0990 Fax: (510) 492-0991
PART NUMBER
The order number for this device is a combination of the following:
Device number, Package type and Operating temperature range
PLL602-89T
PART NUMBER
XC
TEMPERATURE RANGE
C=COMMERCIAL
I=INDUSTRIAL
PACKAGE TYPE
X=SSOP
Order Number
PLL602-89TXC-R
PLL602-89TXC
Marking
P602-89T XC
P602-89T XC
Package Option
SSOP - Tape and Reel
SSOP - Tube
PhaseLink Corporation, reserves the right to make changes in its products or specifications, or both at any time without notice. The information urnished
by Phaselink is believed to be accurate and reliable. However, PhaseLink makes no guarantee or warranty concerning the accuracy of said information
and shall not be responsible for any loss or damage of whatever nature resulting from the use of, or reliance upon this product.
LIFE SUPPORT POLICY:
PhaseLink’s products are not authorized for use as critical components in life support devices or systems
without the express written approval of the President of PhaseLink Corporation.
47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991
