TC05-Series Specifications
5.00L x 3.20W x 1.27H (mm)
PDI
TC05-Series
Temperature Compensated Crystal Oscillator (TCXO) ensures a
precise frequency under demanding circumstances. With ultra-low phase noise,
low jitter, and excellent performance in high vibration environments this TCXO
available, in both standard and custom frequencies. PDI provides fast sampling
for your proto-typing needs, mass production capability, and competitive pricing.
ex)
TC—T—5—25000X—C—N—D—2—R—X
*
ENABLE
T
= Tri-State
0
= No/Connect
FREQUENCY
12000X-27000X
=
12.000MHz –
27.000MHz
OUTPUT
C
= TTL/CMOS
O
= LVCMOS
W
= Clipped Sine
FREQUENCY
STABILITY
K
= +/-0.5
(Temp A & B)
L
= +/-1.0
(Temp A & B)
M
= +/-2.0
N
= +/-2.5
S
= Special
OPERATING
TEMPERATURE
A
= 0 to +70°C
B
= -20 to +70°C
D
= -40 to +85°C
S
= Special
SUPPLY
VOLTAGE
1
= 1.8
2
= 2.5
F
= 3.0
3
= 3.3
PACKAGE
R
= Tape & Reel
*(X) for standard or assigned for custimization.
Parameter
Frequency Range
vs Temperature (Max.)
vs Supply Voltage (Max. for a 5% charge)
vs Load (Max. for a 10% charge)
vs Aging (Max. per year)
Calibration (@ +25°C)
1 Hour After Refow (Max.)
Temperature Range
Supply Current (Maximum)
Waveform
Output (Minimum)
Load (±10%)
Start Up Time (Maximum)
Operating
Storage
12.00000 to 27.000000 MHz
Peak to Peak
Supply Voltage Range (±5%)
1.8 to 3.3
12.000000 to 27.000000
±0.5 to ±2.5
*1
±0.2
±0.2
±1
±2
Per Option
-40 to +85
2.0
Clipped Sinewave
0.8
10 kΩ//10pF
10
-70
-100
-130
-140
-140
SIZE:
A
CAGE:
A
Units
V
MHz
Frequency Stability
ppm
°C
mA
V
ms
Phase Noise (Typical) (For 19.2 MHz)
@ 10 Hz
@ 100 Hz
@ 1 kHz
@ 10 kHz
@ 100 kHz
REV:
NA
dBc/Hz
1
of
3
TC05-Series
5.00 x 3.20 x 1.27
(mm)
PDI
TC05-Series
Temperature Compensated Crystal Oscillator (TCXO) ensures
a precise frequency under demanding circumstances. With ultra-low phase
noise, low jitter, and excellent performance in high vibration environments
this TCXO available, in both standard and custom frequencies. PDI provides
fast sampling for your proto-typing needs, mass production capability,
and competitive pricing.
PIN
1
2
3
4
CONNECTION
Tri-State
No Connect
Ground/Case
Output
Supply Voltage
Top View:
.197±.004
[5.00±0.10]
Traceability Code
.063
[1.60]
P FKA
Frequency
D/C
Pin 1
.126±.004
[3.20±.10]
.052
[1.32]
#4
#3
.098±.004
[2.50±0.10]
#1
.050±.004
[1.27±.10]
.100±.004
[2.54±0.10]
#2
.047±.006
[1.20±.15]
Recommended Land Pattern
#1
#2
.040±.006
[1.00±.15]
#4
.100±.006
[2.54±0.15]
Bottom View:
#3
GR
EE
N
P
ROD
U
Compliant
EU 2002/95/EC
e
c
,
i
s
i
o
n
D
e
v
i
c
e
s
RoHS
*1
Dependant on Operating
Temperature Range.
*2
Over voltage control range
applied to Pin 1.
*3
Increasing control voltage
increases output frequency.
REV:
NA
NOTES:
Terminals are Au.
Other options are available, please consult factory.
All product is supplied
RoHS
and
REACH
compliant.
Product can be supplied on Tape and Reel, on reels of 1,000 units.
Not all Frequency/Temperature combinations are available.
Decimal
XXX = ± .008, XX = ± .020
Metric
[XXX = ± .20], [XX = ± .50]
Specifications subject to change without notice, last updated 4/1/13.
SIZE:
A
CAGE:
A
I
n
c
.
CT
P
r
1
of
3
TC05-Series
5.00 x 3.20 x 1.27
(mm)

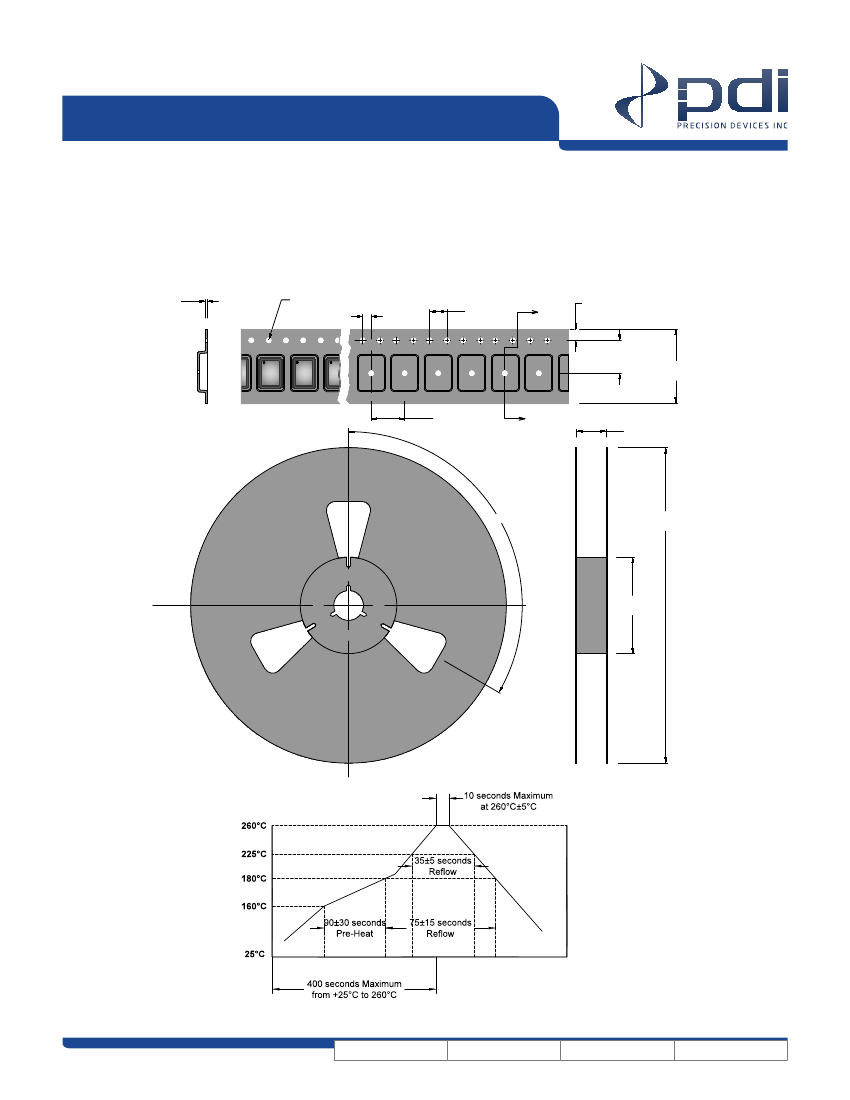

1.
Material: Black Conductive Polystyrene or equivalent.
2.
10 Sprocket Hole pitch cumulative tolerance of ±.008.
3.
Camber in compliance with EIA 481.
4.
Empty pockets: Trailing end (Minimum) 200 mm. and Leading end (Minimum) 400 mm.
5.
Pocket position relative to sprocket hole measured as true position of pocket, not pocket hole.
.012±.002
[0.30±.05]
Ø.059
[Ø1.50]
.079
[2.00]
.157 Typ.
[4.00 Typ.]
A
.069
[1.75]
.217
[5.50]
D/C P
P FKA
.472 ±.012
[12.00 ±.30]
D/C P
P FKA
D/C P
Section A-A
.315 Typ.
[8.00 Typ.]
A
.480
[12.20]
120°
Ø7.09
[Ø180.00]
3.15
[80.00]
REV:
NA
SIZE:
A
CAGE:
A
1
of
3
