Specifications
.050 x .050 Stacking SMT Header
9600 Series Headers
Insulator Material: Glass filled polyester, Thermoplastic,
94V-O Nylon-6T, UL Recognized.
Contact Material: Copper Alloy
Contact Plating: Gold or Tin over .000050” Ni
(See contact plating options).
Insulation Resistance:
5000 M ohms min.
Dielectric Withstand Voltage: 500 VAC
Current Rating:
1 AMP
Operating Temperature:
-40°C To +105°C
Max. Operating Temp.:
230°C for 60 seconds
UL File Numbers:
E146967 & E176234
A
B

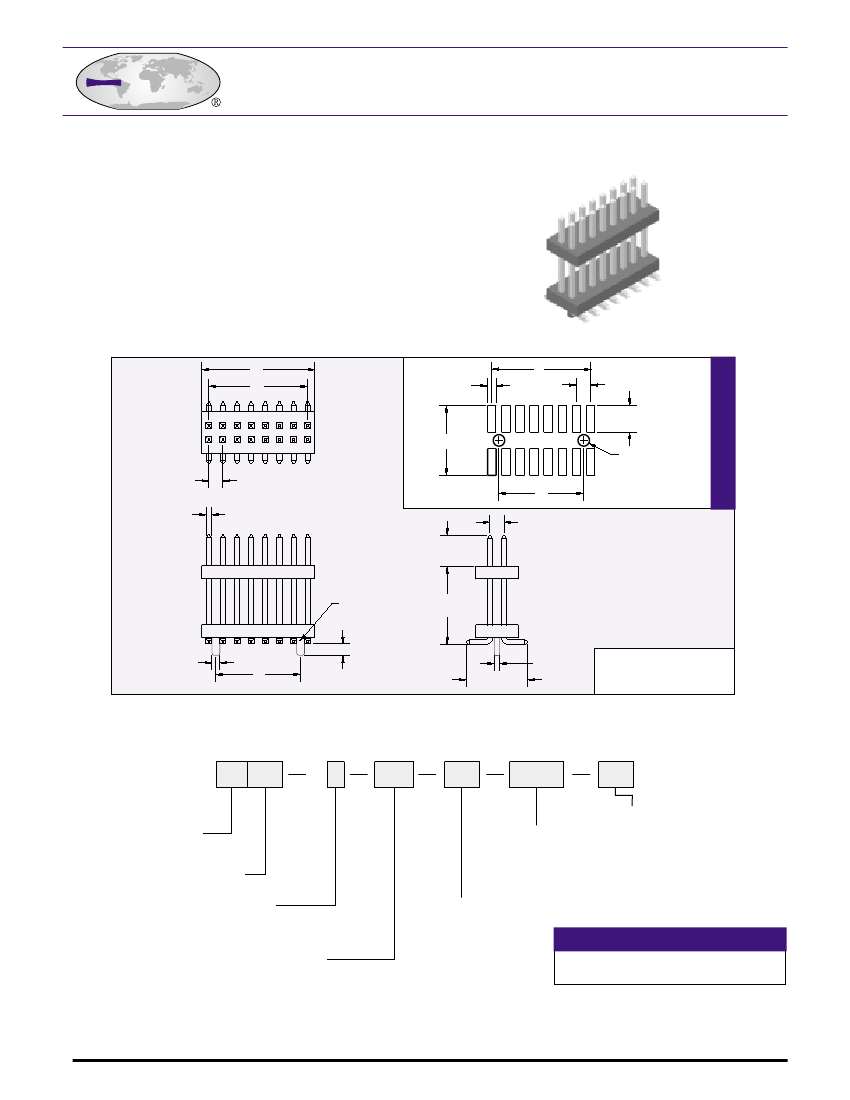

.030 [.76]
B
.050 [1.27]
PCB LAYOUT
.095 [2.40]
.248 [6.30]
Ø .041+.002 [1.05]
--.000
.050 [1.27]
C
.016 [0.40] SQ.
.050 [1.27]
CONTACT
-
LOCATING PEG
(OPTIONAL)
STACK HEIGHT
.039 [1.00]
.028 [.70]
C
.020 [.50]
.217 [5.50]
A
= .050 xNo. of Pos. ±.020
B
= .050 x(No. of Cont./2 -1)
C
= .050 x(No. of Cont./2 -2)
ALL DIMENSIONS ARE IN INCHES & [MM]
PART NUMBERING
96 XX
SERIES CODE
.050 HEADERS
H X
XXX
XX
XXXX
STACK HEIGHT
Ex.
0.600 =
0600
1.200 =
1200
XX
PACKAGING
TR
= TAPE & REEL PACKAGING
PP
= PICK AND PLACE PAD
BLANK = STANDARD PACKAGING
NO. OF CONTACTS
06 - 98
100 =
01
CONSULT FACTORY FOR
TR
AND
PP
PACKAGING
AVAILABILITY
LOCATING PEG
1
= WITH LOCATING PEG
2
= WITHOUT LOCATING PEG
CONTACT PLATING
.000050” Nickel underplate
CONTACT TAIL
00
= 100µ”Sn
100µ”Sn
03
= Flash Au
Flash Au
80
= 10µ”Au
10µ”Au
90
= 30µ”Au
30µ”Au
SUGGESTED MATING CONNECTORS
CONTACT LENGTH
Ex.:
120
= .120 [3.05]
96XXS-DX-XX-XX-XX (PAGE F-19)
96XXS-EX-XX-XX-XX (PAGE F-20)
CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION
