ECS-2033-110-CN datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ECS-2033-110-CN

ECS-2033-110-CN: DescriptionHCMOS Output Clock Oscillator, 11MHz Nom, ROHS COMPLIANT, SUB MINIATURE, SMD, 4 PIN; CategoryPassive components oscillator; File Size255KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-2033-110-CN Overview

HCMOS Output Clock Oscillator, 11MHz Nom, ROHS COMPLIANT, SUB MINIATURE, SMD, 4 PIN

ECS-2033-110-CN Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1240472906
Reach Compliance Code	compliant
YTEOL	6.96
Other features	TRI-STATE; TAPE AND REEL
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	11 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	2.5mm x 2.0mm x 0.9mm
longest rise time	10 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	GOLD OVER NICKEL

Preview

Download Datasheet

View All

Low Voltage HCMOS

2.5 x 2.0 mm Footprint

Low current consumption

Pb Free/RoHS Compliant

ECS-2025/2033

SMD CLOCK OSCILLATOR

ECS-2025 (2.5V) and ECS-2033 (3.3V) subminiature SMD

oscillators. Ideal for today's high density applications.

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

ECS-2025 (+2.5V)

ECS-2033 (+3.3V)

PARAMETERS

Frequency Range

Operating Temperature

Storage Temperature

Supply Voltage

Frequency Stability *

CONDITIONS

MIN

0.750

-10

-40

-55

+2.375

TYP

MAX

MIN

TYP

MAX

75.000

+70

+85

+100

+3.465

± 100

± 50

± 25

45/55

10% VDD

UNITS

MHz

°C

VDC

ppm

µA

VDC

ppm

Standard

Extended (N Option)

VDD

Option A

Option B

Option C

0.75 to 20 MHz

20.1 to 40 MHz

40.1 to 60 MHz

60.1 to 75 MHz

Pin 1 = VIL

@ 50% VDD level

10% VDD to 90% level

VOL

VOH

CMOS

+2.5

Input Current

Stand-by Current

Output Symmetry

Rise and Fall Times

"0" level

"1" level

Output Load

Disable delay time

Startup time

Aging

75.000 0.750

+70

-10

+85

-40

+100

-55

+2.625 +3.135

± 100

± 50

± 25

40/60

10% VDD

90% VDD

+3.3

90% VDD

150

±5

150

±5

* Note: Inclusive of 25°C tolerance, operating temperature,input voltage change, load change, shock and vibration.

DIMENSIONS (mm)

Pin Connections

Pin #1

Pin #2

Pin #3

Pin #4

Tri-State

Ground

Output

Tri-State Control Voltage

Pad 1

Open

VIH 70% VDD Min

VIL 30% VDD Max

Pad 3

Oscillation

No Oscillation

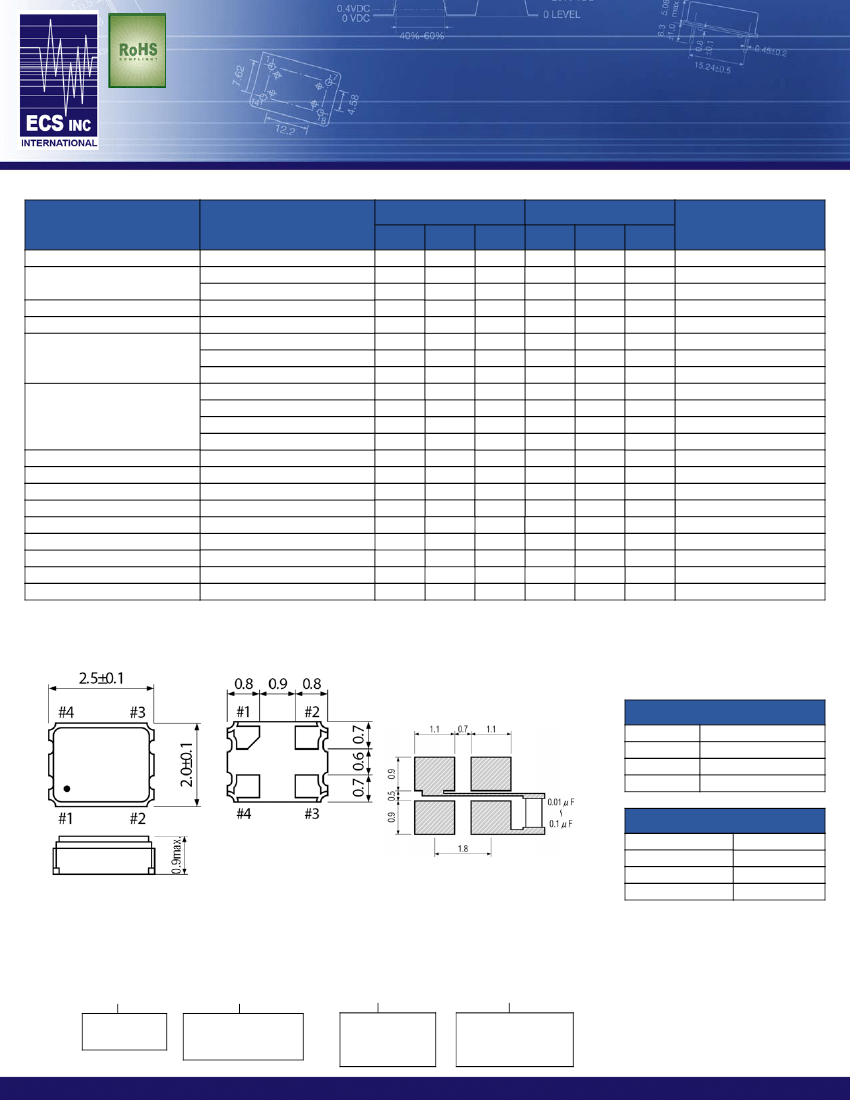

Figure 1) Top, Side and Bottom views

Figure 2) Suggested Land Pattern

Note: Internal crystal oscillation to be halted

(Pin #1=VIL)

PART NUMBERING GUIDE: Example ECS-2033-200-BN

ECS

Series

2025 = +2.5V

2033 = +3.3V

Frequency Abbreviation

200 = 20.000 MHz

See Frequency

Abbreviations (Pg 2)

Stability

Temperature

Blank = -10 ~ +70°C

M = -20 ~ +70°C

N = -40 ~ +85°C

Fax: 913.782.6991

www.ecsxtal.com

A = ± 100 ppm

B = ± 50 ppm

C = ± 25 ppm

1105 South Ridgeview Road

Olathe, KS 66062

Phone: 913.782.7787
