MAC4SM Overview

SENSITIVE GATE TRIACS

MAC4SM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ON Semiconductor
Parts packaging code	TO-220AB
package instruction	CASE 221A-09, 3 PIN
Contacts	3
Manufacturer packaging code	CASE 221A-09
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	SENSITIVE GATE
Shell connection	MAIN TERMINAL 2
Configuration	SINGLE
Critical rise rate of commutation voltage - minimum value	3 V/us
Critical rise rate of minimum off-state voltage	50 V/us
Maximum DC gate trigger current	10 mA
Maximum DC gate trigger voltage	1.3 V
Maximum holding current	15 mA
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Maximum leakage current	0.01 mA
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	4 A
Off-state repetitive peak voltage	600 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC

Preview

Download Datasheet

View All

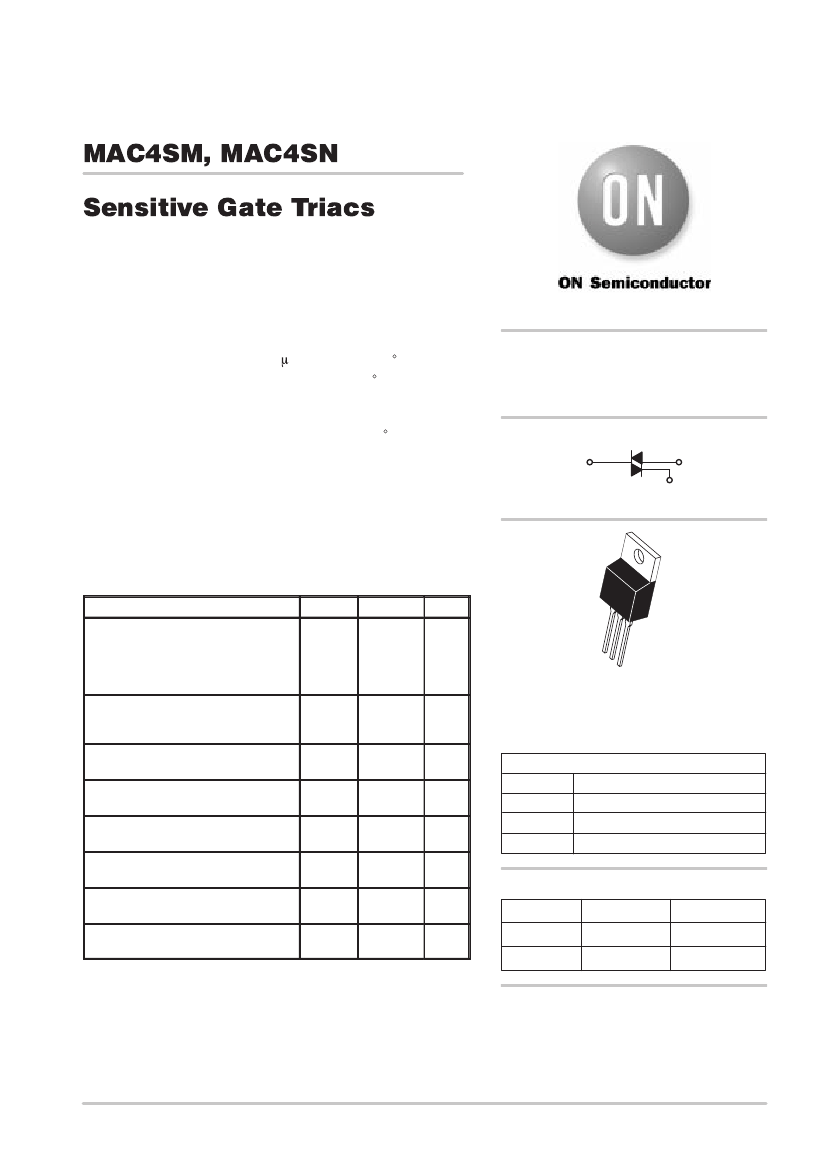

MAC4SM, MAC4SN

Preferred Device

Sensitive Gate Triacs

Silicon Bidirectional Thyristors

Designed for industrial and consumer applications for full wave

control of ac loads such as appliance controls, heater controls, motor

controls, and other power switching applications.

•

Sensitive Gate Allows Triggering by Microcontrollers and other

Logic Circuits

•

High Immunity to dv/dt — 50 V/

s Minimum at 125

•

Commutating di/dt — 3.0 A/ms Minimum at 125

•

Minimum and Maximum Values of IGT, VGT and IH Specified for

Ease of Design

•

On-State Current Rating of 4 Amperes RMS at 100

•

High Surge Current Capability — 40 Amperes

•

Blocking Voltage to 800 Volts

•

Rugged, Economical TO220AB Package

•

Operational in Three Quadrants: Q1, Q2, and Q3

•

Device Marking: Logo, Device Type, e.g., MAC4SM, Date Code

http://onsemi.com

TRIACS

4 AMPERES RMS

600 thru 800 VOLTS

MT2

MT1

MAXIMUM RATINGS

(TJ = 25°C unless otherwise noted)

Rating

Peak Repetitive Off–State Voltage(1)

(TJ = –40 to 125°C, Sine Wave,

50 to 60 Hz, Gate Open)

MAC4SM

MAC4SN

On-State RMS Current

(Full Cycle Sine Wave, 60 Hz,

TC = 100°C)

Peak Non-Repetitive Surge Current

(One Full Cycle, 60 Hz, TJ = 125°C)

Circuit Fusing Consideration

(t = 8.33 ms)

Peak Gate Power

(Pulse Width

≤

1.0

µs,

TC = 100°C)

Average Gate Power

(t = 8.3 ms, TC = 100°C)

Operating Junction Temperature Range

Storage Temperature Range

Symbol

VDRM,

VRRM

600

800

IT(RMS)

4.0

Amps

Value

Unit

Volts

TO–220AB

CASE 221A

STYLE 4

ITSM

I2t

PGM

PG(AV)

Tstg

6.6

0.5

0.1

– 40 to

+125

– 40 to

+150

Amps

A2sec

Watt

°C

MAC4SM

MAC4SN

PIN ASSIGNMENT

Main Terminal 1

Main Terminal 2

Gate

Main Terminal 2

ORDERING INFORMATION

Device

Package

TO220AB

Shipping

50 Units/Rail

(1) VDRM and VRRM for all types can be applied on a continuous basis. Blocking

voltages shall not be tested with a constant current source such that the

voltage ratings of the devices are exceeded.

Preferred

devices are recommended choices for future use

and best overall value.

Semiconductor Components Industries, LLC, 1999

February, 2000 – Rev. 1

Publication Order Number:

MAC4SM/D
