I722-2J5-1.000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> I722-2J5-1.000

I722-2J5-1.000: DescriptionHCMOS/TTL Output Clock Oscillator,; CategoryPassive components oscillator; File Size53KB，1 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com; Environmental Compliance

Download Datasheet Parametric View All

I722-2J5-1.000 Overview

HCMOS/TTL Output Clock Oscillator,

I722-2J5-1.000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1295120317
Reach Compliance Code	compliant
Ageing	1 PPM/YEAR
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	5 ppm
frequency stability	5%
JESD-609 code	e1
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS/TTL
Output load	10 TTL, 15 pF
Package body material	METAL
Encapsulate equivalent code	GWDIP4,.8,300
physical size	18.4mm x 11.8mm x 4.7mm
longest rise time	10 ns
Maximum slew rate	50 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)

Preview

Download Datasheet

View All

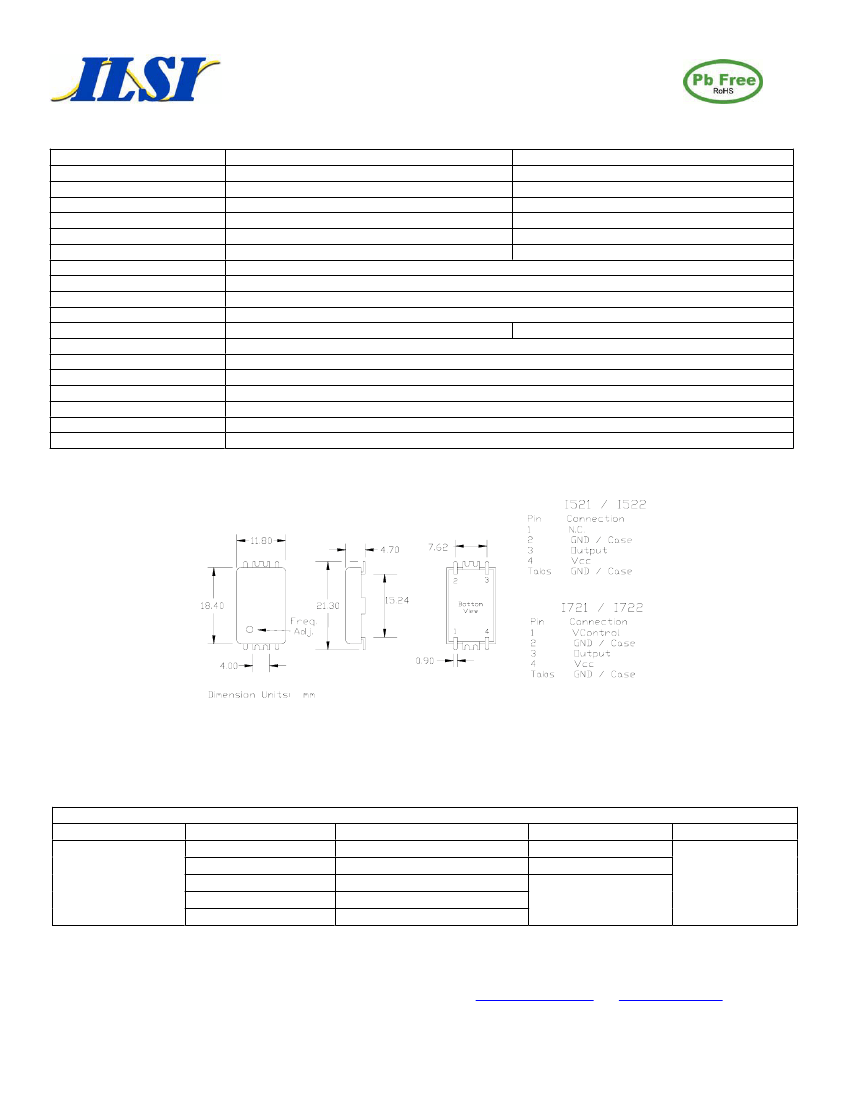

Surface Mount Oscillator, TCXO, TCVCXO

Metal Package, 11 mm x 18 mm

Frequency

Output Level

Level

Duty Cycle

Rise / Fall Time

Output Load

Frequency Stability

Frequency Stability at +25 C

Aging

Supply Voltage

Current

Control Voltage (I721 / I722)

Slope

Temperature

Operating

Storage

Environmental

Package Information

I521 / I522 / I721 / I722 Series *

I522 / I722

I521 / I721

1.000 MHz to 40.000 MHz

10.000 MHz to 40.000 MHz

HC-MOS / TTL

Clipped Sine

‘0’ = 0.1 Vcc Max., ‘1’ = 0.9 Vcc Min.

1.0 V p-p Min.

50% 10%

10 nS Max.

15 pF, Fo < 50 MHz = 10 TTL, Fo > 50 MHz = 5 LSTTL

20K Ohms / 10 pF

See Frequency Stability Table

1 ppm (I521 and I522)

1 ppm / Year Max.

See Supply Voltage Table, tolerance 5 %

50 mA Max. **

3 mA Max.

1.65 VDC 1.5 VDC, 5 ppm Min. for Vcc = 3.3 VDC, 2.5 VDC 2.0 VDC, 5 ppm Min. for Vcc = 5.0 VDC

Positive

See Operating Temperature Table

-40 C to +85 C

See Appendix B for information

MSL = 2a, Termination = e1

* I522 = HC-MOS TCXO, I521 = Clipped Sine TCXO, I722 = HC-MOS TCVCXO, I721 = Clipped Sine TCVCXO

Part Number Guide

Package and Output

I521 -

I522 -

I721 -

I722 -

Sample Part Number:

Operating Temperature

7 = 0 C to +50 C

1 = 0 C to +70 C

3 = -20 C to +70 C

2 = -40 C to +85 C

I521 - 1Q3 - 20.000

Supply Voltage

5 = 5.0 VDC

3 = 3.3 VDC

- 20.000 MHz

Frequency

Frequency Stability vs. Temperature

*O = 1.5 ppm

*P = 2.0 ppm

Q = 2.5 ppm

R = 3.0 ppm

J = 5.0 ppm

NOTE: A 0.01 µF bypass capacitor is recommended between Vcc (pin 4) and Gnd (pin 2) to minimize power supply noise.

* Not available for all temperature ranges. ** Frequency, supply, and load related parameters.

07/08

e-mail@ilsiamerica.com

•

www.ilsiamerica.com

ILSI America

Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com

Specifications subject to change without notice
