R76822J1000AI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> R76822J1000AI

R76822J1000AI: DescriptionFilm Capacitor, Polypropylene, 1000V, 5% +Tol, 5% -Tol, 0.0082uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size2MB，9 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

R76822J1000AI Overview

Film Capacitor, Polypropylene, 1000V, 5% +Tol, 5% -Tol, 0.0082uF, Through Hole Mount, RADIAL LEADED

R76822J1000AI Parametric

Parameter Name	Attribute value
Objectid	1945641780
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7
capacitance	0.0082 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
JESD-609 code	e3
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	AMMO PACK
positive tolerance	5%
Rated (AC) voltage (URac)	600 V
Rated (DC) voltage (URdc)	1000 V
surface mount	NO
Terminal surface	TIN
Terminal shape	WIRE

Preview

Download Datasheet

View All

NISSEI-ARCOTRONICS

Bulk

R76

MMKP Series

POLYPROPYLENE CAPACITOR WITH DOUBLE

SIDED METALLIZED FILM ELECTRODES

D.C. AND PULSE APPLICATIONS

Typical application:

deflection circuits in TV sets (S-

correction and fly-back tuning) and monitors, lamp

capacitor for Electronic Ballast and compact lamps,

SNUBBER and SCR commutating circuits, applications

with high voltage and high current.

SERIES CODE:

R76

Taped

Ød

0.05

≤

0.6

≤

27.5

0.8

Fig. 2

12.70

p = 37.5

1.0

Fig. 3

19.05

Fig. 1

(mm)

6.35

All dimensions are in mm.

PART NUMBERING SYSTEM

GENERAL TECHNICAL DATA

R7 6

[ ]

Series code

Capacitance value in pico farads. First 2

digits are significant and 3

digit indicates

number of zeros.

Capacitance tolerance

H = 2.5%

J = 5%

K = 10%

D.C. voltage

Packaging code

B = bulk

D = 7.5

N = 22.5

A = ammo

F = 10

R = 27.5

R = reel

I = 15

W = 37.5

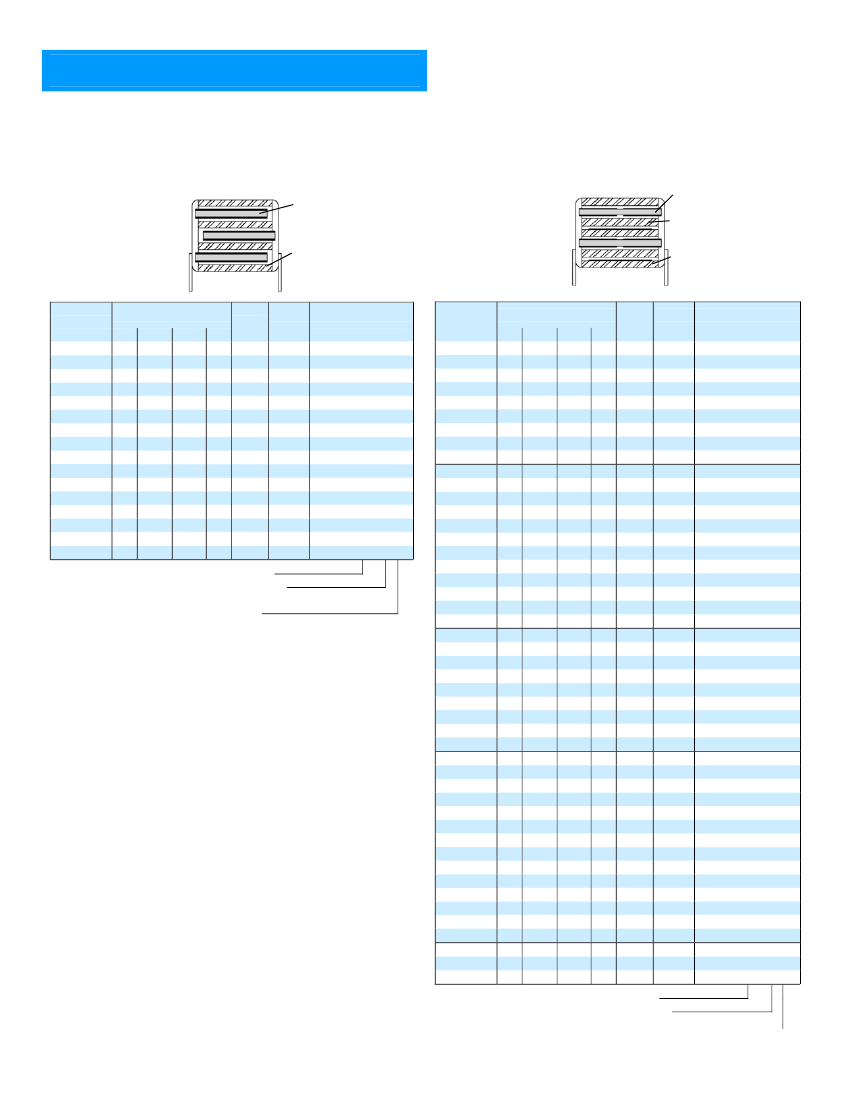

polypropylene film

double-sided metallized polyester film

non-inductive type

tinned wire

plastic case, epoxy resin filled. Box

material is solvent resistant and flame

retardant according to UL94 V0

Marking:

manufacturer’s logo, series (R76),

dielectric code (MKP), capacitance,

tolerance, D.C. voltage, manufacturing

date code

Climatic category:

55/100/56 IEC 60068-1

Operating temperature range:

-55 to +105°C
