Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
KPS HV, Large Case, SM Series, C0G Dielectric,
500 – 10,000 VDC (Industrial Grade)
Overview
KPS HV (KEMET Power Solutions, High Voltage), Large
Case (≥ 1515), SM Series capacitors in C0G dielectric
are designed to meet robust performance standards
required in higher reliability industrial applications.
Utilizing lead-frame technology, SM Series devices isolate
the multilayer ceramic chip component from the printed
circuit board providing advanced mechanical and thermal
stress performance. Isolation of the chip component also
addresses concerns for audible, microphonic noise that
may occur when a bias voltage is applied. Although this
technology does not eliminate the potential for mechanical
damage that may propagate during extreme environmental
and handling conditions, it does demonstrate superior
performance over non-isolating systems. Available in both
formed "L" and "J" lead configurations, SM Series devices
offer up to 10 mm of board flex capability and exhibit lower
ESR, ESL and higher current discharge capability when
compared to other dielectric solutions.
Combined with the stability of an C0G dielectric, KEMET’s
High Voltage SM Series devices exhibit no change in
capacitance with respect to time and voltage and boasts a
negligible change in capacitance with reference to ambient
temperature. Capacitance change is limited to ±30 ppm/ºC
from −55°C to +125°C.
KEMET's Industrial Grade products offer additional screening
options for higher reliability applications. Both Group A and
Group B testing/inspection options per MIL–PRF–49467 are
available for the SM Series.
Benefits
• −55°C to +125°C operating temperature range
• Large Case Sizes (≥ 1515)
• Formed “L” or “J” leadframe configurations.
• Group A and B screening per MIL–PRF–49467 available
• Reliable and robust leadframe termination system
• DC voltage ratings of 500 V, 1 KV, 2 KV, 3 KV, 4 KV, 5 KV,
7.5 KV, and 10 KV
• Capacitance offerings ranging from 10 pF up to 0.39 μF

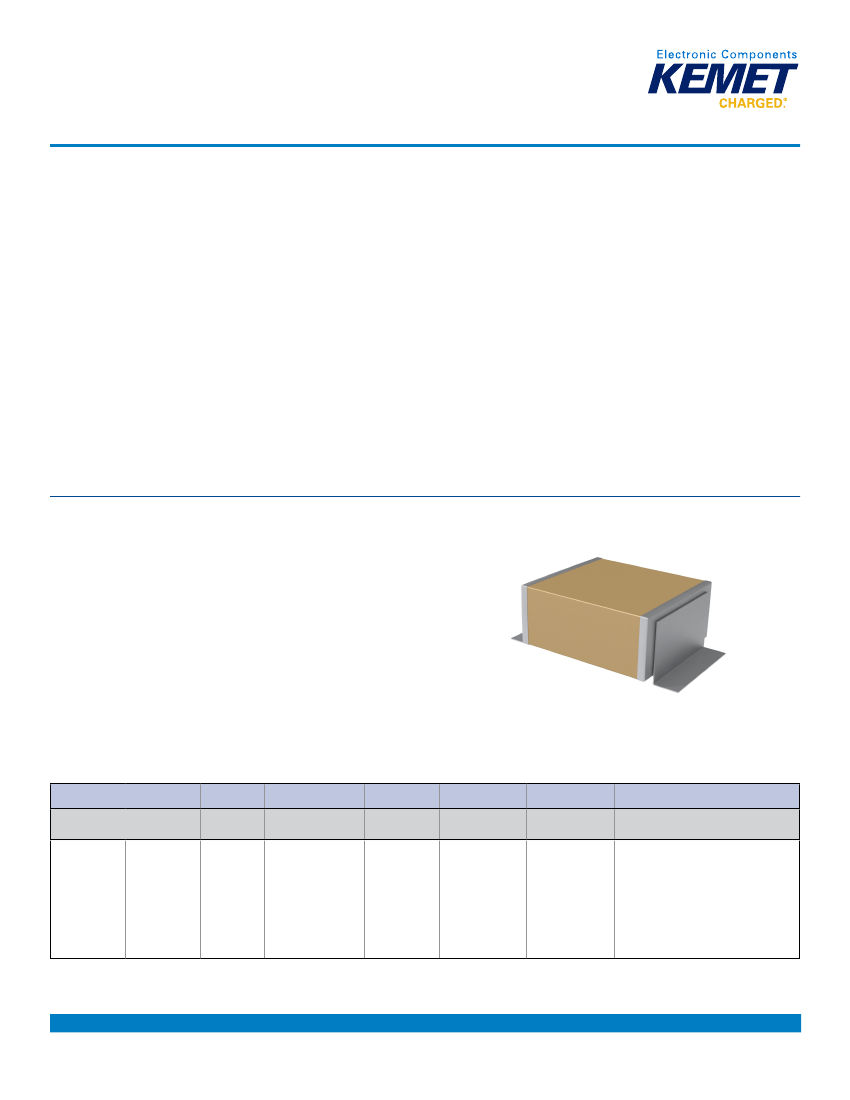

Click image above for interactive 3D content
Ordering Information
SM20
Style/Size
SM20
SM21
SM22
SM23
SM24
SM25
SM26
1
Open PDF in Adobe Reader for full functionality
N
Dielectric
N = C0G
SM30
SM31
SM33
SM34
SM35
SM36
472
Capacitance
Code (pF)
Two significant
digits and
number of zeros
J
Capacitance
Tolerance
J = ±5%
K = ±10%
M = ±20%
501
Rated Voltage
(VDC)
501 = 500
102 = 1,000
202 = 2,000
302 = 3,000
402 = 4,000
502 = 5,000
752 = 7,500
103 = 10,000
B
Lead
Configuration
1
A = Formed "L"
B = Formed "J"
M
Testing/
Inspection Option
2
Blank = None
M = Group A per MIL–PRF–49467
Standard lead configuration is formed "J". If the appropriate character is excluded from the ordering code, the assumed lead configuration will be
formed "J".
2
Group B testing/inspection option per MIL–PRF–49467 is available upon request. Please contact KEMET for ordering details.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1032_C0G_KPS_HIVOLT_SMD • 8/18/2016
1
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
KPS HV, Large Case, SM Series, C0G Dielectric, 500 – 10,000 VDC (Industrial Grade)
Dimensions – Inches (Millimeters)
FORMED LEAD (L)
Top View
Profile View
Top View
Profile View
T
FORMED LEAD (J)
(L)
A W
(L)
(J)
A W
(J)
T
LL
L
0.030±0.010
(0.76±0.25)
LL
L
0.030±0.010
(0.76±0.25)
Style/
Size
SM20
SM21
SM22
SM23
SM24
SM25
SM26
SM30
SM31
SM33
SM34
SM35
SM36
L
Length
0.150±0.015 (3.81±0.38)
0.200±0.020 (5.08±0.51)
0.250±0.020 (6.35±0.51)
0.350±0.030 (8.89±0.76)
0.450±0.030 (11.43±0.76)
0.550±0.030 (14.00±0.76)
0.650±0.030 (16.50±0.76)
0.300±0.030 (7.62±0.76)
0.400±0.030 (10.20±0.76)
0.700±0.030 (17.08±0.76)
0.900±0.030 (22.90±0.76)
1.100±0.030 (27.90±0.76)
1.350±0.030 (33.00±0.76)
W
Width
0.150±0.015 (3.81±0.38)
0.200±0.020 (5.08±0.51)
0.200±0.020 (5.08±0.51)
0.300±0.030 (7.62±0.76)
0.400±0.030 (10.20±0.76)
0.500±0.030 (12.70±0.76)
0.600±0.030 (15.20±0.76)
0.150±0.015 (3.81±0.38)
0.200±0.020 (5.08±0.51)
0.300±0.030 (7.62±0.76)
0.400±0.030 (10.20±0.76)
0.500±0.030 (12.70±0.76)
0.600±0.030 (15.20±0.76)
T
Thickness
Maximum
0.130 (3.30)
0.180 (4.57)
A
Lead Width
Maximum
0.100 (2.54)
0.200 (5.08)
0.300 (7.62)
0.400 (10.20)
0.500 (12.70)
0.100 (2.54)
0.200 (5.08)
0.300 (7.62)
0.400 (10.2)
0.500 (12.7)
LL
Lead Length
(Formed "L")
LL
Lead Length
(Formed "J")
0.040±0.010
(1.02±0.25)
0.220 (5.59)
0.140 (3.55)
0.130 (3.30)
0.180 (4.57)
0.220 (5.59)
0.100±0.020
(2.54±0.51)
0.100±0.020
(2.54±0.51)
Benefits cont'd
• Advanced protection against thermal and mechanical
stress
• Provides up to 10 mm of board flex capability
• Reduces audible, microphonic noise
• Low ESR and ESL
• Non-polar device, minimizing installation concerns
• Silver plated copper alloy leadframe termination system
Applications
Typical applications include switch mode power supplies (input filters, resonators, tank circuits, snubber circuits, output
filters), high voltage coupling and DC blocking, voltage multiplier circuits, DC/DC converters and coupling capacitors in Ćuk
converters, noise reduction (piezoelectric/mechanical), circuits with a direct battery or power source connection, critical
and safety relevant circuits without (integrated) current limitation and any application that is subject to high levels of board
flexure or temperature cycling. Markets include power supply, LCD fluorescent backlight ballasts, HID lighting, telecom
equipment, industrial and medical equipment/control and Military.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
C1032_C0G_KPS_HIVOLT_SMD • 8/18/2016
2
Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
KPS HV, Large Case, SM Series, C0G Dielectric, 500 – 10,000 VDC (Industrial Grade)
Qualification/Certification
