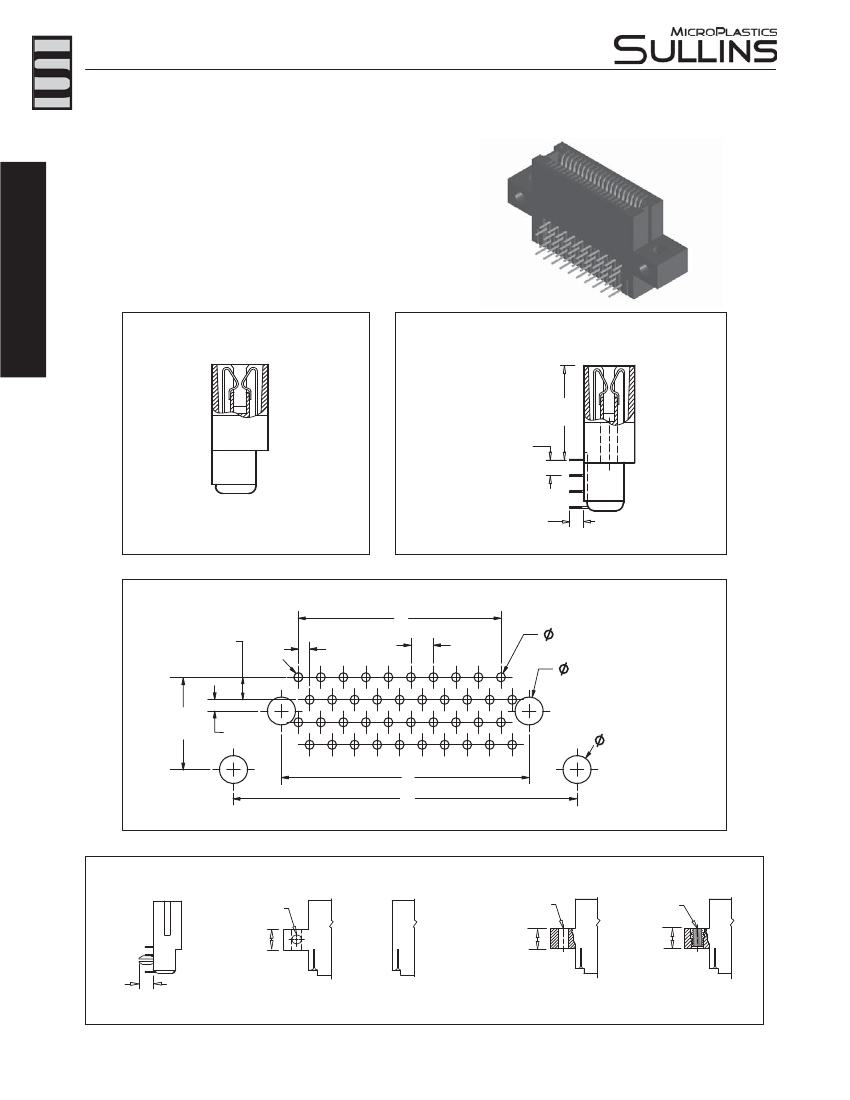

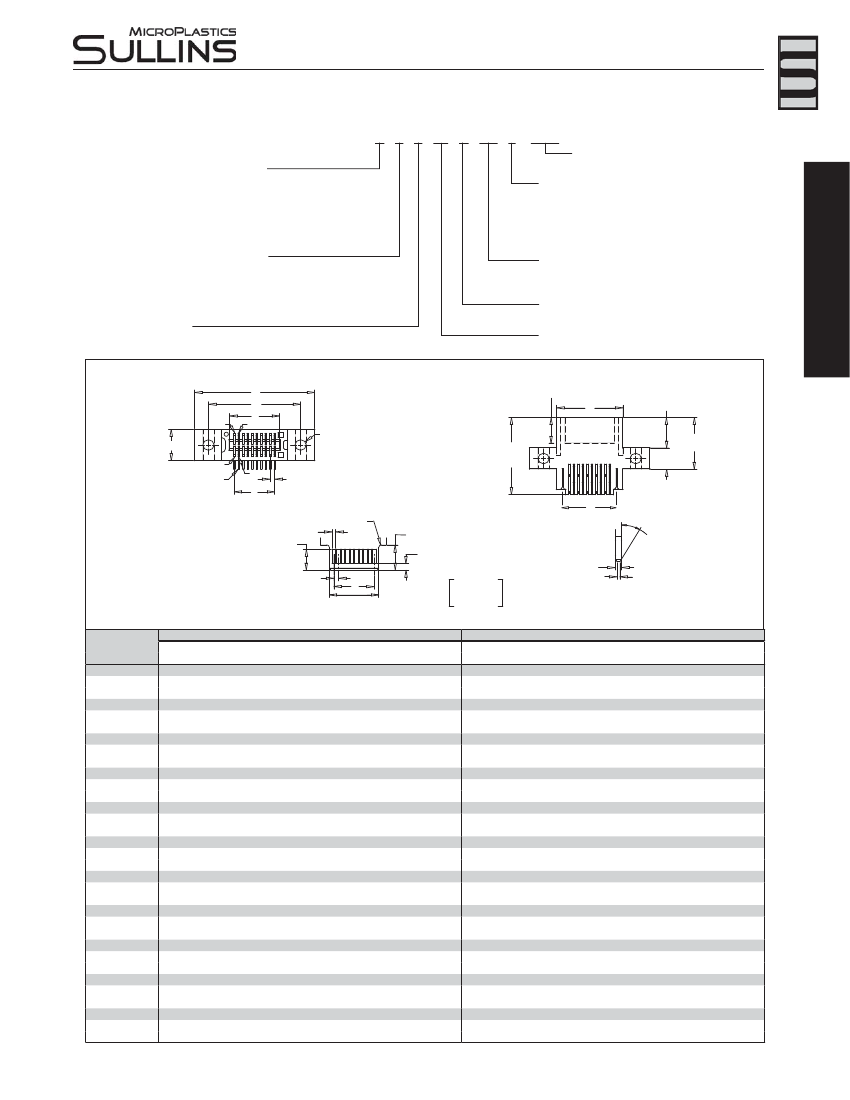

Sullins Edgecards
.050” [1.27 mm] Contact Centers, .915” [23.23 mm] Insulator Height
Right Angle
SPECIFICATIONS
•
•
•
•
•
•
Accommodates .062” ± .008” [1.57 ± .20] PC board
PPS or PA9T insulator
Molded-in key available
High reliability/high cycle hairpin bellows contact
1 amp current rating per contact
150 grams normal force minimum
Sullins Edgecards
READOUT
TERMINATION TYPE
.595
[15.11]
.100, 3 PLS.
DUAL (D)
(HA) .100 [2.54]
(HB) .170 [4.82]
PCB LAYOUT
A
.100 [2.54],
3 PLS
PIN 1
.050
[1.27]
.100
[2.54]
.040 [1.02] MINIMUM
.104 [2.64]
FOR R MOUNTING
.410
[10.41]
.050
[1.27]
F
D
PCB LAYOUT, COMPONENT SIDE
.125 [3.18]
FOR S MOUNTING
MOUNTING STYLE
Ø.125 [3.18]
.250[6.35]
Ø.125 [3.18]
#4-40
.250
[6.35]
.250[6.35]
.174[4.41]
Board Lock (R)
SIDE MOUNTING (S)
(with no mounting ears)
NO MOUNTING EARS (N)
CLEARANCE HOLE (D)
THREADED INSERT (
14
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
Sullins Edgecards
.050” [1.27 mm] Contact Centers, .915” [23.23 mm] Insulator Height
Right Angle
PART NUMBER CODING
G B B 10 D HA S - Sxxx
MODIFICATION CODE
(Consult Factory)
OMIT FOR STANDARD
MATERIALS (INSULATOR/CONTACT)
E = PBT/Phosphor Bronze
H = PBT/Beryllium Copper
G = PA9T/Phosphor Bronze
R = PPS/Phosphor Bronze
J = PA9T/Beryllium Copper
A = PPS/Beryllium Copper
CONTACT FINISH - RoHS Compliant
All platings are Lead Free and have .000050” Nickel underplate
Contact Surface
Termination
B =
.000010” Gold
.000100” Pure Tin, Matte
C =
.000030” Gold
.000100” Pure Tin, Matte
CONTACT CENTERS
B = .050” [1.27mm]
MOUNTING STYLE (Opposite Page)
S = Side Mounting
D = Flush Mounting
N = No Mounting
T = Flush Mounting With Threaded Insert
R = Metal Board Lock
TERMINATION TYPE (Opposite Page)
HA = .100” Staggered Dip Solder, Right Angle
HB = .170” Staggered Dip Solder, Right Angle
READOUT (Opposite Page)
D = Dual
NUMBER OF CONTACT POSITIONS
See Chart Below
Sullins Edgecards
DIMENSIONS
Dimensions in [ ] are in millimeters, all others are in inches.
A1
E
D
B
A2
(S) MOUNTING SHOWN
.300 [7.62] INSERTION DEPTH
.360 [9.14]
C
.610
[15.49]
.370 [9.40]
B1
Ø .125
[3.18],
4 PLS
B2
A
.915
[23.23]
.250
[6.35]
.018 x .012
[0.46 x 0.31] POST
REFER TO TERM. TYPE
.050 CC
[1.27]
F
R .030[.76] MAX.
.040[1.02] MAX.
.250[6.35] MIN.
.050[1.27]
.300[7.62] MIN.
.080[2.03] MAX.
-.006 MAX. - .15 MAX.
B
-.011 MIN.
- .28 MIN.
.062±.008
[1.57±.20]
30°
.030
[.76]
A
CARD LAYOUT
POSITIONS/
CONTACTS
05/10
06/12
09/18
10/20
13/26
14/28
15/30
20/40
22/44
24/48
25/50
30/60
34/68
35/70
40/80
45/90
50/100
55/110
60/120
64/128
65/130
66/132
70/140
75/150
80/160
85/170
90/180
95/190
100/200
105/210
108/216
110/220
120/240
A
±.005
0.200
0.250
0.400
0.450
0.600
0.650
0.700
0.950
1.050
1.150
1.200
1.450
1.650
1.700
1.950
2.200
2.450
2.700
2.950
3.150
3.200
3.250
3.450
3.700
3.950
4.200
4.450
4.700
4.950
5.200
5.350
5.450
5.950
B
±.005
0.300
0.350
0.500
0.550
0.700
0.750
0.800
1.050
1.150
1.250
1.300
1.550
1.750
1.800
2.050
2.300
2.550
2.800
3.050
3.250
3.300
3.350
3.550
3.800
4.050
4.300
4.550
4.800
5.050
5.300
5.450
5.550
6.050
INCHES
C
D
E
±.015
±.010
±.020
0.490
0.776
1.090
0.540
0.826
1.140
0.690
0.976
1.290
0.740
1.026
1.340
0.890
1.176
1.490
0.940
1.226
1.540
0.990
1.276
1.590
1.240
1.526
1.840
1.340
1.626
1.940
1.440
1.726
2.040
1.490
1.776
2.090
1.740
2.026
2.340
1.940
2.226
2.540
1.990
2.276
2.590
2.240
2.526
2.840
2.490
2.776
3.090
2.740
3.026
3.340
2.990
3.276
3.590
3.240
3.526
3.840
3.440
3.726
4.040
3.490
3.776
4.090
3.540
3.826
4.140
3.740
4.026
4.340
3.990
4.276
4.590
4.240
4.526
4.840
4.490
4.776
5.090
4.740
5.026
5.340
4.990
5.276
5.590
5.240
5.526
5.840
5.490
5.776
6.090
5.640
5.926
6.240
5.740
6.026
6.340
6.240
‘N’ Mounting Only
F
±.010
0.350
0.400
0.550
0.600
0.750
0.800
0.850
1.100
1.200
1.300
1.350
1.600
1.800
1.850
2.100
2.350
2.600
2.850
3.100
3.300
3.350
3.400
3.600
3.850
4.100
4.350
4.600
4.850
5.100
5.350
5.500
5.600
6.100
A
±.13
5.08
6.35
10.16
11.43
15.24
16.51
17.78
24.13
26.67
29.21
30.48
36.83
41.91
43.18
49.53
55.88
62.23
68.58
74.93
80.01
81.28
82.55
87.63
93.98
100.33
106.68
113.03
119.38
125.73
132.08
135.89
138.43
151.13
B
±.13
7.62
8.89
12.70
13.97
17.78
19.05
20.32
26.67
29.21
31.75
33.02
39.37
44.45
45.72
52.07
58.42
64.77
71.12
77.47
82.55
83.82
85.09
90.17
96.52
102.87
109.22
115.57
121.92
128.27
134.62
138.43
140.97
153.67
[MILLIMETERS]
C
D
E
±.38
±.25
±.51
12.45
19.71
27.69
13.72
20.98
28.96
17.53
24.79
32.77
18.80
26.06
34.04
22.61
29.87
37.85
23.88
31.14
39.12
25.15
32.41
40.39
31.50
38.76
46.74
34.04
41.30
49.28
36.58
43.84
51.82
37.85
45.11
53.09
44.20
51.46
59.44
49.28
56.54
64.52
50.55
57.81
65.79
56.90
64.16
72.14
63.25
70.51
78.49
69.60
76.86
84.84
75.95
83.21
91.19
82.30
89.56
97.54
87.38
94.64
102.62
88.65
95.91
103.89
89.92
97.18
105.16
95.00
102.26
110.24
101.35
108.61
116.59
107.70
114.96
122.94
114.05
121.31
129.29
120.40
127.66
135.64
126.75
134.01
141.99
133.10
140.36
148.34
139.45
146.71
154.69
143.26
150.52
158.50
145.80
153.06
161.04
158.50
‘N’ Mounting Only
F
±.25
8.89
10.16
13.97
15.24
19.05
20.32
21.59
27.94
30.48
33.02
34.29
40.64
45.72
46.99
53.34
59.69
66.04
72.39
78.74
83.82
85.09
86.36
91.44
97.79
104.14
110.49
116.84
123.19
129.54
135.89
139.70
142.24
154.94
