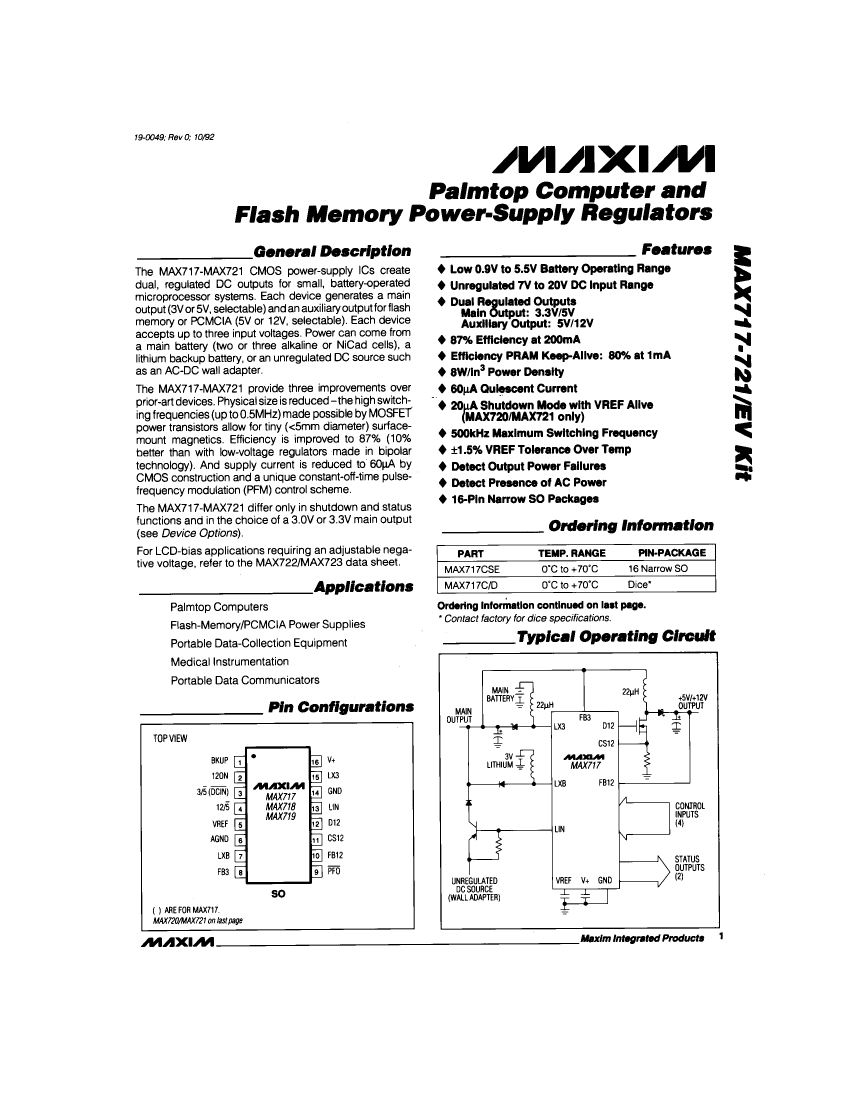

MAX717 Overview

1 A SWITCHING REGULATOR, 500 kHz SWITCHING FREQ-MAX, PDSO16

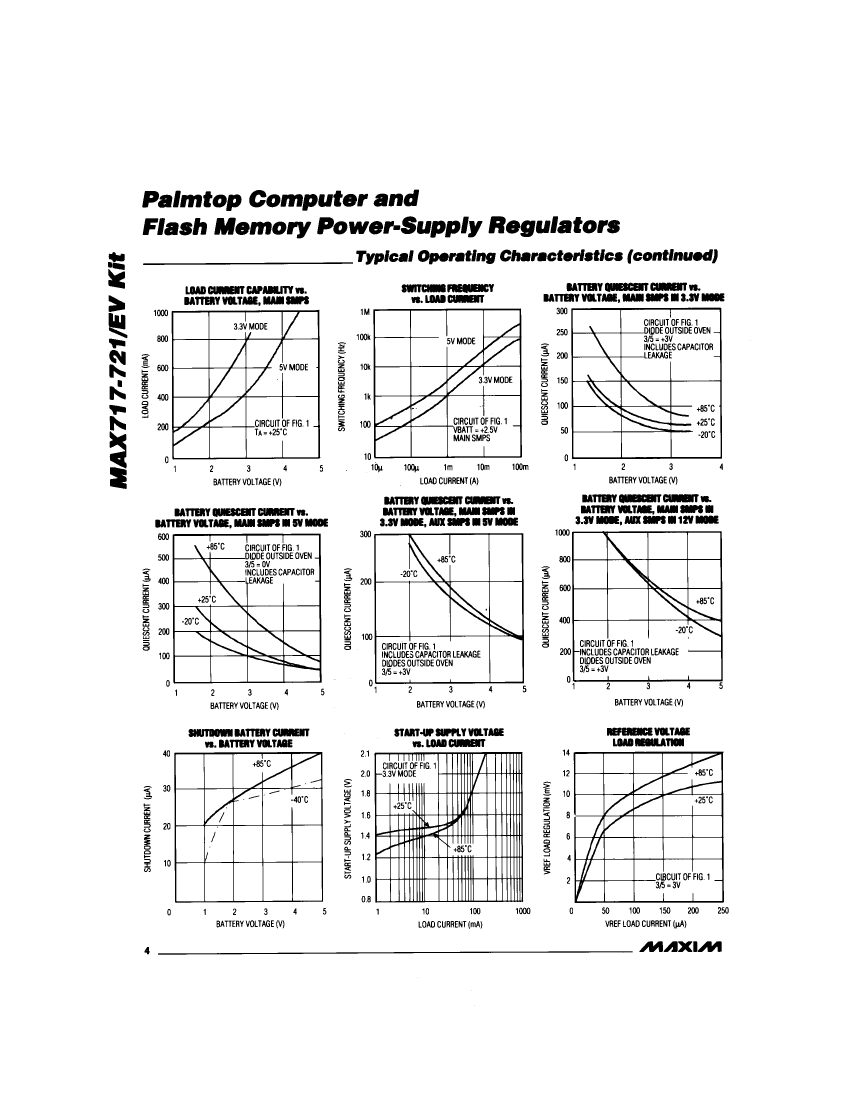

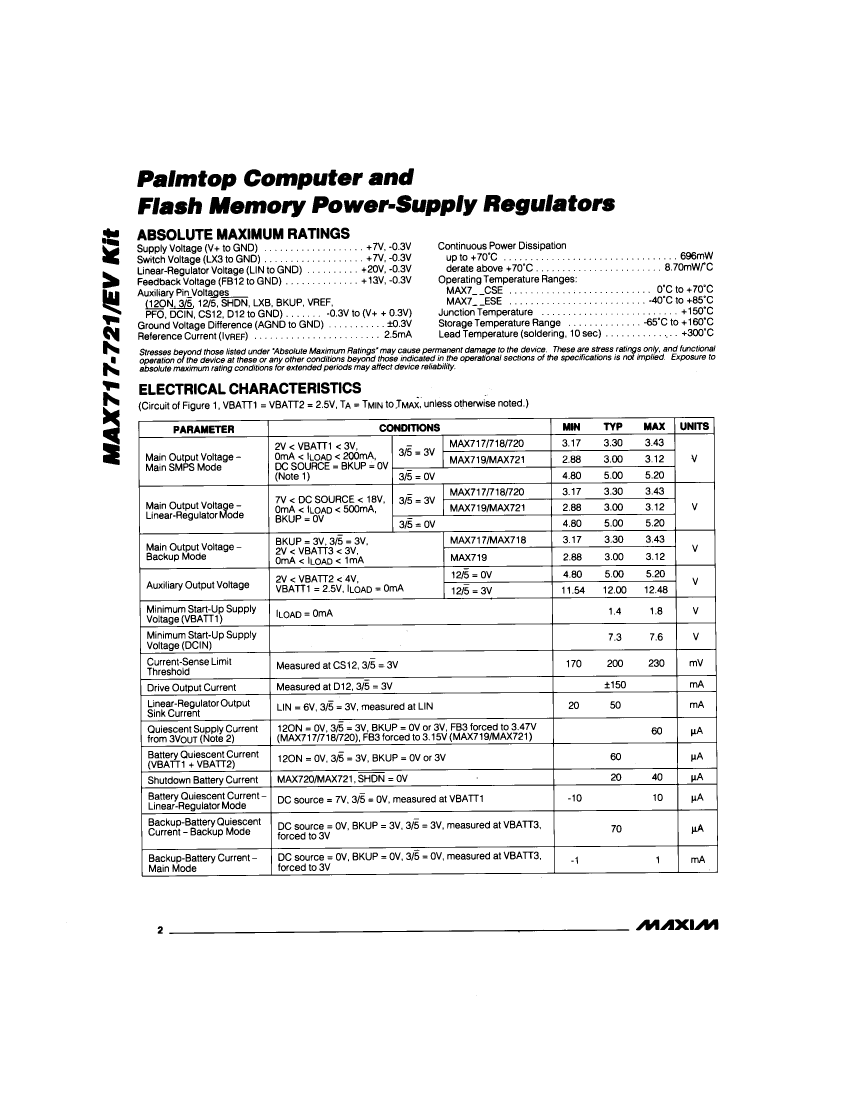

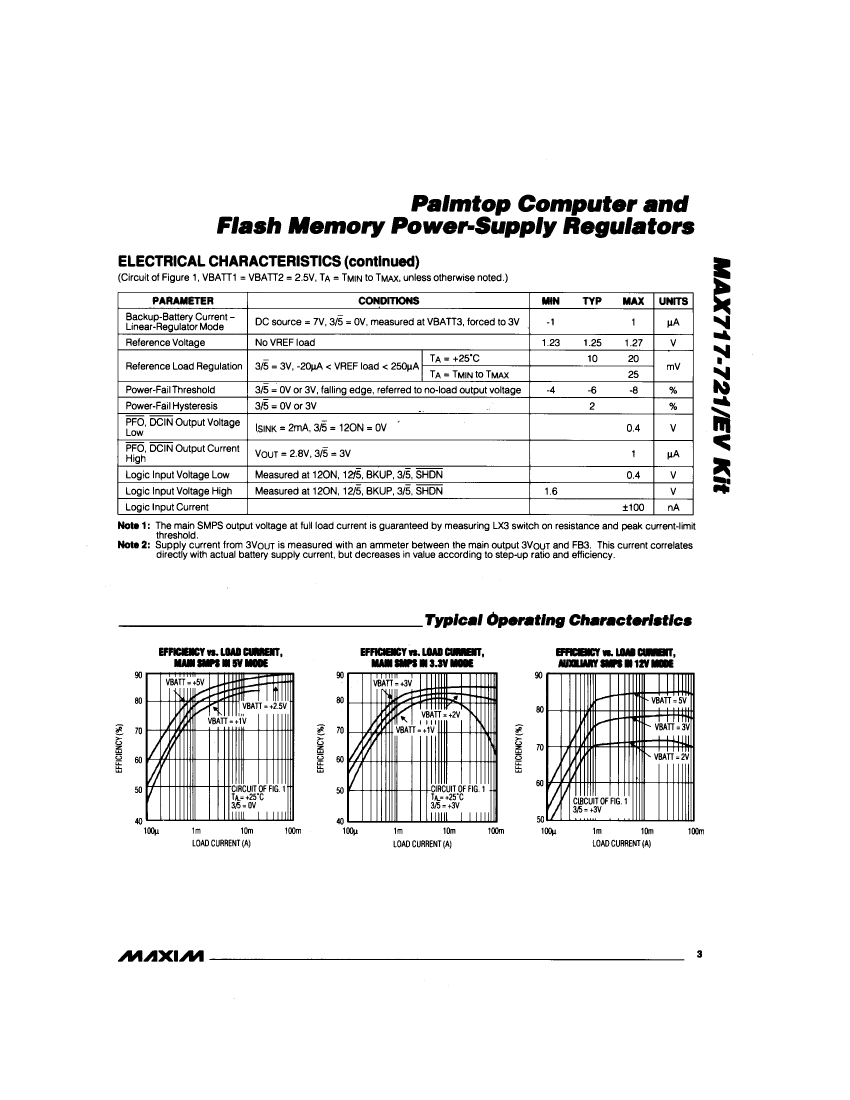

Parameter Name	Attribute value
Number of functions	1
Number of terminals	16
Maximum limit input voltage	5.5 V
Minimum limit input voltage	0.9000 V
Maximum operating temperature	70 Cel
Minimum operating temperature	0.0 Cel
Processing package description	0.150 INCH, SLIM, PLASTIC, SO-16
state	ACTIVE
Craftsmanship	CMOS
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
Terminal spacing	1.27 mm
terminal coating	TIN LEAD
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Temperature level	COMMERCIAL
control mode	VOLTAGE
Control Technology	CONSTANT OFF TIME
Maximum output current	1 A
Analog IC other types	SWITCHING REGULATOR
Rated regulated voltage	5 V
Switch configuration	BOOST
Maximum switching frequency	500 kHz
