KPTC
C O N N E C T O R S
KPC-3/898
KPTC
Introduction

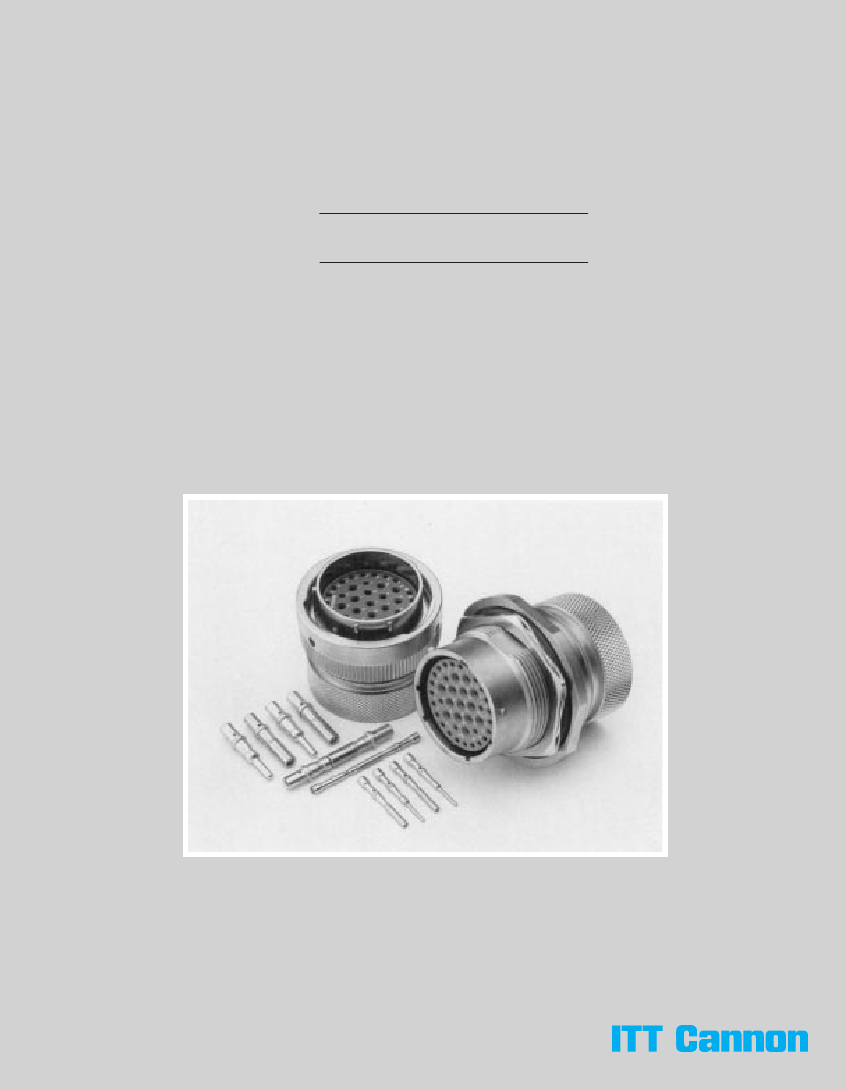

The miniature circular connectors series KPTC from ITT Cannon are especially used in the machine and in
the automotive industries. They are designed for the usage with crimp contacts which are to be ordered
separately. The contacts are packed separately for the termination process.
To keep up with the market trends and for logistic reasons ITT Cannon offers zinc / cobalt as an alternative
to nickel. For current projects, the nickel finish is still offered. However, zinc / cobalt should be the preferred
finish as it features a much higher corrosion resistance.
Contents
Technical data................................................................................................................................................ 3
How to order................................................................................................................................................. 4
Contact arrangements.................................................................................................................................... 5
Alternate insert positions................................................................................................................................ 8
Box mounting receptacles.............................................................................................................................. 9
Wall mounting receptacles...........................................................................................................................10
Straight plugs....................................................................................................................................................12
Jam nut receptacles ......................................................................................................................................14
Panel cut-outs...................................................................................................................................................16
Components and accessories..................................................................................................................... 18
Tools............................................................................................................................................................... 20
Product safety information............................................................................................................................ 21
Subject to changes
KPTC
Technical Data
Material and Finshes
Shell
Insulator
Grommet and seal
Contacts
Mechanical Data
Shell styles
0 - wall mounting receptacle
2 - box mounting receptacle
6 - straight plug
7 - jam nut receptacle
8 - 24
five keyways/3-point bayonet coupling
E - with grommet seal
F - with grommet seal and strain relief
D -with endbell for PG adapters
Acc to VG 95319 Teil 2, Test Nr. 5.9.2
for shell styles A to E, J to W, Z1, Z2 and Z3 as well as gaskets A and B
Test pressure 0,2bar overpressure
Test duration 48 h
Test temperature 25
±
0,3ϒC
Connector to be free of moisture
Aluminium alloy, zink/cobalt-plating or galvanic nickel
Polychloroprene
Polychloroprene
Copper alloy, had gold or hard silver plated
Shell sizes
Polarization/Coupling
Service classes
Water tightness
Electrical Data
Number of contacts
Wire size
Contact termination
Contact rating
2 through 61
0,4 - 2,0 mm
2
Crimp technque
Size
20
16
Test voltage
at sea level
Service rating
Rated Amps
Test current A
Millivolt drop mV
7,5
7,5
less than 55
22
13
less than 50
Service rating
Vrms
VDC
1
1500
2100
2
2300
3200
at 21336 m height
1
375
535
2
550
770
The hereunder service rating information are valid for male or female connectors mated or unmated
at sea level
21336 m
Average flashover
1500 V
500 V
Test voltage
1000 V
325 V
The operation voltage is to be selected acc. to VDE 0110
Connectors are equipment which must not be separated or mated when used as per determination. Acc to specification
the connectors are suitable for an operating voltage of 50 V (see product safety information). However, this is only valid
when the connectors are free accessible during operation and consequently might be touchable. When connectors will
be operated with line voltage, ITT Cannon offers a solution, too. Please consult factory.
Operating voltage
and connector usage
3
KPTC
General Purpose Connectors with Crimp Contacts

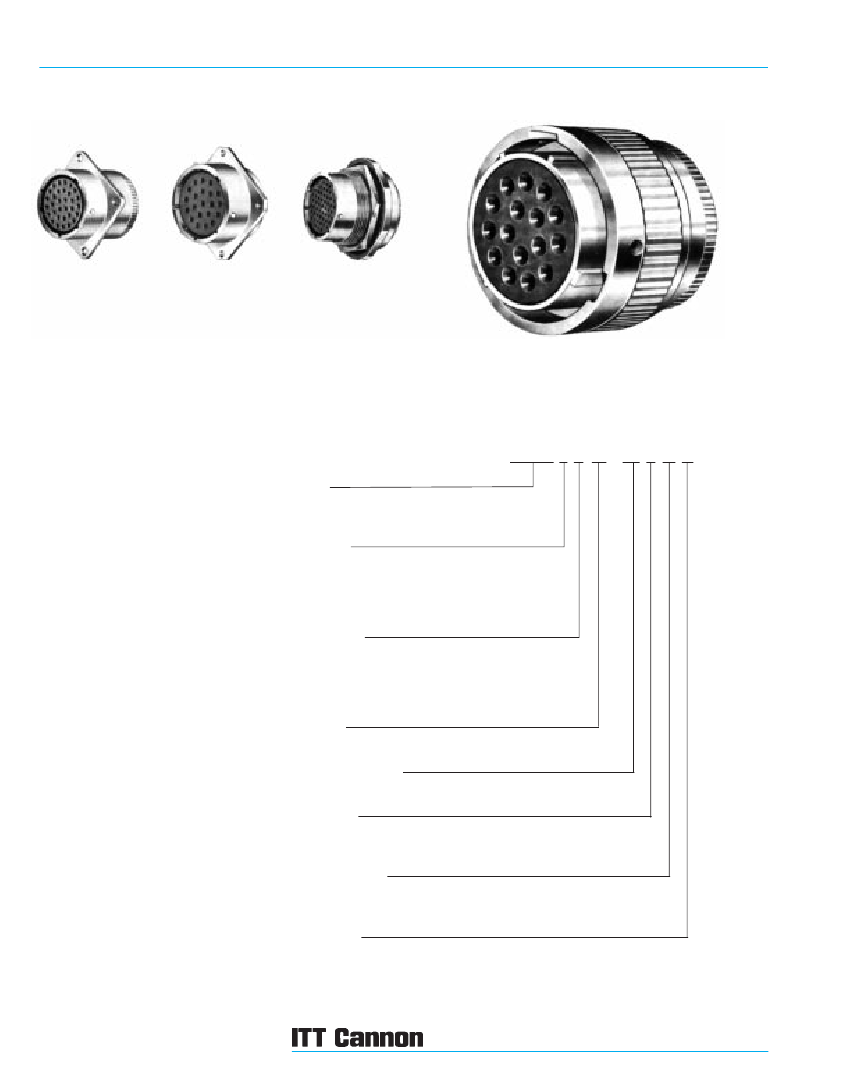

KPTC0
KPTC2
KPTC7
KPTC6
How to order
KPTC 0 E 18 - 32 P W C
Series
ITT Cannon designation
Shell style
0 - Wall mounting receptacle
2 - Box mounting receptacle
6 - Straight plug
7 - Jam nut receptacle
Service class
E - Grommet seal
(not for shell style 2)
F - Grommet seal with strain relief
(not for shell style 2)
Shell size
8, 10, 12, 14, 16, 18, 20, 22 and 24
Contact arrangement
see pages 5 - 8
Contact type
P - Pin
S - Socket
Insulator position
W, X, Y, Z (omit for normal position -
see page 8
Modification
C - Electroless nickel plating
F - Zinc / cobalt
Subject to changes
KPTC
Contact Arrangements
Contact
number
Contact
arrangement
Contact size
AWG
Service
rating
Drawings not to scale
Face view of pin insert shown (socket view is homologous)
Insulator position
W
X
Y
Z
2
8-2
*
20
1
58
122
-
-
3
8-3
*
20
1
60
210
-
-
3
8-33
*
16S
1
90
-
-
-
4
8-4
*
16S
1
45
-
-
-
6
10-6
20
1
90
-
-
-
3
12-3
16
2
-
-
180
-
10
12-10
20
1
60
155
270
295
14
12-14
*
20
2
-
-
-
-
5
14-5
16
2
40
92
184
273
q
Please consult factory
*
Special contacts required - see page 20
5
