CL10B334KA84PNE datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> CL10B334KA84PNE

CL10B334KA84PNE: DescriptionCeramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.33uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size231KB，14 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/; Environmental Compliance

Download Datasheet Parametric View All

CL10B334KA84PNE Overview

Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.33uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT

CL10B334KA84PNE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1123259359
package instruction	, 0603
Reach Compliance Code	compliant
Country Of Origin	Mainland China, Philippines, South Korea
ECCN code	EAR99
YTEOL	2
capacitance	0.33 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.8 mm
JESD-609 code	e3
length	1.6 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	25 V
size code	0603
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.8 mm

Preview

Download Datasheet

View All

Premium Capacitorsfor

Automotive Applications

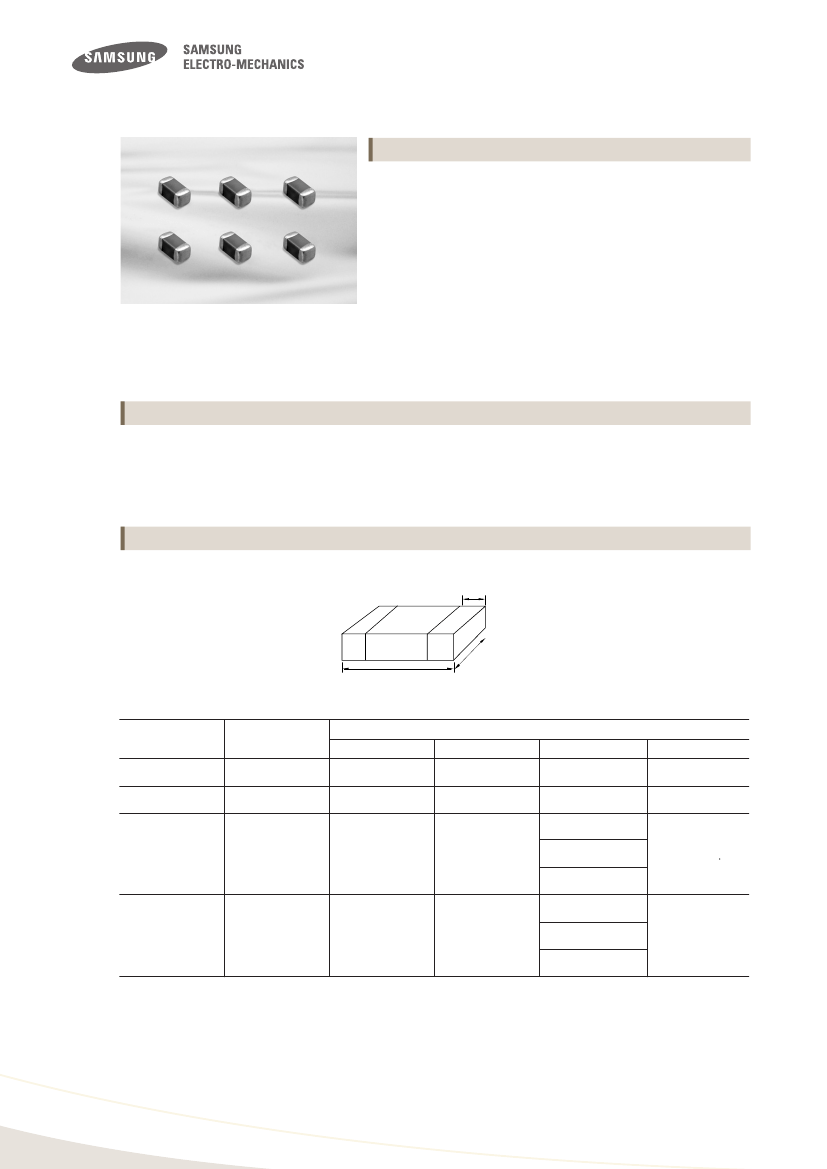

Part Numbering System (Automotive Capacitors)

1. SERIES CODE

CL=Multi layer Ceramic Capacitors

B 104 K

2. SIZE CODE

05=1005(0402)

31=3216(1206)

★

inch(

㎜

)

10=1608(0603)

32=3225(1210)

21=2012(0805)

3. DIELECTRIC CODE

C=C0G (Class

Ⅰ

)

B=X7R (Class

Ⅱ

)

4. CAPACITANCE CODE

Capacitance expressed in

㎊.

2 significant digits plus number of zeros.

example) 106=10×10

=10000000㎊

For Values

⋏

10㎊, Letter R denotes decimal point

example) 1R5=1.5㎊

★★

5. TOLERANCE CODE

C=±0.25㎊ D=±0.5㎊ F=±1㎊,

±1%*

G=±2%

J=±5%

K=±10% M=±20%

*For Values 10㎊, F=±1㎊, Values>10㎊, F=±1%

This code has only typical specifications. Please refer to individual specifications.

6. RATED VOLTAGE CODE

P =10V

A=25V

★★★

O =16V

B =50V

C =100V

7. THICKNESS CODE

5 = 0.50㎜ 6= 0.60㎜ 8 = 0.80㎜ C = 0.85㎜

P = 1.15㎜ F = 1.25㎜ H = 1.60㎜ J = 2.50㎜

This code has only typical specifications. Please refer to individual specifications.

8. DESIGN CODE

1=Ni/Cu/Ni Barrier/Sn 100%/Standard

4=Ni/Cu+Soft termination/Ni Barrier/Sn 100%/Standard

5=Ni/Cu+Soft termination/Ni Barrier/Sn 100%/Open Mode

This code has only typical specifications. Please refer to individual specifications.

9. PRODUCT CODE

P=Automotive product meet AEC-Q-200.

If orders are placed without returned specification, please allow us to judge that specification is accepted by your side.

10. GRADE CODE

N=Standard

11. PACKAGING CODE

B = Bulk

P = Bulk Case

C= Cardboard Tape, 7”

Reel

O = Cardboard Tape, 10”

Reel

D = Cardboard Tape, 13”

Reel(10,000ea)

L = Cardboard Tape, 13”

Reel(15,000ea)

E= Embossed Type, 7”

Reel

F = Embossed Type, 13”

Reel

S= Embossed Type, 10”

Reel

This catalog has only typical specifications because there is no space for detailed specifications.

Please approve our product specifications or transact the approval sheet for product specifications before ordering.
