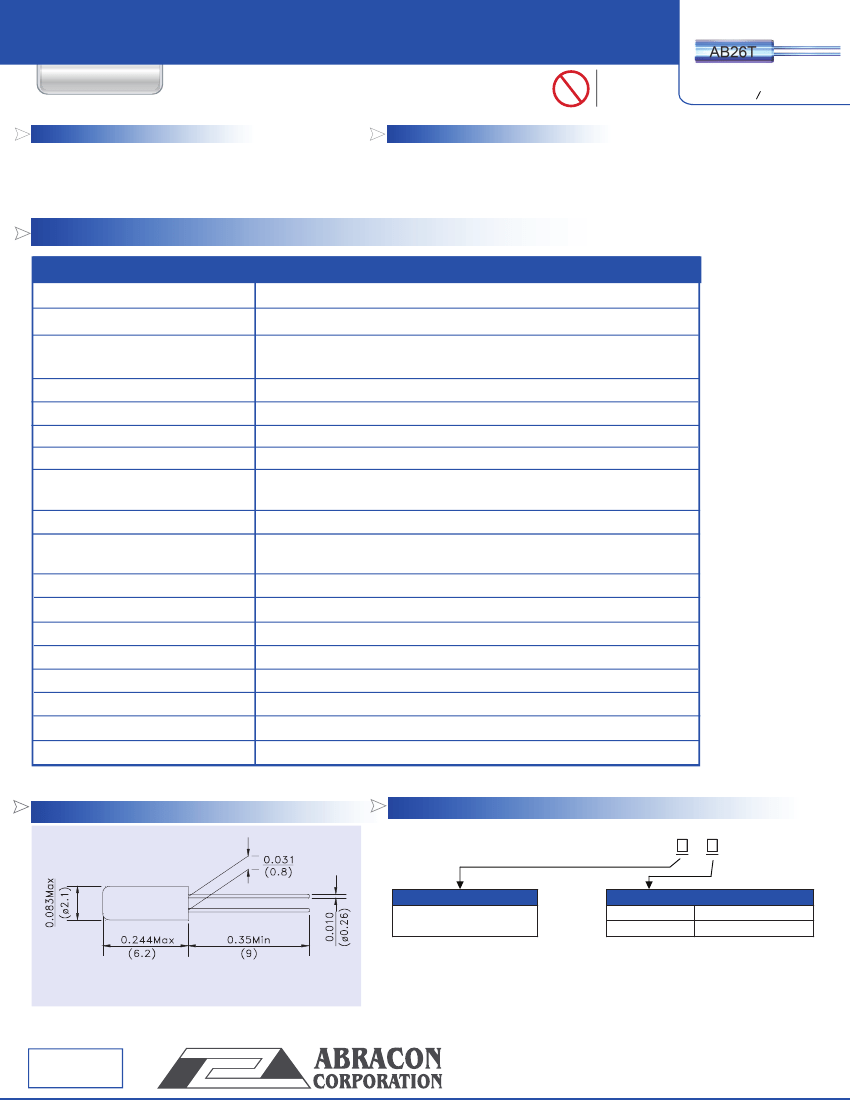

32.768kHz WATCH CRYSTAL, 6.2 x 02.1MM CYLINDER PACKAGE
AB26T
FEATURES:
• Watch frequency
• 32.768kHz standard frequency
APPLICATIONS:
Pb
RoHS
Compliant
• Real time clock
• Measuring instruments
• Clock source for communication or A/V equipment
| | | | | | | | | | | | | | |
6.2 x 02.1 mm
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N:
Standard frequency:
Additional frequencies
available*
Frequency range:
Operating temperature:
Storage temperature:
Turn-over temperature:
Frequency tolerance:
Temperature Coefficient:
Equivalent series resistance:
Shunt capacitance C0:
Load capacitance CL:
Motional capacitance C1:
Capacitance ratio:
Quality factor:
Drive level:
Aging @ 25° C first year:
Insulation resistance:
AB26T Series
32.768kHz
32.000kHz, 36.000kHz, 38.000kHz, 38.400kHz, 40.000kHz,
60.000kHz, 65.536kHz, 76.800kHz, 96.000kHz, 100.000kHz
* For additional frequencies
please contact Abracon.
30kHz to 200kHz
-10°C to + 60°C (see option)
-40°C to + 85°C
+25°C ± 5°C
± 20 ppm max. for 32.768kHz (see option)
± 30 ppm max. for 30kHz ~ 200kHz (not including 32.768kHz)
-0.034 ± 0.006 ppm/ T²
35 k
Ω
max. (32.768kHz)
35 k
Ω
~ 50 k
Ω
max. (30kHz ~ 200kHz)
0.8pF to 1.7pF typ.
12.5 pF typ. (see option)
1 ~ 4 fF typ.
425 ~ 800 typ.
70,000 typ. (32.768kHz)
1.0 µW max.
± 3 ppm max. (32.768kHz) and ± 5 ppm max. (others)
500 Mohms min. at 100Vdc ± 15V
OUTLINE DRAWING:
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
AB26T- Frequency-
CL Option
Please specify load cap.
in pF (ex. 6pF)
-
Temperature options
E
0°C to + 70°C
B
-20°C to + 70°C
Dimensions: Inch (mm)
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 01.28.09
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
32.768kHz WATCH CRYSTAL, 6.2 x 02.1MM CYLINDER PACKAGE
AB26T

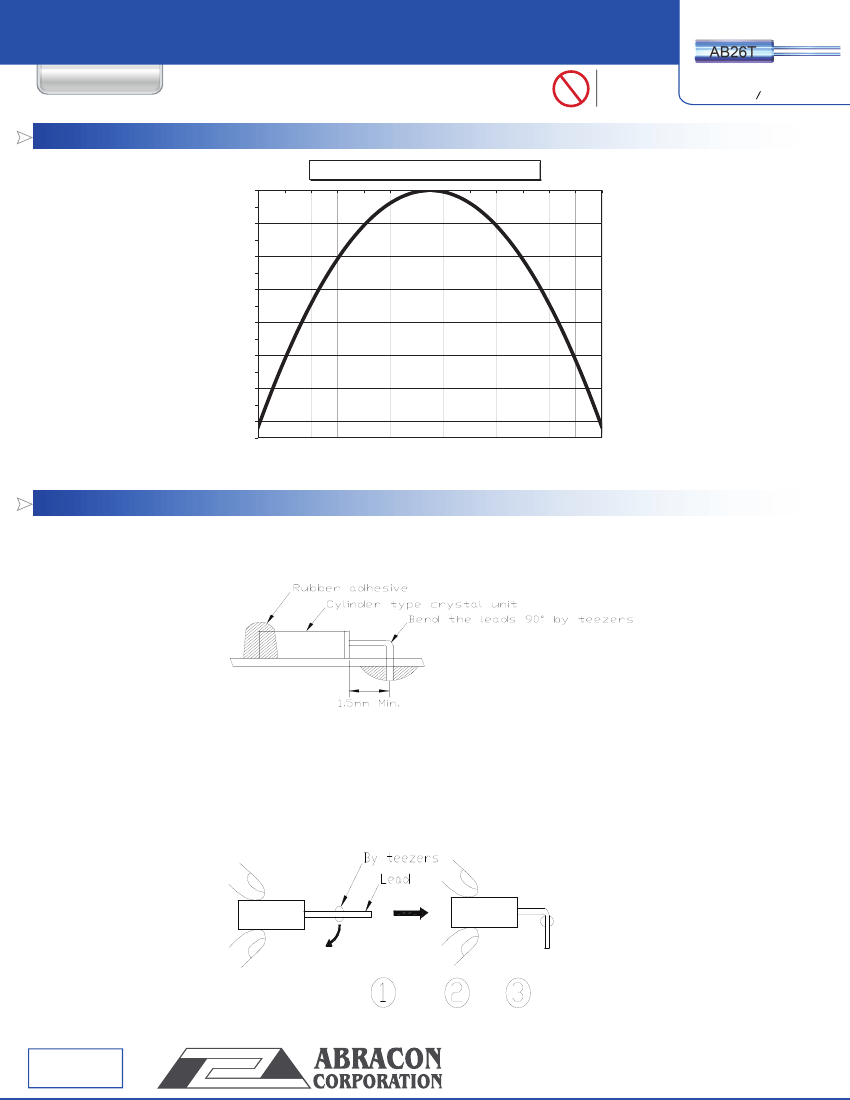

TUNING FORK CRYSTAL TEMPERATURE CURVE
Typical Frequency Stability vs. Temperature
0
-10
-20
-30
-40
dF/F (ppm)
-50
-60
-70
-80
-90
-100
-110
-120
-130
-140
-150
-40
-30
-20
-10
0
10
20
30
40
50
60
70
Pb
RoHS
Compliant
| | | | | | | | | | | | | | |
6.2 x 02.1 mm
80
90
Temperatue (˚C)
HANDLING INSTRUCTIONS
Mounting:
(1) Soldering on the body of the cylinder type crystal unit must be strictly avoided due to deteriorate the characteristics or
damage the products. Rubber adhesive is recommended.
(2) When the leads need to be bent by hand, follow the instructions below.
- Hold the body of the Cylinder type crystal unit in fingers.
- Pick at the part with tweezers, which you intend to bend. There should be more than 1.5mm (3.0mm is recommendable)
from the body case.
- Bend the lead 90º by tweezers without pulling the lead strongly. Pulling the leads forcefully may cause cracks in the glass
hermetic seal resulting in component failure.
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 01.28.09
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
