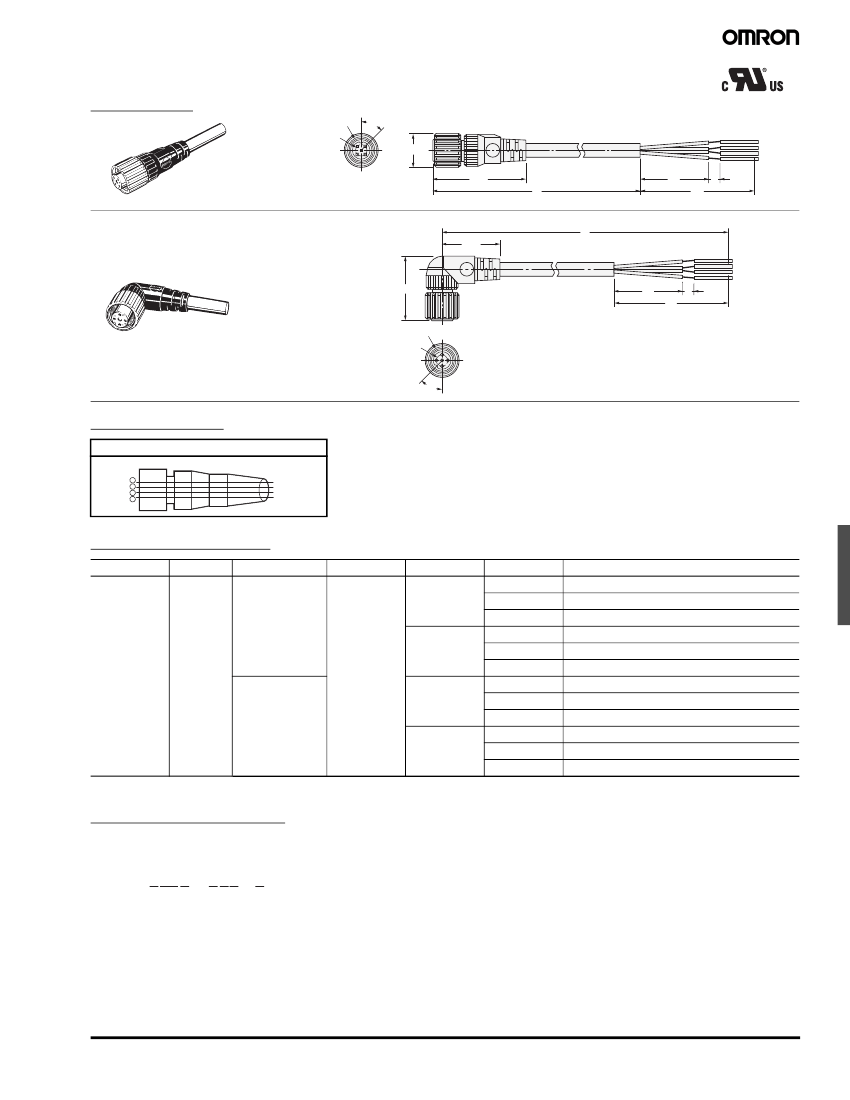

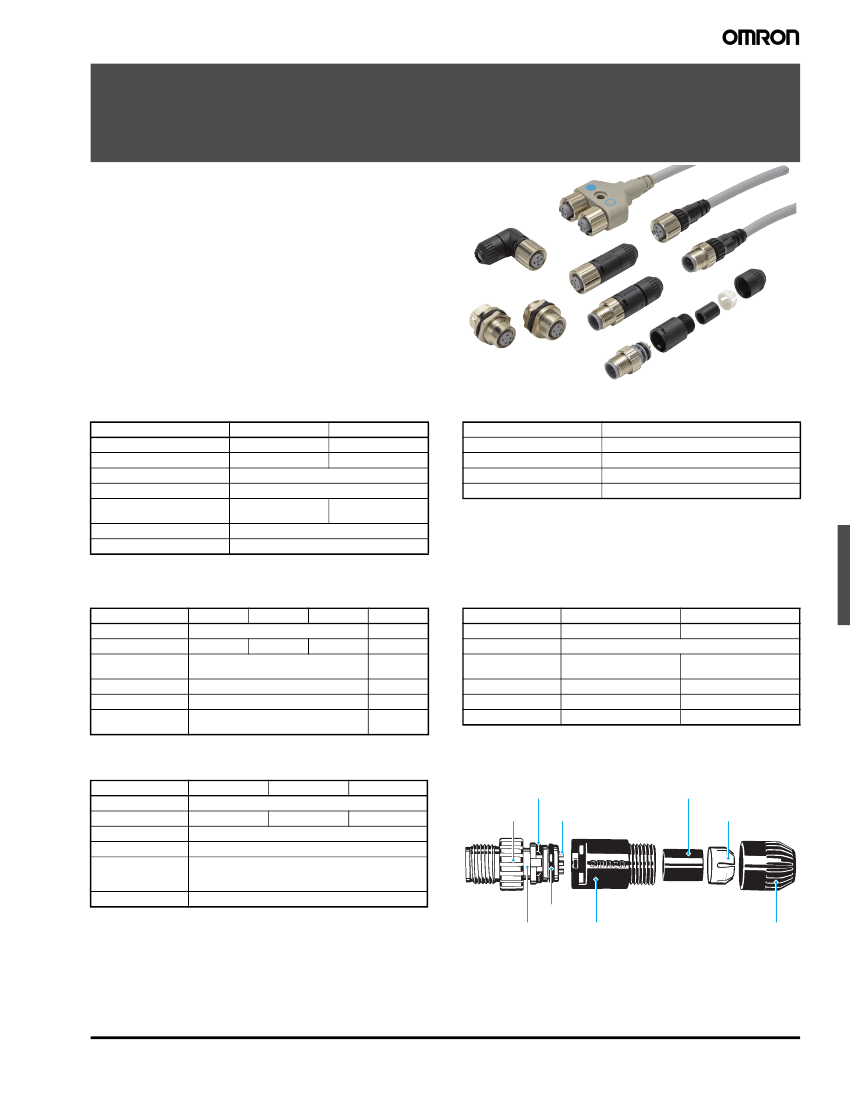

Round Water-resistant Connectors (M12)
XS2
Water- and Environment-resistive FA Connectors
Save Wiring and Maintenance Effort
• Compact FA connectors satisfy IP67 requirements and en-
sure a 94V-0 fire retardant rating.
• A wide array of connectors makes a wiring system more
modular, simplifies maintenance, and reduces downtime.
• Connectors with Cables and Connector Assemblies are
available.
• Three types of Connector Assembly: Crimping, soldering,
and screw-on.
■
Ratings and Specifications
Item
Rated current
Rated voltage
Contact resistance
Insulation resistance
4A
125 VDC, 250 VAC
4,5 Poles
1.5 A
36 VDC
8 Poles
■
Material
Contact / Surface
Connector housing
Nut / Surface
Cover (XS2F/H/W/R)
Body (XS2C/G)
Copper Alloy / Nickel base, Au 0.4
μm
PBT resin (UL94V-0)
Copper Alloy / Nickel plated
PBT resin (UL94V-0)
PBT resin (UL94V-0)
40 mΩ max. (20 mV max., 100 mA max.)
1,000 MΩ min. (at 500 VDC)
1,000 VAC for 1 min
Dielectric strength
1,500 VAC for 1 min
(leakage current: 1 mA max.)
Degree of protection
Insertion tolerance
IP67 (IEC60529)
200 times min.
■
PVC Cable
Item
Color
Outer diameter
Conductor size
Approvals
Features
Temperature range
3 cores
Black
5 mm dia.
4 cores
5 cores
8 cores
Light Grey
5.4 mm dia. 5.8 mm dia. 6 mm dia.
0.25 mm
(20 × 0.127)
—
—
-25°C to
+70°C
2
■
PVC Cable (For IP69K)
Item
Color
Outer diameter
Conductor size
Approvals
Features
Temperature range
Standard
Light Gray
6 mm dia.
AWG20 0.5 mm
2
(100 × 0.08)
CL3
Flame retardant
-25 to +70°C
AWG20 0.5 mm
2
(45 × 0.12)
---
Heat and chemical resistant
-25 to +105°C
Black
Heat-resistant
AWG22 0.34 mm
2
(43 × 0.1)
AWM
Flame retardant
Cable fixed: -10 to +80°C /
Cable moved: -0 to +60°C
■
PUR Cable
Item
Color
Outer diameter
Conductor size
Approvals
Features
Temperature range
3 cores
Black
4.3 mm dia.
AWM
Flame retardant
Halogen free
Oil resistance
Cable fixed: -50 to +80°C / Cable moved: -25 to +80°C
4.7 mm dia.
5 mm dia.
4 cores
5 cores
■
Construction
(XS2G Soldering Plug Connector Assembly)
Lock spring
Fixture
Solder-cup pin
Watertight bushing
Cable clamp
AWG22 0.34 mm
2
(43 × 0.1)
O-ring
Contact block
Cover
Cap
Note: 1.
See “XS5/XS2 - Assembly Tooling and Accessories” datasheet
for information regarding assembly, tooling and accessories
that are common to the XS5 and XS2 connectors
2.
See “XS5” datasheet for specifics regarding those connectors
Round Water-resistant Connectors (M12)
XS2
139
■

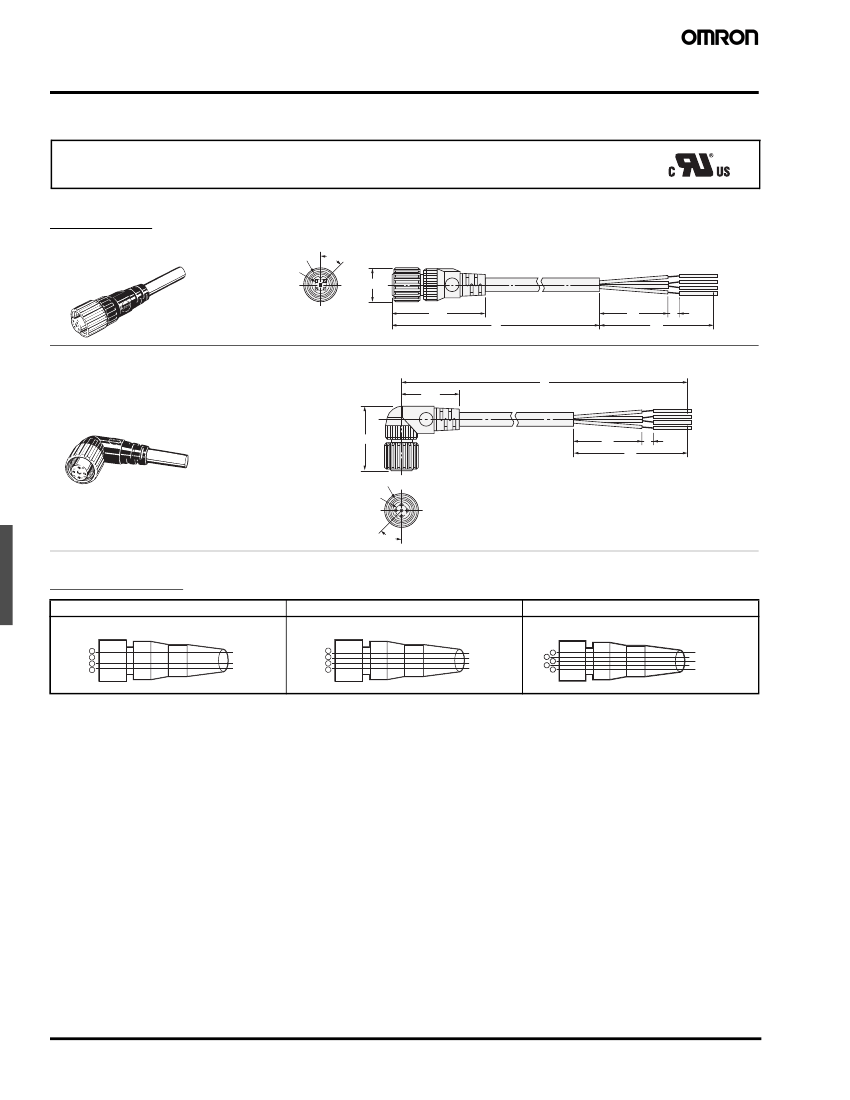

XS2F - Socket on One Cable End with LED
XS2F-M12PVC@@@@MLED
PVC Cable
XS2F-M12PUR@@@@MLED
PUR Cable
Dimensions
Angled
L
35
30
5
(Unit: mm)
28
50
(40: For PUR cable)
Wiring Diagram
3 poles
1
+
BROWN
1
+
BROWN
WHITE
BLACK
4 poles
2
4
4
BLACK
YELLOW
3
GREEN
YELLOW
YELLOW
GREEN
–
BLUE
3
–
BLUE
Ordering Information
Connector
Type
Shape
Size
Number of
Poles
3
PVC
4
Socket
Angled
M12
3
PUR
4
Cable
Material
Cable
Length (M)
2
5
10
2
5
10
2
5
10
2
5
10
Model
XS2F-M12PVC3A2MLED
XS2F-M12PVC3A5MLED
XS2F-M12PVC3A10MLED
XS2F-M12PVC4A2MLED
XS2F-M12PVC4A5MLED
XS2F-M12PVC4A10MLED
XS2F-M12PUR3A2MLED
XS2F-M12PUR3A5MLED
XS2F-M12PUR3A10MLED
XS2F-M12PUR4A2MLED
XS2F-M12PUR4A5MLED
XS2F-M12PUR4A10MLED
Model Number Legend
Use this model number legend to identify products from their model number.
When ordering, use a model number from the table in
Ordering Information.
XS2F - M12
@@@ @A @@M
LED
1
1. Screw Type
M12: M12 size
2. Cable type
PVC: PVC cable
PUR: PUR cable
3. Number of Poles
3:
3 cores
4:
4 cores
2
3 4
5
6
4. Shape
A:
Angled
5. Cable Length
2M: 2 m
5M: 5 m
10M: 10 m
6. LED
LED: with LED
142
Round Water-resistant Connectors (M12)
XS2
■
XS2F - Sockets on One Cable End with IP69K rating
Dimensions
Straight
M12
5 dia.
45°
14.9 dia.
(Unit: mm)
40.7
L
30
50
5
Angled
25.3
L
28.3
30
50
5
M12
5 dia.
45°
Wiring Diagram
4 cores
Contact No.
1
2
3
4
Cable lead
colors
Brown
White
Blue
Black
Ordering Information
Connector
Size
Cable material
Cores
Shape
Angled
Vibration Proof
Robot Cable
Straight
Socket
M12
4
Angled
Heat Resistant
Straight
Length (m)
2
5
10
2
5
10
2
5
10
2
5
10
Note:
XS2F-E42@ models with -F are cRUus approved
Product description
XS2F-E422-D80-F
XS2F-E422-G80-F
XS2F-E422-J80-F
XS2F-E421-D80-F
XS2F-E421-G80-F
XS2F-E421-J80-F
XS2F-E422-D80-E
XS2F-E422-G80-E
XS2F-E422-J80-E
XS2F-E421-D80-E
XS2F-E421-G80-E
XS2F-E421-J80-E
Model Number Legend
Use this model number legend to identify products from their model number.
When ordering, use a model number from the table in
Ordering Information.
XS2F - E42@ -
@80
-
@
1 23 4
1. Nut Material
E: Stainless
2. Number of Poles
4: 4 cores
3. Contact Plating
2: 0.4-μm gold plating
5 67
8
4. Shape
1: Straight
2: Angled
5. Cable Length
D: 2 m
G: 5 m
J: 10 m
6. Connections
8:
Brown,
White,
Blue, Black
7. Connectors on One End/Both Ends
0: One End
8.
Cable Specification
F:
Vibration
Proof Robot Cable
E: Heat-resistant cable
Round Water-resistant Connectors (M12)
XS2
143
