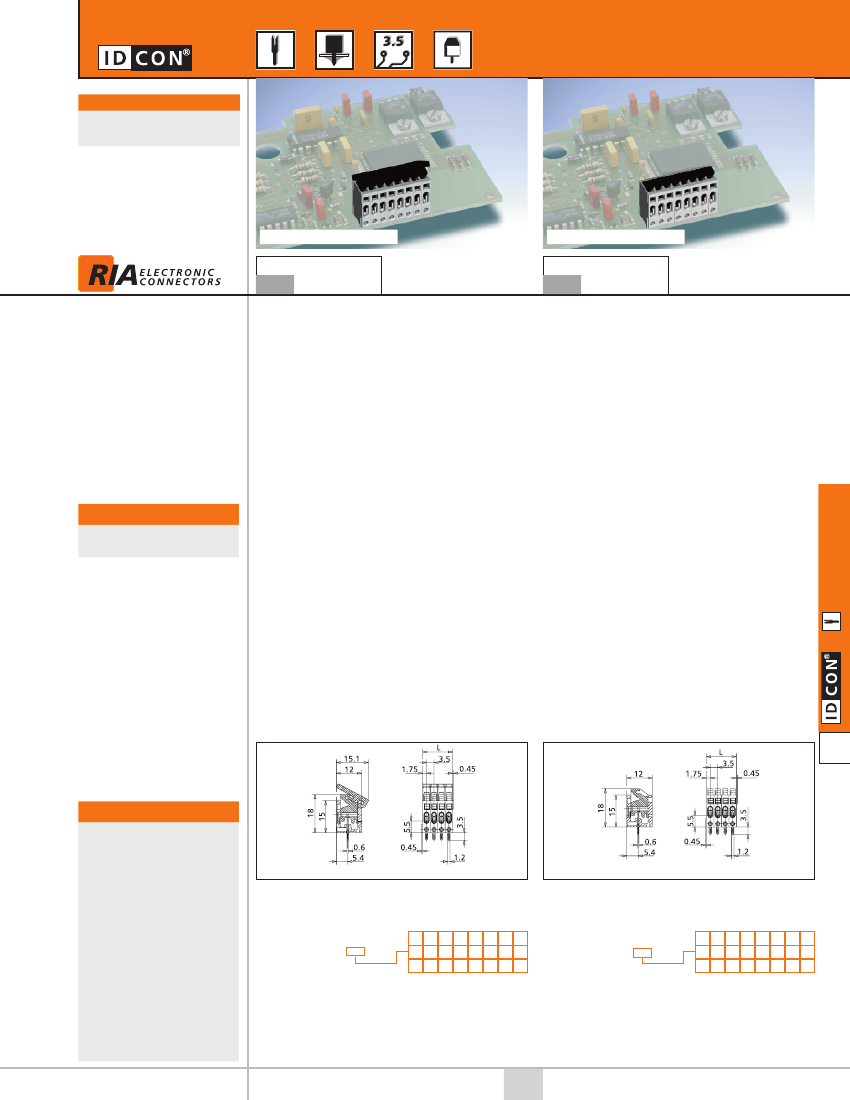

mm to inch
1 inch = 25.4 mm
1 mm = .040 inches
Designed to IEC 60664-1
Designed to IEC 60664-1
AIT
AIT
with
operating lever
01
02
125 V
2.5 A
22 - 26 AWG
.6 x 1.2 mm
1.5 mm
without
operating lever
Electrical Data
Voltage
Current
Wire range
Square pin
PCB hole diameter
Electrical Data
Voltage
Current
Wire range
Square pin
PCB hole diameter
125 V
2.5 A
22 - 26 AWG
.6 x 1.2 mm
1.5 mm
Mechanical Data
Housing/Loader
UL 94V-0
-40 °F to 189 °F
(-40 °C to 105 °C)
copper alloy, tin plated
UL 94HB
housing: gray
loader: color options see margin
2 to 24
Mechanical Data
Housing/Loader
UL 94V-0
-40 °F to 189 °F
(-40 °C to 105 °C)
copper alloy, tin plated
housing: gray
loader: color options see margin
2 to 24
Optional colors for loader
black
(standard)
, gray, light
blue, green, red, dark blue
ID contact
Operating lever
Color
Pole sizes
ID contact
Color
Pole sizes
Additional data - pages F-3 to F-5
Additional data - pages F-3 to F-5
Dimensions (mm)
Dimensions (mm)
Suffixes for color
suffix
02
04
05
06
08
13
color
black (standard)
gray
light blue
green
red
dark blue
L = (circuits - 1) x centerline + 3.5
L = (circuits - 1) x centerline + 3.5
Part Numbers
AIT01
Complete the part number
by adding the pole size.
centerline 3.5 mm
Part Numbers
Complete the part number
by adding the pole size.
For different sequences of
colors within the same termi-
nal block, i.e. black, red,
green, add suffix
99
multiple color
Please attach the color
sequence to your order or
consult factory.
Part No.
AIT01 3
XX
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
AIT02
centerline 3.5 mm
Part No.
AIT02 3
XX
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
XX
= color suffix - Please replace “XX” by the requested
color suffix (see margin).
RIA electronic, Inc.
430 Industrial Way West, Eatontown, NJ 07724
phone 1-888-722-5625
•
fax 732-389-9066
•
www.riaelectronic.com
XX
= color suffix - Please replace “XX” by the requested
color suffix (see margin).
F-7
Subject to technical changes and printing errors.
