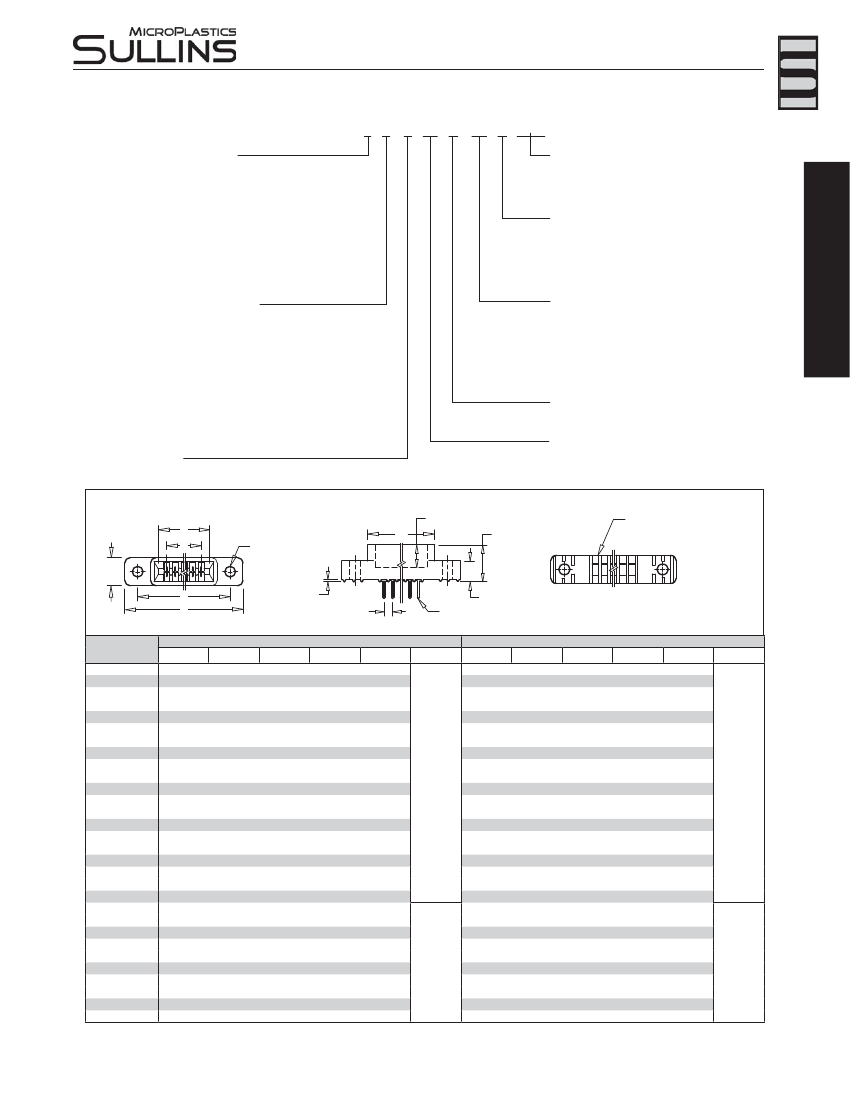

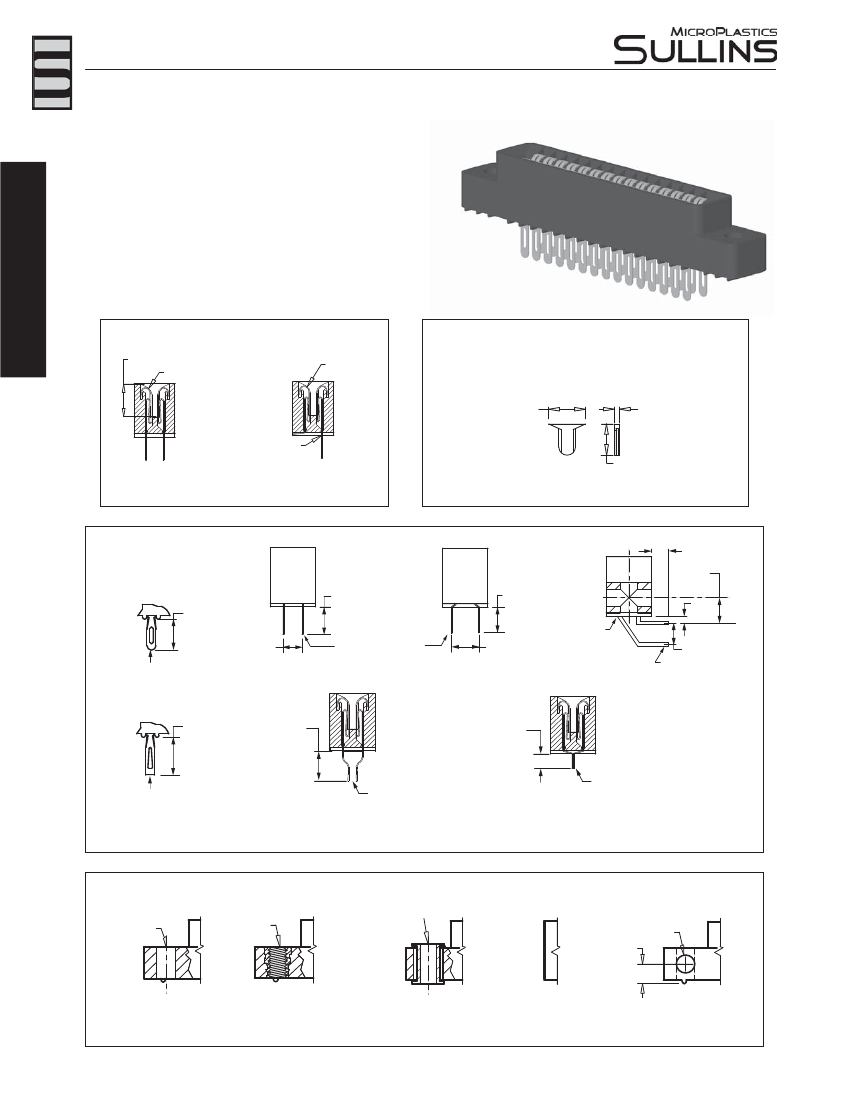

Sullins Edgecards
.100” [2.54 mm] Contact Centers, .431” [10.95 mm] Insulator Height
Dip Solder/Eyelet/Right Angle for .062”[1.57] or .031”[0.79] Mating PCB
SPECIFICATIONS
•
•
•
•
•
Accommodates .062” ± .008” [1.57 ± .20] PC board
PBT, PPS, PA9T or PEEK insulator
Molded-in key available
3 amp current rating per contact
30 milli ohm maximum at rated current
Sullins Edgecards
READOUT
.265 [6.73] INSERTION DEPTH
FULL BELLOWS
BACK-UP
SPRING
POLARIZING KEYS
(For .062” Mating PCB Only)
PLA-K1
KEY IN BETWEEN CONTACTS
(ORDER SEPARATELY)
.230[5.84]
LETTER
'A' SIDE
.030[0.76]
DUAL (D)
HALF LOADED (H)
.200[5.08]
CONSULT FACTORY FOR MOLDED-IN KEY
TERMINATION TYPE
.125[3.18]
EYELET ACCEPTS
3-#26 AWG
.225
[5.72]
.140 [3.56]
.200 [5.08] (RT)
.440 [11.15] (RY)
.185 [4.70]
LETTER
B SIDE
.185
[4.70]
.050
[1.27]
.156[3.96]
FITS Ø.043 [1.09]
RIGHT ANGLE
(RA)
FITS Ø.043 [1.09]
.200 [5.08]
WIDE DIP SOLDER
(RX)
.007 [0.18] THICK
EYELET
(RE)
.275
[6.98]
NARROW DIP SOLDER
(RT, RY)
.210[5.33] (RE)
.185[4.70] (RT)
.425[10.80] (RY)
.160±.025
[4.06±.64]
FITS Ø .051[1.30]MIN.
.014 [0.36] THICK
EYELET
(TE)
ACCEPTS .062[1.57] PCB
CARD EXTENDER
REQUIRES -S13 MODIFICATION CODE
(RE,RT,RY TERMINATIONS ONLY)
CENTERED DIP SOLDER, (SX)
AVAILABLE WITH
DUAL OR HALF LOADED READOUT TYPE
MOUNTING STYLE
Ø.125
[3.18]
#4-40
Ø.116 [2.95],
CLEARANCE FOR
#4 SCREW
.135
[3.43]
Ø.125
[3.18]
CLEARANCE
HOLE (H)
THREADED
INSERT
(I)
FLOATING
BOBBIN (F)
NO MOUNTING EARS
(N)
SIDE MOUNTING
(S)
30
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
Sullins Edgecards
.100” [2.54 mm] Contact Centers, .431” [10.95 mm] Insulator Height
Dip Solder/Eyelet/Right Angle for .062”[1.57] or .031”[0.79] Mating PCB
PART NUMBER CODING
MATERIALS (Insulator/Contact)
E = PBT/Phosphor Bronze (Standard)
R = PPS/Phosphor Bronze
G = PA9T/Phosphor bronze
H = PBT/Beryllium Copper
A = PPS/Beryllium Copper
J = PA9T/Beryllium Copper
*F = PPS/Spinodal (Overall Gold Plating Only)
Consult Factory for Special Soldering Guidelines
*C = PPS/Beryllium Nickel (Overall Gold Plating Only)
*W = PEEK/Beryllium Nickel (Overall Gold Plating Only)
*Consult Factory for availability.
E B
C 43 D
RE H - Sxxx
MODIFICATIONS (Consult Factory)
OMIT FOR STANDARD
-S13 = Card Extender Accepts .062”[1.57] PCB
(RE, RT, RY Terminations Only)
-S734 = .031” ± .008” [.79 ± .20] Thick Mating PCB
Sullins Edgecards
MOUNTING STYLE (Opposite Page)
H = .125”[3.18mm] Clearance Holes
N = No Mounting
S = Side Mounting
I
= Threaded Insert
F = Floating Bobbin
TERMINATION TYPE (Opposite Page)
RA = Right Angle
RE = Eyelet (Standard)
TE = Eyelet (Overall Plated Only)
RT = .140”[3.56mm] x .200”[5.08mm] Dip Solder
RY = .140”[3.56mm] x .440”[11.18mm] Dip Solder
RX = .200”[5.08mm] x .185”[4.70mm] Dip Solder
SX = .110”[2.79mm] Centered Dip Solder
READOUT (Opposite Page)
D = Dual
H = Half Loaded
NUMBER OF CONTACT POSITIONS
See Chart Below
CONTACT FINISH - RoHS Compliant
All platings are Lead Free and have .000050” Nickel underplate
B
C
G
Y
=
=
=
=
S =
M =
E =
Contact Surface
.000010” Gold
.000030” Gold
.000010” Gold
.000030” Gold
Contact Surface
.000010” Gold
.000030” Gold
.000100” Pure Tin, Matte
Termination
.000100” Pure Tin, Matte
.000100” Pure Tin, Matte
.000005” Gold
.000005” Gold
Overall Plating
.000010” Gold
.000010” Gold
.000100” Pure Tin, Matte
CONTACT CENTERS
C = .100” [2.54mm]
DIMENSIONS
Dimensions in [ ] are in millimeters, all others are in inches.
B
A
F
C
REFER TO
MOUNTING
STYLE
.265 [6.73] INSERTION DEPTH
.431 [10.95]
B 1 2
A 1 2
CONTACT MARKINGS
B 1 2 3 . . . 58 59 60 B
A 1 2 3 . . . 58 59 60 A
59 60 B
59 60 A
.025[0.64]
.245 [6.22]
D
E
REFER TO TERMINATION TYPE
.100 [2.54] TYP.
Tolerances with PPS Insulator Material may vary slightly due to shrinkage differential; Consult Factory.
POSITIONS/
A±.008
B±.008
CONTACTS
04/08*
0.300
0.500
05/10
0.400
0.600
06/12
0.500
0.700
07/14
0.600
0.800
08/16
0.700
0.900
10/20
0.900
1.100
12/24
1.100
1.300
13/26
1.200
1.400
15/30
1.400
1.600
17/34
1.600
1.800
18/36
1.700
1.900
19/38
1.800
2.000
20/40
1.900
2.100
22/44
2.100
2.300
23/46*
2.200
2.400
25/50
2.400
2.600
26/52
2.500
2.700
28/56
2.700
2.900
30/60
2.900
3.100
31/62
3.000
3.200
35/70
3.400
3.600
36/72
3.500
3.700
40/80
3.900
4.100
43/86
4.200
4.400
44/88
4.300
4.500
49/98
4.800
5.000
50/100
4.900
5.100
52/104*
5.100
5.300
60/120
5.900
6.100
65/130
6.400
6.600
* Consult Factory For Availability
INCHES
C±.015
D±.010
0.675
0.975
0.775
1.075
0.875
1.175
0.975
1.275
1.075
1.375
1.275
1.575
1.475
1.775
1.575
1.875
1.775
2.075
1.975
2.275
2.075
2.375
2.175
2.475
2.275
2.575
2.475
2.775
2.575
2.875
2.775
3.075
2.875
3.175
3.075
3.375
3.275
3.575
3.375
3.675
3.775
4.075
3.875
4.175
4.275
4.575
4.575
4.875
4.675
4.975
5.175
5.475
5.275
5.575
5.475
5.775
6.275
6.575
6.775
7.075
E±.020
1.275
1.375
1.475
1.575
1.675
1.875
2.075
2.175
2.375
2.575
2.675
2.775
2.875
3.075
3.175
3.375
3.475
3.675
3.875
3.975
4.375
4.475
4.875
5.175
5.275
5.775
5.875
6.075
6.875
7.375
F±.005
A±0.20
7.62
10.16
12.70
15.24
17.78
22.86
27.94
30.48
35.56
40.64
43.18
45.72
48.26
53.34
55.88
60.96
63.50
68.58
73.66
76.20
86.36
88.90
99.06
106.68
109.22
121.92
124.46
129.54
149.86
162.56
B±0.20
12.70
15.24
17.78
20.32
22.86
27.94
33.02
35.56
40.64
45.72
48.26
50.80
53.34
58.42
60.96
66.04
68.58
73.66
78.74
81.28
91.44
93.98
104.14
111.76
114.30
127.00
129.54
134.62
154.94
167.64
[MILLIMETERS]
C±0.38 D±0.25
17.15
24.77
19.69
27.31
22.23
29.85
24.77
32.39
27.31
34.93
32.39
40.01
37.47
45.09
40.01
47.63
45.09
52.71
50.17
57.79
52.71
60.33
55.25
62.87
57.79
65.41
62.87
70.49
65.41
73.03
70.49
78.11
73.03
80.65
78.11
85.73
83.19
90.81
85.73
93.35
95.89
103.51
98.43
106.05
108.59
116.21
116.21
123.83
118.75
126.37
131.45
139.07
133.99
141.61
139.07
146.69
159.39
167.01
172.09
179.71
E±0.51
32.39
34.93
37.47
40.01
42.55
47.63
52.71
55.25
60.33
65.41
67.95
70.49
73.03
78.11
80.65
85.73
88.27
93.35
98.43
100.97
111.13
113.67
123.83
131.45
133.99
146.69
149.23
154.31
174.63
187.33
F±0.13
0.330
8.38
0.400
10.16
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
info@sullinscorp.com
