BF075-42-C-0830-N-D: DescriptionBoard Connector, 42 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size134KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BF075-42-C-0830-N-D Overview

Board Connector, 42 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

BF075-42-C-0830-N-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1480219051
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TUBE PACKAGING
body width	0.199 inch
subject depth	0.201 inch
body length	1.669 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	LEAF
Dielectric withstand voltage	500VAC V
Durability	100 Cycles
maximum insertion force	3.0024 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE
JESD-609 code	e3
Manufacturer's serial number	BF075
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	6.9088 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	42
Evacuation force-minimum value	.199882 N

Preview

Download Datasheet

View All

3

1

2

4

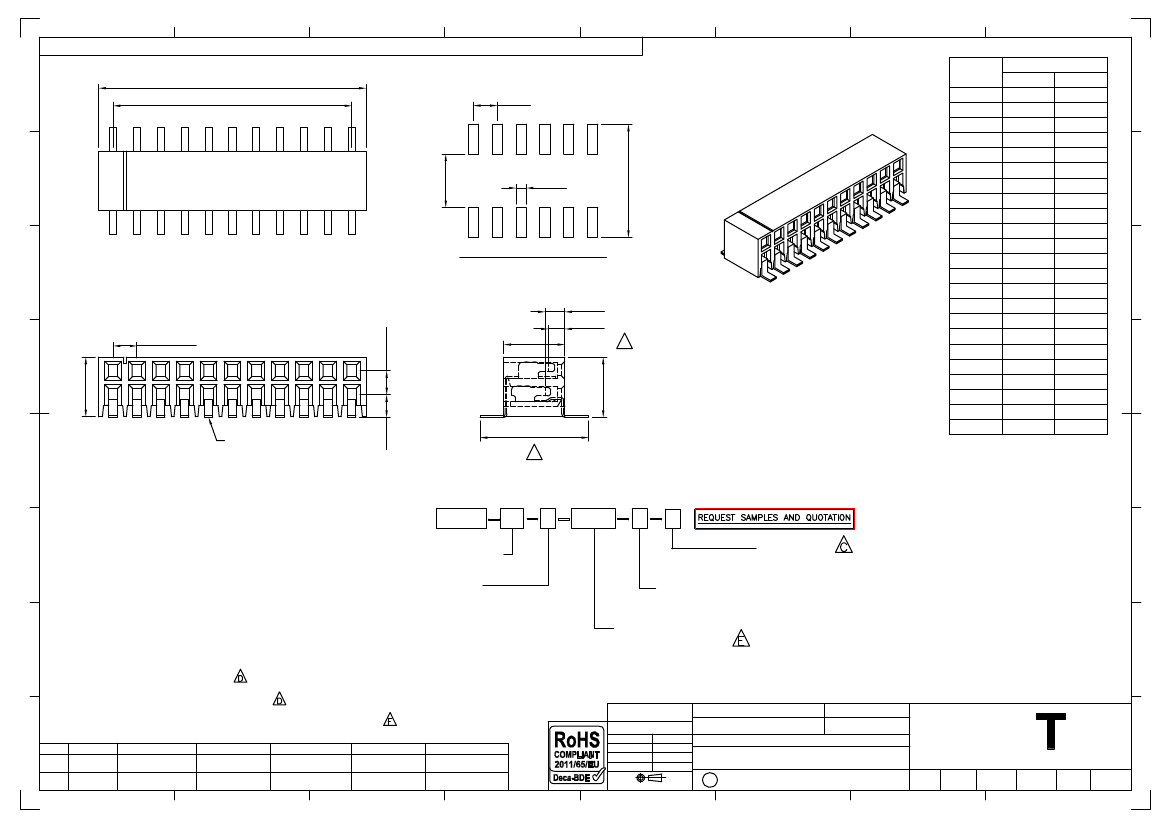

Global Connector Technology Ltd. - BF075: 2.0mm PITCH SOCKET, DUAL ROW, SURFACE MOUNT, HORIZONTAL, SIDE ENTRY

A

B±0.38

A±0.25

2.00

Typ. (Non-Accum)

5

6

7

8

DIMENSIONS

A

4.0

6.0

8.0

10.0

12.0

14.0

16.0

18.0

20.0

22.0

24.0

26.0

28.0

30.0

32.0

34.0

36.0

38.0

40.0

42.0

44.0

46.0

48.0

B

6.4

8.4

10.4

12.4

14.4

16.4

18.4

20.4

22.4

24.4

26.4

28.4

30.4

32.4

34.4

36.4

38.4

40.4

42.4

44.4

46.4

48.4

50.4

CONTACTS

6

8

10

12

14

16

18

20

22

24

26

28

30

32

A

4.50

0.85

RECOMMENDED PCB LAYOUT

C

1.65

1.40

2.00 Typ.

2.00

5.10

9.30

B

C

Minimum

Insertion Depth

B

34

36

38

40

42

44

46

48

50

D

5.00

5.05

D

PIN 0.60X.20 (Typ.)

1.90

8.30±0.2

E

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 2.0 AMP

INSULATION RESISTANCE

绝缘电阻值

: 1000 MC Min.

CONTACT RESISTANCE

接触电阻值

: 20 mΩ Max.

DIELECTRIC WITHSTANDING

耐电压

: 500 V AC

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

INSULATION MATERIAL

绝缘½物料

:

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94V-0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94V-0

SOLDERING PROCESS

可焊性

:

NYLON 6T (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

:230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

:250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

):

BF030

BF045

BF055

BF145

By

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

A

31/10/07

PN

MINIMUM INSERTION

DEPTH ADDED

B

23/04/09

PN

PACKING OPTIONS AND

TOLERANCES CHANGED

E

Ordering Grid

BF075

XX

X

0830

X

Packing Options

A = Tape and Reel

(Standard)

D = Tube

Insulator Material

N = Nylon 6T

(Standard)

L = LCP

F

No. of Contacts

06 to 50

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

F

G

Footprint Width (1/100mm)

0830 = 8.30mm

G

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X. ± 0.30

BF075

31 OCT 07

H

DR

CHANGE TO SOLDER

TEMP. INFORMATION

D

05/08/09

AJO

SELECTABLE

WIDTH REMOVED

E

25/07/12

AJO

"MATES WITH"

OPTIONS AMMENDED

F

18/06/13

X.°± 5.0°

Description:-

X.X ± 0.25

.X°± 3.0°

2.0mm PITCH SOCKET, DUAL ROW,

X.XX ± 0.15

.XX°± 2.0°

SURFACE MOUNT, HORIZONTAL, SIDE ENTRY

X.XXX ± 0.10 .XXX°± 1.0°

Third Angle Projection

GC

Scale

NTS

H

Sheet No.

E & OE

1/1

www.gct.co

Drawn by

LYH

C

30/04/09

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

F

Material

See Note

1

2

3

4

5

6

7

8
