SLO-53350BESR-156.250M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> SLO-53350BESR-156.250M

SLO-53350BESR-156.250M: DescriptionLVDS Output Clock Oscillator,; CategoryPassive components oscillator; File Size219KB，3 Pages; ManufacturerSunny Electronics Corp; Websitehttp://www.sunny.co.kr

Download Datasheet Parametric View All

SLO-53350BESR-156.250M Overview

LVDS Output Clock Oscillator,

SLO-53350BESR-156.250M Parametric

Parameter Name	Attribute value
Objectid	7009587330
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TR, 7 INCH
maximum descent time	0.7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	156.25 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	LVDS
Output load	100 OHM
physical size	5.0mm x 3.2mm x 1.3mm
longest rise time	0.7 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

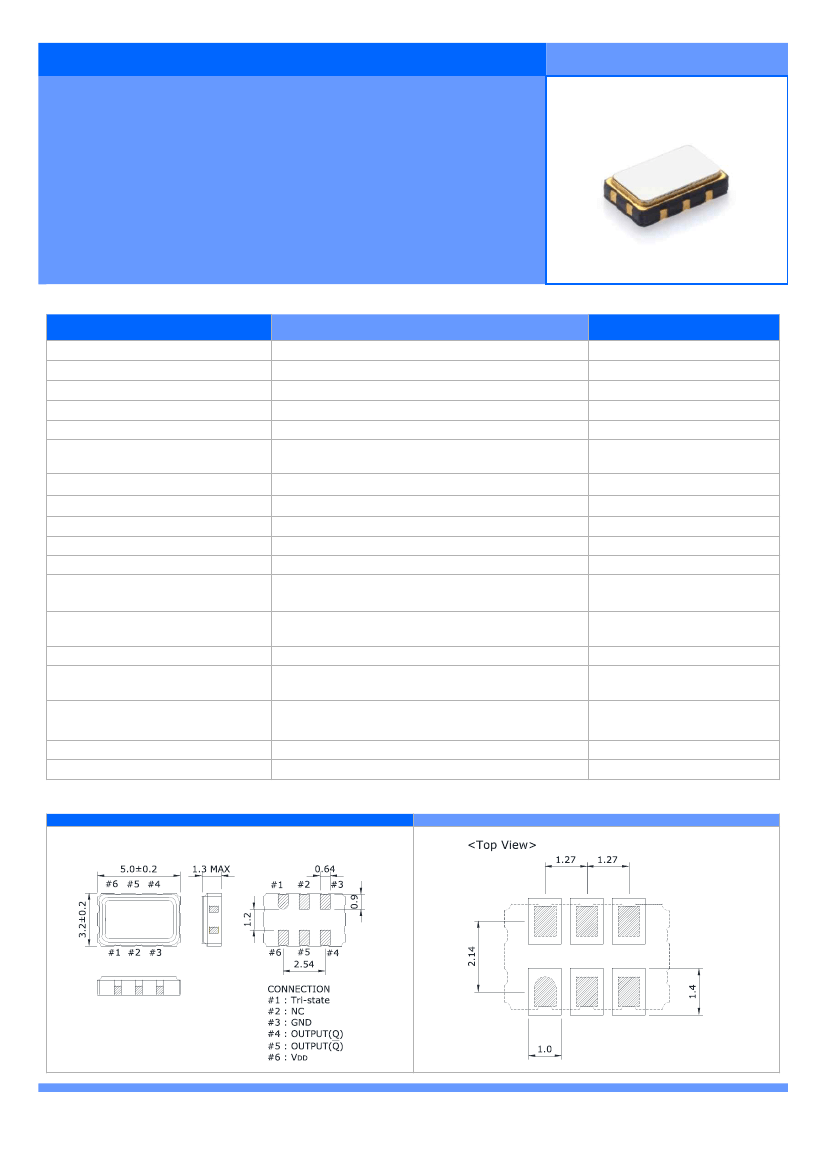

CRYSTAL OSCILLATORS

LVDS TYPE

SLO-53

5×3.2 mm Miniature Package

Low RMS phase jitter(12 kHz to 20 MHz)

2.5 V, 3.3 V Supply Voltage

LVDS Output

Tri-state Function Available

■ ELECTRICAL SPECIFICATIONS

ITEM

Output Logic Type

Frequency Range

Supply Voltage(V

)

Operating Temperature Range

Storage Temperature Range

Frequency Stability

Input Current

Output Voltage Logic High(V

)

Output Voltage Logic Low(V

)

Differential Output Voltage(V

)

Offset Voltage(V

)

Rise / Fall Time

Duty Cycle

Start-up Time

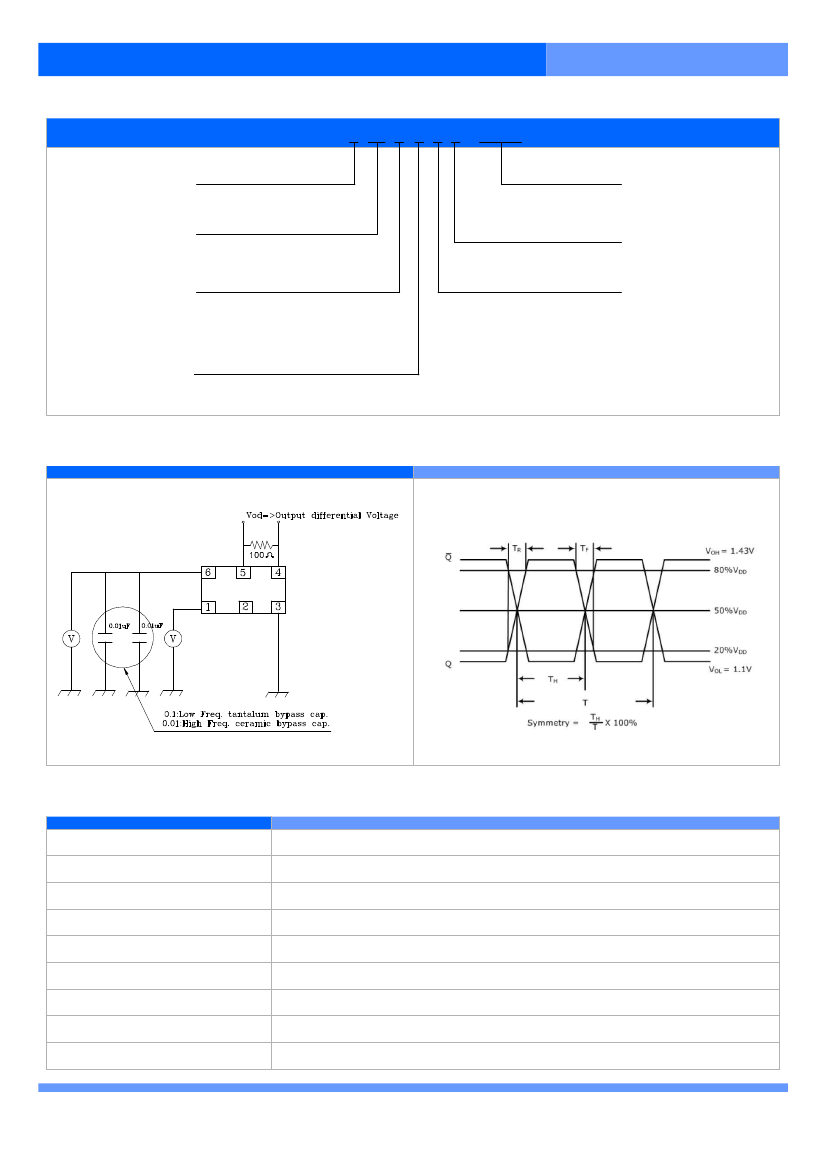

Output Load Condition(LVDS)

Output Enable Function

and V

)

RMS Phase Jitter

Frequency Aging

LVDS

13.5000 MHz to 156.250 MHz

2.5 V

±5 %, 3.3 V

±5 %

-20 to +70 ℃, -40 to +85 ℃

-55 to +125 ℃

±25 ppm, ±50 ppm Max.

45 mA Typ., 65 mA Max.

1.43 V Typ., 1.60 V Max.

1.10 V Typ., 0.90 V Min.

247 mV Min., 330 mV Typ., 454 mV Max.

1.125 V Min., 1.250 V Typ., 1.375 V Max.

0.3 ns Typ., 0.7 ns Max.

45 to 55 %, 40 to 60 %

10 ms Max.

100 Ω

70 % of V

min. to Enable Output

30 % of V

max. to Disable Output

1 ps Max.

±3 ppm Max.

Between Output and

Complementary Output

High Impedance

BW : 12 kHz to 20 MHz

25 ℃, First year

Measured over

20 % to 80 % of waveform

Measured at 50 % of

waveform

Over operating Temperature

range

Value

LVDS XO

Remarks

■ MECHANICAL DIMENSIONS

(mm)

■ LAND PATTERN

(mm)

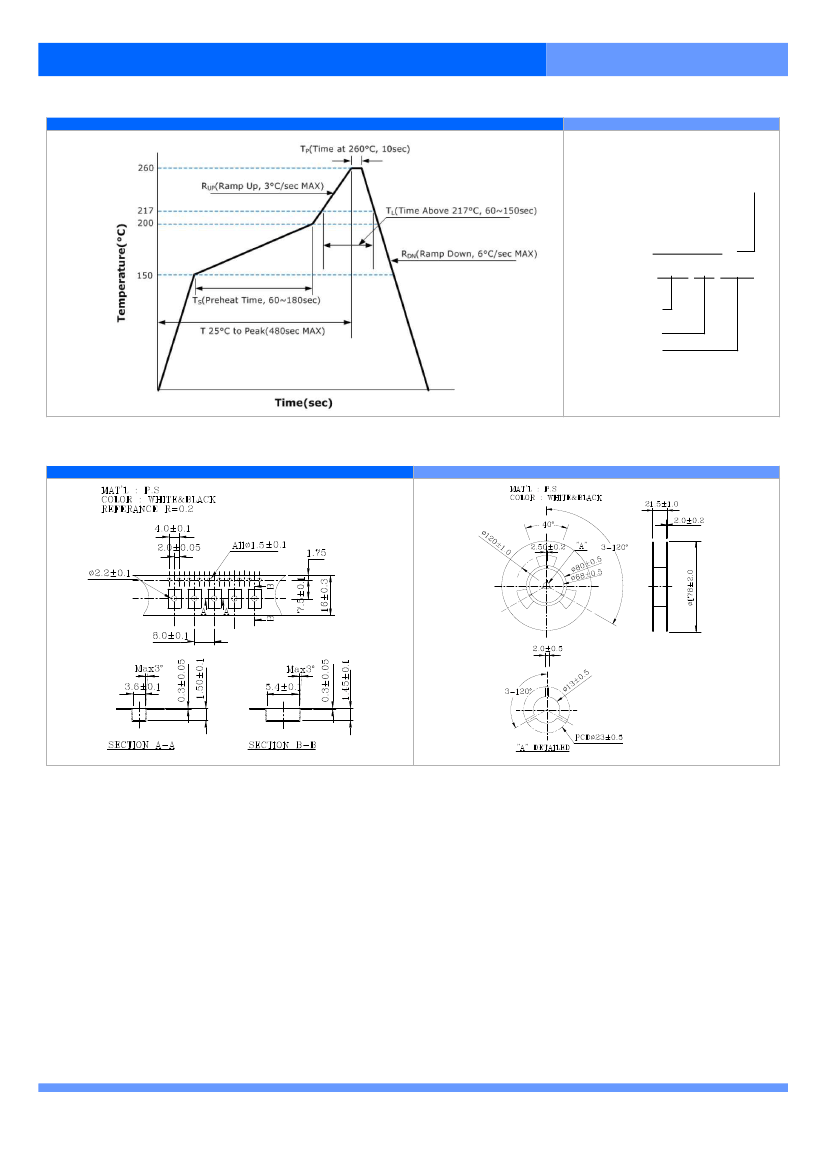

http://www.sunny.co.kr

SUNNY ELECTRONICS CORP
