57-40503-9 datasheet, PDF - EEWORLD Datasheet

57-40503-9: DescriptionD Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Bail Mt M, Plug; CategoryThe connector The connector; File Size217KB，4 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric View All

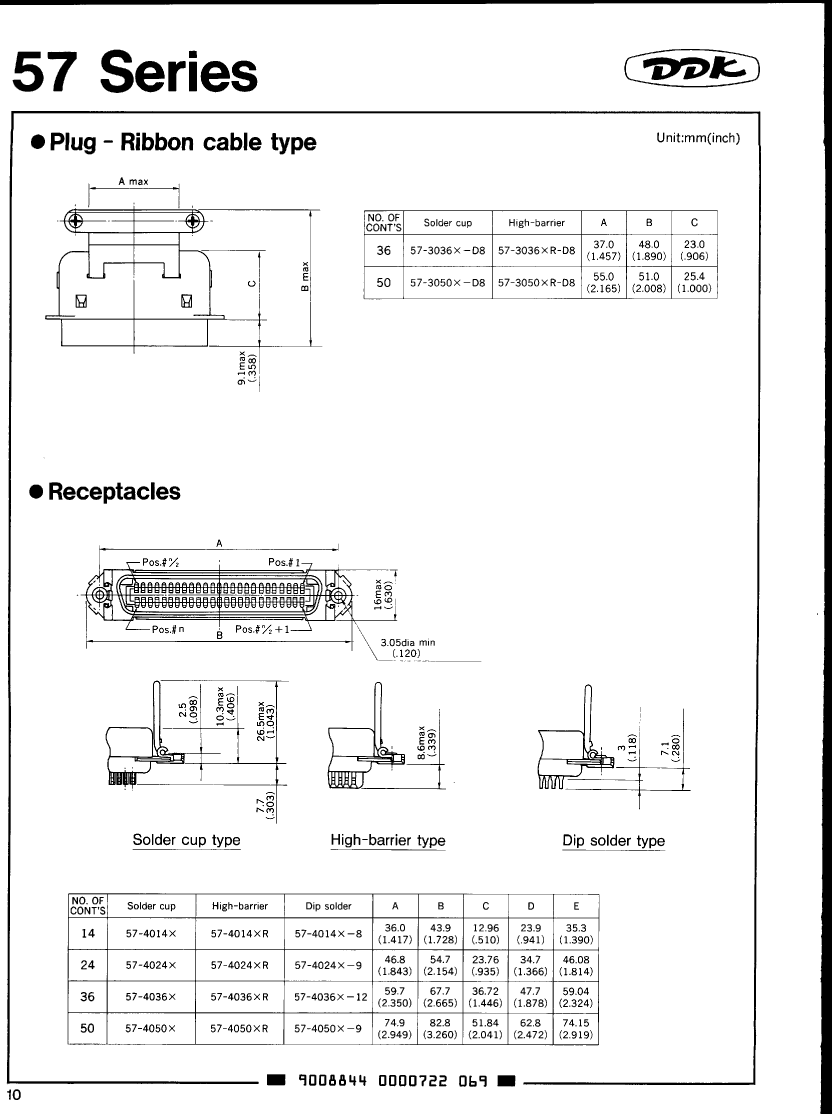

57-40503-9 Overview

D Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Bail Mt M, Plug

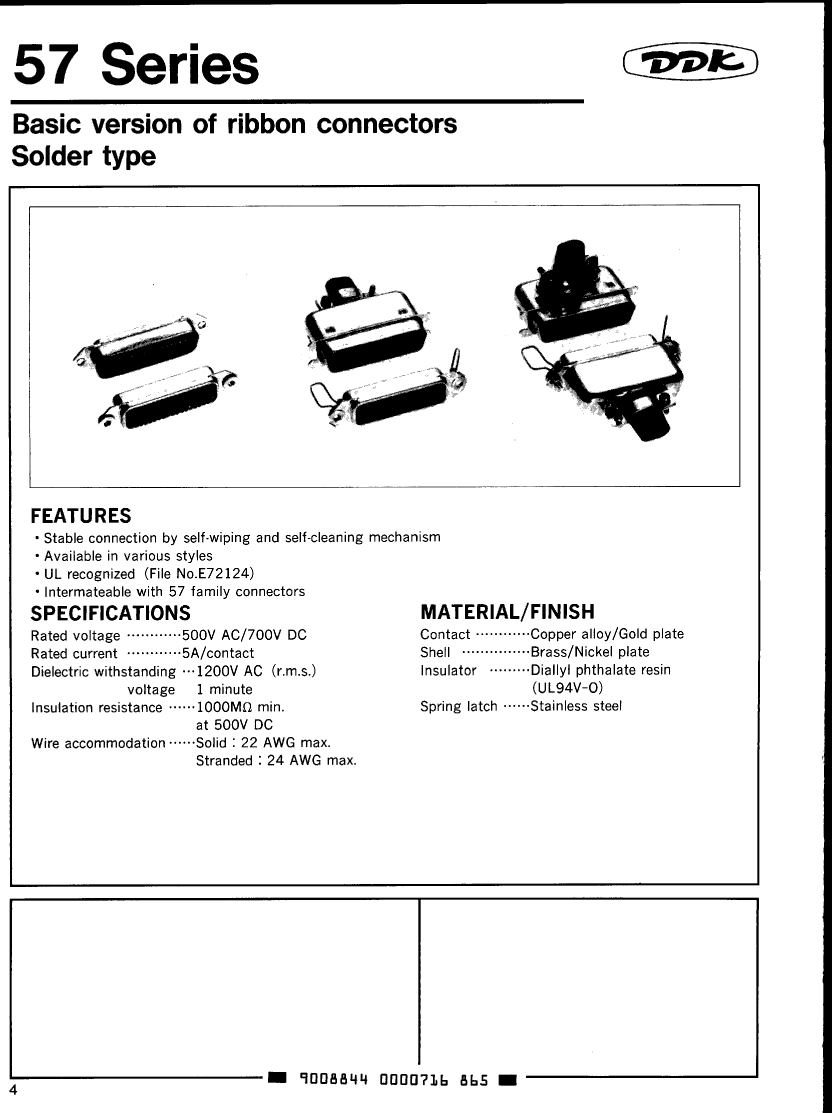

Parameter Name	Attribute value
Maker	DDK
Reach Compliance Code	unknown
Other features	WITH KEY POLARIZATION
body width	0.63 inch
body length	3.26 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1200VAC V
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE

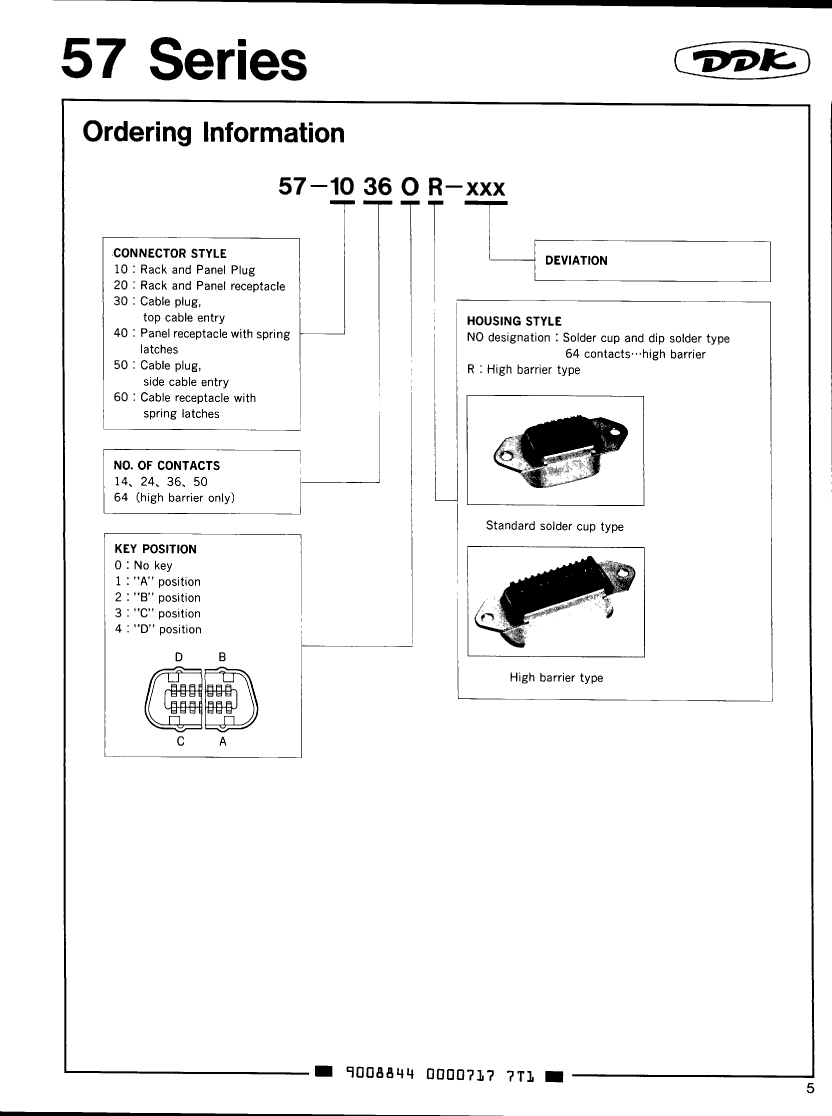

Manufacturer's serial number	57
Plug contact pitch	0.085 inch
Installation option 1	BAIL MT M
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2

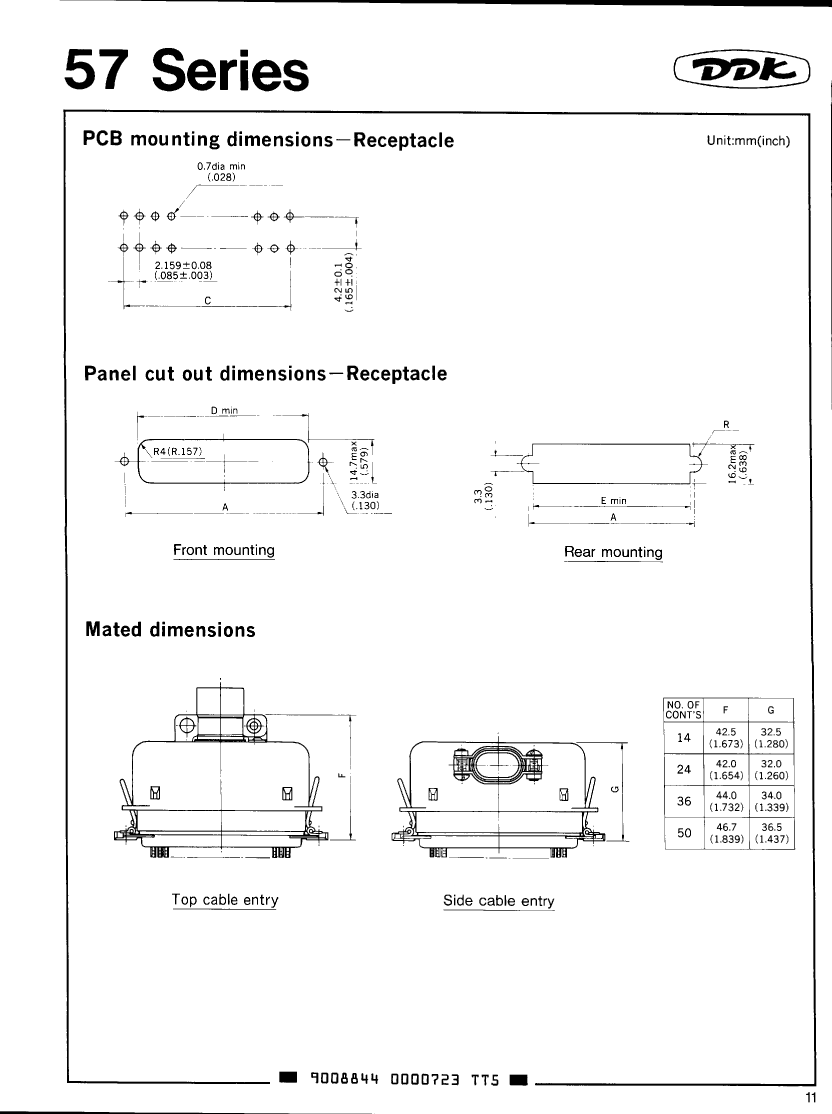

PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Terminal length	0.118 inch
Terminal pitch	2.159 mm
Termination type	SOLDER
Total number of contacts	50
Base Number Matches	1
