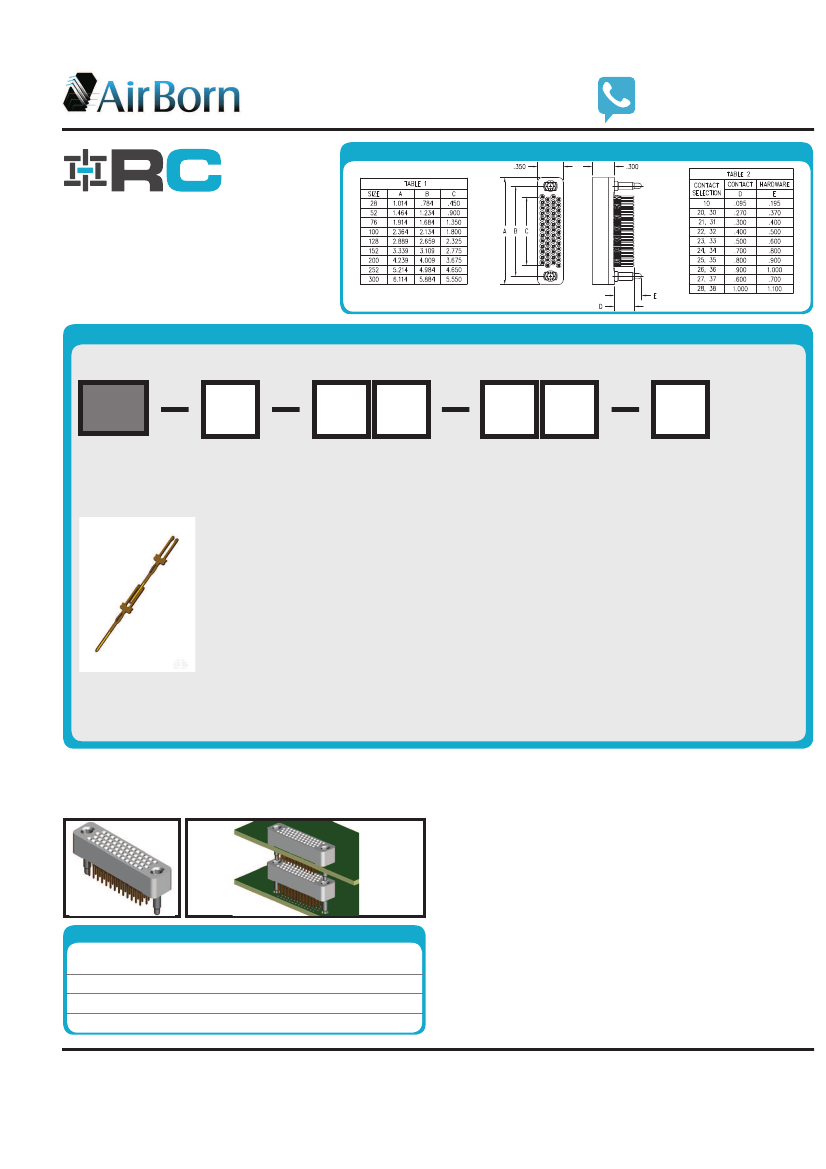

RC422-152-353-46MT: DescriptionBoard Stacking Connector; CategoryThe connector The connector; File Size194KB，1 Pages; ManufacturerAirBorn

Download Datasheet Parametric View All

RC422-152-353-46MT Overview

Board Stacking Connector

RC422-152-353-46MT Parametric

Parameter Name	Attribute value
Objectid	1338609628
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	PEG
body width	0.35 inch
subject depth	0.3 inch
body length	3.339 inch
Connector type	BOARD STACKING CONNECTOR
Contact point gender	FEMALE
contact mode	STAGGERED
Contact resistance	5 mΩ
Contact style	RND PIN-SKT
Durability	500 Cycles
Filter function	NO
maximum insertion force	1.112 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYPHENYLENE SULFIDE
Plug contact pitch	0.075 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Terminal length	0.8 inch
Terminal pitch	1.91 mm
Termination type	PRESS FIT
Total number of contacts	152
Evacuation force-minimum value	0.139 N

Preview

Download Datasheet

View All

CONTACT CUSTOMER SERVICE

CALL 512-863-5585

x6464

ENTER

CODE

ENTER

CODE

ENTER

CODE

ENTER

CODE

ENTER

CODE

ENTER

CODE

RC422

SERIES

Stackable

Compliant

4 Row

CONFIGURATION

1 - 50µin. Au

3 - 30µin. Au

5 - 10µin. Au

CONTACT

HARDWARE

00 - None

FT - Female Thread

MT - Male Thread

VARIATION

Blank - None

XXX - Consult Factory

selected by approximately the difference in pin length. See Table 2.

Contact:. . . . . . . .

Contact Finish: . .

Molded Insulator:

Hardware: . . . . . .

.

. . . . BeCu per ASTM-B768 (BeCu C17410 Brush Alloy 174)

. . . . . Gold per MIL-G-45204 over Nickel per IAW QQ-N-290

.

...

REQUIREMENTS

1

2

3

4

Diff. Insertion Loss

Diff. Return Loss

ACTUAL

5.0 Ghz @ -3 dB

2.0 Ghz @ -8 dB

4.0 Ghz @ -25 dB

4.0 Ghz @ -35 dB

Contact Rating: . . . . . . . . . .

Operating Temperature: . . . .

Insulation Resistance: . . . . .

Durability: . . . . . . . . . . . . . . .

Contact Resistance: . . . . . . .

Contact Engagement Force: .

Contact Separation Force: . .

Compliant Insertion Force: . .

Compliant Removal Force: . .

.

. . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Amperes

. . . . . . . . . . . . . . . . . . . . . . .-65° C to +125° C

. . . . . 5,000 megaohms minimum @ 500 VDC

. . . . . . . . . . . . 500 connector mating cycles

3 to 5 milliohms (contact length dependent)

..

...

. . . . . . 22.5 lb. (10.21 Kg.) max. per contact

. . . . . . . . . 4.5 lb. (2.04 Kg.) min. per contact

www.AIRBORN.com

( 512 ) 863-5585
