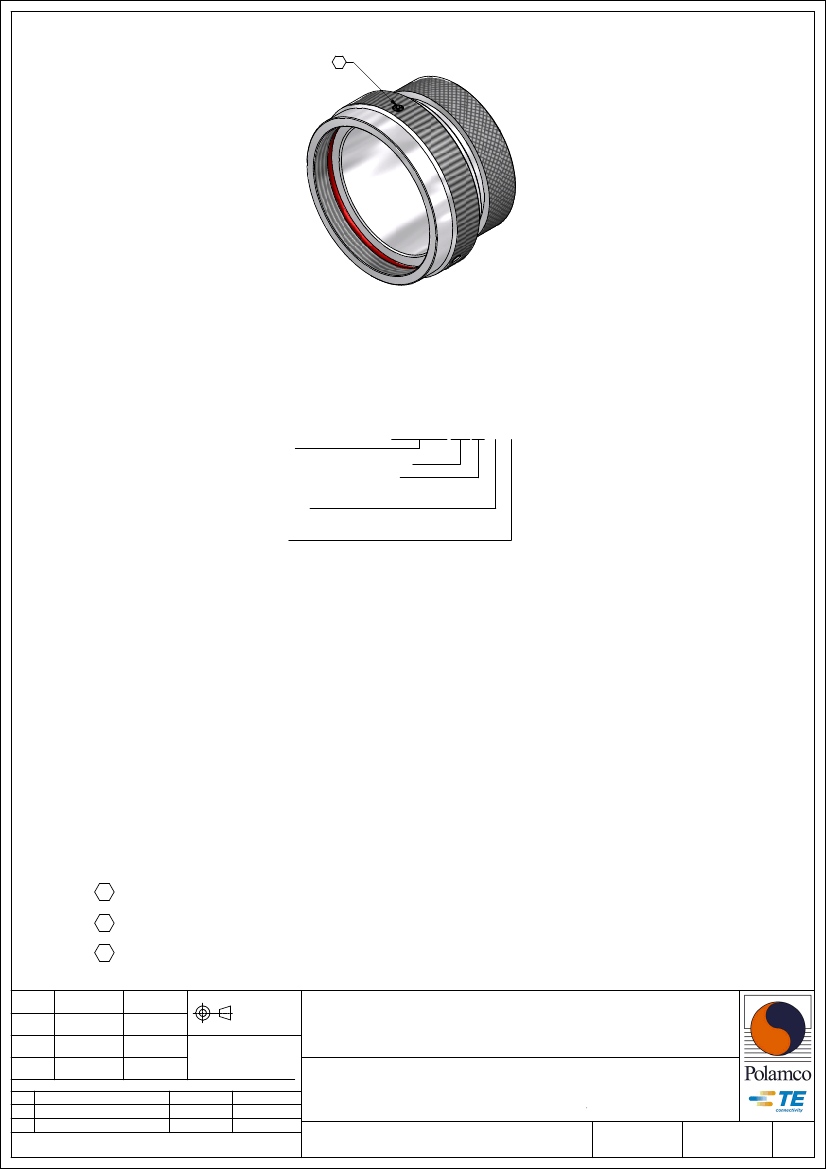

ANTI-ROTATION SCREW 7
CODE 18 - HEAT SHRINK BOOT BACKSHELL
218M632A19B
SERIES
DASH NUMBER (TABLE 1)
MANUFACTURER CODE
SEE TABLE 2
MATERIAL
REFER TO CH00-0250-004
FINISH
REFER TO CH00-0250-004
NOTES:
1. THIS PRODUCT IS DESIGNED TO TERMINATE A HEAT SHRINKABLE LIPPED
BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATION,
SEE CH00-0250-004.
3. BACKSHELL TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER. (e.g. 06090-218M612-19B).
4. BACKSHELL MATES TO MIL-DTL-5015, CLASS A, E & R, MS3100, MS3101 &MS3106.
RESILIENT INSERT, SOLDER TYPE AND BENDIX 10-214, CANNON CA-RX
COMMERCIAL CRIMP TYPE (LESS ENDBELL).
5. ALL THREAD SIZES FOR ORDER APPLY.
6. ADDITIONAL PIECE(S) SUPPLIED WHEN CONNECTOR MFR IS UNKNOWN (D IN TABLE 2)
7. ANTI-ROTATIONAL SET SCREW, THREE #4-40 THREADED HOLES 120° APART, SINGLE
MATING SET SCREW SUPPLIED.
If this document is printed it becomes uncontrolled. Check for the latest revision
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
26/05/2015
26/05/2015
27/04/2015
02/09/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
HEAT SHRINK BOOT BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
H REVISED PER ECN AD93111
J
REVISED PER ECO-15-012672
DATE
02/09/2015
APPROVED
H.SMITH
MIL-DTL-5015D
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
DRAWING NO:
DRAWING REV:
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
218M6XX
J
1

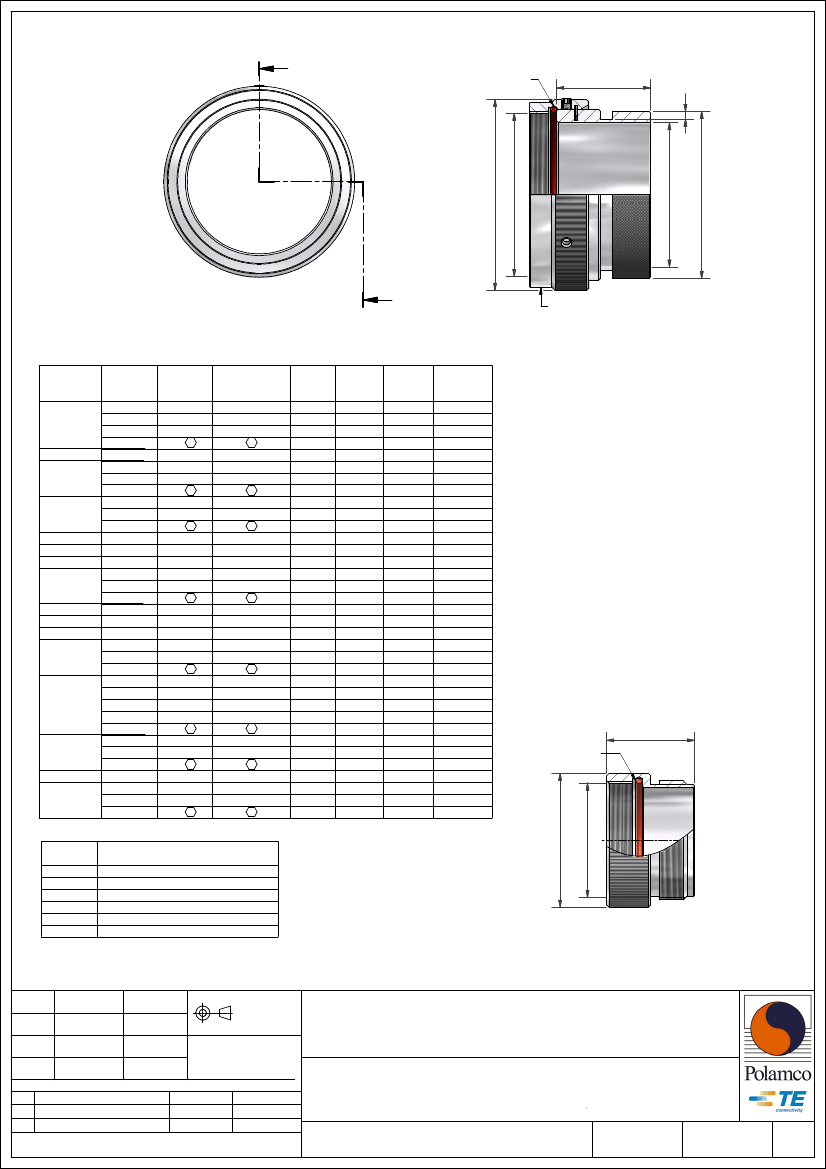

A-A
A
SILICONE O-RING
27,00
X
A THREAD
ØB
A
TABLE 1
ORDER
NUMBER
SHELL
SIZE
8S
8S
8S
8S
10S
10SL
10SL
10SL
12 & 12S
12 & 12S
12 & 12S
14 & 14S
16 & 16S
18
20
20
20
22
24
28
32
32
32
36
36
36
36
36
40
40
40
44
48
48
48
MFR
CODE
TABLE 3
B
C
A, R
D 6
-
C
A, B, R
D 6
B, C
A, R
D 6
-
-
-
A, B, C
R
D 6
-
-
-
B, C
A, R
D 6
B
R
C
A
D 6
B
A, C, R
D 6
-
C
A, R
D 6
A
THREAD
3/8-32 UNEF
7/16-28 UNEF
7/16-27 UNS
5
1/2-28 UNEF
9/16-24 UNEF
5/8-24 UNEF
5
5/8-24 UNEF
11/16-24 UNEF
5
3/4-20UNEF
7/8-20 UNEF
1-20 UNEF
1 1/8-18 UNEF
1 1/8-24 UNS
5
1 1/4-18 UNEF
1 3/8-18 UNEF
1 5/8-18 UNEF
1 7/8-16 UN
1 29/32-18 UN
5
2 1/16-16 UNS
2 1/16-20 UNS
2 1/8-16 UN
2 1/8-18 UNS
5
2 5/16-16 UN
2 3/8-16UN
5
2 5/8-16 UN
2 13/16-18 UNS
2 7/8-16 UN
5
ØB
MAX
18,5
18,0
18,5
18,5
19,8
21,6
23,0
23,0
23,0
24,9
24,9
27,7
31,1
34,4
37,6
37,6
37,6
40,6
43,6
48,6
54,9
54,9
54,9
64,6
64,6
64,6
64,6
64,6
70,6
70,6
69,3
82,0
82,0
82,0
82,0
ØZ
6,2
8,0
8,0
8,0
9,5
11,2
12,7
11,2
12,7
14,3
12,7
16,0
19,0
20,7
25,4
25,4
25,4
28,5
31,8
35,0
41,5
41,3
41,5
47,6
47,6
48,0
47,6
48,0
54,0
54,0
54,0
60,3
66,7
66,7
66,7
ØY
MAX
13,0
13,0
13,0
13,0
15,0
16,0
19,0
19,0
19,0
19,0
19,0
21,0
24,0
26,0
34,0
34,0
34,0
36,0
40,5
43,0
48,0
48,0
48,0
54,5
54,5
54,5
54,5
54,5
60,5
60,5
60,5
67,6
74,0
74,0
74,0
X
+0,20/-0,00
1,12
1,12
1,12
1,12
1,12
1,12
1,12
1,12
1,12
1,12
1,12
1,12
1,12
1,12
1,75
1,75
1,75
1,75
1,75
2,20
2,20
2,20
2,20
2,20
2,20
2,20
2,20
2,20
2,20
2,20
2,20
2,20
2,20
2,20
2,20
XXXX
PART MARK
HERE
08
10
11
12
14
16
18
20
22
24
28
32
36
28,40 MAX
SILICONE O-RING
40
44
48
TABLE 2
MFR
CODE
A
B
C
D
R
-
CONNECTOR MANUFACTURER
(MS 3100, MS 3101 & MS 3106)
AMPHENOL - CLASS A
BENDIX - CLASS A, E & R
CANNON - CLASS A, E & R
MFR UNKNOWN, CLASS A, E & R
AMPHENOL - CLASS R
MFR CODE NOT REQUIRED
ADDITIONAL PIECE(S) SUPPLIED WHEN
CONNECTOR MANUFACTURER IS UNKNOWN
("D" IN TABLE 3)
If this document is printed it becomes uncontrolled. Check for the latest revision
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
26/05/2015
26/05/2015
27/04/2015
02/09/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
HEAT SHRINK BOOT BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
H REVISED PER ECN AD93111
J
REVISED PER ECO-15-012672
DATE
02/09/2015
APPROVED
H.SMITH
MIL-DTL-5015D
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
A THREAD
ØB
DRAWING NO:
DRAWING REV:
ØY
ØZ
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
218M6XX
J
2
