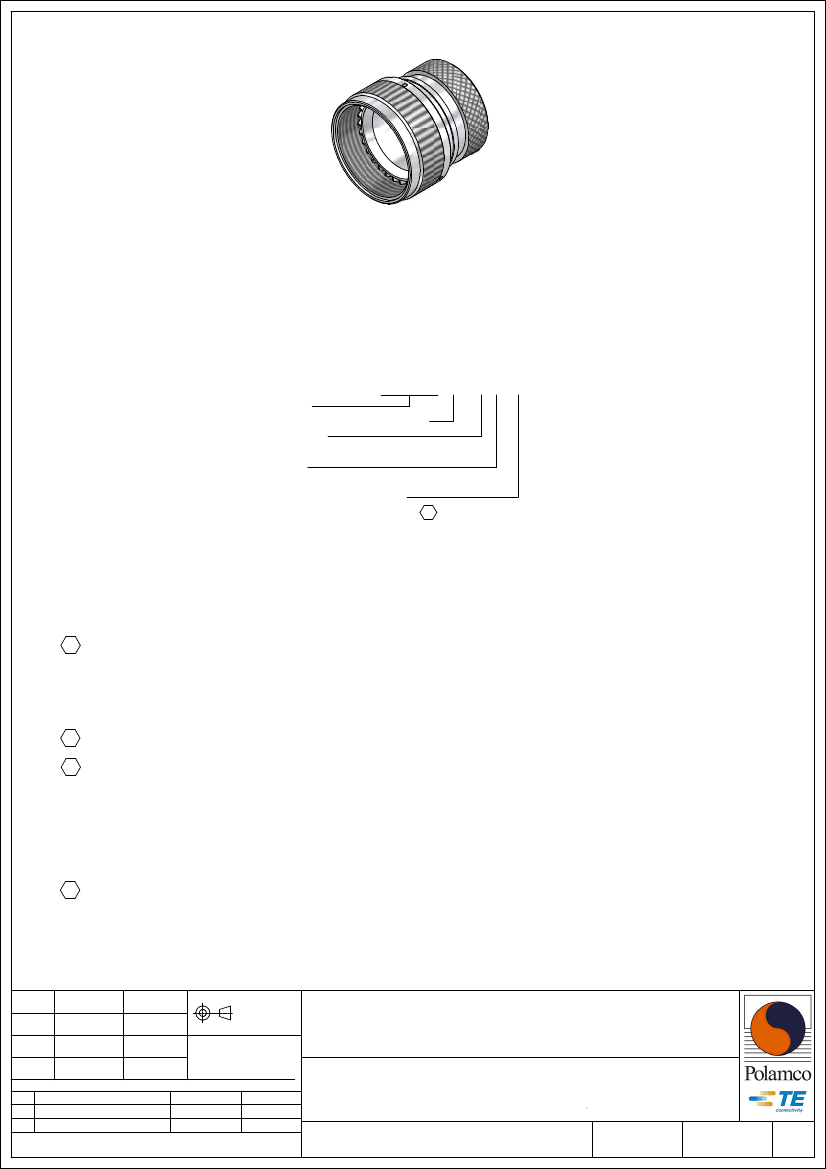

CODE 54 - HEAT SHRINK BOOT BACKSHELL
201M116-19C-D
SERIES
DASH NUMBER (TABLE 1)
MATERIAL
REFER TO CH00-0250-004
FINISH
REFER TO CH00-0250-004
MODIFICATION CODE
REFER TO CH00-0250-004 2
NOTES:
1. THIS PRODUCT IS DESIGNED TO TERMINATE A HEAT SHRINKABLE LIPPED
BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-004.
3. ADAPTOR TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER. (e.g. 06090-201M112-19A).
4. BACKSHELL MATES TO MIL-C-81703, SERIES III, MS3424, MS3446, MS3464, MS3467, MS3468, CLASS E & L
5. BACKSHELL MATES TO MIL-C-5015G, MS3400 SERIES, CLASS D, E, K, L, U & W,
MS3400, MS3401, MS3404, MS3406,MS3450, MS3451, MS3454, MS3456, MS3470, MS3471, MS3472,
MS3474, MS3475, MS3476. MIL-C-83723, SERIES II, CLASS A & L. MIL-C-83723,
SERIES I & III, CLASS A, G, K, R & S: M83723/1, /2, /3, /4, /5, /6, /7, /8, /13,
/14, /36, /37, /38, /40, /41, /42, /43, /48, /49, /65, /66, /67, /68, /69,
/70, /71, /72, /73, /74, /75, /76, /77, /78, /82, /83, /84, /85, /86, /87, /91, /92, /95, /97, /98,
(MS3155 CONTROLLED INTERFACE).
6. WHEN "L" MODIFICATION IS SPECIFIED, COUPLING NUT SHALL HAVE 3 WIRE HOLES,
120° APART.
If this document is printed it becomes uncontrolled. Check for the latest revision
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
19/02/2015
19/02/2015
03/03/2015
20/08/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
HEAT SHRINK BOOT BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
J2 REVISED PER ECO-15-004707
K
REVISED PER ECO-15-011999
DATE
26/03/2015
20/08/2015
APPROVED
H.SMITH
H.SMITH
MIL-DTL-26482 SERIES II / MIL-DTL-83723 SERIES I & III
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
DRAWING NO:
DRAWING REV:
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
201M1XX
K
1

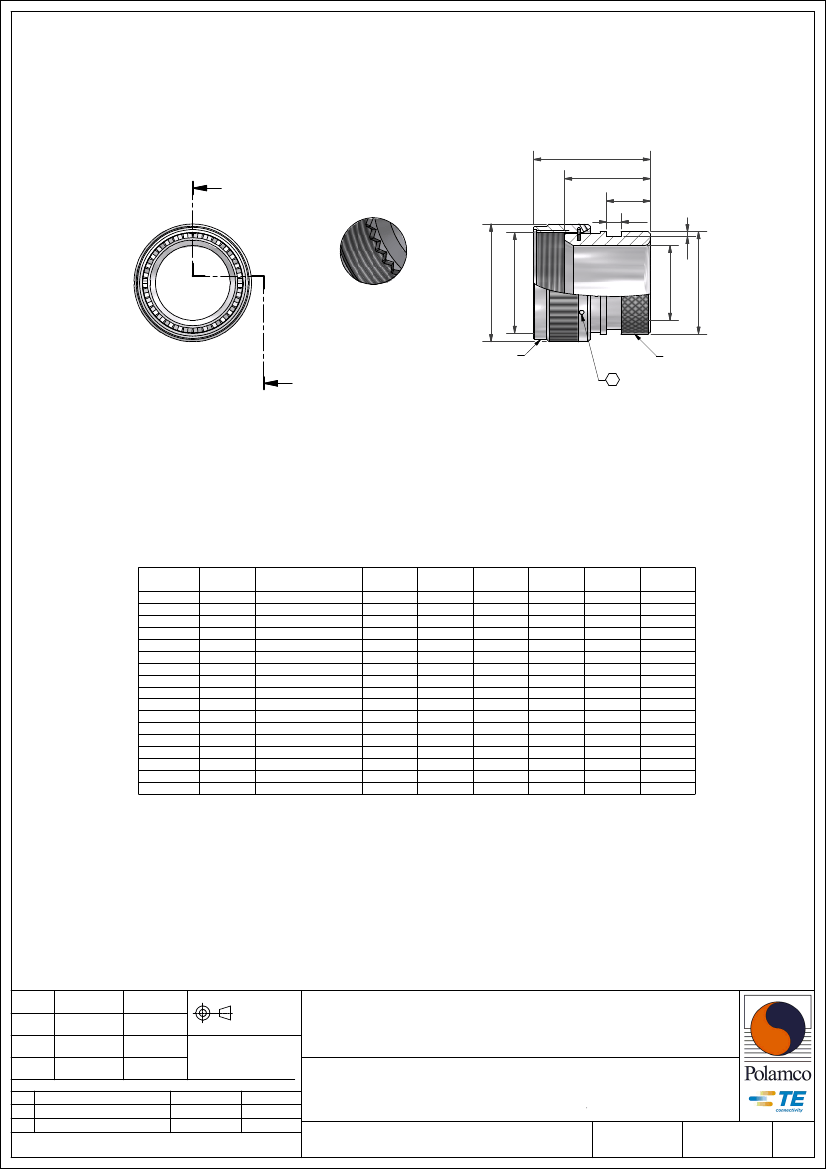

A-A
E REF.
26,90 MAX
A
G
3,50
A THREAD
ØB
X
STAINLESS
STEEL
TEETH VIEW
PART MARK
HERE
XXXX
MEDIUM DIAMOND
KNURL
6
A
TABLE 1
BASE PART
NUMBER
201M103
201M108
201M110
201M112
201M114
201M116
201M118
201M120
201M122
201M124
201M128
201M132
201M136
201M140
201M144
201M148
201M161
SHELL
SIZE
03
08
10
12
14
16
18
20
22
24
28
32
36
40
44
48
61
A
THREAD
9/16 -24UNEF
1/2 -20UNF
5/8 -24UNEF
3/4 -20UNEF
7/8 -20UNEF
1 -20UNEF
1 1/16 -18UNEF
1 3/16 -18UNEF
1 5/16 -18UNEF
1 7/16 -18UNEF
1 3/4 -18UNS
2 -18UNS
2 1/4 -16UN
2 1/2 -16UN
2 3/4 -16UN
3 -16UN
1 1/2 -18UNEF
ØB
MAX
17,0
15,6
18,6
21,7
24,9
28,2
30,9
34,1
37,3
40,4
50,0
56,3
62,7
69,0
75,4
81,7
42,0
ØZ
MIN
6,6
6,6
9,3
12,8
14,7
17,8
19,8
23,0
26,2
29,1
35,1
41,3
46,8
52,2
58,7
65,1
30,1
ØY
X
+0,00/-0,50 +0,20/-0,00
13,5
1,12
13,5
1,12
15,4
1,12
19,7
1,12
21,3
1,12
24,5
1,12
26,5
1,12
30,9
1,75
34,4
1,75
36,8
1,75
43,4
1,75
48,7
2,20
55,1
2,20
61,0
2,20
67,5
2,20
73,8
2,20
38,8
1,75
G
10,5
10,5
10,5
10,5
10,5
10,5
10,5
10,5
10,5
10,5
10,5
14,5
14,5
14,5
14,5
14,5
10,5
E
REF.
28,0
28,0
28,0
28,0
28,0
28,0
28,0
28,0
28,0
28,0
28,0
32,3
32,3
32,3
32,3
32,3
28,0
If this document is printed it becomes uncontrolled. Check for the latest revision
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
19/02/2015
19/02/2015
03/03/2015
20/08/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
HEAT SHRINK BOOT BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
J2 REVISED PER ECO-15-004707
K
REVISED PER ECO-15-011999
DATE
26/03/2015
20/08/2015
APPROVED
H.SMITH
H.SMITH
MIL-DTL-26482 SERIES II / MIL-DTL-83723 SERIES I & III
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
DRAWING NO:
ØY
ØZ
DRAWING REV:
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
201M1XX
K
2
