Introducing
AS85049 Adapters and
Band Straps
AS85049 Adapters &
Band Straps
KEy FEATuRES
Meets AS85049 NAVAIR
standards
Self-coupling locking nut
provides an improved
mechanical protection
against loosening under
vibration
Side entry band straps
for easier installation and
repair
description
The AS85049 industry standard is used on most military circular connectors
including M38999. TE Connectivity (TE) offers a wide selection of sizes,
materials and platings to meet customer’s needs.
The band strap termination system provides ease of installation and
repair. TE offers the corrosion resisting steel bands in three styles to help
meet our customer’s shield termination needs and termination tool of their
choice.
applications
•
•
•
•
Aerospace
Marine
Military Ground Vehicles
Space Based Systems
mechanical
Product qualified to AS85049 performance requirements.
electrical
Product qualified to AS85049 performance requirements.
material
Aluminum available with cadmium or electroless nickel plating
standards & specifications
Application specification:
Product specification:
Military specification:
MIP 102
R85049
AS85049/82 through /90 and /128
application tooling
M85049/128-7 & 8
M85049/128-3 & 4
M85049/128-1 & 2
AS81306/1-02
AS81306/1-01
AS81306/2-01
TE
I AS85049 Adapters & Band Straps
as85049 adapters &
band straps

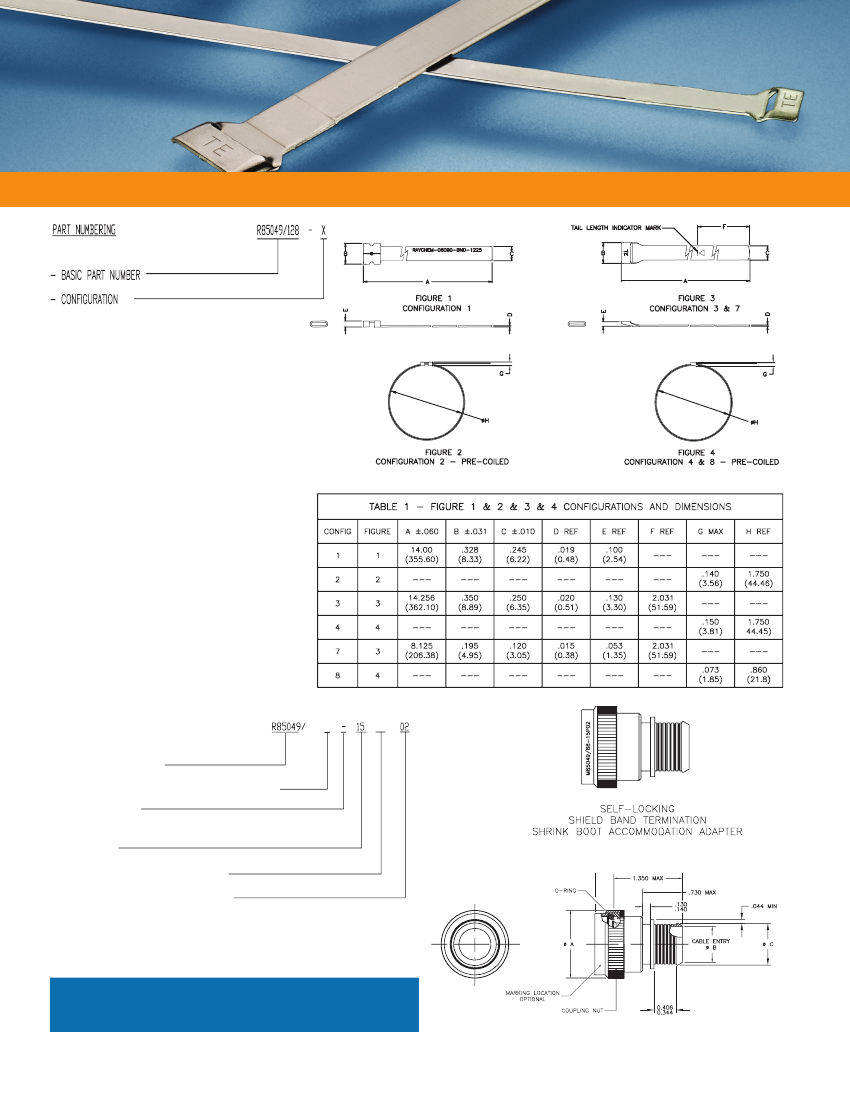

product dimensions & part numbering system
PART NUMBERING
Product Designator
Specification Sheet (Specify /82 through /90)
Configuration:
*-* (Dash) Detented Self-Locking
Shell Size
Finish (W = Cadmium / N = Nickel)
Entry Size (02 = Small / 03 = Large)
XX
X
Drawing to the right is an example only.
For specification sheets on the various slash #’s,
see te.com for the latest drawings.
AS85049 Adapters & Band Straps I
TE
PART NUMBERING
XX
X
