IP67 waterproof protected heavy duty metal shell connectors
JR-W Series
■
General Description
JR-W connector is suitable for outdoor applications
such as Base stations and wireless equipments
with IP67 waterproof protection.
■
Features
1. IP67 waterproof protection
under water to 1.8m depth for 48 hours
2.Anti corrosion resistance
reliable black Chrome plating
3.Five polarizing keys for ease of blind
mating
4.Wide varieties of pin numbers

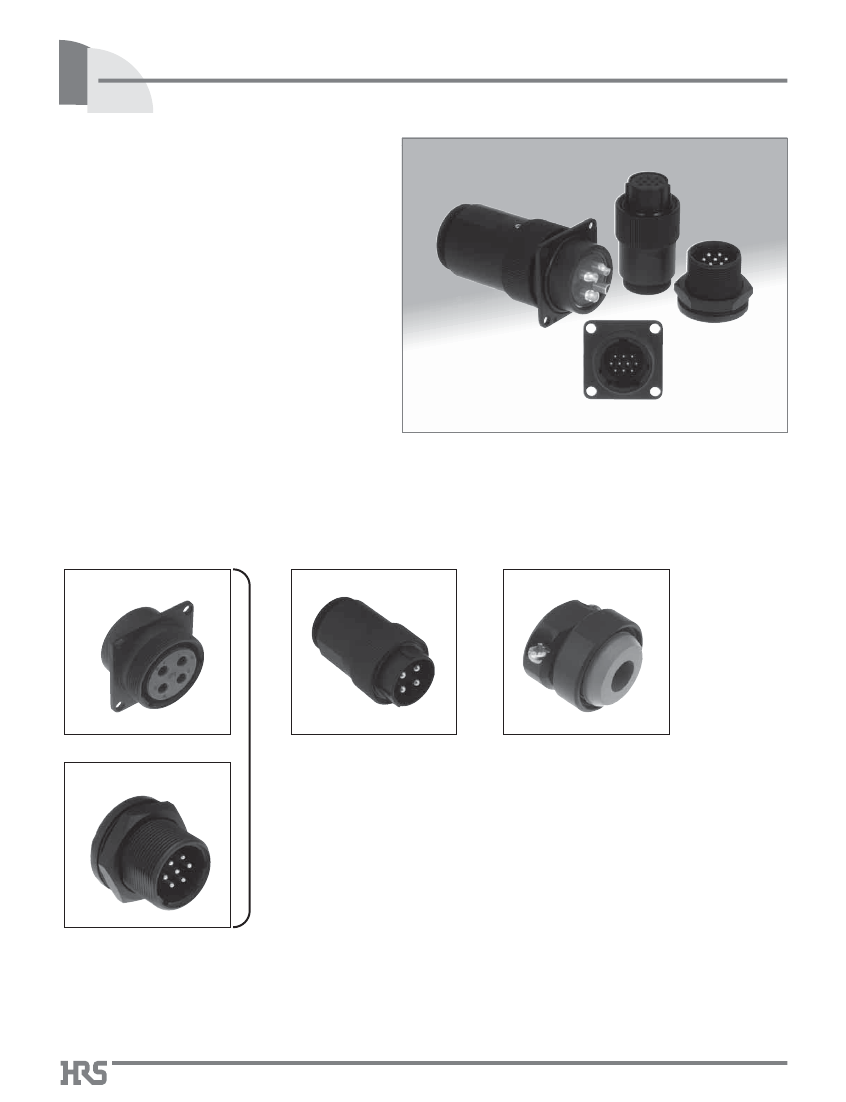

■Products
abstract
Receptacle
with male (female) contacts
Plug
with female(male) contacts

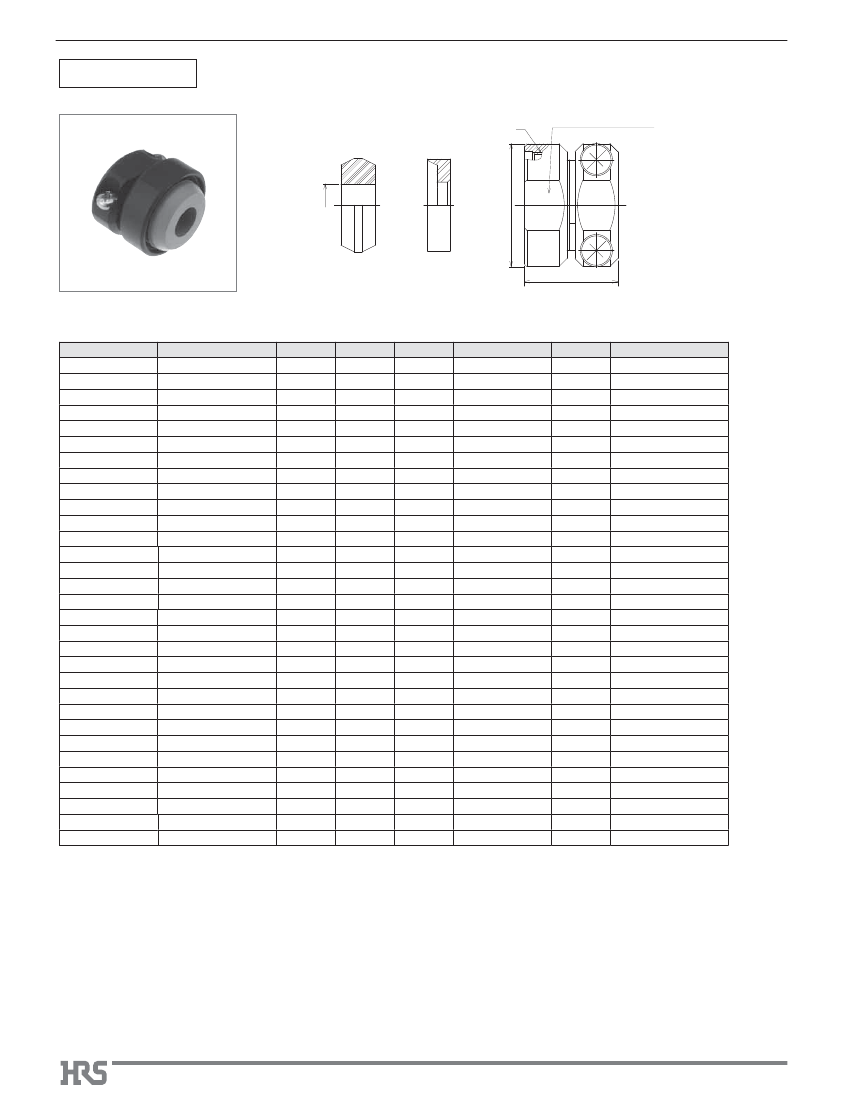

Cable Clamp
Flange type
–
Bulk head type
+
138
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
JR-W Series●IP67 waterproof protected heavy duty metal shell connectors
■Material
& Finish
Item
Shell
Insulator
Contacts
Materials
Aluminium alloy, Zinc alloy, Brass
Synthetic resin
Copper alloy
Finish
Black chrome plating
-------
Silver or Gold plating
Solder contact type

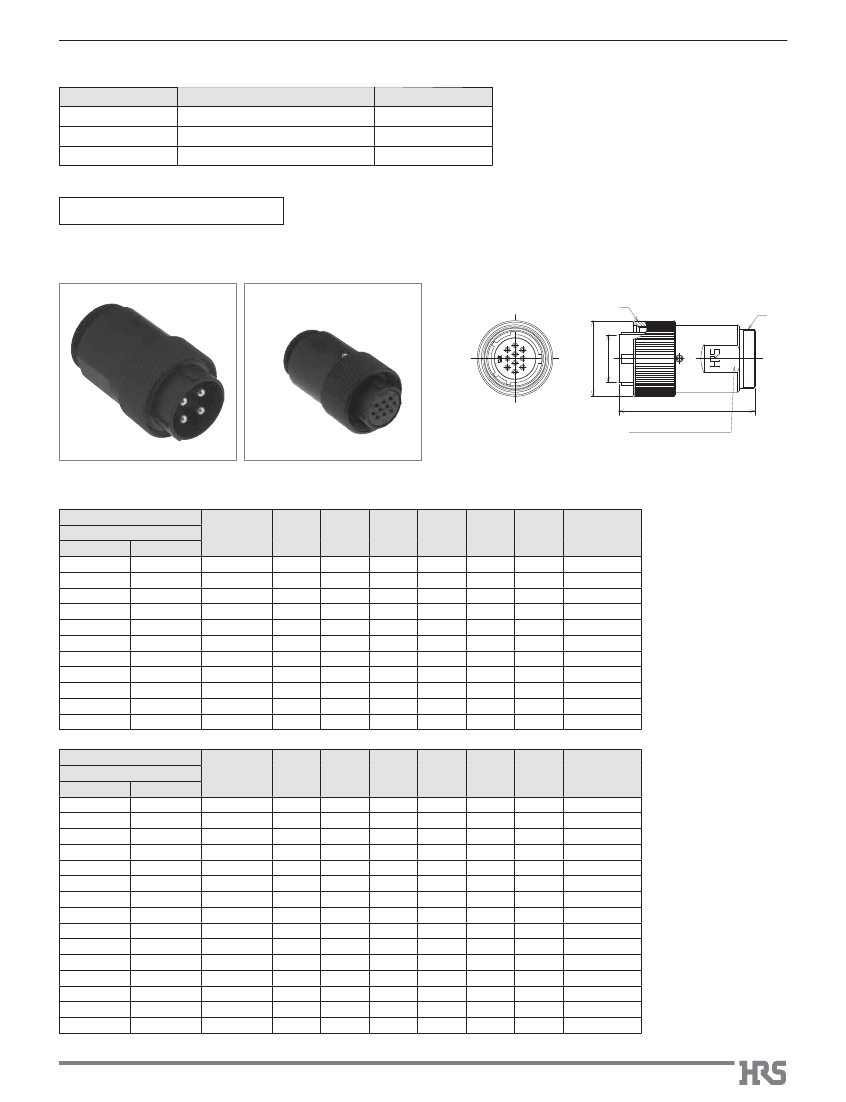

■Plug
With male contacts
With female contacts
(This shape is one example)
With Male contacts
Silver plating contacts
HRS No.
Product No.
114-2001-5-71 JR13WP-3P(71)
114-2002-8-71 JR13WP-5P(71)
114-2003-0-71 JR16WP-7P(71)
114-2004-3-71 JR16WP-10P(71)
114-2005-6-71 JR21WP-10P(71)
114-2006-9-71 JR21WP-16P(71)
114-2007-1-71 JR25WP-4P(71)
114-2008-4-71 JR25WP-5P(71)
114-2009-7-71 JR25WP-8P(71)
114-2010-6-71 JR25WP-16P(71)
114-2011-9-71 JR25WP-24P(71)
With Female contacts
Silver plating contacts
HRS No.
Product No.
114-2012-1-71 JR13WP-3S(71)
114-2013-4-71 JR13WP-5S(71)
114-2013-4-72 JR13WP-5S(72)
114-2014-7-71 JR16WP-7S(71)
114-2014-7-72 JR16WP-7S(72)
114-2015-0-71 JR16WP-10S(71)
114-2015-0-75 JR16WP-10S(75)
114-2016-2-71 JR21WP-10S(71)
114-2017-5-71 JR21WP-16S(71)
114-2018-8-71 JR25WP-4S(71)
114-2019-0-71 JR25WP-5S(71)
114-2020-0-71 JR25WP-8S(71)
114-2021-2-71 JR25WP-16S(71)
114-2022-5-71 JR25WP-24S(71)
114-2159-0-71 JR25WP-3S(71)
No. of pins
3
5
7
10
10
16
4
5
8
16
24
ØA
12.7
12.7
16.3
16.3
20.5
20.5
24.7
24.7
24.7
24.7
24.7
B
M18×1
M18×1
M22×1
M22×1
M26×1
M26×1
M30×1
M30×1
M30×1
M30×1
M30×1
ØC
21.8
21.8
25.8
25.8
29.8
29.8
33.8
33.8
33.8
33.8
33.8
D
M16×0.75
M16×0.75
M20×0.75
M20×0.75
M24×0.75
M24×0.75
M28×0.75
M28×0.75
M28×0.75
M28×0.75
M28×0.75
E
44.7
44.7
46.5
46.5
51
51
56
56
56
56
56
F
17
17
21
21
25.4
25.4
29
29
29
29
29
Description
–
–
–
–
–
–
–
–
–
–
–
No. of pins
3
5
5
7
7
10
10
10
16
4
5
8
16
24
3
ØA
12.7
12.7
12.7
16.3
16.3
16.3
16.3
20.5
20.5
24.7
24.7
24.7
24.7
24.7
24.7
B
M18×1
M18×1
M18×1
M22×1
M22×1
M22×1
M22×1
M26×1
M26×1
M30×1
M30×1
M30×1
M30×1
M30×1
M30×1
ØC
21.8
21.8
21.8
25.8
25.8
25.8
25.8
29.8
29.8
33.8
33.8
33.8
33.8
33.8
33.8
D
M16×0.75
M16×0.75
M16×0.75
M20×0.75
M20×0.75
M20×0.75
M20×0.75
M24×0.75
M24×0.75
M28×0.75
M28×0.75
M28×0.75
M28×0.75
M28×0.75
M28×0.75
E
44.7
44.7
44.7
46.5
46.5
46.5
46.5
51
51
56
56
56
56
56
56
F
17
17
17
21
21
21
21
25.4
25.4
29
29
29
29
29
29
Description
–
–
Gasket:Silicon
–
Gasket:Silicon
–
Gasket:Silicon
–
–
–
–
–
–
–
–
139
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
JR-W Series●IP67 waterproof protected heavy duty metal shell connectors

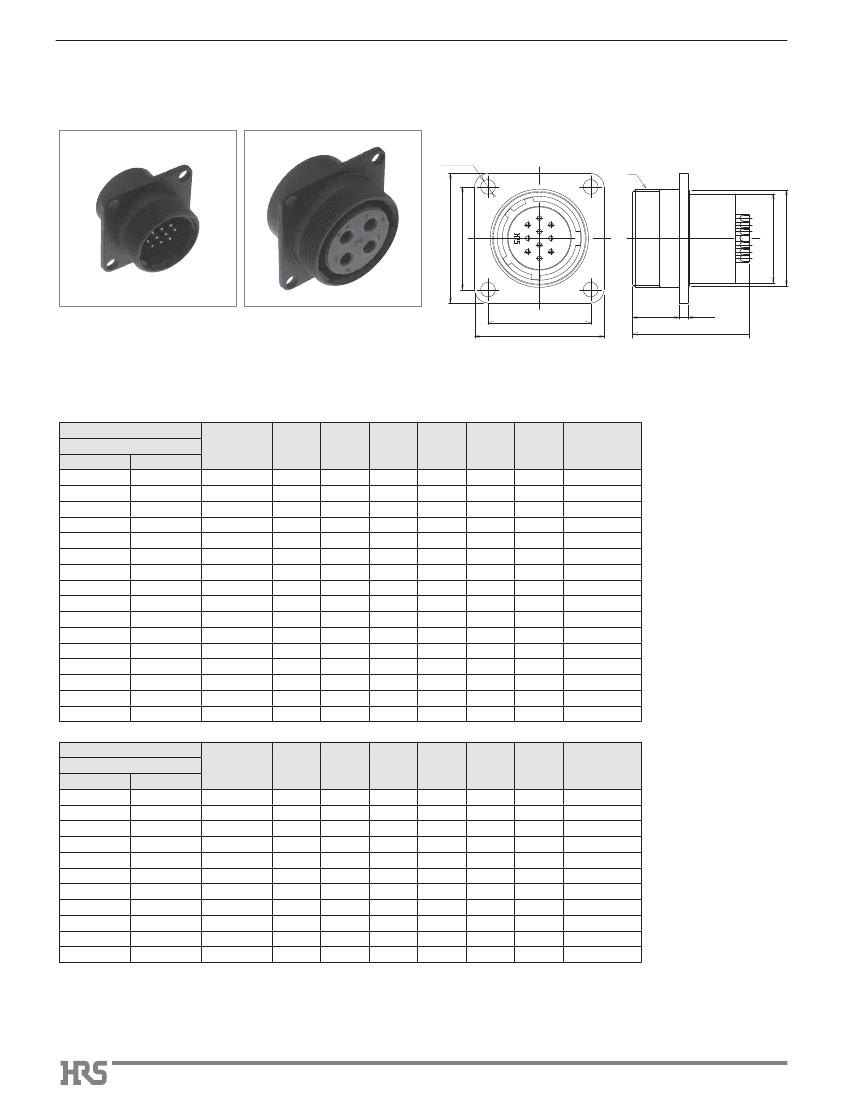

■Receptacle
●Flange
type
With male contacts
With female contacts
Note 1. This shape is one example.
2. ØF is a hole size of panel cutout.
With Male contacts
Silver plating contacts
HRS No.
Product No.
114-2023-8-71 JR13WR-3P(71)
114-2024-0-71 JR13WR-5P(71)
114-2024-0-72 JR13WR-5P(72)
114-2025-3-71 JR16WR-7P(71)
114-2025-3-72 JR16WR-7P(72)
114-2026-6-71 JR16WR-10P(71)
114-2026-6-75 JR16WR-10P(75)
114-2027-9-71 JR21WR-10P(71)
114-2028-1-71 JR21WR-16P(71)
114-2029-4-71 JR25WR-4P(71)
114-2029-4-72 JR25WR-4P(72)
114-2030-3-71 JR25WR-5P(71)
114-2031-6-71 JR25WR-8P(71)
114-2032-9-71 JR25WR-16P(71)
114-2033-1-71 JR25WR-24P(71)
114-2158-7-71 JR25WR-3P(71)
With Female contacts
Silver plating contacts
HRS No.
Product No.
114-2034-4-71 JR13WR-3S(71)
114-2035-7-71 JR13WR-5S(71)
114-2036-0-71 JR16WR-7S(71)
114-2037-2-71 JR16WR-10S(71)
114-2038-5-71 JR21WR-10S(71)
114-2039-8-71 JR21WR-16S(71)
114-2040-7-71 JR25WR-4S(71)
114-2041-0-71 JR25WR-5S(71)
114-2042-2-71 JR25WR-8S(71)
114-2043-5-71 JR25WR-16S(71)
114-2044-8-71 JR25WR-24S(71)
No. of pins
3
5
5
7
7
10
10
10
16
4
4
5
8
16
24
3
ØA
15.9
15.9
15.9
19.9
19.9
19.9
19.9
23.9
23.9
27.9
27.9
27.9
27.9
27.9
27.9
27.9
B
M18×1
M18×1
M18×1
M22×1
M22×1
M22×1
M22×1
M26×1
M26×1
M30×1
M30×1
M30×1
M30×1
M30×1
M30×1
M30×1
ØC
26.6
26.1
26.1
26.6
26.6
26.1
26.1
26.6
26.1
28
28
26.6
26.6
26.6
26.1
29.1
D
26
26
26
29
29
29
29
32
32
35
35
35
35
35
35
35
E
20
20
20
23
23
23
23
26
26
29
29
29
29
29
29
29
ØF
16.3
16.3
16.3
20.3
20.3
20.3
20.3
24.3
24.3
28.3
28.3
28.3
28.3
28.3
28.3
28.3
Description
–
–
Gasket:Silicon
–
Gasket:Silicon
–
Gasket:Silicon
–
–
–
Gasket:Silicon
–
–
–
–
–
No. of pins
3
5
7
10
10
16
4
5
8
16
24
ØA
15.9
15.9
19.9
19.9
23.9
23.9
27.9
27.9
27.9
27.9
27.9
B
M18×1
M18×1
M22×1
M22×1
M26×1
M26×1
M30×1
M30×1
M30×1
M30×1
M30×1
ØC
28
27
28
27
28
27
28
27.8
27.8
28
27
D
26
26
29
29
32
32
35
35
35
35
35
E
20
20
23
23
26
26
29
29
29
29
29
ØF
16.3
16.3
20.3
20.3
24.3
24.3
28.3
28.3
28.3
28.3
28.3
Description
–
–
–
–
–
–
–
–
–
–
–
140
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
JR-W Series●IP67 waterproof protected heavy duty metal shell connectors

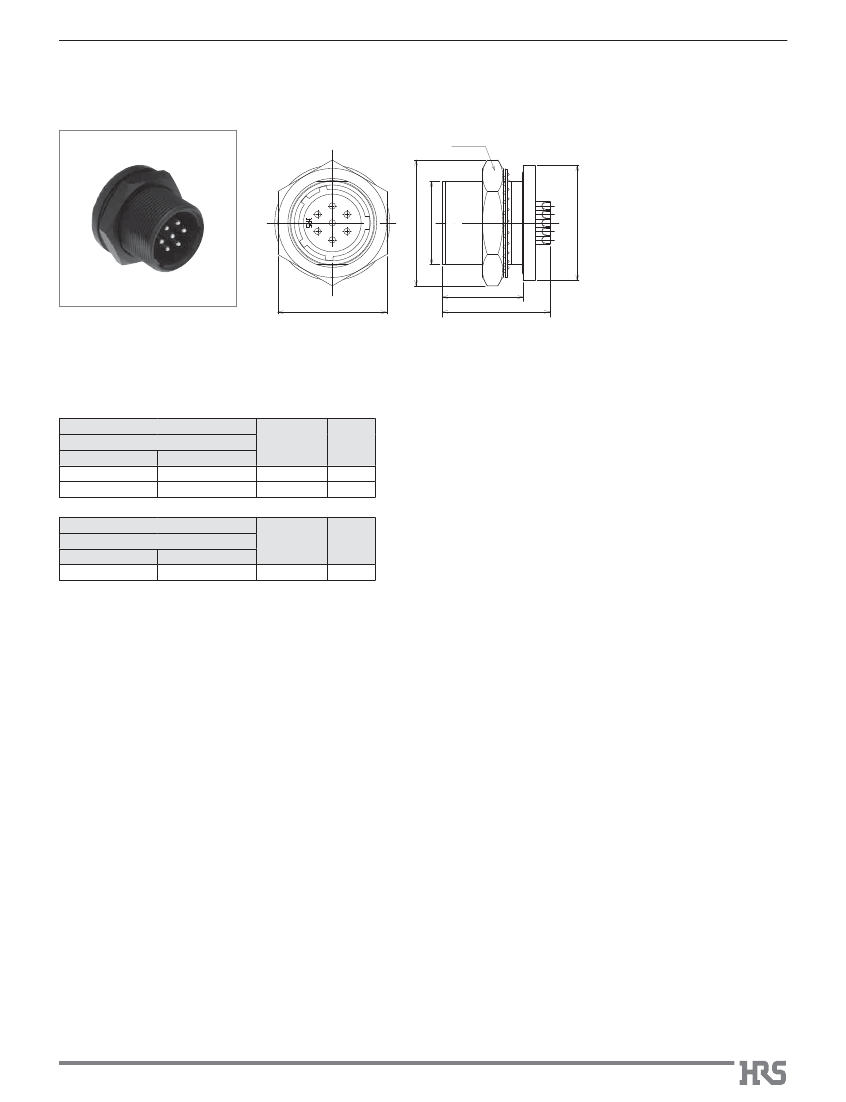

●Bulk
head type(Rear mount)
With male contacts
(This shape is one example)
With Male contacts
Silver plating contacts
HRS No.
Product No.
114-2143-0-71
JR16WRA-7P(71)
114-2096-1-71 JR16WRA-10P(71)
With Female contacts
Silver plating contacts
HRS No.
Product No.
114-2145-5-71 JR16WRA-10S(71)
No. of pins
7
10
A
26.6
26.1
No. of pins
10
A
27
141
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
JR-W Series●IP67 waterproof protected heavy duty metal shell connectors
