M39029/103-559: Descriptioncontact skt crimp SZ 12 gold; CategoryThe connector; File Size57KB，2 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

M39029/103-559 Overview

contact skt crimp SZ 12 gold

M39029/103-559 Parametric

Parameter Name	Attribute value
Datasheets
MIL-STD-1760 Type 2 (MIL-DTL-83538)
Standard Package	1
Category	Connectors, Interconnects
Family	Circular Connectors - Contacts
Packaging	Bulk
Pin or Socke	Socke
Type	Coaxial
Size	12
Wire Gauge	-
Contact Terminati	Crim
Contact Finish	Gold
Contact Finish Thickness	-
Other Names	DM39029/103-559M39029103559

Preview

Download Datasheet

View All

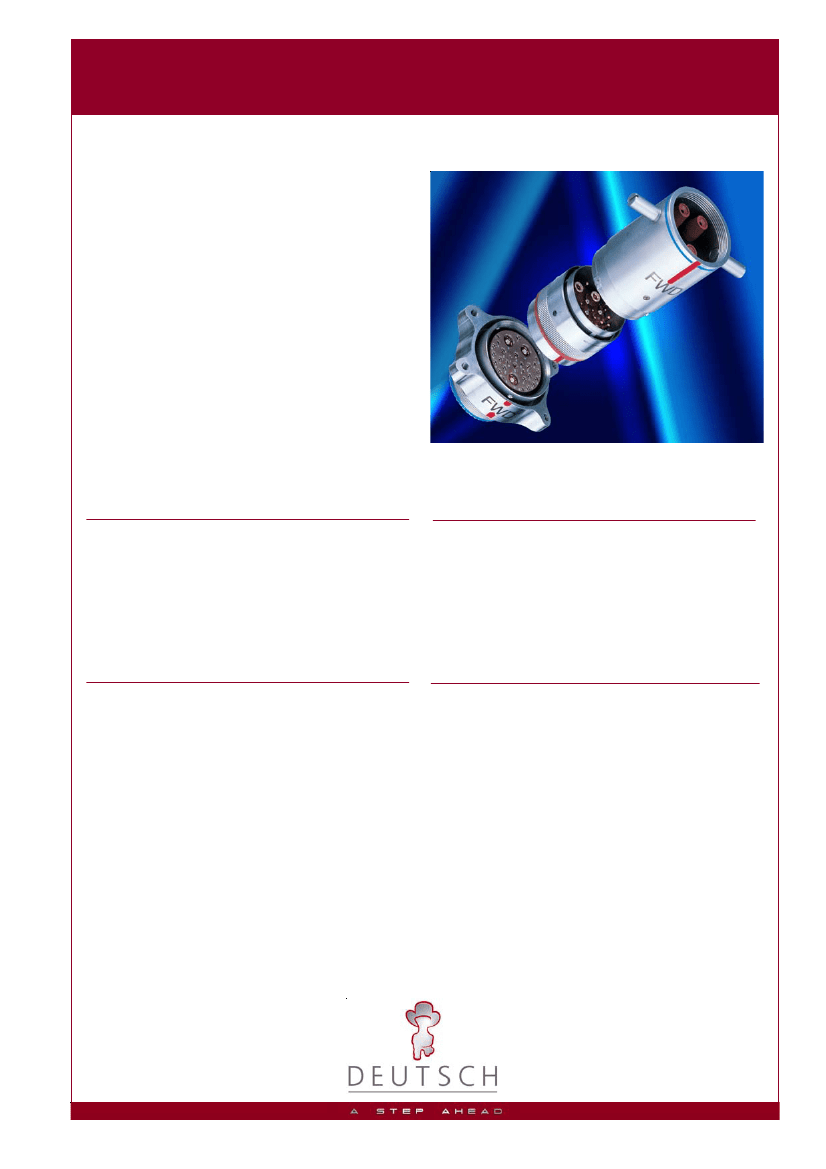

MIL-STD-1760 Type 2 (MIL-DTL-83538)

Stores Management Systems

The 1760 Type 2 differs from the Type 1 in that

it is specifically designed for rail launch

applications. Type 2 blindmate comprises

launcher receptacle, buffer, missile receptacle

and protective cap and is designed for a quick

coupling of stores where access is restricted.

The buffer provides protection for the

launcher receptacle from the missile efflux and

is replaceable as necessary. The buffer has

fixed pin contacts and is supplied with a full

complement of contacts.

Special buffer adaptors are available for

connection of various configurations of stores

aircraft - please consult Deustch.

FEATURES

Bayonet locking for easy coupling

Replaceable buffer

Full EMC shielding

Full environmental performance

Adaptors for multi-configurations

Corrosion resistant construction

BENEFITS

Blindmate capability

Assured performance in all conditions

Repeatable performance

Easy disconnect/connect

COMPANY QUALITY APPROVALS

Civil Aviation Authority A8-1

BS EN ISO 9001

Military Spec Approvals 38999

BS9000 and CECC

Underwriters Laboratories

GENERAL SPECIFICATION

Material:

Shell/coupling ring:

Plating:

Contacts:

Material:

Type:

Insulators:

Interface Seal:

Temperature:

Durability:

Stainless Steel

Nickel plating

Gold plated Copper Alloy

Crimp

Thermoplastic

Fluorinated Silicone

-55°C to +175°C

No electrical or mechanical defects

after 500 cycles

As per Mil-DTL-83538

With 30 years experience in designing and

manufacturing at its own facilities, Deutsch UK

can provide interconnection solutions for the most

demanding of environments

Deutsch UK

Castleham Industrial Estate

4 Stanier Road, St Leonard-On-Sea

East Sussex TN38 9RF England

Telephone +44 (0) 1424 852721

Fax

+44 (0) 1424 851726

Email

marketing@deutsch.net

www.deutsch.net

Vibration:

Thermal Shock:

M39029/103-559 Related Products

	M39029/103-559	M39029/56-352	M39029/56-351	M39029/75-416	M39029/28-211	M39029/102-558	M39029/91-530	M39029/90-529
Description	contact skt crimp SZ 12 gold	contact skt crimp 16-20awg	contact skt crimp 20-24awg	38999 con 12 skt (shielded)	contact pin crimp sz12 gold coax	38999 I II iii con 12 pin (coa	38999 con 8 skt (twinax)	38999 con 8 pin (twinax)
Standard Package	1	1	1	1	1	1	1	1
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Circular Connectors - Contacts	Circular Connectors - Contacts	Circular Connectors - Contacts	Circular Connectors - Contacts	Circular Connectors - Contacts	Circular Connectors - Contacts	Circular Connectors - Contacts	Circular Connectors - Contacts
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Pin or Socke	Socke	Socke	Socke	Socke	Pi	Pi	Socke	Pi
Type	Coaxial	Machined	Machined	Coaxial	Coaxial	Coaxial	-	-
Size	12	16	20	12	12	12	8	8
Contact Terminati	Crim	Crim	Crim	Crim	Crim	Crim	Crim	Crim
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Other Names	DM39029/103-559M39029103559	DM39029/56-352M3902956352	DM39029/56-351M3902956351	DM39029/75-416M3902975416	DM39029/28-211M3902928211	DM39029/102-558M39029102558	DM39029/91-530	DM39029/90-529
