3414.0124.11 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 3414.0124.11

3414.0124.11: DescriptionElectric Fuse, Super Fast Blow, 5A, 24VDC, 35A (IR), Surface Mount, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size150KB，2 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

3414.0124.11 Overview

Electric Fuse, Super Fast Blow, 5A, 24VDC, 35A (IR), Surface Mount, ROHS COMPLIANT

3414.0124.11 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SCHURTER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
Fusing characteristics	SUPER FAST
body width	0.55 mm
body height	0.48 mm
Body length or diameter	1.05 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e4
Joule integral nominal
Installation features	SURFACE MOUNT
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BLISTER TAPE
physical size	1.05mm x 0.55mm x 0.48mm
Pre-discharge rating	0.288 A2/s
Pre-discharge time - minutes	5000 ms
Rated breaking capacity	35 A
Rated current	5 A
Rated voltage	32 V
Rated voltage (DC)	24 V
Guideline	CCC; CSA; CUL; UL
surface mount	YES
Terminal surface	Gold (Au)
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

Non resettable fuses

www.schurter.com/PG01_2

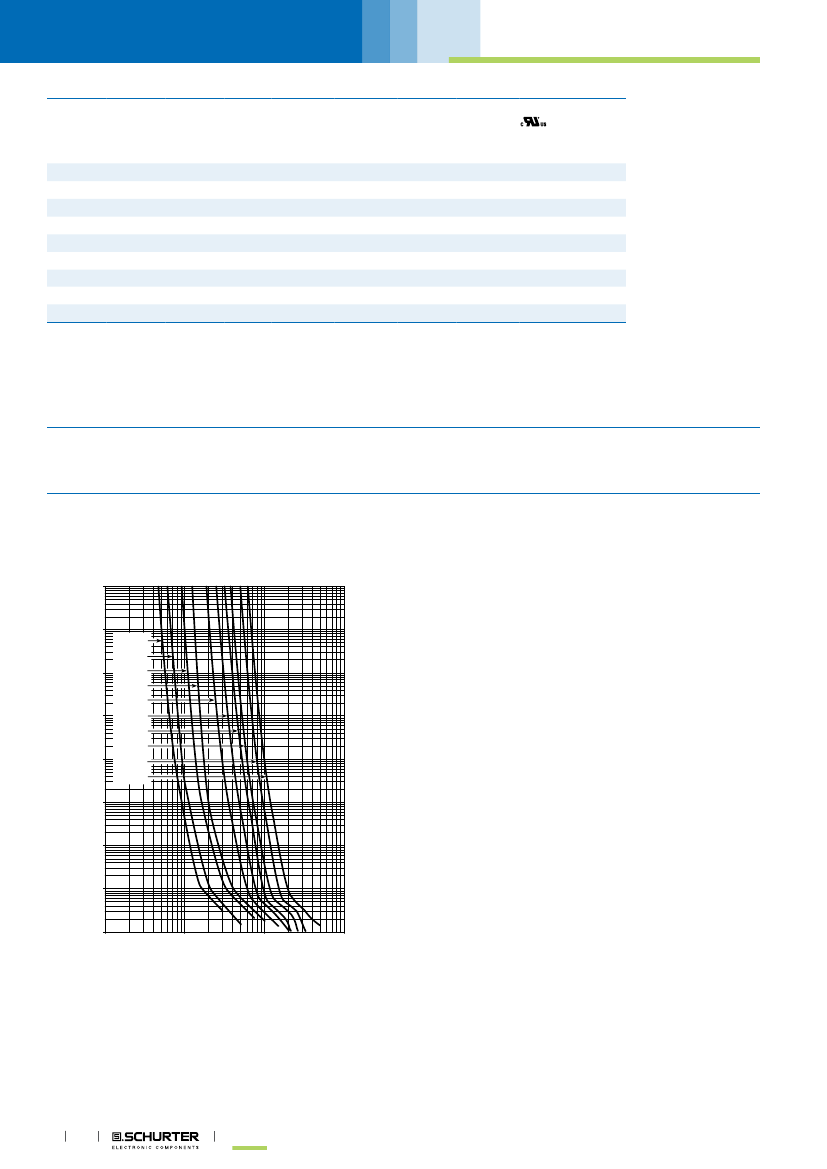

Surface Mount Fuse, 1.05 x 0.55 mm, Super-Quick-Acting FF, 32 VDC

USF 0402

UL 248-14 · 32 VDC · Super-Quick-Acting FF

Description

- UL characteristic

- Low melting I²t-values, fast interruption

- Marking optional

Applications

Standards

Approvals

Secondary Protection

Circuits without inrush

Semiconductor protection

Digital Consumer Electronics

- UL 248-14

- CSA C22.2 no. 248.14

- UL File Number: E41599

References

Weblinks

Packaging Details

pdf-datasheet, html-datasheet, General Product Information,

Approvals, CE declaration of conformity, RoHS, CHINA-RoHS, e-Shop,

SCHURTER-Stock-Check, Distributor-Stock-Check, Detailed request for

product

Technical Data

Rated Voltage

Rated current

Breaking Capacity

Characteristic

Mounting

Admissible Ambient Air Temp.

Climatic Category

Material: Housing

Material: Terminals

Unit Weight

Storage Conditions

Product Marking

24 - 32 VDC

0.375 - 5 A

35 A

Super-Quick-Acting FF

PCB,SMT

-55 °C to 125 °C

55/125/21 acc. to IEC 60068-1

Thermoset

Gold-Plated Copper Alloy

0.004 g

0 °C to 60 °C, max. 70% r.h.

Letter (see variants) marking

1.05 mm

Soldering Methods

Solderability

Resistance to Soldering Heat

Flammability

Reflow

245 °C / 3 sec acc. to IEC 60068-2-58,

Test Td

260 +0/-5 °C / 30 sec acc. to IPC/JE-

DEC J-STD-020D, 1 cycle

min. UL 94V-1

(acc. to EIA/IS-722, Test 4.12)

Dimension

1.05

0.475

0.55

0.15

0.584

0.558

0.381

0.8

0.4

0.3

0.53

Soldering pads

Pre-Arcing Time

Rated Current In

0.375 A - 5 A

1.0 x In min

2.0 x In max

Fuses

3414.0124.11 Related Products

	3414.0124.11	3414.0119.11	3414.0120.11	3414.0113.11	3414.0115.11	3414.0123.11	3414.0112.11
Description	Electric Fuse, Super Fast Blow, 5A, 24VDC, 35A (IR), Surface Mount, ROHS COMPLIANT	Electric Fuse, Super Fast Blow, 2A, 32VDC, 35A (IR), Surface Mount, ROHS COMPLIANT	Electric Fuse, Super Fast Blow, 2.5A, 32VDC, 35A (IR), Surface Mount, ROHS COMPLIANT	Electric Fuse, Super Fast Blow, 0.5A, 32VDC, 35A (IR), Surface Mount, ROHS COMPLIANT	Electric Fuse, Super Fast Blow, 1A, 32VDC, 35A (IR), Surface Mount, ROHS COMPLIANT	Electric Fuse, Super Fast Blow, 4A, 32VDC, 35A (IR), Surface Mount, ROHS COMPLIANT	Electric Fuse, Super Fast Blow, 0.375A, 32VDC, 35A (IR), Surface Mount, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	SCHURTER	SCHURTER	SCHURTER	SCHURTER	SCHURTER	SCHURTER	SCHURTER
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	12 weeks	12 weeks	12 weeks	12 weeks	12 weeks	12 weeks	12 weeks
Fusing characteristics	SUPER FAST	SUPER FAST	SUPER FAST	SUPER FAST	SUPER FAST	SUPER FAST	SUPER FAST
body width	0.55 mm	0.55 mm	0.55 mm	0.55 mm	0.55 mm	0.55 mm	0.55 mm
body height	0.48 mm	0.48 mm	0.48 mm	0.48 mm	0.48 mm	0.48 mm	0.48 mm
Body length or diameter	1.05 mm	1.05 mm	1.05 mm	1.05 mm	1.05 mm	1.05 mm	1.05 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
method of packing	BLISTER TAPE	BLISTER TAPE	BLISTER TAPE	BLISTER TAPE	BLISTER TAPE	BLISTER TAPE	BLISTER TAPE
physical size	1.05mm x 0.55mm x 0.48mm	1.05mm x 0.55mm x 0.48mm	1.05mm x 0.55mm x 0.48mm	1.05mm x 0.55mm x 0.48mm	1.05mm x 0.55mm x 0.48mm	1.05mm x 0.55mm x 0.48mm	1.05mm x 0.55mm x 0.48mm
Pre-discharge rating	0.288 A2/s	0.044 A2/s	0.06 A2/s	0.004 A2/s	0.016 A2/s	0.113 A2/s	0.003 A2/s
Pre-discharge time - minutes	5000 ms	5000 ms	5000 ms	5000 ms	5000 ms	5000 ms	5000 ms
Rated breaking capacity	35 A	35 A	35 A	35 A	35 A	35 A	35 A
Rated current	5 A	2 A	2.5 A	0.5 A	1 A	4 A	0.375 A
Rated voltage	32 V	32 V	32 V	32 V	32 V	32 V	32 V
Rated voltage (DC)	24 V	32 V	32 V	32 V	32 V	32 V	32 V
Guideline	CCC; CSA; CUL; UL	CCC; CSA; CUL; UL	CCC; CSA; CUL; UL	CCC; CSA; CUL; UL	CCC; CSA; CUL; UL	CCC; CSA; CUL; UL	CCC; CSA; CUL; UL
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Base Number Matches	1	1	1	1	1	1	1
