REVISION CI
02
DO NOT
SCALE FROM
THIS PRINT
01
40
.0787 2.000 REF
MMS-1XX-02-XXX-XX-XX-XXX
No OF POSITIONS
-02 THRU -40
(PER ROW)
LEAD STYLE
-02: SURFACE MOUNT
PLATING SPECIFICATION
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN TAIL
-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN TAIL
-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN TAIL
-T: MATTE TIN OVER ENTIRE CONTACT
-LTL: 10µ" SELECTIVE GOLD IN CONTACT AREA,
TIN LEAD (90/10 ±5%) TAIL
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN TAIL
-LM: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN TAIL
-FM: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN TAIL
-TM: MATTE TIN OVER ENTIRE CONTACT
-H: 30µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
POLARIZING OPTION
-XXX INDICATES POSITION No
(USE PK-07-N)
OPTION
-LC: LOCKING CLIP
(NOT AVAILABLE ON -SV)
(USE LC-06-TM, SEE FIG 1,
FIG 2 & 3, SHT 2 & NOTES 6 & 7)
-P: PICK & PLACE PAD
(ONLY AVAILABLE ON -SV & -DV, 4 POS MIN)
(-SV: USE PPP-09; -DV: USE PPP-03;
SEE FIG 5, SHT 2)
-M: METAL PICK & PLACE PAD
(ONLY AVAILABLE ON -DV)
(USE LMP-03, SEE FIG 7, SHT 3)
-A: MOLDED ALIGNMENT PIN
(AVAILABLE ON -DV ONLY)
(USE MMS-XX-D-VXX, SEE FIG 4, SHT 3)
-K: POLYIMIDE FILM PAD
(AVAILABLE ONLY ON -SV, 3 POS MIN &
-DV, 4 POS MIN)
(USE K-500-300, SEE FIG 6, SHT 3)
-TR: TAPE & REEL PACKAGING
(SEE FIG 8, SHT 3)
ENTRY/ROW SPECIFICATION
-SH: SINGLE ROW, HORIZONTAL ENTRY
-DH: DOUBLE ROW, HORIZONTAL ENTRY
-SV: SINGLE ROW, VERTICAL (TOP) ENTRY
-DV: DOUBLE ROW, VERTICAL (TOP) ENTRY
MMS-40-S
-SV
80
02
.1574 3.998
REF
79
01
-DV-LC
SEE NOTE 11
(No. OF POS x .0787[2.000]) + .022[0.56]
- .015
(TOL ACCUM)(SEE NOTES 6 & 9)
+.005
C
.048 1.22 (TYP)
MMS-40-D
+7°
C
.048 1.22 (TYP)
.1750 4.445
REF
+.004
.1770
- .002
(SEE NOTE 8)
+0.102
4.496
- 0.051
90°
- 0°
C
.006[0.15]
C-63-22-XXX
LC-06-X
+.0040
.1770
- .0020
(SEE NOTE 8)
+0.102
4.496
- 0.051
90°
- 0°
+7°
C
.006[0.15]
.056 1.42
REF (TYP)
(No OF POS - 2) x .07874[2.0000])
.055 1.40
.010 0.25 REF
C-63-22-XXX
-DV-LC
-SV
MMS-140-02-XXX-XV-LC SHOWN
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MAXIMUM ALLOWABLE SWAY: 2° IN EITHER DIRECTION
3. MAXIMUM BURR ALLOWANCE: .003[0.08]
4. MAXIMUM CUT FLASH: .020[0.51].
5. MINIMUM RETENTION FORCE: SINGLE ROW: .5 LB, DOUBLE ROW: 1 LB
6. CUT BODIES FROM MMS-40-D OR MMS-40-S FOR ALL STYLES EXCEPT -LC.
FOR -LC, USE POSITIONALIZED BODIES. 3 POSITION -DV-LC PARTS WILL HAVE 1 LOCKING CLIP.
7. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE -LC OPTION IS
NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS MANUAL
PLACEMENT FOR ALL ASSEMBLIES WITH THE -LC OPTION.
8. THIS DIMENSION TO BE MEASURED AT BEND.
9. FOR -SV LEAD STYLE, EVEN POSITON CUTS LOSE 2 POSITIONS PER CUT; ODD
POSITION CUTS LOSE 1 POSITION PER CUT.
10. LEAD STYLE -02-SH, POSITIONS 2 THRU 4 TO BE PACKAGED IN BOXES. ALL OTHER ROW
SPECIFICATIONS SHOULD BE TUBED ACCORDING TO TABLE 2, REGARDLESS OF POSITION.
11. PK-07-N TO BE INSERTED FROM THIS SIDE.
F:\DWG\MISC\MKTG\MMS-1XX-02-XXX-XX-XX-XXX-MKT.SLDDRW
FIG 1
.232
- .000
5.89
+.005
+0.13
0.00
.232
- .000
5.89
+.005
+0.13
0.00
C-63-22-XXX
-DV
C-63-22-XXX
-SV
IN-PROCESS
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
INSULATOR: VECTRA E130i, COLOR: BLACK
CONTACT: PHOS BRONZE
2mm SURFACE MOUNT BOX CONNECTOR STRIP ASM
MMS-1XX-02-XXX-XX-XX-XXX
SHEET
1
OF
4
BY:
BRATCHER 04/01/1994
REVISION CI
'A'
MMS-40-S-LC
.0787 2.000 REF
01
.010 0.25
REF (TYP)
(No OF POS - 2) x .07874[2.0000])
40
C
SEE NOTE 11
90°±3°
.006[0.15]
.175 4.45 REF
.055 1.40 (TYP)
C
.055 1.40
FLUSH TO .005 0.13
BELOW BODY
LC-06-X
C-63-06-XXX
.056 1.42 REF
'B'
.060 1.52
.061 1.55
C
.004[0.10]
(TAILS ONLY)
MMS-140-02-XXX-SH-LC SHOWN
SEE NOTE 11
90°±5°
C
.006[0.15]
FLUSH TO .007 0.18 MAX
BELOW BODY
C-63-07-XXX
LC-06-X
.055 1.40
C-63-08-XXX
.056 1.42 REF
.055 1.40 (TYP)
C
C
.004[0.10]
(TAILS ONLY)
DETAIL 'A'
SCALE 12 : 1
FIG 2
DETAIL 'B'
SCALE 12 : 1
C-63-06-XXX
IN-PROCESS
MMS-40-D-LC
80
02
.1574 3.998
REF
79
.010 0.25
REF (TYP)
01
'C'
'D'
(No OF POS - 2) x .07874[2.0000])
.128 3.25
C-63-07-XXX
C-63-08-XXX
.060 1.52
IN-PROCESS
C
.004[0.10]
(TAILS ONLY)
C
.004[0.10]
(TAILS ONLY)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
DETAIL 'D'
SCALE 12 : 1
MMS-140-02-XXX-DH-LC SHOWN
F:\DWG\MISC\MKTG\MMS-1XX-02-XXX-XX-XX-XXX-MKT.SLDDRW
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
2mm SURFACE MOUNT BOX CONNECTOR STRIP ASM
DETAIL 'C'
SCALE 12 : 1
FIG 3
MMS-1XX-02-XXX-XX-XX-XXX
SHEET
2
OF
4
BY:
BRATCHER 04/01/1994
REVISION CI
"S"±.020
"R" = USED MEASURED DIMENSION
"S" = ("R" - .118[3.00]) / 2
*DIM WILL BE .187[4.75] IF POLARIZATION KEY IS UNDER PAD.
.019±.010 0.49±0.25
MMS-40-D-V40
K-500-300
*.182 4.62
.032 0.81
REF
.118 3.00
"R" REF
(No OF POS - 2) x .07874[2.0000])
-SV-K
"M" = USED MEASURED DIMENSION
"P" = ("M" - .2165[5.50]) / 2
*DIM WILL BE .187[4.75] IF POLARIZATION KEY IS UNDER PAD.
-A: MOLDED ALIGNMENT PIN
ONLY AVAILABLE ON -DV
(MMS-140-02-XXX-DV-A SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
"L" = (No OF POSITIONS x .07874[2.0000]) + .022[0.56]
(("L"/2) - .150[3.81])±.020[0.51]
.300 7.62
REF
+.006
+0.152
FIG 4
.025 0.64
REF
"P"±.020
K-500-300
.030±.010 0.75±0.25
*.182 4.62
.227
- .004
5.77
- 0.102
.150 3.81
REF
.2165±.0050 5.499±0.127
"L" REF
"M" REF
PPP-09
-SV-P
-DV-K
-K: POLYIMIDE FILM PAD
ONLY AVAILABLE ON -SV & -DV
(MMS-140-02-XXX-XV-K SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
"L" = (No OF POSITIONS x .07874[2.0000]) + .022[0.56]
(("L"/2) - .1125[2.858])±.020[0.51]
.225 5.72
REF
(("L"/2) - .197[5.00])±.020[0.51]
.394 10.01
REF
.227
- .004
5.77
- 0.102
+.006
+0.152
FIG 6
.225 5.72
REF
"L" REF
.185 4.70
PPP-03
-DV-P
FIG 5
-P: PICK & PLACE PAD
ONLY AVAILABLE ON -SV & -DV
(MMS-140-02-XXX-XV-P SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
PROPRIETARY NOTE
LMP-03
"L" REF
-M: METAL PICK & PLACE PAD
ONLY AVAILABLE ON -DV
(MMS-140-02-XXX-DV-M SHOWN)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
F:\DWG\MISC\MKTG\MMS-1XX-02-XXX-XX-XX-XXX-MKT.SLDDRW
FIG 7
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
2mm SURFACE MOUNT BOX CONNECTOR STRIP ASM
DWG. NO.
MMS-1XX-02-XXX-XX-XX-XXX
SHEET
3
OF
4
BY:
BRATCHER 04/01/1994
REVISION CI
CONTACT ENTRY SIDE
FOR ASSEMBLY
C
MATING SIDE
OF CONNECTOR

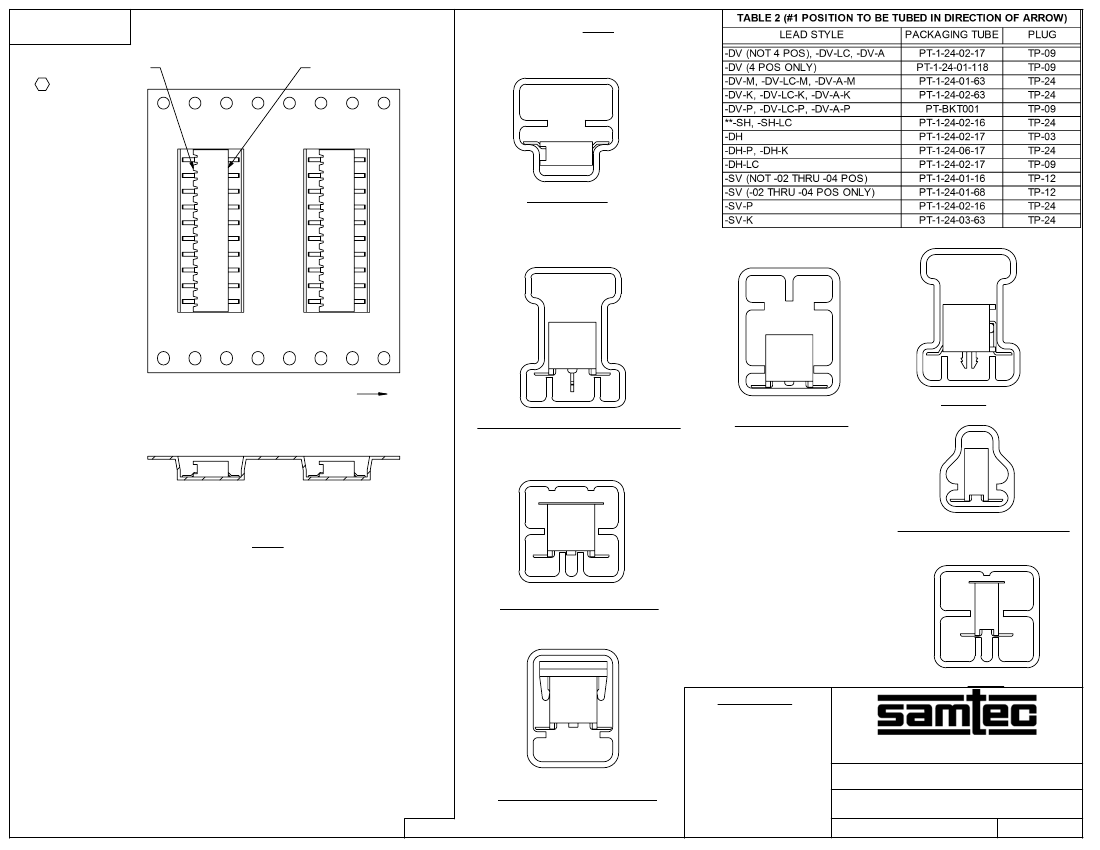

TUBE PACKAGING OPTIONS
FIG 9
**-SH STYLE SHOWN
**SEE NOTE 10
**-SH, -SH-LC
USER DIRECTION OF UN-REELING
POCKET NOT DETAILED
-DH-LC
-DV (NOT 4 POS), -DV-LC, -DV-A
-DV-LC STYLE SHOWN
-DV (4 POS ONLY)
-TR: TAPE & REEL PACKAGING
MMS-110-02-XXX-SH SHOWN FOR ORIENTATION OF -SH & -DH STYLES
(MMS-103-02-X-LC, POS 1 TO FACE ROUND HOLES)
FIG 8
-SV (NOT -02 THRU -04 POS)
-DV-K, -DV-LC-K, -DV-A-K
-DV-K STYLE SHOWN
-SV -K
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DO NOT SCALE DRAWING
-DV-P, -DV-LC-P, -DV-A-P
-DV-P STYLE SHOWN
F:\DWG\MISC\MKTG\MMS-1XX-02-XXX-XX-XX-XXX-MKT.SLDDRW
2mm SURFACE MOUNT BOX CONNECTOR STRIP ASM
DWG. NO.
SHEET SCALE: 3:1
BY:
BRATCHER
MMS-1XX-02-XXX-XX-XX-XXX
04/01/1994
SHEET
4
OF
4
