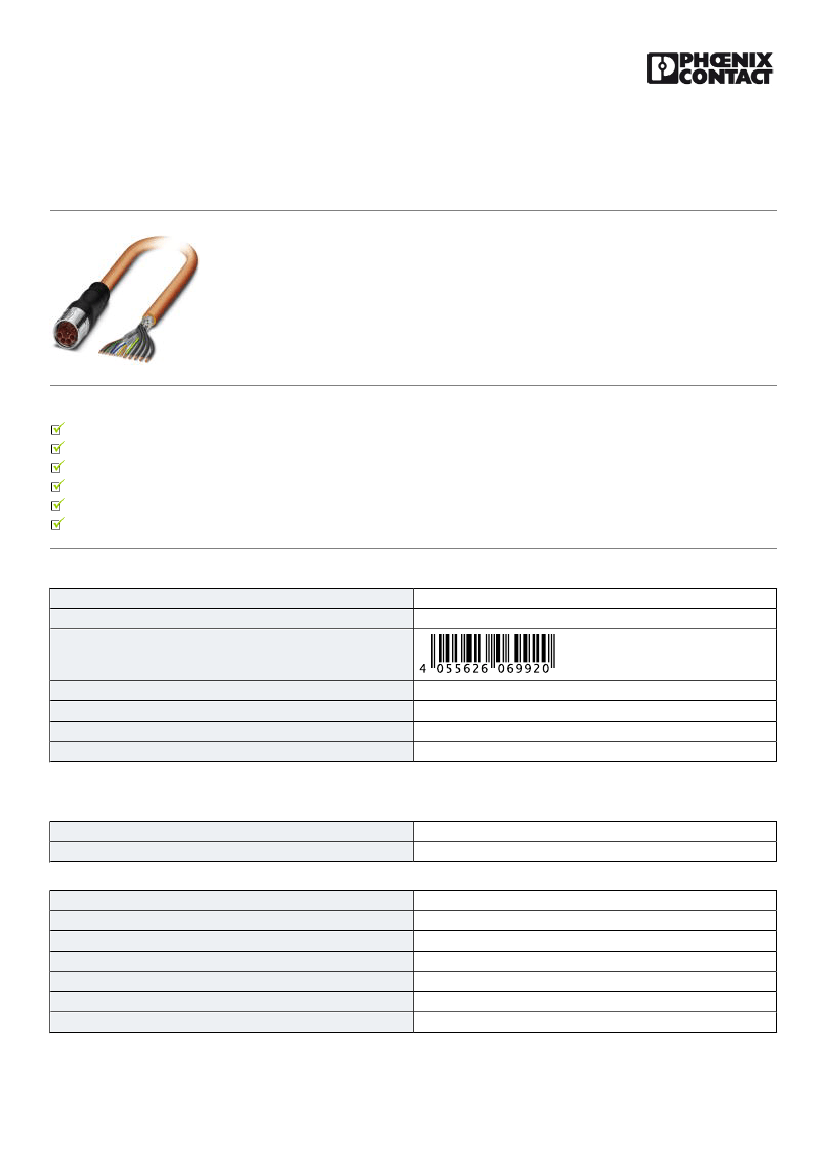

Cable plug in molded plastic - K-8E-M23M8/5,0-H00/OE-C5-S - 1622228
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Cable plug in molded plastic, length: 5 m, color of outer sheath: orange RAL 2003
Your advantages
Transmission of signals, data, and power in just a single connector
CAT5 data interface for up to 100 Mbps
Our standard: robust halogen-free PUR cable
Simple and safe: 100% electrically tested and assembled ready for use
Designs with pre-assembled cables on one or both sides
Customer-specific assemblies and cable lengths can be supplied
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
4055626069920
1,911.000 g
85444290
Germany
1 pc
2 pc
Technical data
Conductor length
Nominal current
5m
26 A
Connector specifications
Type
Housing material
Thread type
Locking type
Degree of protection
Number of positions
straight plastic-sheathed
PUR
M23
SPEEDCON locking
IP67, when in locked state
IP68, when in locked state
4+4+4+PE
12/27/2018 Page 1 / 5
https://www.phoenixcontact.com/in/products/1622228
Cable plug in molded plastic - K-8E-M23M8/5,0-H00/OE-C5-S - 1622228
Technical data
Connector specifications
Direction of rotation
Type of contact
Insertion/withdrawal cycles
Max. current
Voltage
Overvoltage category
Degree of pollution
Rated surge voltage
Standard
Pin
100
30 A
630 V AC
III
3
6 kV
Cable specifications
Type of cable
Signal type
Transmission speed
Shielded
Cable structure
Cable structure (AWG)
External cable diameter
Outer sheath, material
Material wire insulation
External sheath, color
Single wire, color
HDSL11Y
CAT5
100 Mbps (Data interface)
yes
(5x 2.5 + 4x 0.34/C + 4x 0.5) C
(14 AWG/ 5 + 22 AWG/ 4c + 20 AWG) C
14.6 mm ±0.4 mm
PUR
TPE
orange RAL 2003
Black 1, black 2, black 3, black 4, green/yellow Power wires + PE
brown, violet, black 5, green Signal wires
blue, yellow, white, orange Data wires
Nominal voltage, cable
Test voltage
Rated current
1000 V (300 V signal)
4 kV (1.5 kV signal)
26 A (Power, according to DIN VDE 0298-4 tab. 11/5)
8 A (Signal, according to DIN VDE 0298-4 tab. 11/5)
3.6 A (Data, according to DIN VDE 0298-4 tab. 11/5)
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
Traversing path
Acceleration
Ambient temperature for fixed installation
Ambient temperature for flexible installation
Special properties
Flame resistance
Halogen-free
Resistance to oil
73 mm
148 mm
1000000
6m
30 m/s²
-40 °C ... 80 °C
-30 °C ... 60 °C
Flexible cable conduit capable
IEC 60332-1-2
According to EN 50267-2-1
EN 60811-2-1
Environmental Product Compliance
REACh SVHC
Lead 7439-92-1
12/27/2018 Page 2 / 5
https://www.phoenixcontact.com/in/products/1622228
Cable plug in molded plastic - K-8E-M23M8/5,0-H00/OE-C5-S - 1622228
Technical data
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

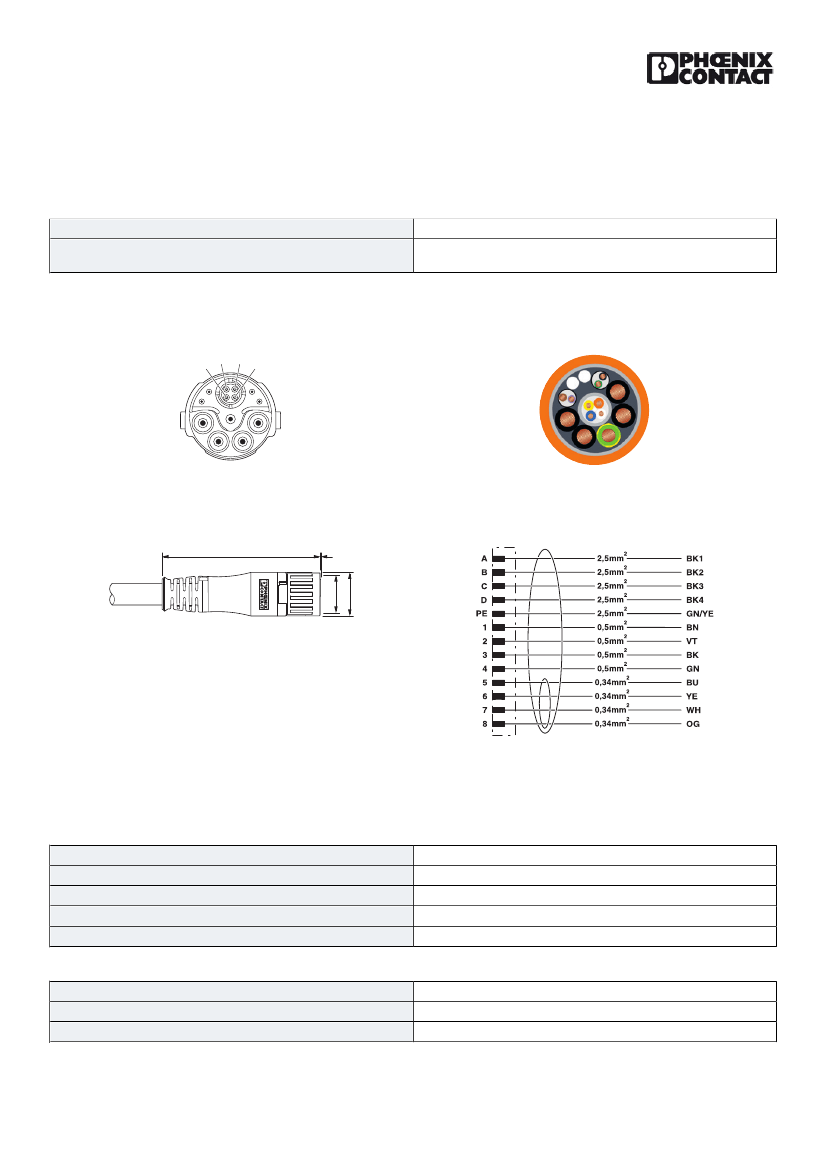

Drawings
Schematic diagram
8
2
1
5
6
7
3
4
Cable cross section
D
C
B
A
Pin assignment of pin
Dimensional drawing
103
A
Circuit diagram
M23x1
Pin version: dimension A = ~ 0.3 mm, socket version: dimension A = 0
mm
Ø29,3
Contact assignment of M23 plugs/sockets
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27060300
27279200
27279218
27279218
27060311
ETIM
ETIM 4.0
ETIM 5.0
ETIM 6.0
EC001855
EC001855
EC001855
12/27/2018 Page 3 / 5
https://www.phoenixcontact.com/in/products/1622228
Cable plug in molded plastic - K-8E-M23M8/5,0-H00/OE-C5-S - 1622228
Classifications
UNSPSC
UNSPSC 13.2
31251501
Approvals
Approvals
Approvals
UL Listed / cUL Listed / EAC / cULus Listed
Ex Approvals
Approval details
UL Listed
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E468743-20150929
600 V
16 A
cUL Listed
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E468743-20150929
600 V
16 A
EAC
B.00767
cULus Listed
Accessories
Accessories
Conductor marking
12/27/2018 Page 4 / 5
https://www.phoenixcontact.com/in/products/1622228
Cable plug in molded plastic - K-8E-M23M8/5,0-H00/OE-C5-S - 1622228
Accessories
Insert label - PABA WH/23 - 1013779
Insert label, Strip, white, unlabeled, can be labeled with: CMS-P1-PLOTTER, mounting type: thread on, cable
diameter range: 1.5 - 35 mm, lettering field size: 23 x 4 mm
Insert label - PABA YE/23 - 1013782
Insert label, Strip, yellow, unlabeled, can be labeled with: CMS-P1-PLOTTER, mounting type: thread on, cable
diameter range: 1.5 - 35 mm, lettering field size: 23 x 4 mm
Marker carrier cable
Conductor marker carrier - PATG 6/23 - 0808037
Conductor marker carrier, transparent, unlabeled, mounting type: slide on, cable diameter range: 14 - 22 mm,
lettering field size: 23 x 4 mm
Protective cover
Metal protective cap - SH-Z2300 - 1622141
Metal protection cap with steel wire, for M23 hybrid connectors with knurled nut
Metal protective cap - SH-Z0077 - 1627226
Metal protection cap with steel wire and loop, for M23 power and hybrid connectors with knurled nut for fastening to
the cable
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
12/27/2018 Page 5 / 5
