KPT06E14-19PDZ

Description
conn plug 19pos W/pin inline
CategoryThe connector
File Size242KB,1 Pages
ManufacturerAll Sensors
Download Datasheet Parametric View All

KPT06E14-19PDZ Overview

conn plug 19pos W/pin inline

KPT06E14-19PDZ Parametric

Parameter NameAttribute value
Datasheets

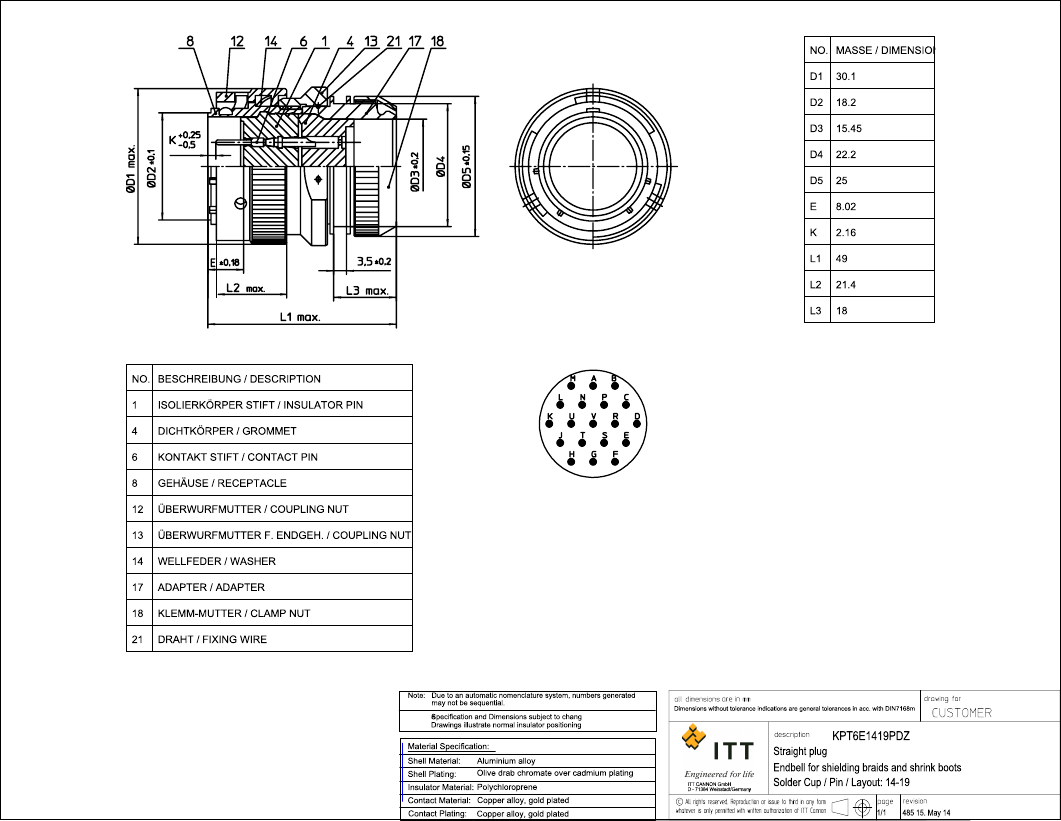

KPT06E14-19PDZ Drawing
Mil-DTL 26482 (KPSE,KPT,MS)
KPT / KPSE / KPTC Catalog
Standard Package1
CategoryConnectors, Interconnects
FamilyCircular Connectors
PackagingBulk
Connector TypePlug, Male Pins
Number of Positions19
Shell Size - Inse14-19
Shell Size, MIL-
Mounting TypeFree Hanging (In-Line)
TerminatiSolder Cu
Fastening TypeBayonet Lock
OrientatiN (Normal)
Ingress ProtectiEnvironment Resis
Shell Material, FinishAluminum Alloy, Olive Drab Cadmium Plated
Contact FinishGold
FeaturesShielded, Shrink Boot Adapte
Contact Finish Thickness50µin (1.27µm)
Current Rating7.5A
Voltage - Rated600VAC, 850VDC
Operating Temperature-55°C ~ 125°C
Mating ProductsKPSE7E14-19SDZ-ND - CONN RCPT 19POS JAM NUT SKTKPSE07E14-19SDZ-ND - CONN RCPT 19POS JAM NUT SKTIKPSE1E14-19SDZ-ND - CONN RCPT 19POS CBL MNT W/SKTSIKPSE01E14-19SDZ-ND - CONN RCPT 19POS CBL MNT W/SKTSIKPSE00E14-19SDZ-ND - CONN RCPT 19POS WALL MNT W/SKTSIKPSE0E14-19SDZ-ND - CONN RCPT 19POS WALL MNT W/SKTS
Other NamesIKPT06E14-19PDZKPT06E1419PDZ
