C1NP3B475K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> C1NP3B475K

C1NP3B475K: DescriptionCeramic Capacitor, Ceramic, 1250V, 4.7uF; CategoryPassive components capacitor; File Size55KB，1 Pages; ManufacturerOKAYA; Websitehttps://www.okaya.com; Environmental Compliance

Download Datasheet Parametric Compare View All

C1NP3B475K Overview

Ceramic Capacitor, Ceramic, 1250V, 4.7uF

C1NP3B475K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	OKAYA
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	4.7 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	44 mm
length	70 mm
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package form	Axial
positive tolerance	10%
Rated (DC) voltage (URdc)	1250 V
width	53 mm
Base Number Matches	1

Preview

Download Datasheet

View All

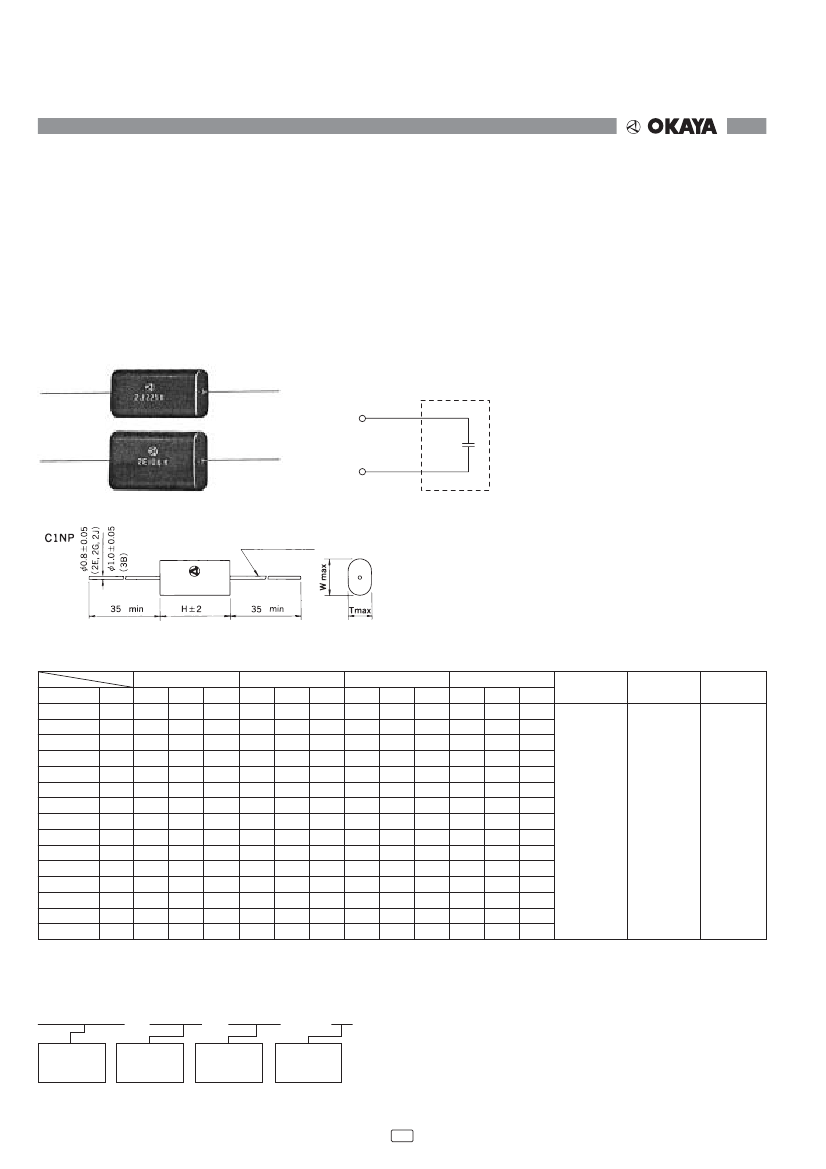

HIGH PULSE CAPACITOR

C1NP

SERIES

For high current capacitor

Features

・High performance

・Insulation resistance more than 20,000ΩＦ

・Dissipation factor less than 0.001 at 1,000Hz

・High surge withstand voltage and high current

withstand capability

Application

・Protection of High frequency circuit, High voltage

resonant circuit, Snubber circuit and various semi-

conductors

・Ultra-high impedance circuit, Long time constant

circuit

C1NP SERIES（Tape wrapping）

Circuit diagram

Solder-plated soft

copper wire leads

Unit：mm

Rated voltage

Capacitance

PART No.

824

105

125

155

185

225

275

335

395

475

565

685

825

106

126

μF

0.82

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

10.0

12.0

2E（250V

）

2G（400V

）

20.0

21.5

22.0

23.5

25.0

27.0

28.5

33.5

34.5

37.0

8.0

9.0

10.5

11.5

13.0

14.5

16.5

17.5

19.5

22.0

44.0

〃

20.5

22.0

23.5

25.0

26.5

28.5

32.0

34.5

9.0

10.5

11.5

13.0

14.5

16.5

17.0

19.0

44.0

〃

2J（630V

）

20.5 9.5 44.0

〃

21.5 10.0

〃

23.0 11.5

24.5 13.0

〃

26.5 14.5

28.0 16.0

〃

30.5 17.5

〃

35.0 20.0

3B（1250V

）

30.0

32.5

35.5

38.5

38.0

41.5

45.5

49.0

53.0

20.5

23.0

26.0

29.0

28.5

32.0

36.0

39.5

44.0

60.0

〃

70.0

〃

Dissipation

factor

Test

voltage

Insulation

resistance

0.001max

Rated voltage 20000ΩF

（f=1000

×1.75

min

±100Hz）（2∼5 sec）（at 20 ℃

100V

）

Note 1）None =Solder-plated soft copper wire leads

Operating temperature：−40℃∼＋85℃

●Model coding system

C1NP

= 250V

= 400V

= 630V

= 1250V

225

The first two digits

stand for capacitance

(pF),the third digit for

the number of

continuing zeros

J ＝±５％

K＝±10 ％

TYPE

C1NP3B475K Related Products

	C1NP3B475K	C1NP3B475J	C1NP3B335J	C1NP3B395K	C1NP3B395J	C1NP3B335K	C1NP3B275K	C1NP3B155K	C1NP3B275J
Description	Ceramic Capacitor, Ceramic, 1250V, 4.7uF	Ceramic Capacitor, Ceramic, 1250V, 4.7uF	Ceramic Capacitor, Ceramic, 1250V, 3.3uF	Ceramic Capacitor, Ceramic, 1250V, 3.9uF	Ceramic Capacitor, Ceramic, 1250V, 3.9uF	Ceramic Capacitor, Ceramic, 1250V, 3.3uF	Ceramic Capacitor, Ceramic, 1250V, 2.7uF	Ceramic Capacitor, Ceramic, 1250V, 1.5uF	Ceramic Capacitor, Ceramic, 1250V, 2.7uF
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	OKAYA	OKAYA	OKAYA	OKAYA	OKAYA	OKAYA	OKAYA	OKAYA	OKAYA
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	4.7 µF	4.7 µF	3.3 µF	3.9 µF	3.9 µF	3.3 µF	2.7 µF	1.5 µF	2.7 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
high	44 mm	44 mm	36 mm	39.5 mm	39.5 mm	36 mm	32 mm	26 mm	32 mm
length	70 mm	70 mm	70 mm	70 mm	70 mm	70 mm	70 mm	60 mm	70 mm
negative tolerance	10%	5%	5%	10%	5%	10%	10%	10%	5%
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package form	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
positive tolerance	10%	5%	5%	10%	5%	10%	10%	10%	5%
Rated (DC) voltage (URdc)	1250 V	1250 V	1250 V	1250 V	1250 V	1250 V	1250 V	1250 V	1250 V
width	53 mm	53 mm	45.5 mm	49 mm	49 mm	45.5 mm	41.5 mm	35.5 mm	41.5 mm
