DDA114EU-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> DDA114EU-7

DDA114EU-7: Descriptiontrans prebias dual pnp sot363; Categorysemiconductor Discrete semiconductor; File Size204KB，7 Pages; ManufacturerAll Sensors

Download Datasheet Parametric View All

DDA114EU-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DDA114EU-7	-	-	View	Buy Now

DDA114EU-7 Overview

trans prebias dual pnp sot363

DDA114EU-7 Parametric

Parameter Name	Attribute value
Datasheets
DDAzzzzU
Product Photos
SOT-363
Catalog Drawings
SOT-363 Package T
DDA Series Circui
PCN Design/Specificati
Green Encapsulate Change 09/July/2007
Standard Package	3,000
Category	Discrete Semiconductor Products
Family	Transistors (BJT) - Arrays, Pre-Biased
Packaging	Tape & Reel (TR)
Transistor Type	2 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max)	100mA
Voltage - Collector Emitter Breakdown (Max)	50V
Resistor - Base (R1) (Ohms)	10k
Resistor - Emitter Base (R2) (Ohms)	10k
DC Current Gain (hFE) (Min) @ Ic, Vce	30 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic	300mV @ 500µA, 10mA
Current - Collector Cutoff (Max)	500nA
Frequency - Transiti	250MHz
Power - Max	200mW
Mounting Type	Surface Mou
Package / Case	6-TSSOP, SC-88, SOT-363
Supplier Device Package	SOT-363
Other Names	DDA114EU7

Preview

Download Datasheet

View All

DDA(xxxx)U

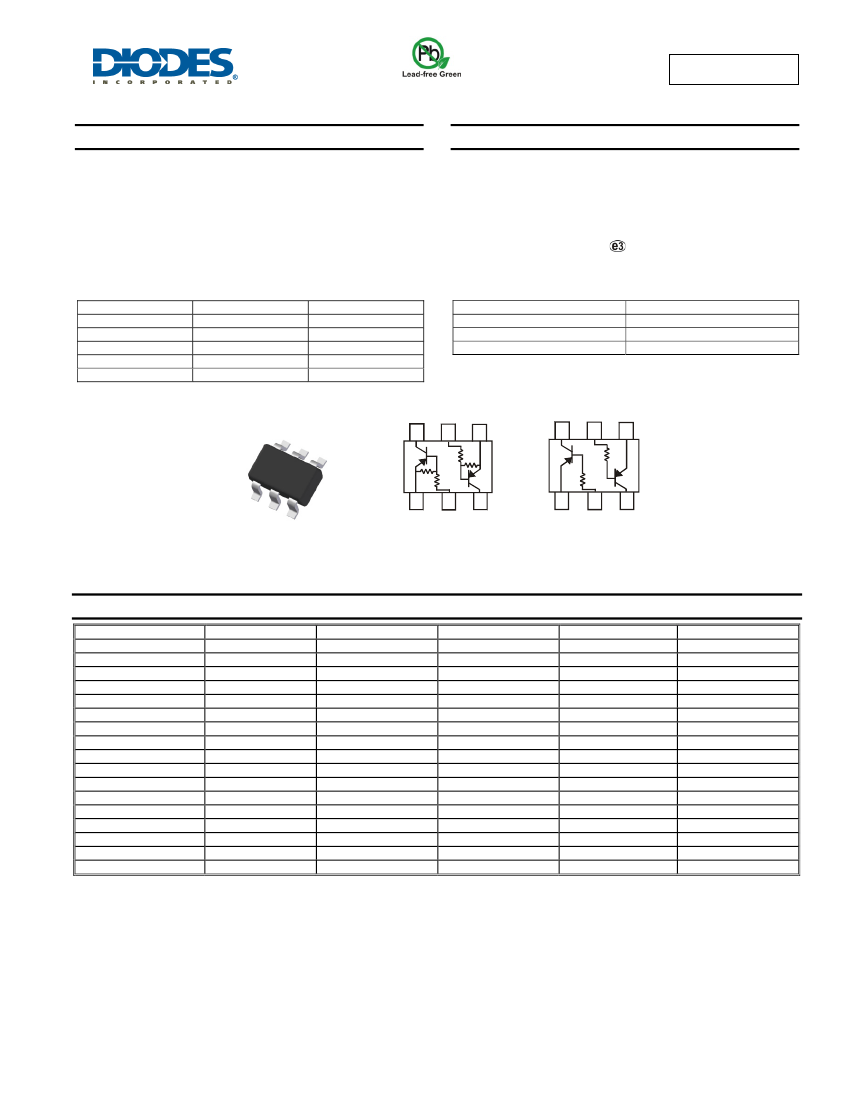

PNP PRE-BIASED SMALL SIGNAL DUAL SURFACE MOUNT TRANSISTOR

Features



Epitaxial Planar Die Construction

Complementary NPN Types Available (DDC)

Built-In Biasing Resistors

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free "Green" Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP Capable (Note 4)

Mechanical Data



Case: SOT363

Case Material: Molded Plastic, “Green” Molding Compound

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin Plated Leads, Solderable per

MIL-STD-202, Method 208

Weight: 0.006 grams (approximate)

Part Number

DDA124EU

DDA144EU

DDA114YU

DDA123JU

DDA114EU

R1 (NOM)

22KΩ

47KΩ

10KΩ

2.2KΩ

10KΩ

R2 (NOM)

22KΩ

47KΩ

10KΩ

Part Number

DDA113TU

DDA143TU

DDA114TU

R1 Only

1KΩ

4.7KΩ

10KΩ

SOT363

R1, R2

Top View

Device Schematic

R1 Only

Ordering Information

(Notes 4 & 5)

Product

DDA124EU-7-F

DDA124EUQ-7-F

DDA124EUQ-13-F

DDA144EU-7-F

DDA144EUQ-7-F

DDA114YU-7-F

DDA114YUQ-7-F

DDA123JU-7-F

DDA114EU-7-F

DDA114EUQ-7-F

DDA113TU-7-F

DDA143TU-7-F

DDA143TUQ-7-F

DDA143TUQ-13-F

DDA114TU-7-F

DDA114TUQ-7-F

DDA114TUQ-13-F

Notes:

Compliance

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Automotive

Marking

P17

P20

P14

P06

P13

P01

P07

P12

Reel size (inches)

Tape width (mm)

Quantity per reel

3,000

10,000

3,000

10,000

3,000

10,000

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the

same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

DDA(xxxx)U

Document number: DS30346 Rev. 11 - 2

1 of 7

www.diodes.com

November 2013
