1605607

Description
conn hsg plug 8pos inline skt
CategoryThe connector
File Size82KB,6 Pages
ManufacturerPHOENIX CONTACT
Websitehttps://www.phoenixcontact.com
Environmental Compliance
Download Datasheet Parametric View All

1605607 Online Shopping

Suppliers Part Number Price MOQ In stock
1605607 - - View Buy Now

1605607 Overview

conn hsg plug 8pos inline skt

1605607 Parametric

Parameter NameAttribute value
Datasheets
1605607
Standard Package1
CategoryConnectors, Interconnects
FamilyCircular Connectors - Housings
PackagingBulk
Connector TypePlug for Female Contacts
Number of Positions8 (4 + 3 Power + PE)
Shell Size - InseM23-8
Shell Size, MIL-
Contact TypeCrim
Contact Size1.0mm (4), 2.0mm (4)
Mounting TypeFree Hanging (In-Line)
Fastening TypeThreaded
OrientatiN (Normal)
Shell Material, FinishGadolinium-Zinc
Ingress ProtectiIP67 - Dust Tight, Waterproof
FeaturesShielded
NoteContacts Not Provided
Associated Produc1607356-ND - CONTACT SKT 1MM CRIMP TURNED1605643-ND - CONTACT SKT 2MM CRIMP TURNED1605631-ND - CONTACT SKT 2MM CRIMP TURNED1605557-ND - CONTACT SKT 1.0MM CRIMP TURNED1605636-ND - CONTACT SKT 2.0MM CRIMP TURNED1605562-ND - CONTACT SOCKET 1MM CRIMP TURNED1605628-ND - CONTACT SOCKET 2MM CRIMP TURNED
Other NamesSF-7ES1N8A8LB2
https://www.phoenixcontact.com/us/products/1605607
Cable connector - SF-7ES1N8A8LB2 - 1605607
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

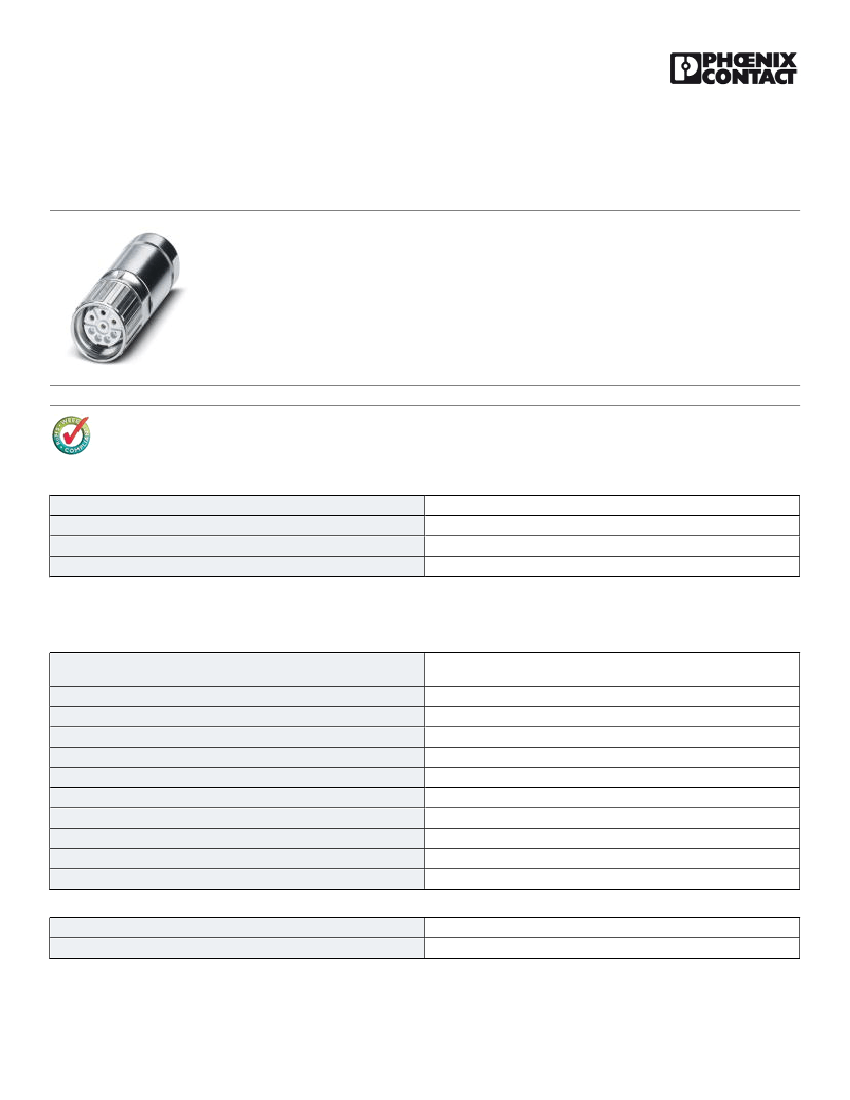

Cable connector, straight long, Screw locking, M23, Number of positions: 4+3+PE, Type of contact: Socket,
Crimp connection, Shielded: Yes, Cable cross section: 12 mm...15 mm
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 PCE
145.58 GRM
85366990
Germany
Technical data
General
Note
Type of locking
Coding
Contact connection method
Type of contacts
Number of positions
Contact diameter of power contacts
Nominal current per power contact at 25°C
Contact diameter of signal contacts
Nominal current per signal contact at 25°C
Conductor entry
Order information Order crimp contacts 4 x Ø 1 mm, 4 x Ø 2 mm
separately
Screw locking
N
Crimp connection
Socket
8
2 mm
30 A
1 mm
9A
12 mm ... 15 mm
Ambient conditions
Ambient temperature
Degree of protection
-20 °C ... 125 °C
IP67
12/10/13   Page 1 / 6
