3-1393682-3 datasheet, PDF - EEWORLD Datasheet

3-1393682-3: Descriptionconn 1.6/5.6 jack 75 ohm solder; CategoryThe connector; File Size44KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1393682-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1393682-3	-	-	View	Buy Now

conn 1.6/5.6 jack 75 ohm solder

Parameter Name	Attribute value
Datasheets

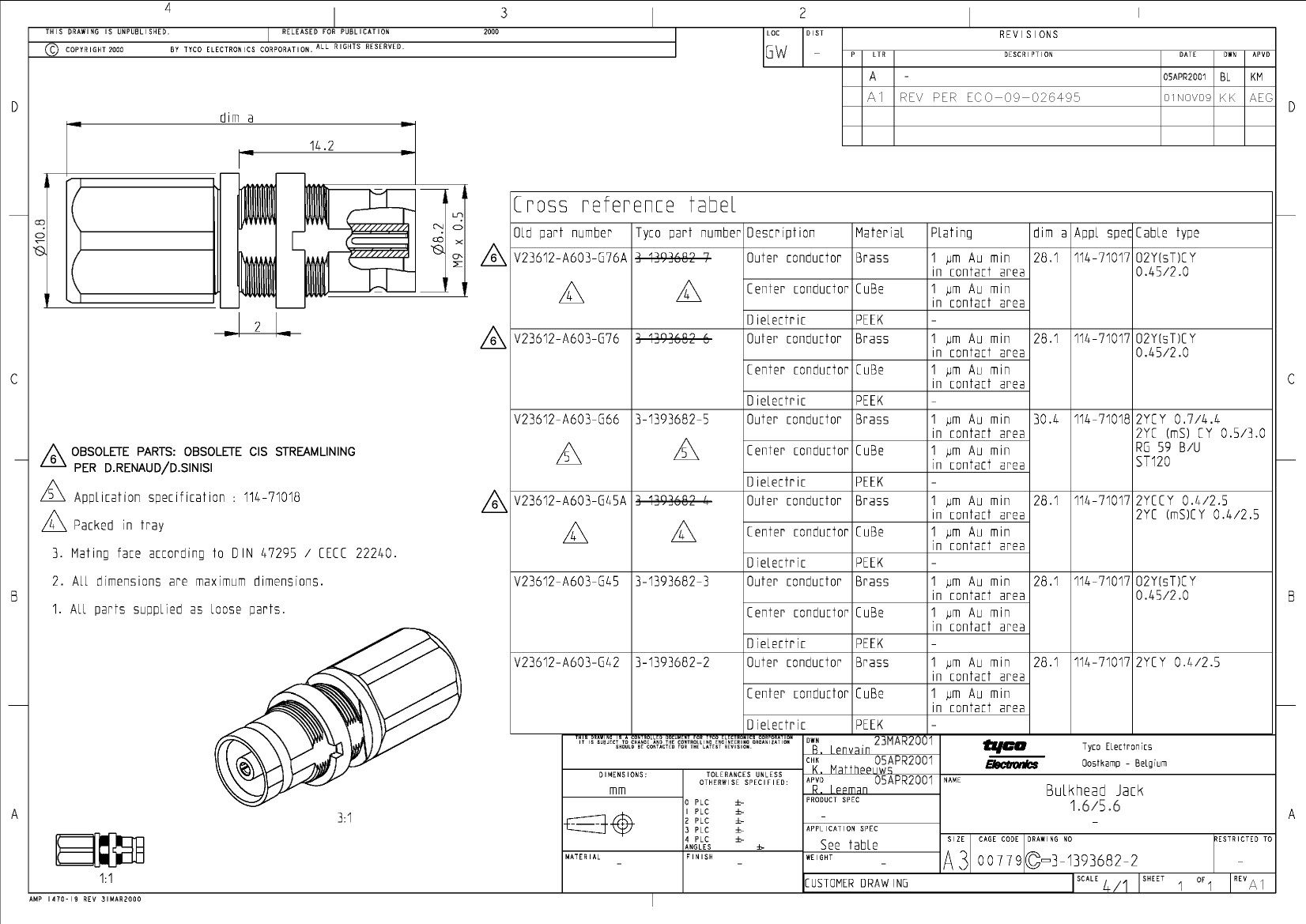

3-1393682-x Drawing
RoHS Informati
3-1393682-3 Statement of Compliance
RoHS 2 Stateme
Standard Package	300
Category	Connectors, Interconnects
Family	Coaxial Connectors (RF)
Packaging	Bulk
Connector Style	1.6/5.6
Connector Type	Jack, Female Socke
Contact Terminati	Solde
Shield Terminati	Clam
Impedance	75 Ohm
Mounting Type	Panel Mount, Bulkhead - Front Side Nu
Cable Grou	2YCY 0.45/2.0
Fastening Type	Snap-O
Frequency - Max	8GHz
Features	-
Housing Col	-
Ingress Protecti	-
Body Material	-
Body Finish	-
Center Contact Material	Beryllium Coppe
Center Contact Plating	Gold
Dielectric Material	Polyetheretherketone (PEEK)
Voltage Rating	-
Operating Temperature	-
Associated Produc	1-1393562-0-ND - CONN INSTAL RING FOR 1.6/5.6 JCK1393562-6-ND - CONN ISOL WASHR FOR 1.6/5.6 JACK1393562-5-ND - CONN ISOL WASHR FOR 1.6/5.6 JACK
Other Names	V23612A603G45

	3-1393682-3	3-1393682-2	3-1393682-5
Description	conn 1.6/5.6 jack 75 ohm solder	conn 1.6/5.6 jack 75 ohm solder	conn 1.6/5.6 jack 75 ohm solder
Standard Package	300	300	100
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Coaxial Connectors (RF)	Coaxial Connectors (RF)	Coaxial Connectors (RF)
Packaging	Bulk	Bulk	Bulk
Connector Style	1.6/5.6	1.6/5.6	1.6/5.6
Connector Type	Jack, Female Socke	Jack, Female Socke	Jack, Female Socke
Contact Terminati	Solde	Solde	Solde
Shield Terminati	Clam	Clam	Clam
Impedance	75 Ohm	75 Ohm	75 Ohm
Mounting Type	Panel Mount, Bulkhead - Front Side Nu	Panel Mount, Bulkhead - Front Side Nu	Panel Mount, Bulkhead - Front Side Nu
Cable Grou	2YCY 0.45/2.0	2YCCY 0.4/2.5	RG-59, 2YCCY 0.7/4.4
Fastening Type	Snap-O	Snap-O	Snap-O
Frequency - Max	8GHz	8GHz	8GHz
Center Contact Material	Beryllium Coppe	Beryllium Coppe	Beryllium Coppe
Center Contact Plating	Gold	Gold	Gold
Dielectric Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Associated Produc	1-1393562-0-ND - CONN INSTAL RING FOR 1.6/5.6 JCK1393562-6-ND - CONN ISOL WASHR FOR 1.6/5.6 JACK1393562-5-ND - CONN ISOL WASHR FOR 1.6/5.6 JACK	1-1393562-0-ND - CONN INSTAL RING FOR 1.6/5.6 JCK1393562-6-ND - CONN ISOL WASHR FOR 1.6/5.6 JACK1393562-5-ND - CONN ISOL WASHR FOR 1.6/5.6 JACK	1-1393562-0-ND - CONN INSTAL RING FOR 1.6/5.6 JCK1393562-6-ND - CONN ISOL WASHR FOR 1.6/5.6 JACK1393562-5-ND - CONN ISOL WASHR FOR 1.6/5.6 JACK
Other Names	V23612A603G45	V23612A603G42	V23612A603G66
