HHG.2B.308.CLLP
SUMMARY
# Wires
Low
High
Coax
Triax
Quad
Fiber
Fluidic
Series
Termination type
IP rating
Cable Ø
Matching parts
Status
Alternative part
8
0
0
0
0
0
0
2B
Female solder
68
0.00 - 0.00 mm
FGG.2B.308.CLAD48Z
active
Image is for illustrative purpose only
Download
Request a quote
Catalog
TECHNICAL DETAILS
Mechanics
Shell Style/Model
Keying
Housing Material
Cable Fixing
Variant
Weight
HH*: Fixed receptacle, nut fixing, watertight or vacuum-tight (watertight when mated)
1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
: 0 - 0 mm
P : Watertight
22.94 g
Performance
Configuration
Insulator
Rated Current
2B.308 : 8 Low Voltage
L: PEEK (UL 94 / V-0/3.2, depends on material thickness)
10 Amps
Specifications
Contact Type: Solder
Max. Matings: 5000
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Contact Dia.: 0.9 mm (0.035in)
Bucket Dia.: 0.8 mm (0.031in)
Max. Solid Conductor: 0.34 mm^2 (AWG 22)
Max. Stranded Conductor: 0.34 mm^2 (AWG 22)
R (max): 4.8 mOhm
Vtest (contact-shell): 1250 V (AC), 1770 V (DC)
Vtest (contact-contact): 1500 V (AC), 2120 V (DC)
Others
Temp (min / max): -20°C / +80°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >144 hr
Climatical Category: 20/80/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
Pressure: 40 bars
IP Rating: 68

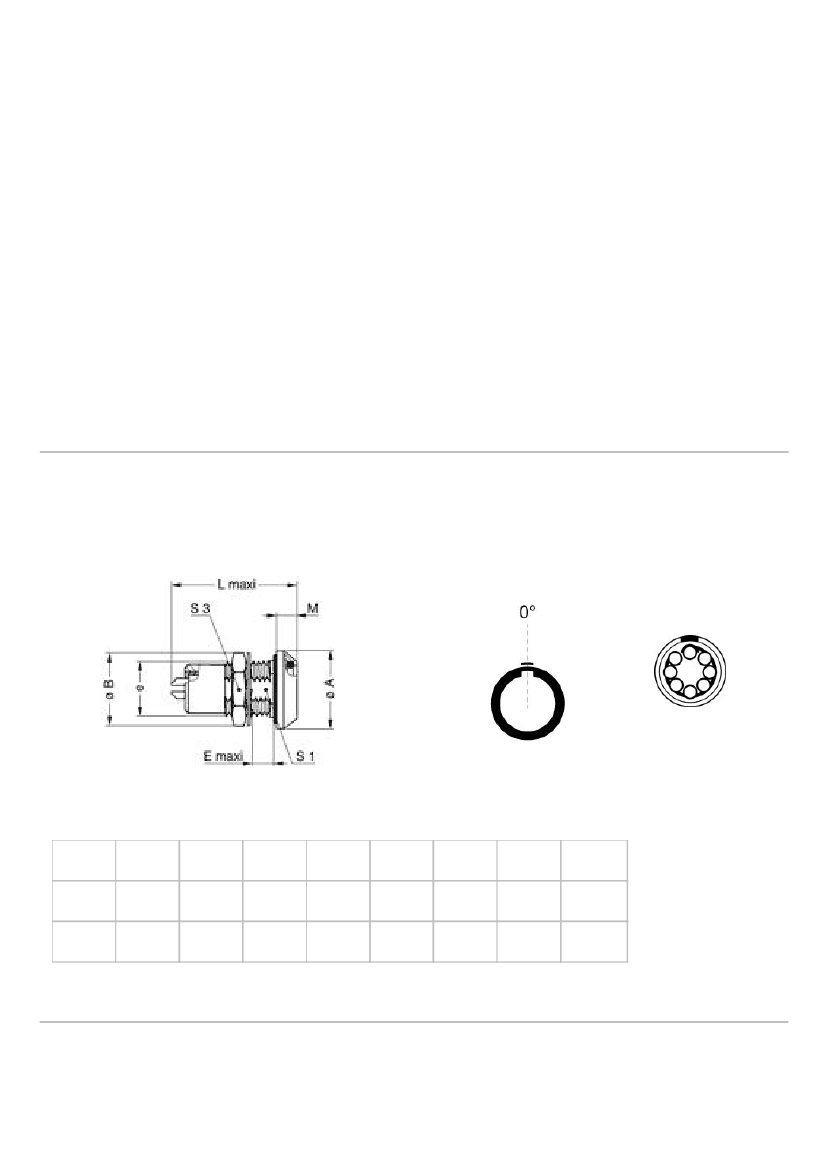

DRAWINGS
Draws
Dimensions
A
mm.
in.
22
0,87
B
19.5
0,77
E
8
0,31
L
33.7
1,33
M
6
0,24
S1
13.5
0,53
S3
17
0,67
e
M15x1.0
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
RECOMMENDED BY LEMO
Tools
None

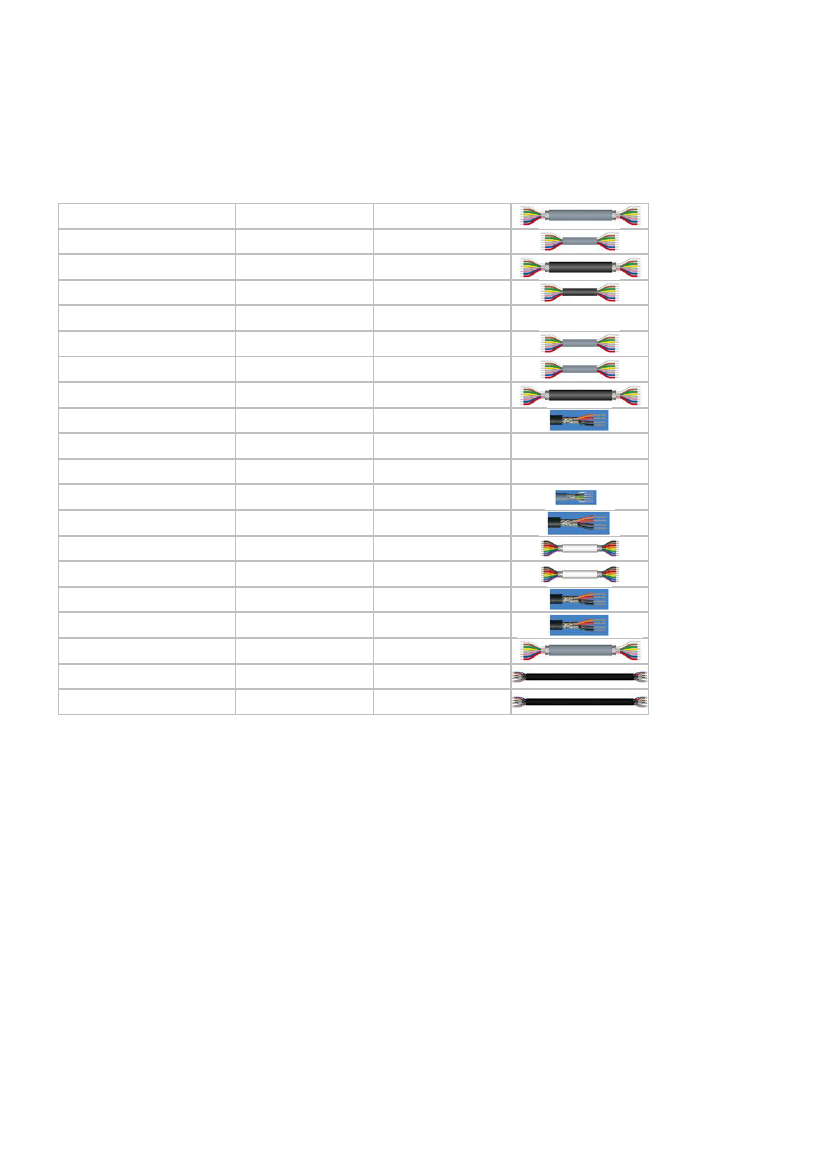

Cables
CMN.08.T22.059PGCE
CMN.08.T22.059PGZE
CMN.08.T22.059PNCE
CMN.08.T22.059PNZE
CMN.08.T22.059QGC
CMN.08.T22.059QGZE
CMN.08.T26.042QGZE
008 050
008 280
016 080
042 265
080 140
108 220
108 240
108 260
180 240
180 260
280 250
335 990
335 991
TPR
TPR (medical)
TPR (medical)
PVC
PVC
PVC
PVC
PVC
PVC
PTFE
PTFE
PVC
PVC
PVC
PVC
PVC
Grey
Grey
Grey
Black
Black
Grey
Yellow
Grey
Black
White
White
Black
Black
Grey
Black
Black
PVC
PVC
GREY
Grey
Black
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
3/3
