26-8009 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 26-8009

Preview

26-8009: Descriptionconn adapt plug-plug N 50 ohm; CategoryThe connector; File Size81KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

26-8009 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	26-8009	-	-	View	Buy Now

26-8009 Overview

conn adapt plug-plug N 50 ohm

26-8009 Parametric

Parameter Name	Attribute value
Datasheets

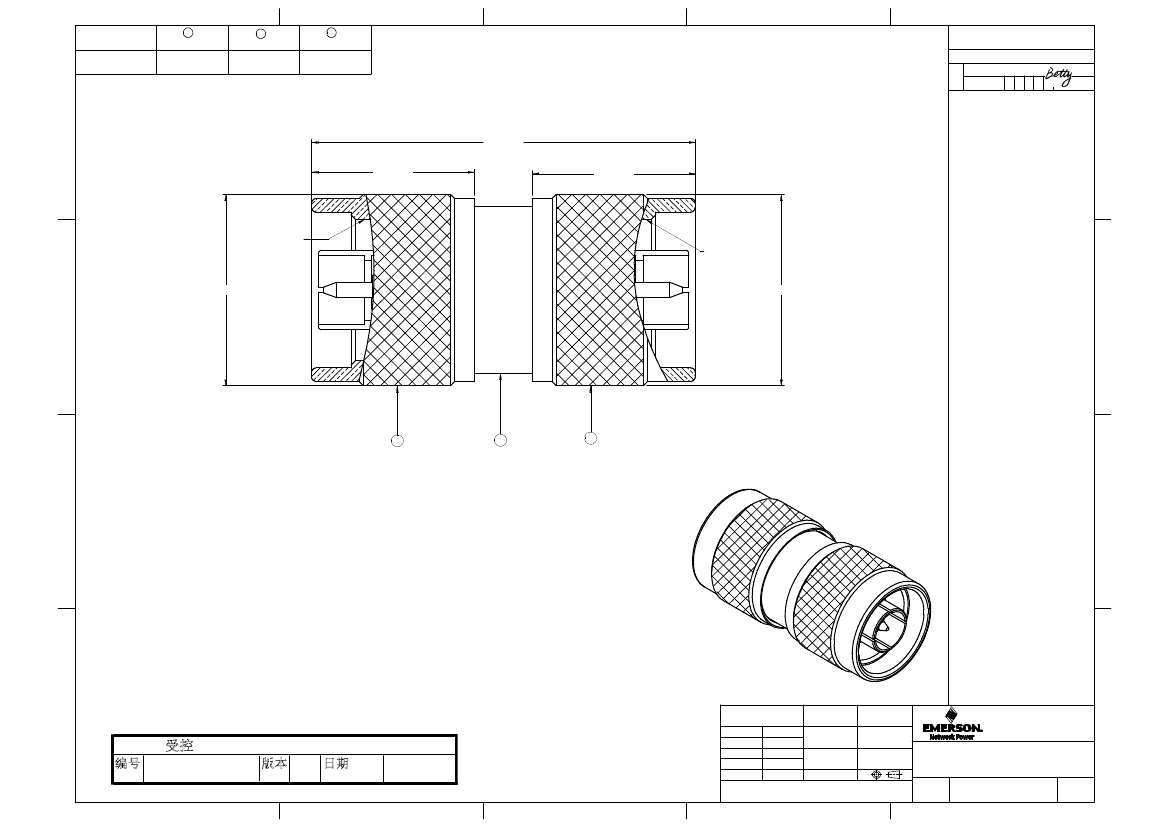

26-8009 Drawing
Product Photos
CP-AD800
Standard Package	10
Category	Connectors, Interconnects
Family	Coaxial Connectors (RF) - Adapters
Packaging	Bulk
Adapter Type	Plug to Plug
Adapter Series	N to N
Center Gende	Male to Male
Convert From (Adapter End)	N Plug, Male Pi
Convert To (Adapter End)	N Plug, Male Pi
Conversion Type	Same Series
Impedance	50 Ohm
Style	Straigh
Mounting Type	Free Hanging (In-Line)
Frequency - Max	-
Ingress Protecti	-
Features	-
Body Material	Brass
Body Finish	Nickel
Dielectric Material	Polytetrafluoroethylene (PTFE)
Center Contact Material	Brass
Center Contact Plating	Gold
Mating Cycles	-
Dynamic Catalog	Coaxial, RF Adapters
Kits	J687-ND - KIT RF ADAPTER 50 OHM 72PCS
Other Names	012446005877268009367-1089CP-AD800CP-AD800-ND

Preview

Download Datasheet

View All

5

4

3

2

1

DRAWING NO.

PART NUMBER

26-8009

ITEM 3

ITEM 2

NUT

BODY

BRASS

NICKEL PLATED NICKEL PLATED NICKEL PLATED

ITEM 1

NUT

26-8009

REVISIONS

OFFICIAL RELEASE

2009.09.1

6 11:02:48

01

08-27-09

WW T

+08'00'

D

40.2 ±0.5

17.0 ±0.3

5/8-24UNEF-2B

REF.

O

20.0

C

REF.

O

20.0

C

1

2

3

B

NOTES:

1. TECHNICAL DETAIL: REFER TO EMERSON DOCUMENT P/N 26-0000

A

DATE

TOLERANCE UNLESS DRAWN BY

OTHERWISE SPECIFIED

IVON.WANG

08-27-09

THIS DRAWING TO BE INTERPRETED

PER ANSI Y 14.5M - 1994

COMPANY CONFIDENTIAL

DECIMALS

X

X.X

X.XX

ANGLES

mm

CHECKED BY

DATE

TITLE

A

Connectivity

Solutions

CPAD800 N(M-M) SPLICE UG-57B/U

SHEET

1 OF 1

DRAWING NO.

SIZE

CONTROLLED DOCUMENT

P/N

26-8009

Rev

01

Rel'd Date

4

SEP 17,09

+

0.5

-

+

0.2

-

+

0.1

-

+

0.5

v

-

08-27-09

APPROVED BY DATE

IVON.WANG

THOMAS

08-27-09

U/M

mm

THIS DRAWING WAS PRODUCED BY COMPUTER,

DO NOT SCALE DRAWING OR UPDATE MANUALLY.

26-8009

1

C

5

3

2
