1-229913-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1-229913-1

1-229913-1: Descriptionkit, rcpt, 50 pos, B slot; CategoryThe connector; File Size101KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

1-229913-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-229913-1	-	-	View	Buy Now

1-229913-1 Overview

kit, rcpt, 50 pos, B slot

1-229913-1 Parametric

Parameter Name	Attribute value
Datasheets
229913
Product Photos
1-229913-1
Standard Package	1
Category	Connectors, Interconnects
Family	D-Shaped Connectors - Centronics
Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Number of Positions	50
Number of Rows	2
Mounting Type	Free Hanging (In-Line), Right Angle
Terminati	IDC
Flange Feature	Insert, Threaded (4-40)
Type	-
Features	Assembly Kit, Backshell, Cable Clamp, Dust Cover, Mounting Hardware
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Associated Produc	6-5229912-1-ND - CONN CHAMP PLUG 50POS .085 IDC554337-1-ND - CONN CHAMP PLUG 50POS .085 IDC174158-1-ND - CONN PLUG 50POS VERT BLACKA33621-ND - KIT, PLUG, 50 POS, E SLOTA33617-ND - KIT, PLUG, 50 POS, B SLOTA33613-ND - KIT, PLUG,50 POS,B SLOT, C/LOKA33611-ND - CONNECTOR KITSA33609-ND - KIT, PLUG, 50 POS, C SLOTA31833-ND - CONN PLUG CHAMP 50POS VERTA24258-ND - PLUG ASSY,50POS,SC/LK,CHAMP-LK553913-1-ND - KIT, PLUG, 50 POSN, B SLOT552686-1-ND - CONN CHAMP PLUG 50 POS VERTA24394-ND - PLUG ASSY, 50 POSN, ACTION PINA24392-ND - ASSY PLUG,50 POSN, ACTION PINA24365-ND - PLUG ASSY,50 POS,A SLOT,SYS 5A113179-ND - CONN CHAMP 50POS PLUG SCREW GRAYA1550-ND - CONN CHAMP 50 POS PLUG VERTICALA1544-ND - CONN CHAMP 50 POS PLUG SCREWA1540-ND - CONN CHAMP 50 POS PLUG SCREWA1567-ND - 50 PIN CHAMP LATCH PLUG-SCREW
Other Names	1-229913-1-ND12299131A24329

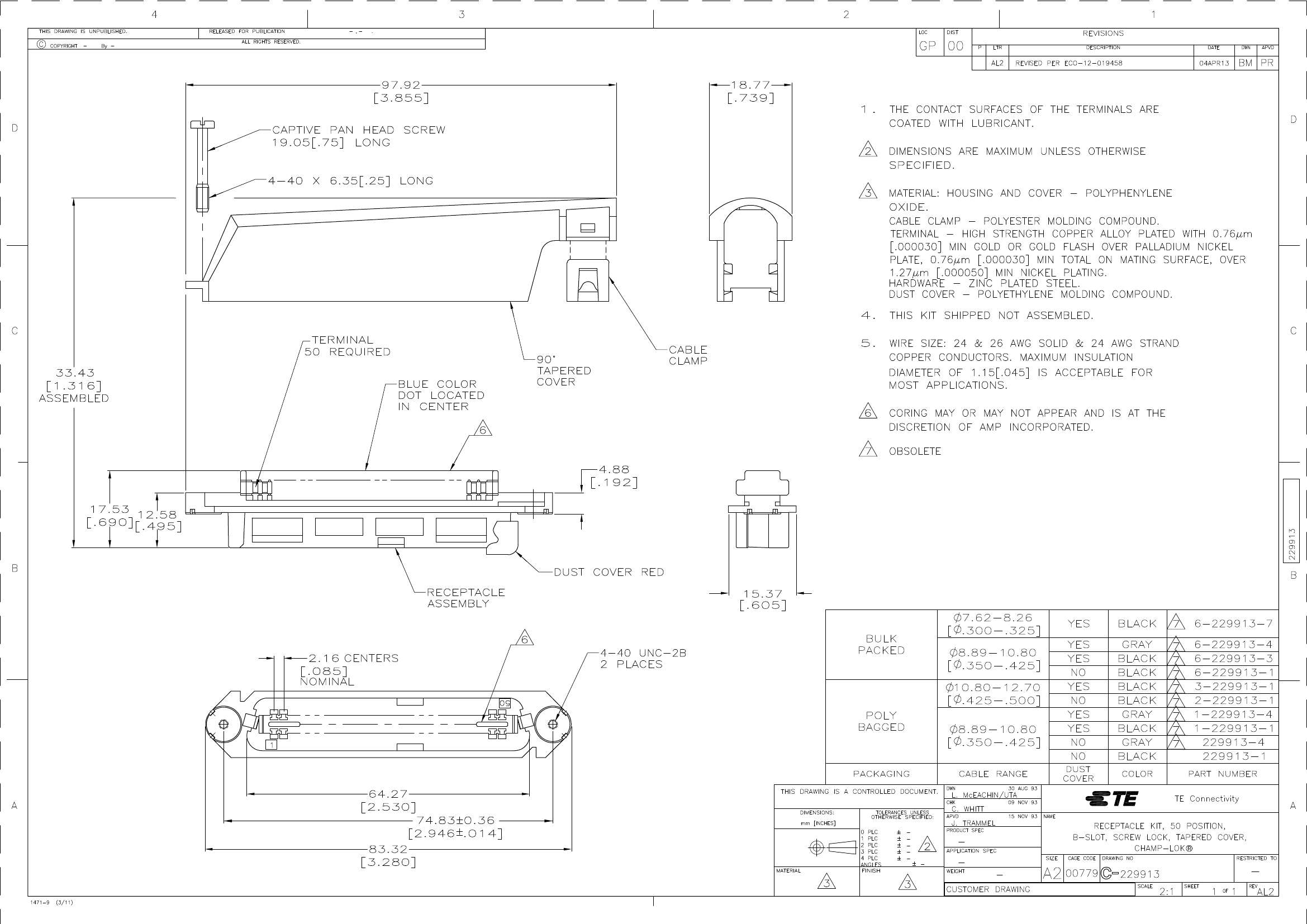

Preview

Download Datasheet

View All

1-229913-1 Related Products

	1-229913-1	6-229913-1	229913-4	2-229913-1	3-229913-1	6-229913-3	6-229913-4	1-229913-4
Description	kit, rcpt, 50 pos, B slot	conn rcpt 50pos 24-26awg black	kit, rcpt, 50 pos, B slot	kit, rcpt, 50 pos, B slot	kit, rcpt, 50 pos, B slot	conn rcpt 50pos 24-26awg black	recp 50 pos kit B slot 5 PC PT	kit recpt 50 pos B slot
Standard Package	1	500	1	1	1	500	500	1
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Shaped Connectors - Centronics	D-Shaped Connectors - Centronics	D-Shaped Connectors - Centronics	D-Shaped Connectors - Centronics	D-Shaped Connectors - Centronics	D-Shaped Connectors - Centronics	D-Shaped Connectors - Centronics	D-Shaped Connectors - Centronics
Connector Style	Outer Shroud Contacts	Outer Shroud Contacts	Outer Shroud Contacts	Outer Shroud Contacts	Outer Shroud Contacts	Outer Shroud Contacts	Outer Shroud Contacts	Outer Shroud Contacts
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Number of Positions	50	50	50	50	50	50	50	50
Number of Rows	2	2	2	2	2	2	2	2
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Terminati	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Flange Feature	Insert, Threaded (4-40)	Insert, Threaded (4-40)	Insert, Threaded (4-40)	Insert, Threaded (4-40)	Insert, Threaded (4-40)	Insert, Threaded (4-40)	Insert, Threaded (4-40)	Insert, Threaded (4-40)
Features	Assembly Kit, Backshell, Cable Clamp, Dust Cover, Mounting Hardware	-	Assembly Kit, Backshell, Cable Clamp, Dust Cover, Mounting Hardware	Assembly Kit, Backshell, Cable Clamp, Dust Cover, Mounting Hardware	Assembly Kit, Backshell, Cable Clamp, Dust Cover, Mounting Hardware	Assembly Kit, Backshell, Cable Clamp, Dust Cover, Mounting Hardware	Assembly Kit, Backshell, Cable Clamp, Dust Cover, Mounting Hardware	Assembly Kit, Backshell, Cable Clamp, Dust Cover, Mounting Hardware
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Other Names	1-229913-1-ND12299131A24329	-	229913-4-NDA24327	2-229913-1-NDA24333	3-229913-1-NDA24335	-	-	A24331
