5747461-3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 5747461-3

Preview

5747461-3: Descriptionconn D-sub rcpt R/A 25pos pcb AU; CategoryThe connector; File Size131KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5747461-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5747461-3	-	-	View	Buy Now

5747461-3 Overview

conn D-sub rcpt R/A 25pos pcb AU

5747461-3 Parametric

Parameter Name	Attribute value
Datasheets
5747461
AMPLIMITE Catalog
Product Photos
5747461-3
Product Training Modules
AMPLIMITE D-Sub Connectors
RoHS Informati
5747461-3 Statement of Compliance
RoHS 2 Stateme

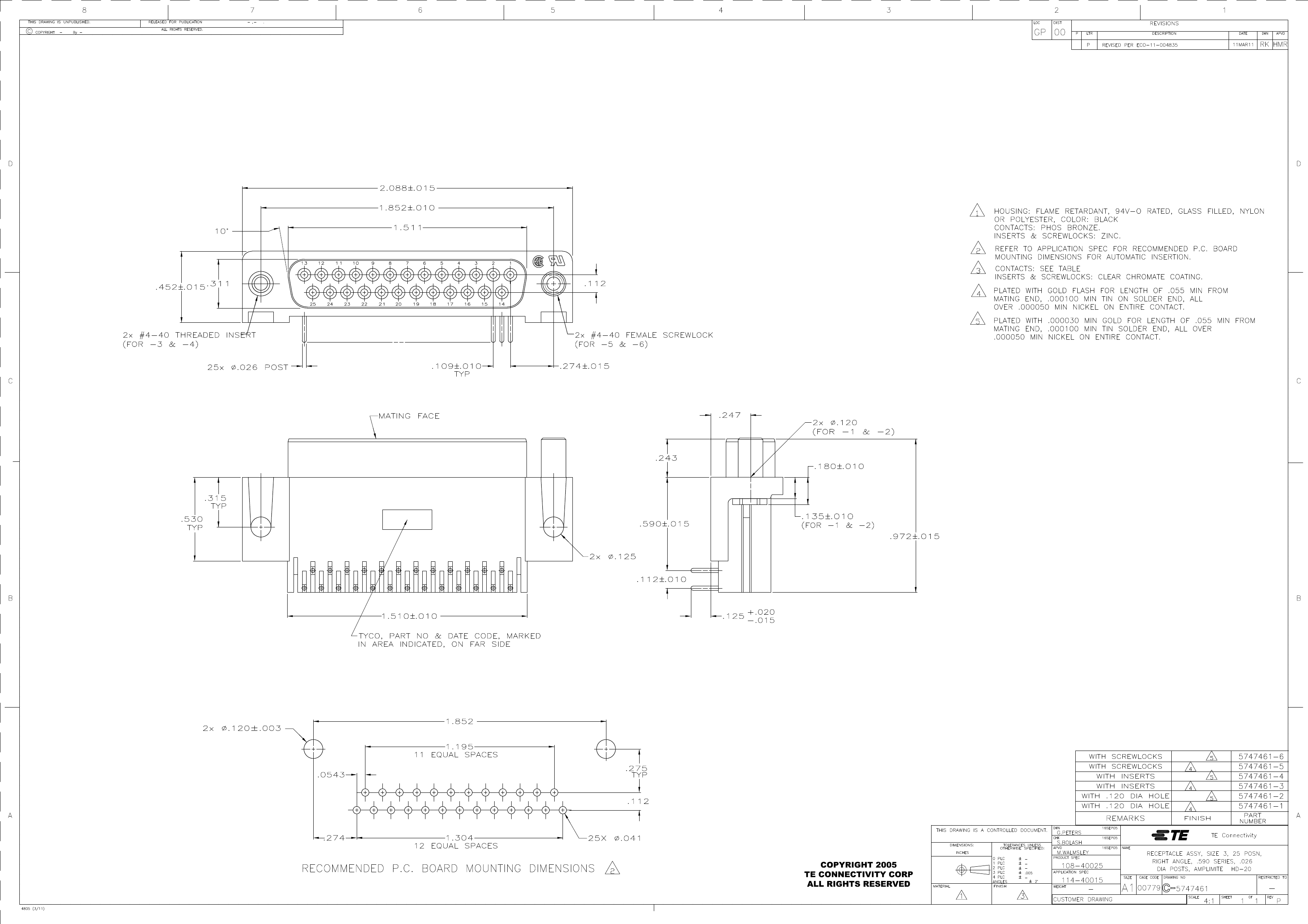

Catalog Drawings
AMP D-Sub Female .590
Featured Produc
AMPLIMITE D-Subminiature Connectors
3D Model
5747461-3.pdf
Standard Package	70
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tray
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	25
Number of Rows	2
Shell Size, Connector Layou	3 (DB, B)
Contact Type	Signal
Mounting Type	Through Hole, Right Angle
Flange Feature	Housing/Shell (4-40)
Terminati	Solde
Features	-
Shell Material, Finish	-
Contact Finish	Gold
Contact Finish Thickness	Flash
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	125V
Current Rating	6A
Housing Material	-
Col	Black
Dynamic Catalog	AMPLIMITE HD-20 Series
Mating Products	745211-8-ND - CONN D-SUB PLUG 25POS 26-22AWGAMV25B-ND - CONN DSUB PLUG 25POS IDC GOLDAMS25B-ND - CONN D-SUB PLUG 25POS GOLDA32175-ND - CONN DSUB PLUG 25POS IDC GOLDA31941-ND - CONN D-SUB PLUG 25P 22-26AWG AU
Other Names	57474613A33987

Preview

Download Datasheet

View All

5747461-3 Related Products

	5747461-3	5747461-1	5747461-6	5747461-2	5747461-4
Description	conn D-sub rcpt R/A 25pos pcb AU	conn D-sub rcpt R/A 25pos pcb AU	conn D-sub rcpt R/A 25pos pcb AU	conn D-sub rcpt R/A 25pos pcb AU	conn D-sub rcpt R/A 25pos
Standard Package	70	70	70	70	280
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors
Packaging	Tray	Tray	Tray	Tray	Tray
Connector Style	D-Sub	D-Sub	D-Sub	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets
Number of Positions	25	25	25	25	25
Number of Rows	2	2	2	2	2
Shell Size, Connector Layou	3 (DB, B)	3 (DB, B)	3 (DB, B)	3 (DB, B)	3 (DB, B)
Contact Type	Signal	Signal	Signal	Signal	Signal
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Flange Feature	Housing/Shell (4-40)	Housing/Shell (Unthreaded)	Mating Side	Housing/Shell (Unthreaded)	Housing/Shell (4-40)
Terminati	Solde	Solde	Solde	Solde	Solde
Contact Finish	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	Flash	Flash	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Voltage Rating	125V	125V	125V	125V	125V
Current Rating	6A	6A	6A	6A	6A
Col	Black	Black	Black	Black	Black
Mating Products	745211-8-ND - CONN D-SUB PLUG 25POS 26-22AWGAMV25B-ND - CONN DSUB PLUG 25POS IDC GOLDAMS25B-ND - CONN D-SUB PLUG 25POS GOLDA32175-ND - CONN DSUB PLUG 25POS IDC GOLDA31941-ND - CONN D-SUB PLUG 25P 22-26AWG AU	745211-8-ND - CONN D-SUB PLUG 25POS 26-22AWGAMV25B-ND - CONN DSUB PLUG 25POS IDC GOLDAMS25B-ND - CONN D-SUB PLUG 25POS GOLDA32175-ND - CONN DSUB PLUG 25POS IDC GOLDA31941-ND - CONN D-SUB PLUG 25P 22-26AWG AU	AMV25B-ND - CONN DSUB PLUG 25POS IDC GOLDAMS25B-ND - CONN D-SUB PLUG 25POS GOLDA32175-ND - CONN DSUB PLUG 25POS IDC GOLDA31941-ND - CONN D-SUB PLUG 25P 22-26AWG AU	745211-8-ND - CONN D-SUB PLUG 25POS 26-22AWGAMV25B-ND - CONN DSUB PLUG 25POS IDC GOLDAMS25B-ND - CONN D-SUB PLUG 25POS GOLDA32175-ND - CONN DSUB PLUG 25POS IDC GOLDA31941-ND - CONN D-SUB PLUG 25P 22-26AWG AU	745211-8-ND - CONN D-SUB PLUG 25POS 26-22AWGAMV25B-ND - CONN DSUB PLUG 25POS IDC GOLDAMS25B-ND - CONN D-SUB PLUG 25POS GOLDA32175-ND - CONN DSUB PLUG 25POS IDC GOLDA31941-ND - CONN D-SUB PLUG 25P 22-26AWG AU
Other Names	57474613A33987	57474611A33998	57474616A33991	57474612A33997	A35158
Dynamic Catalog	AMPLIMITE HD-20 Series	AMPLIMITE HD-20 Series	AMPLIMITE HD-20 Series	AMPLIMITE HD-20 Series	-
