5747871-4 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 5747871-4

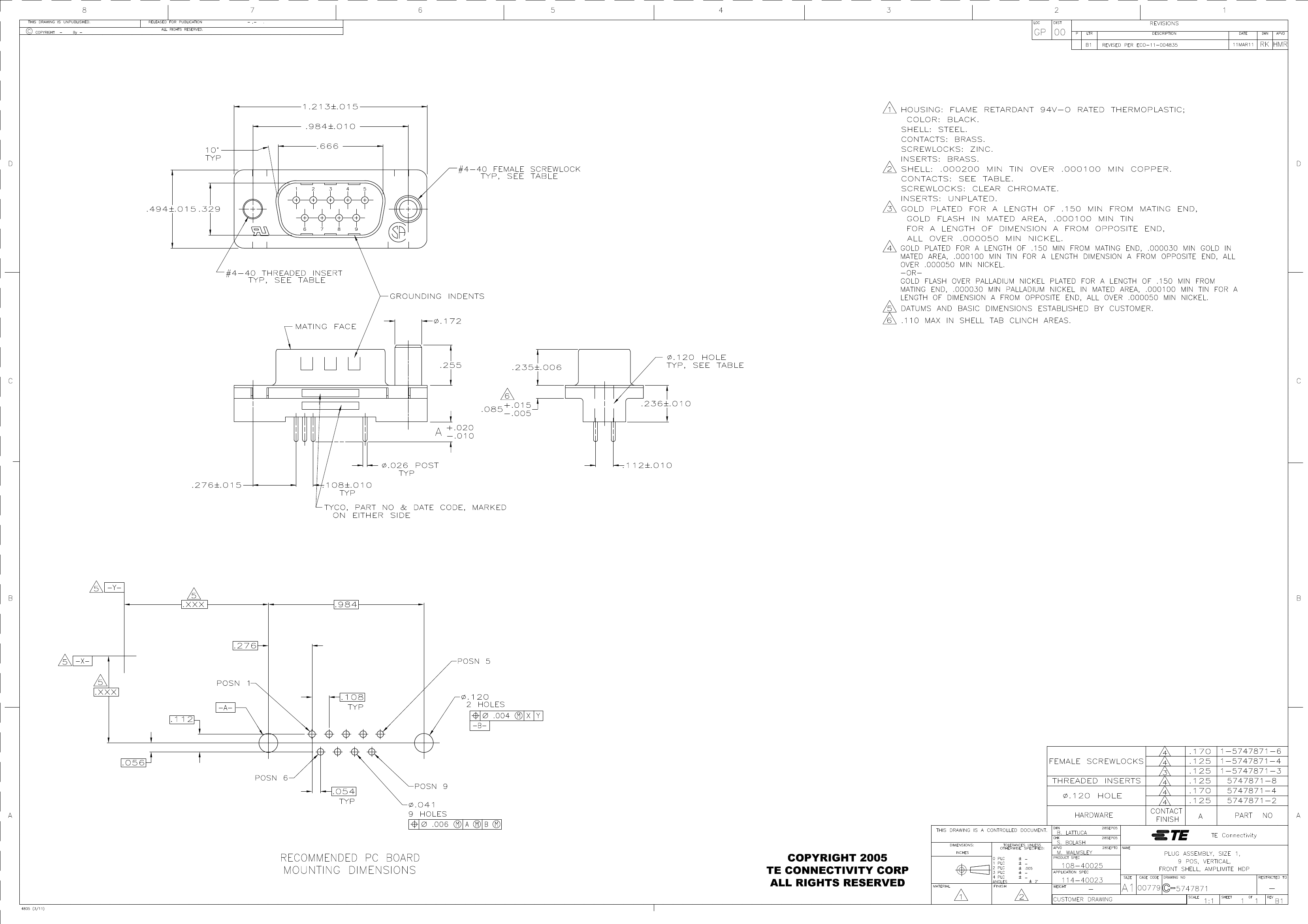

Preview

5747871-4: Descriptionconn D-sub plug vert 9pos; CategoryThe connector; File Size124KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5747871-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5747871-4	-	-	View	Buy Now

5747871-4 Overview

conn D-sub plug vert 9pos

5747871-4 Parametric

Parameter Name	Attribute value
Datasheets
5747871
Product Photos
5747871-4
Product Training Modules
AMPLIMITE D-Sub Connectors
RoHS Informati
5747871-4 Statement of Compliance
RoHS 2 Stateme
Catalog Drawings
HD-20 Front Metal Side
Standard Package	17
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tube
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layou	1 (DE, E)
Contact Type	Signal
Mounting Type	Through Hole
Flange Feature	Housing/Shell (Unthreaded)
Terminati	Solde
Features	Grounding Indents
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	Flash
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	125V
Current Rating	6A
Housing Material	Thermoplastic
Col	Black
Dynamic Catalog	AMPLIMITE HD-20 Series
Mating Products	A106458-ND - CONN D-SUB RCPT 9POS CRIMP SNAPA102040-ND - CONN D-SUB RCPT 9POS SLD CUP AUA32510-ND - CONN D-SUB RCPT 9POS SLD CUP AUA31975-ND - CONN D-SUB RECEPT 9P 22-26AWG AUA31974-ND - CONN D-SUB RECEPT 9P 20-22AWG AUA31973-ND - CONN D-SUB RECEPT 9P 26-30AWG AUA31931-ND - CONN D-SUB RCPT 9POS 22-26AWG AU
Other Names	57478714A35178

Preview

Download Datasheet

View All

5747871-4 Related Products

	5747871-4	1-5747871-6	1-5747871-4	1-5747871-3
Description	conn D-sub plug vert 9pos	conn D-sub plug str 9pos pcb AU	conn D-sub plug str 9pos gold	conn D-sub plug str 9pos pcb AU
Standard Package	17	17	17	17
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors
Packaging	Tube	Tube	Tube	Tube
Connector Style	D-Sub	D-Sub	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins
Number of Positions	9	9	9	9
Number of Rows	2	2	2	2
Shell Size, Connector Layou	1 (DE, E)	1 (DE, E)	1 (DE, E)	1 (DE, E)
Contact Type	Signal	Signal	Signal	Signal
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Flange Feature	Housing/Shell (Unthreaded)	Mating Side	Mating Side	Mating Side
Terminati	Solde	Solde	Solde	Solde
Features	Grounding Indents	Grounding Indents	Grounding Indents	Grounding Indents
Shell Material, Finish	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated
Contact Finish	Gold	Gold	Gold	Gold
Contact Finish Thickness	Flash	Flash	Flash	Flash
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Voltage Rating	125V	125V	125V	125V
Current Rating	6A	6A	6A	6A
Housing Material	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic
Col	Black	Black	Black	Black
Dynamic Catalog	AMPLIMITE HD-20 Series	AMPLIMITE HD-20 Series	AMPLIMITE HD-20 Series	AMPLIMITE HD-20 Series
Mating Products	A106458-ND - CONN D-SUB RCPT 9POS CRIMP SNAPA102040-ND - CONN D-SUB RCPT 9POS SLD CUP AUA32510-ND - CONN D-SUB RCPT 9POS SLD CUP AUA31975-ND - CONN D-SUB RECEPT 9P 22-26AWG AUA31974-ND - CONN D-SUB RECEPT 9P 20-22AWG AUA31973-ND - CONN D-SUB RECEPT 9P 26-30AWG AUA31931-ND - CONN D-SUB RCPT 9POS 22-26AWG AU	5746861-4-ND - CONN RECEPT 9 POS GOLD IDCAFL09B-ND - CONN D-SUB RECEPT 9POS 30 GOLD	5746861-4-ND - CONN RECEPT 9 POS GOLD IDCAFL09B-ND - CONN D-SUB RECEPT 9POS 30 GOLD	5746861-4-ND - CONN RECEPT 9 POS GOLD IDCAFL09B-ND - CONN D-SUB RECEPT 9POS 30 GOLD
Other Names	57478714A35178	157478716A34092	157478714A32057	157478713A34089
