3-106507-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 3-106507-2

Preview

3-106507-2: Descriptionconn rcpt 25ps R/A boardlock met; CategoryThe connector; File Size139KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-106507-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-106507-2	-	-	View	Buy Now

3-106507-2 Overview

conn rcpt 25ps R/A boardlock met

3-106507-2 Parametric

Parameter Name	Attribute value
Datasheets

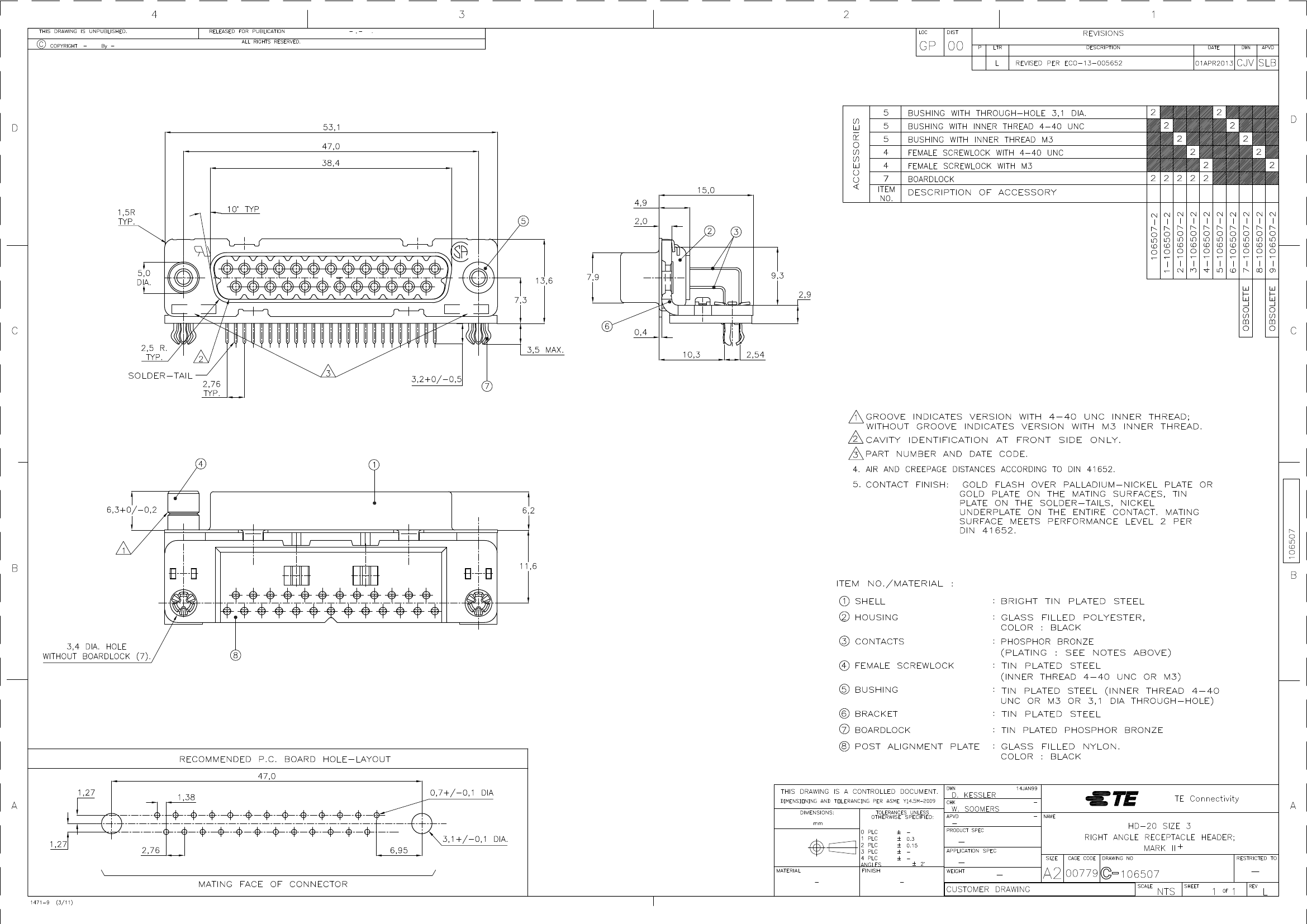

x-106507-x Drawing
AMPLIMITE Catalog
Product Photos
3-106507-2
RoHS Informati
3-106507-2 Statement of Compliance
RoHS 2 Stateme
3D Model
3-106507-2.pdf
Standard Package	30
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Bulk
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	25
Number of Rows	2
Shell Size, Connector Layou	3 (DB, B)
Contact Type	Signal
Mounting Type	Through Hole, Right Angle
Flange Feature	Mating Side
Female Screwlock (4-40)
Terminati	Solde
Features	Board Lock
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	125V
Current Rating	6A
Housing Material	Polyester, Glass Filled
Col	Black
Dynamic Catalog	AMPLIMITE HD-20 Series
Mating Products	AML25B-ND - CONN D-SUB PLUG 25POS GOLD
Other Names	3-106507-2-ND31065072A105028

Preview

Download Datasheet

View All

3-106507-2 Related Products

	3-106507-2	1-106507-2	5-106507-2	2-106507-2	106507-2
Description	conn rcpt 25ps R/A boardlock met	conn rcpt 25ps R/A boardlock met	conn D-sub 25pos R/A gold	conn rcpt 25ps R/A boardlock met	conn rcpt 25ps R/A boardlock met
Standard Package	30	30	30	960	1,440
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors
Packaging	Bulk	Tray	Bulk	Bulk	Bulk
Connector Style	D-Sub	D-Sub	D-Sub	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets
Number of Positions	25	25	25	25	25
Number of Rows	2	2	2	2	2
Shell Size, Connector Layou	3 (DB, B)	3 (DB, B)	3 (DB, B)	3 (DB, B)	3 (DB, B)
Contact Type	Signal	Signal	Signal	Signal	Signal
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Flange Feature	Mating Side	Housing/Shell (4-40)	Housing/Shell (Unthreaded)	Housing/Shell (M3)	Housing/Shell (Unthreaded)
Terminati	Solde	Solde	Solde	Solde	Solde
Features	Board Lock	Board Lock	Ground S	Board Lock	Board Lock
Shell Material, Finish	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated
Contact Finish	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Voltage Rating	125V	125V	125V	125V	125V
Current Rating	6A	6A	6A	6A	6A
Housing Material	Polyester, Glass Filled	Polyester, Glass Filled	Polyester, Glass Filled	Polyester, Glass Filled	Polyester, Glass Filled
Col	Black	Black	Black	Black	Black
Dynamic Catalog	AMPLIMITE HD-20 Series	AMPLIMITE HD-20 Series	AMPLIMITE HD-20 Series	-	-
Mating Products	AML25B-ND - CONN D-SUB PLUG 25POS GOLD	749808-7-ND - CONN D-SUB PLUG 25POS CRIMP5-747912-5-ND - CONN D-SUB PLUG 25POS SLD CUP AUA32505-ND - CONN D-SUB PLUG 25POS SLD CUP AUAMR25B-ND - CONN D-SUB PLUG 25POS GOLDAML25B-ND - CONN D-SUB PLUG 25POS GOLDA32175-ND - CONN DSUB PLUG 25POS IDC GOLDA31971-ND - CONN D-SUB PLUG 25P 22-26AWG AUA31970-ND - CONN D-SUB PLUG 25P 20-22AWG AUA31969-ND - CONN D-SUB PLUG 25P 26-30AWG AUA31933-ND - CONN D-SUB PLUG 25P 22-26AWG AU	-	749808-7-ND - CONN D-SUB PLUG 25POS CRIMP5-747912-5-ND - CONN D-SUB PLUG 25POS SLD CUP AUA32505-ND - CONN D-SUB PLUG 25POS SLD CUP AUAMR25B-ND - CONN D-SUB PLUG 25POS GOLDA31971-ND - CONN D-SUB PLUG 25P 22-26AWG AUA31970-ND - CONN D-SUB PLUG 25P 20-22AWG AUA31969-ND - CONN D-SUB PLUG 25P 26-30AWG AUA31933-ND - CONN D-SUB PLUG 25P 22-26AWG AU	749808-7-ND - CONN D-SUB PLUG 25POS CRIMP5-747912-5-ND - CONN D-SUB PLUG 25POS SLD CUP AUA32505-ND - CONN D-SUB PLUG 25POS SLD CUP AUAMR25B-ND - CONN D-SUB PLUG 25POS GOLDAML25B-ND - CONN D-SUB PLUG 25POS GOLDA32175-ND - CONN DSUB PLUG 25POS IDC GOLDA31971-ND - CONN D-SUB PLUG 25P 22-26AWG AUA31970-ND - CONN D-SUB PLUG 25P 20-22AWG AUA31969-ND - CONN D-SUB PLUG 25P 26-30AWG AUA31933-ND - CONN D-SUB PLUG 25P 22-26AWG AU
Other Names	3-106507-2-ND31065072A105028	1-106507-2-ND11065072A104900	51065072A104879	-	-
