DBUH-25P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> DBUH-25P

DBUH-25P: Descriptionconn db25 plug crimp W/contact; CategoryThe connector; File Size118KB，1 Pages; ManufacturerCINCH; Environmental Compliance

Download Datasheet Parametric Compare View All

DBUH-25P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DBUH-25P	-	-	View	Buy Now

DBUH-25P Overview

conn db25 plug crimp W/contact

DBUH-25P Parametric

Parameter Name	Attribute value
Datasheets
DxUH-xxP
Product Photos
DBUH-25P
Standard Package	2,000
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Bulk
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Number of Positions	25
Number of Rows	2
Shell Size, Connector Layou	3 (DB, B)
Contact Type	Signal
Mounting Type	Panel Mou
Flange Feature	Housing/Shell (Unthreaded)
Terminati	Crim
Features	-
Shell Material, Finish	Steel, Clear Chromate Zinc Plated
Contact Finish	Gold
Contact Finish Thickness	Flash
Ingress Protecti	-
Operating Temperature	-65°C ~ 125°C
Voltage Rating	-
Current Rating	5A
Housing Material	Polyamide (PA), Nylon, Glass Filled
Col	Black
Dynamic Catalog	D*U Series
Mating Products	DBUH-25S-ND - CONN DB25 SOCKET CRIMP W/CONTACT116-1019-ND - CONN DB25 SOCKET CRIMP W/O CONT
Associated Produc	116-1020-ND - CONN HOOD DSUB 25POS MTL PLAST116-1014-ND - CONN BACKSHELL DB25 METALDB-19977-32-ND - CONN BACKSHELL R/A DB25 METAL
Other Names	116-10177020325001DBUH-25P-NDDBUH25PDBUH25P-ND

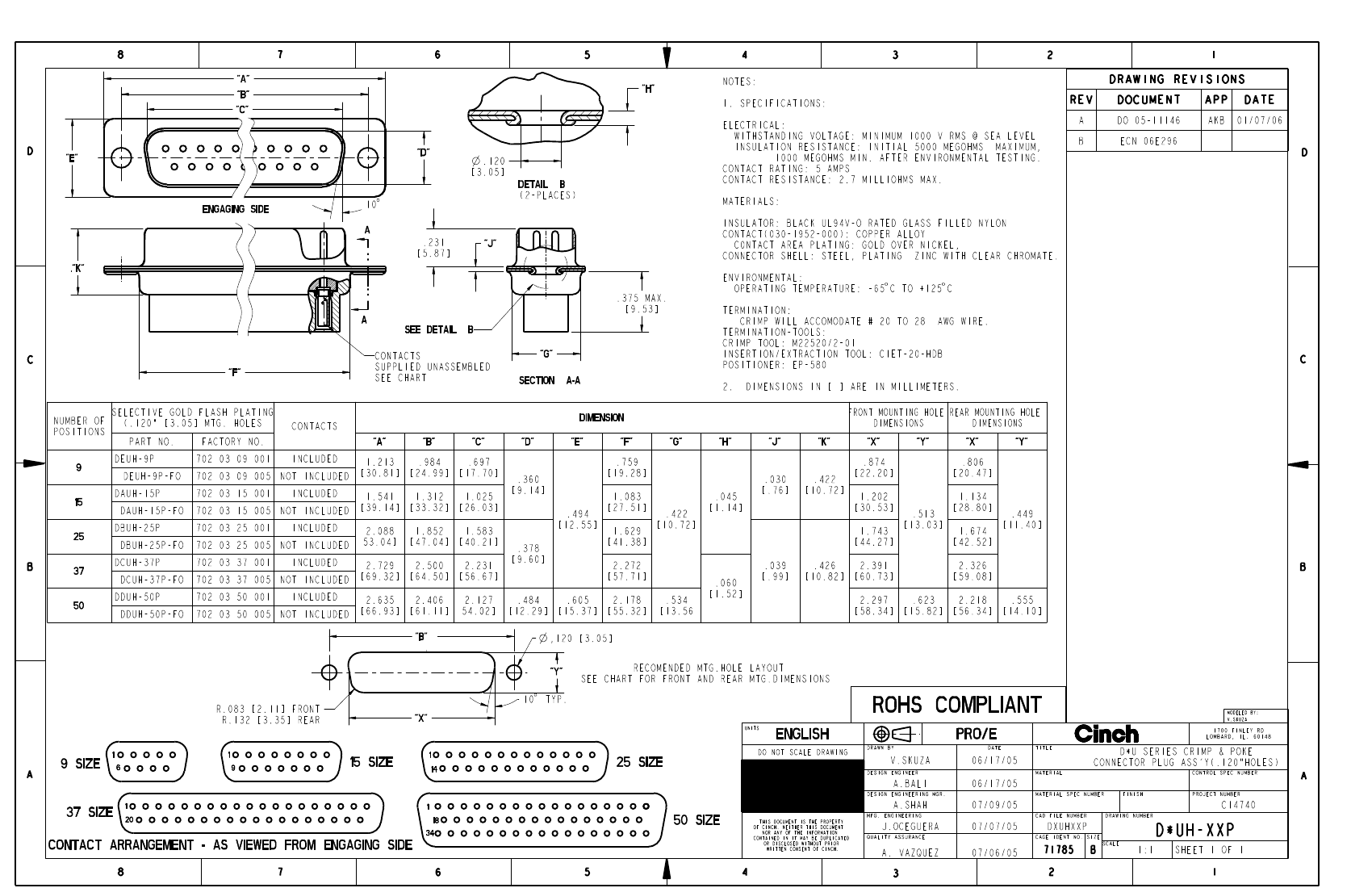

Preview

Download Datasheet

View All

DBUH-25P Related Products

	DBUH-25P	DEUH-9P	DBUH-25P-FO	DEUH-9P-FO	DAUH-15P-FO	DAUH-15P
Description	conn db25 plug crimp W/contact	conn db9 plug crimp W/contact	conn db25 plug crimp W/O cont	conn db9 plug crimp W/O cont	conn db15 plug crimp W/O cont	conn db15 plug crimp W/contact
Standard Package	2,000	750	750	750	750	750
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors	D-Sub, D-Shaped Connectors - Housings	D-Sub, D-Shaped Connectors - Housings	D-Sub, D-Shaped Connectors - Housings	D-Sub Connectors
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Connector Style	D-Sub	D-Sub	D-Sub	D-Sub	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins	Plug for Male Contacts	Plug for Male Contacts	Plug for Male Contacts	Plug, Male Pins
Number of Positions	25	9	25	9	15	15
Number of Rows	2	2	2	2	2	2
Shell Size, Connector Layou	3 (DB, B)	1 (DE, E)	3 (DB, B)	1 (DE, E)	2 (DA, A)	2 (DA, A)
Contact Type	Signal	Signal	Signal	Signal	Signal	Signal
Mounting Type	Panel Mou	Panel Mou	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Panel Mou
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Shell Material, Finish	Steel, Clear Chromate Zinc Plated	Steel, Clear Chromate Zinc Plated	Steel, Clear Chromate Zinc Plated	Steel, Clear Chromate Zinc Plated	Steel, Clear Chromate Zinc Plated	Steel, Clear Chromate Zinc Plated
Operating Temperature	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C
Col	Black	Black	Black	Black	Black	Black
Dynamic Catalog	D*U Series	D*U Series	D*U Series	D*U Series	D*U Series	D*U Series
Mating Products	DBUH-25S-ND - CONN DB25 SOCKET CRIMP W/CONTACT116-1019-ND - CONN DB25 SOCKET CRIMP W/O CONT	116-1028-ND - CONN DB9 SOCKET CRIMP W/O CONT116-1027-ND - CONN DB9 SOCKET CRIMP W/CONTACT	DBUH-25S-ND - CONN DB25 SOCKET CRIMP W/CONTACT116-1019-ND - CONN DB25 SOCKET CRIMP W/O CONT	DEU-9S-ND - CONN DB9 SOCKET116-1028-ND - CONN DB9 SOCKET CRIMP W/O CONT116-1027-ND - CONN DB9 SOCKET CRIMP W/CONTACT	DAUH-15S-FO-ND - CONN DB15 SOCKET CRIMP W/O CONT116-1013-ND - CONN DB15 SOCKET CRIMP W/CONT	DAUH-15S-FO-ND - CONN DB15 SOCKET CRIMP W/O CONT116-1013-ND - CONN DB15 SOCKET CRIMP W/CONT
Associated Produc	116-1020-ND - CONN HOOD DSUB 25POS MTL PLAST116-1014-ND - CONN BACKSHELL DB25 METALDB-19977-32-ND - CONN BACKSHELL R/A DB25 METAL	DMH-E-001-ND - CONN BACKSHELL DB9 DIECAST STR116-1022-ND - JUNCTION SHELL 9POS STRAIGHTDE-19977-30-ND - JUNCTION SHELL 9POS R/A CLAMP	030-1952-030-ND - CONTACT DU PIN CRIMP PLTD116-1000-ND - CONTACT DU PIN CRIMP PLTD116-1020-ND - CONN HOOD DSUB 25POS MTL PLAST116-1014-ND - CONN BACKSHELL DB25 METALDB-19977-32-ND - CONN BACKSHELL R/A DB25 METAL	030-1952-030-ND - CONTACT DU PIN CRIMP PLTD116-1000-ND - CONTACT DU PIN CRIMP PLTDDMH-E-001-ND - CONN BACKSHELL DB9 DIECAST STR116-1022-ND - JUNCTION SHELL 9POS STRAIGHTDE-19977-30-ND - JUNCTION SHELL 9POS R/A CLAMP	030-1952-030-ND - CONTACT DU PIN CRIMP PLTD116-1000-ND - CONTACT DU PIN CRIMP PLTDDMH-A-003-ND - CONN BACKSHELL DB15 DIECASTDCH-A-003-ND - CONN HOOD DSUB 15POS MTL PLAST116-1009-ND - JUNCTION SHELL 15POS STR CLAMPDA-19977-31-ND - JUNCTION SHELL 15POS R/A CLAMP	DMH-A-003-ND - CONN BACKSHELL DB15 DIECASTDCH-A-003-ND - CONN HOOD DSUB 15POS MTL PLAST116-1009-ND - JUNCTION SHELL 15POS STR CLAMPDA-19977-31-ND - JUNCTION SHELL 15POS R/A CLAMP
Other Names	116-10177020325001DBUH-25P-NDDBUH25PDBUH25P-ND	116-10257020309001DEUH-9P-NDDEUH9PDEUH9P-ND	116-10187020325005DBUH-25P-FO-NDDBUH25PFODBUH25PFO-ND	116-10267020309005DEUH-9P-FO-NDDEUH9PFODEUH9PFO-ND	116-10127020315005DAUH-15P-FO-NDDAUH15PFODAUH15PFO-ND	116-10117020315001DAUH-15P-NDDAUH15PDAUH15P-ND
