5745078-4 datasheet, PDF - EEWORLD Datasheet

5745078-4: Descriptionconn D-sub rcpt str 25pos pcb AU; CategoryThe connector; File Size148KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5745078-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5745078-4	-	-	View	Buy Now

conn D-sub rcpt str 25pos pcb AU

Parameter Name	Attribute value
Datasheets
5745078
Product Photos
5745078-4
RoHS Informati
5745078-4 Statement of Compliance
RoHS 2 Stateme

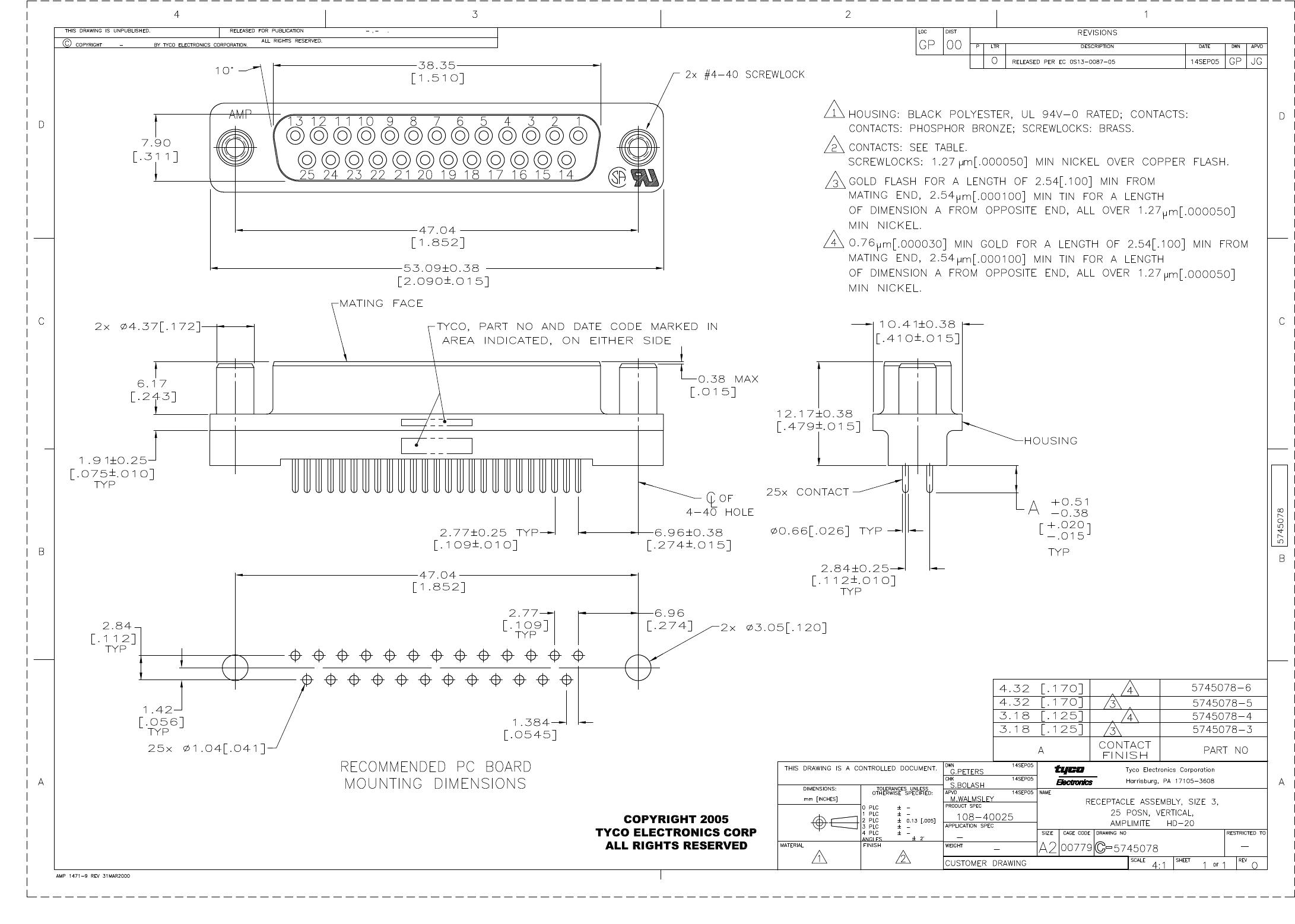

Catalog Drawings
HD-20 Series Straigh
3D Model
5745078-4.pdf
Standard Package	10
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tube
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	25
Number of Rows	2
Shell Size, Connector Layou	3 (DB, B)
Contact Type	Signal
Mounting Type	Through Hole
Flange Feature	Mating Side
Female Screwlock (4-40)
Terminati	Solde
Features	-
Shell Material, Finish	-
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Ingress Protecti	-
Operating Temperature	-55°C ~ 105°C
Voltage Rating	125V
Current Rating	6A
Housing Material	Polyeste
Col	Black
Dynamic Catalog	AMPLIMITE HD-20 Series
Mating Products	AMV25B-ND - CONN DSUB PLUG 25POS IDC GOLDAMS25B-ND - CONN D-SUB PLUG 25POS GOLDA31941-ND - CONN D-SUB PLUG 25P 22-26AWG AU
Other Names	57450784A34030

	5745078-4	5745078-5	5745078-3
Description	conn D-sub rcpt str 25pos pcb AU	conn D-sub rcpt str 25pos pcb AU	conn D-sub rcpt str 25pos pcb AU
Standard Package	10	10	1,260
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors
Packaging	Tube	Tube	Tube
Connector Style	D-Sub	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets
Number of Positions	25	25	25
Number of Rows	2	2	2
Shell Size, Connector Layou	3 (DB, B)	3 (DB, B)	3 (DB, B)
Contact Type	Signal	Signal	Signal
Mounting Type	Through Hole	Through Hole	Through Hole
Flange Feature	Mating Side	Mating Side	Mating Side
Terminati	Solde	Solde	Solde
Contact Finish	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	Flash	Flash
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Voltage Rating	125V	125V	125V
Current Rating	6A	6A	6A
Housing Material	Polyeste	Polyeste	Polyeste
Col	Black	Black	Black
Dynamic Catalog	AMPLIMITE HD-20 Series	AMPLIMITE HD-20 Series	AMPLIMITE HD-20 Series
Mating Products	AMV25B-ND - CONN DSUB PLUG 25POS IDC GOLDAMS25B-ND - CONN D-SUB PLUG 25POS GOLDA31941-ND - CONN D-SUB PLUG 25P 22-26AWG AU	745211-8-ND - CONN D-SUB PLUG 25POS 26-22AWGAMV25B-ND - CONN DSUB PLUG 25POS IDC GOLD	745211-8-ND - CONN D-SUB PLUG 25POS 26-22AWGAMV25B-ND - CONN DSUB PLUG 25POS IDC GOLD
Other Names	57450784A34030	57450785A34033	57450783A34032
