2-1393480-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 2-1393480-2

Preview

2-1393480-2: Descriptionv23529b1121c215=sub D stiftlei; CategoryThe connector; File Size501KB，6 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

2-1393480-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2-1393480-2	-	-	View	Buy Now

2-1393480-2 Overview

v23529b1121c215=sub D stiftlei

2-1393480-2 Parametric

Parameter Name	Attribute value
Datasheets

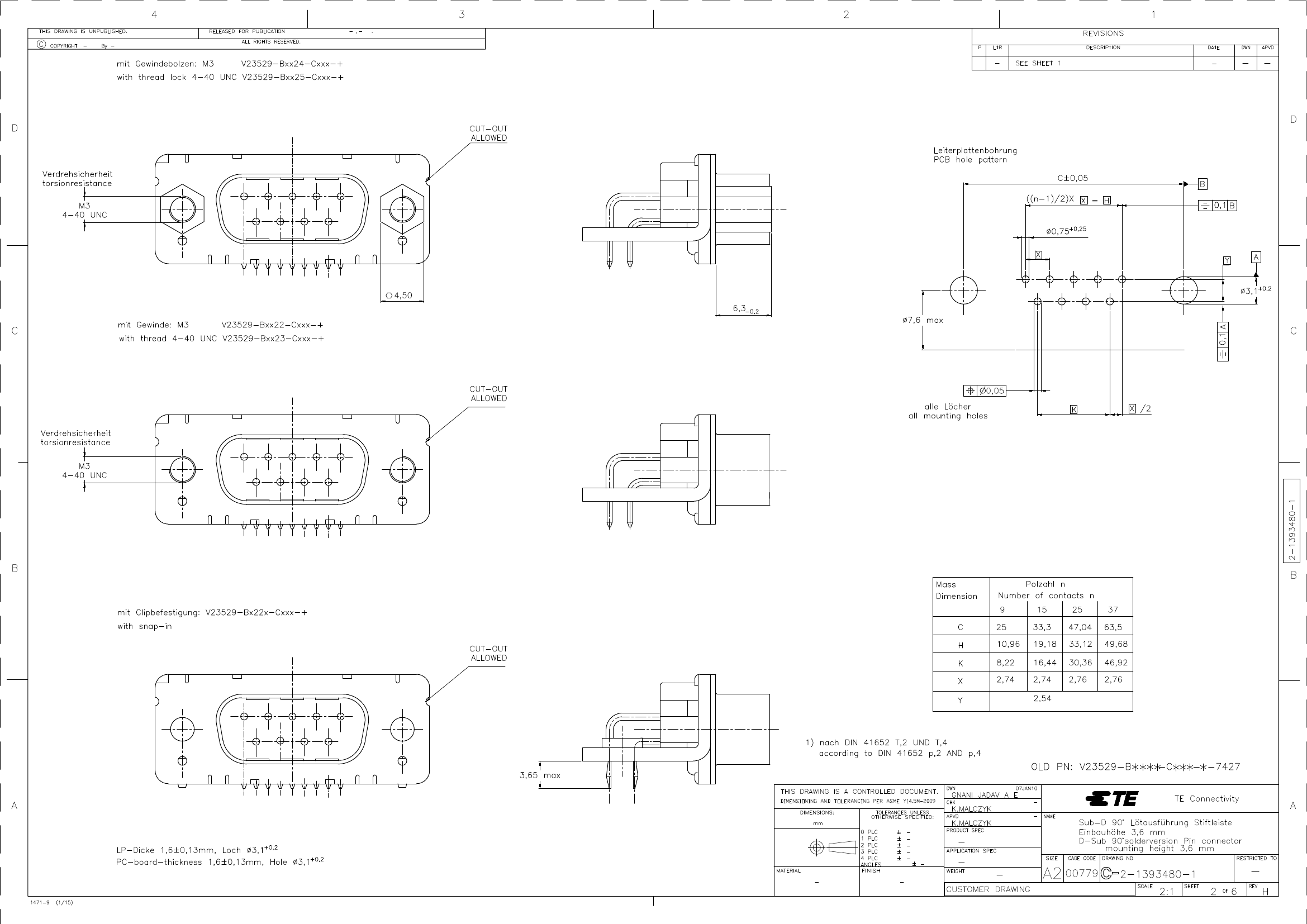

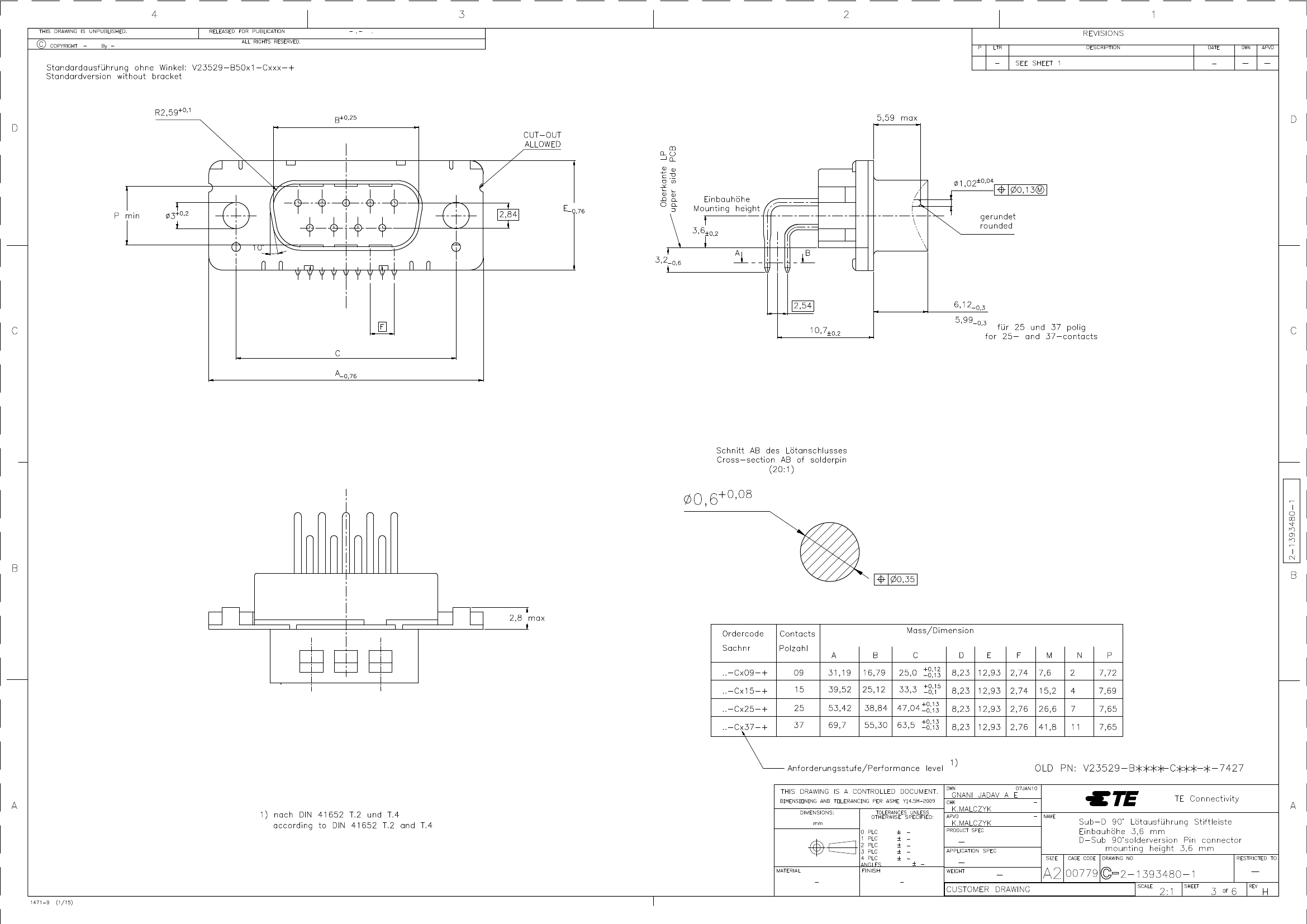

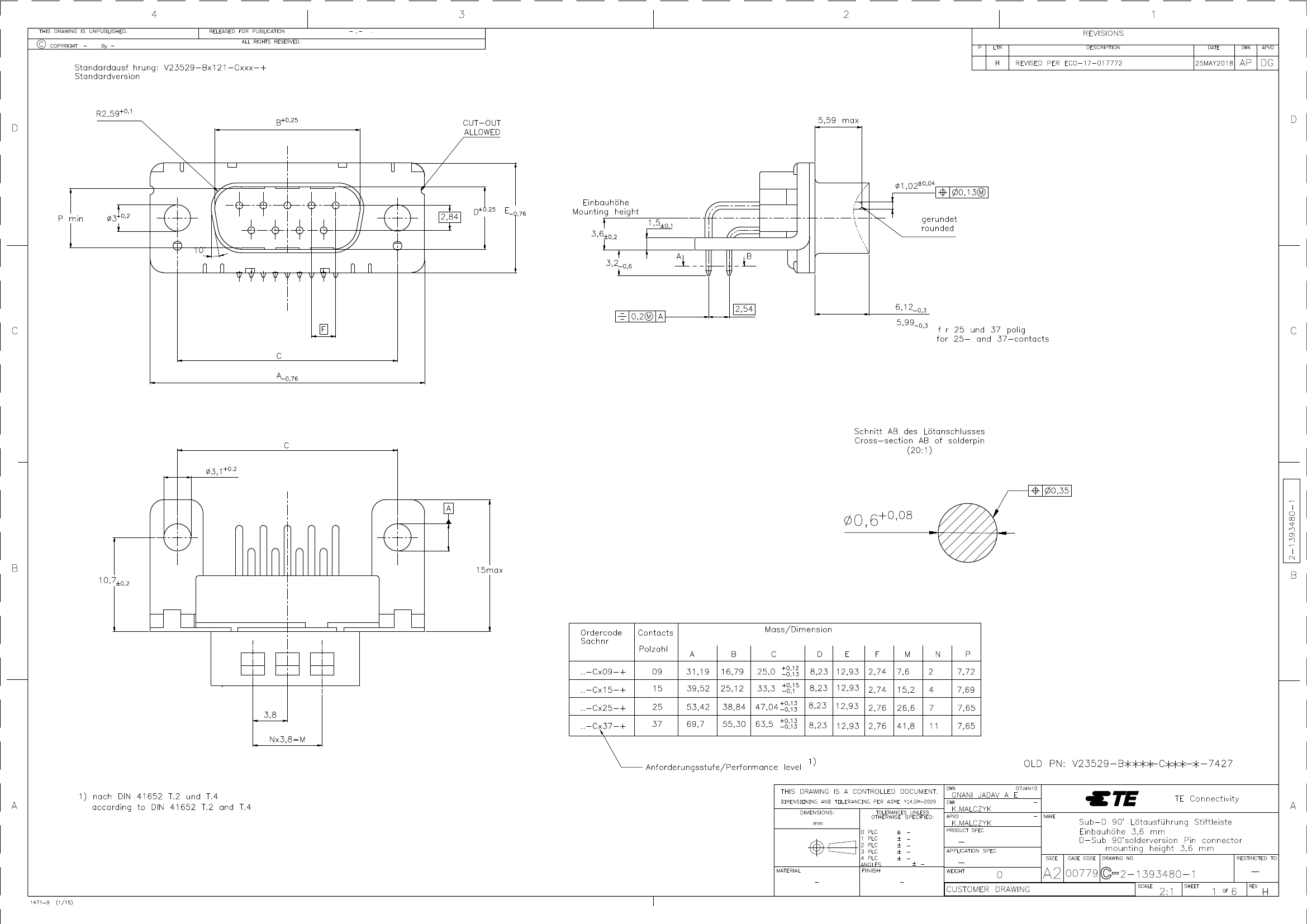

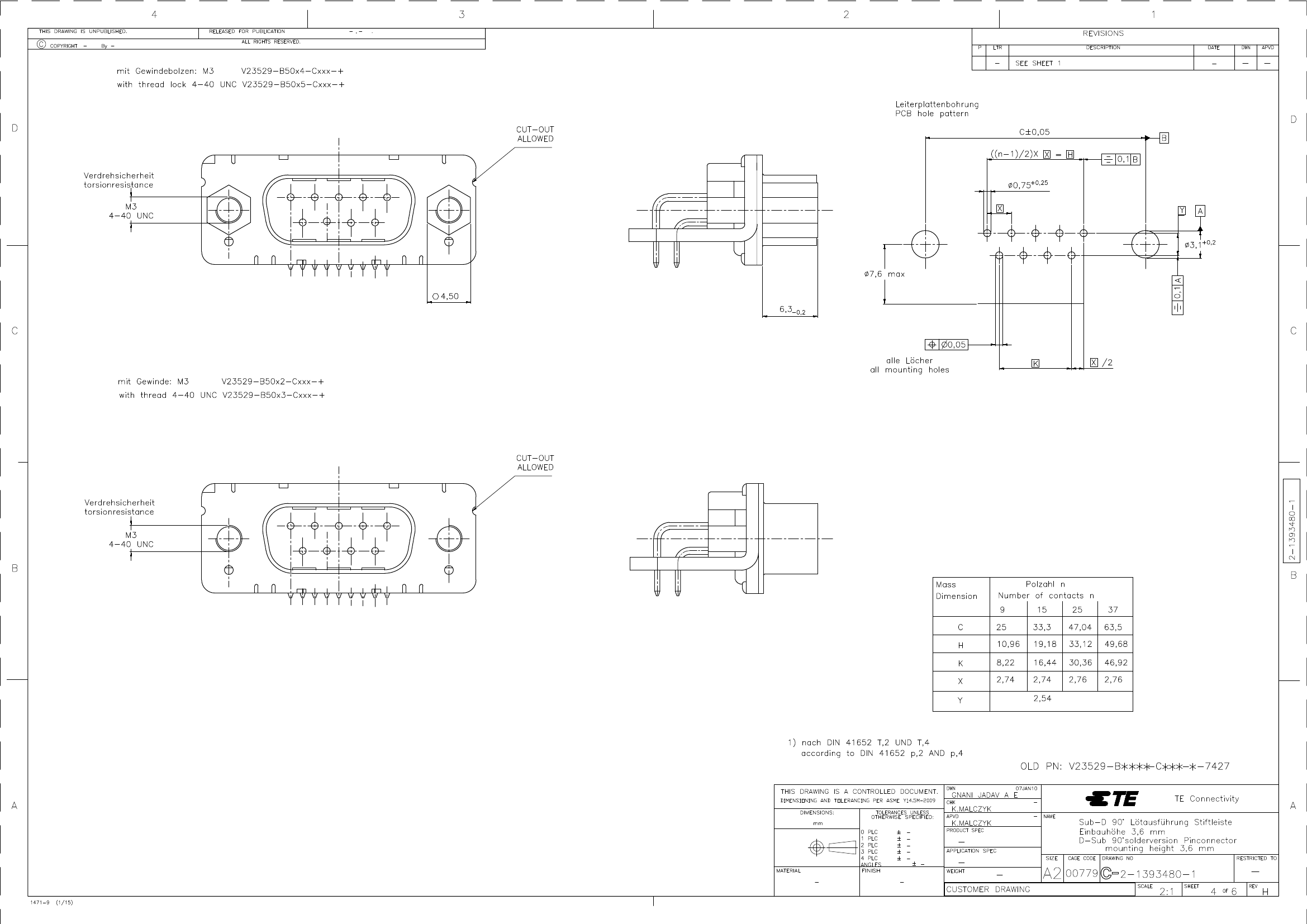

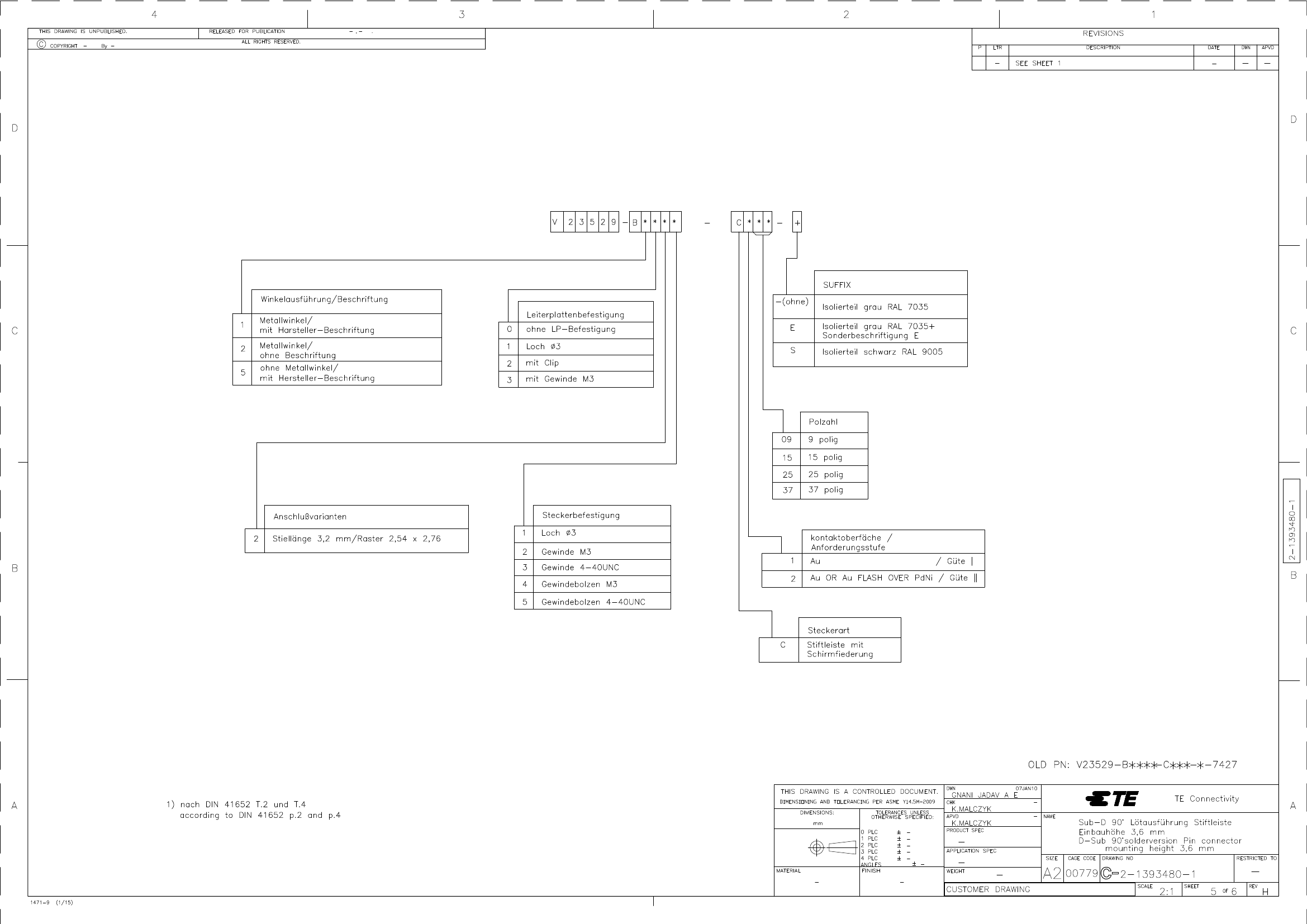

x-1393480-x Drawing
Standard Package	100
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Bulk
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Number of Positions	15
Number of Rows	2
Shell Size, Connector Layou	2 (DA, A)
Contact Type	Signal
Mounting Type	Through Hole, Right Angle
Flange Feature	Housing/Shell (Unthreaded)
Terminati	Solde
Features	Grounding Indents, Mounting Brackets
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Ingress Protecti	-
Operating Temperature	-55°C ~ 125°C
Voltage Rating	-
Current Rating	2.2A
Housing Material	Polybutylene Terephthalate (PBTP)
Col	Gray
Other Names	A117417V23529B1121C215

Preview

Download Datasheet

View All

ü

2-1393480-2 Related Products

	2-1393480-2	8-1393480-5	1393481-5	2-1393480-1	5-1393480-4
Description	v23529b1121c215=sub D stiftlei	conn D-sub 9pos plug R/A gold	conn dsub plug 9 pos R/A gold	conn dsub plug 9 pos R/A gold	v23529b1125c225=sub D 25 P
Standard Package	100	100	100	100	50
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors	D-Sub Connectors
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Connector Style	D-Sub	D-Sub	D-Sub	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins	Plug, Male Pins
Number of Positions	15	9	9	9	25
Number of Rows	2	2	2	2	2
Shell Size, Connector Layou	2 (DA, A)	1 (DE, E)	1 (DE, E)	1 (DE, E)	3 (DB, B)
Contact Type	Signal	Signal	Signal	Signal	Signal
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (4-40)	Mating Side	Housing/Shell (Unthreaded)	Mating Side
Terminati	Solde	Solde	Solde	Solde	Solde
Features	Grounding Indents, Mounting Brackets	Board Lock, Ground Strap, Grounding Indents	Board Lock, Grounding Indents	Grounding Indents	-
Shell Material, Finish	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated	Steel, Tin Plated
Contact Finish	Gold	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	20µin (0.51µm)	20µin (0.51µm)	-
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Current Rating	2.2A	2.2A	2.2A	2.2A	2.2A
Housing Material	Polybutylene Terephthalate (PBTP)	Polybutylene Terephthalate (PBT), Polyeste	Polybutylene Terephthalate (PBT), Polyeste	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBTP)
Col	Gray	Gray	Gray	Gray	Gray
Other Names	A117417V23529B1121C215	813934805A104887	1393481-5-ND13934815A104939V23529B1225C209	2-1393480-1-NDA113111V23529B1121C209	A117659V23529B1125C225
