SUBCON-PLUS-PROFIB…/FC90
Fast connection connectors for PROFIBUS systems
with IDC terminal block connection
INTERFACE
Data sheet
104390_en_00
1
Description
If the Fast Connect cable is used, work is reduced to a
minimum thanks to the PSM-STRIP-FC/PROFIB quick
stripping tool: strip the cable and individual wires, insert in
the connector, and close the housing cover.
© PHOENIX CONTACT 2010-06-02
The
SUBCON-PLUS-PROFIB…/FC90
D-SUB series is
specifically designed for use in PROFIBUS systems up to
12 Mbps. Under field conditions, it enables the quick and
easy connection of the incoming and outgoing bus cable.
Two fast connection connectors with IDC terminal block
connection are available with or without programming
interface. Both connectors have an angled cable entry.
They are designed exclusively for solid copper conductors.
The integrated termination resistor can be connected
externally via a slide switch. At the same time the outgoing
bus segment is switched off. This makes it easy to start up
segment by segment while incorrect terminations are
avoided.
In addition, the connector housing with high-quality
shielding ensures a high level of immunity to interference
even at maximum transmission speed.
The connectors are designed for all standard PROFIBUS
cables with an outside diameter of 8 mm (type A and B).
If you have any technical problems, which you cannot resolve with the aid of this documentation, please contact
us during the usual office hours at:
PSI hotline: + 49 5235 3-19890
Fax: + 49 5235 3-30999
E-mail: interface-service@phoenixcontact.com
The connectors are specified for cable type A according to EN 50170. Cable type B, which is also described in
EN 50170, is out of date and should no longer be used.
Further solutions for PROFIBUS can be found at
www.phoenixcontact.com.
Make sure you always use the latest documentation.
It can be downloaded at
www.phoenixcontact.net/catalog.
This data sheet is valid for all products listed on the following page:
SUBCON-PLUS-PROFIB…/FC90
Table of contents
1
2
3
4
Description..................................................................................................................................
1
Ordering data..............................................................................................................................
2
Technical data ............................................................................................................................
3
Description..................................................................................................................................
4
4.1
4.2
4.3
Function block diagram .................................................................................................................................. 4
Dimensions .................................................................................................................................................... 4
Structure......................................................................................................................................................... 4
5
Connection .................................................................................................................................
5
5.1
5.2
Stripping ......................................................................................................................................................... 5
Connection ..................................................................................................................................................... 5
6
Termination resistor ....................................................................................................................
6
6.1
6.2
Activating the termination resistor and switching off outgoing bus cables ...................................................... 6
Length according to PROFIBUS specification ................................................................................................ 6
2
Ordering data
Type
SUBCON-PLUS-PROFIB/FC 90
SUBCON-PLUS-PROFIB/PG/FC 90
Connectors with IDC terminal block connection
Description
PROFIBUS connector up to 12 Mbps, angled version, integrated termination
resistor that can be connected externally, IDC terminal block connection
PROFIBUS connector up to 12 Mbps, angled version, integrated termination
resistor that can be connected externally, with PG D-SUB female connector
for connecting a programming device, IDC terminal block connection
Order No.
2313274
2313287
Pcs./Pkt.
1
1
Accessories
Description
Quick stripping tool for PROFIBUS cable type Fast Connect
Stripping pliers
PROFIBUS cable type Fast Connect
Type
PSM-STRIP-FC/PROFIB
QUICK-WIREFOX 6
PSM-CABLE-PROFIB/FC
Order No.
2744623
1204384
2744652
Pcs./Pkt.
1
1
1
104390_en_00
PHOENIX CONTACT
2
SUBCON-PLUS-PROFIB…/FC90
3
Technical data
9-pos. D-SUB pin strip
9-pos. D-SUB female connector
90°-angled cable outlet
0.64 mm
2
22 AWG
> 200
5
8 mm (±0.4 mm)
4-40 UNC
0.4 Nm
-20°C ... +75°C
-25°C ... +80°C
75% at 25°C
IP20
ABS, metal-plated
3,8/on 2 terminal blocks each (see description)
220
Ω/390 Ω,
can be connected externally
u
File No. E123528 Vol. 5 Sec. 3
Phoenix Contact PSM-CABLE-PROFIB/FC (2744652)
Lappkabel UNITRONIC
®
BUS L2/FIP PUR FC UL/CSA (2170 330)
UNITRONIC
®
BUS-YY L2/FIP (2170 236)
UNITRONIC
®
BUS L2/FIP BURIAL FC (2170 323)
UNITRONIC
®
BUS L2/FIP PE FC (2170 233)
Siemens FC Standard Cable (6XV1 830-0EH10)
FC Robust Cable (6XV1 830-0JH10)
FC Food Cable (6XV1 830-0GH10)
Technical data for SUBCON-PLUS-PROFIB/FC 90 and SUBCON-PLUS-PROFIB/PG/FC 90
Connector connection
Programming connection
Cable entry
Connection cross-section of IDC terminal blocks
Solid
AWG
Insertion/withdrawal cycles
Reconnection frequency
Cable diameter (maximum/minimum)
Mounting screws
Maximum tightening torque
Temperature range
Operation
Storage/transport
Relative humidity
Degree of protection
Housing material
Pin assignment
Termination resistors
UL approval
Tested and approved PROFIBUS cable types
104390_en_00
PHOENIX CONTACT
3
SUBCON-PLUS-PROFIB…/FC90
4
4.1
Description

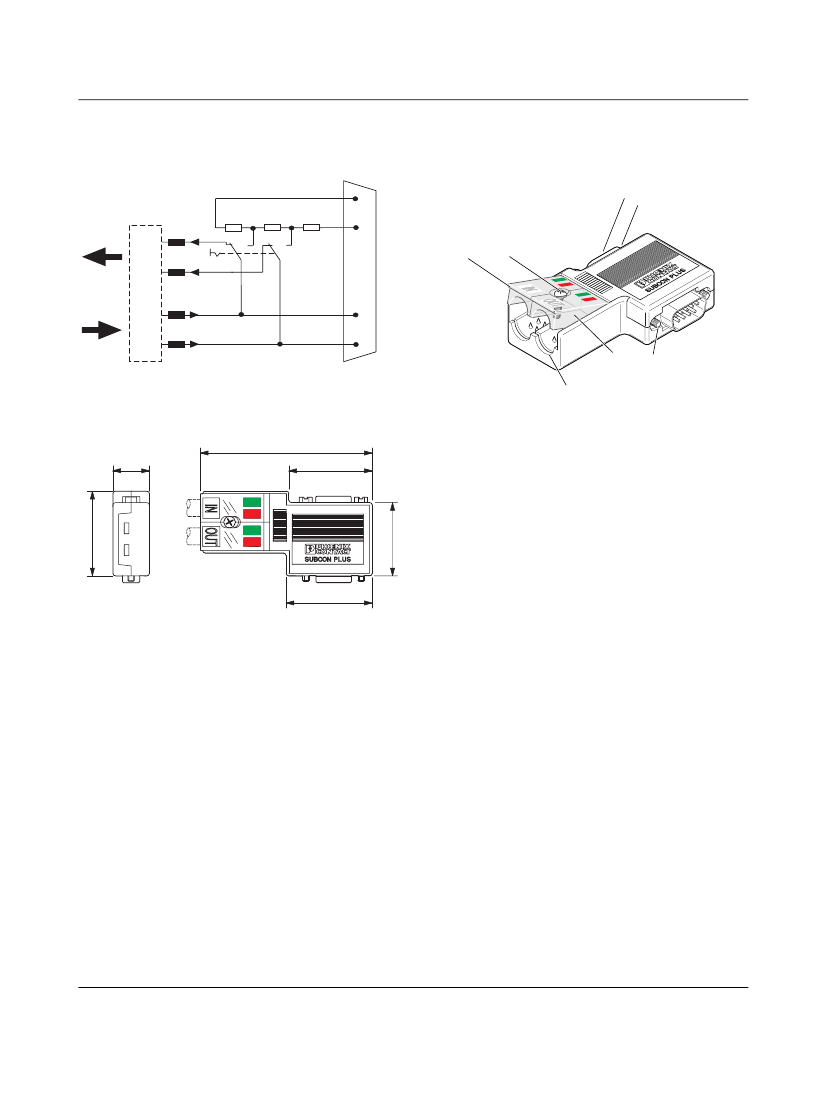

Function block diagram
6
390Ω
220Ω
390Ω
4.3
VP
GND
Structure
3
4
5
2B
OFF ON
S1
1
2
A
2A
B
A
B
1B
1A
3
8
D(P)
D(N)
6
Figure 1
Function block diagram for SUBCON-PLUS-
PROFIB/PG/FC 90
Figure 3
69
16,8
35,7
5
7
Structure
4.2
Dimensions
1
2
3
4
5
6
7
Upper housing part
Housing screw
PG connection
Slide switch
Mounting screws
Connection block
Strain relief
A
B
A
B
34,8
35,3
Figure 2
Dimensions (in mm)
30
104390_en_00
PHOENIX CONTACT
4
SUBCON-PLUS-PROFIB…/FC90
5
5.1
Connection
Stripping
6
14
20
Figure 4
Stripping
The PSM-STRIP-FC/PROFIB stripping tool (Order No.
2744623) is recommended for quick and easy stripping.
5.2
Connection
A
B
A
B
The connector enables the quick and easy connection of the
incoming and outgoing bus cable. The connector contacts
are routed to clearly arranged, color-coded IDC terminal
blocks.
The integrated termination resistor can be switched and,
when activated, simultaneously switches off the outgoing
bus cable. This enables easy startup of the bus system
segment by segment.
The strain relief is integrated in the housing half shells and is
designed for standard PROFIBUS cable type A.
The additional integrated programming connection of the
SUBCON-PLUS-PROFIB/PG/FC 90 version enables the
connection of a programming or service device without
interrupting bus operation.
To ensure reliable operation, observe the
recommended stripping lengths in Figure 4.

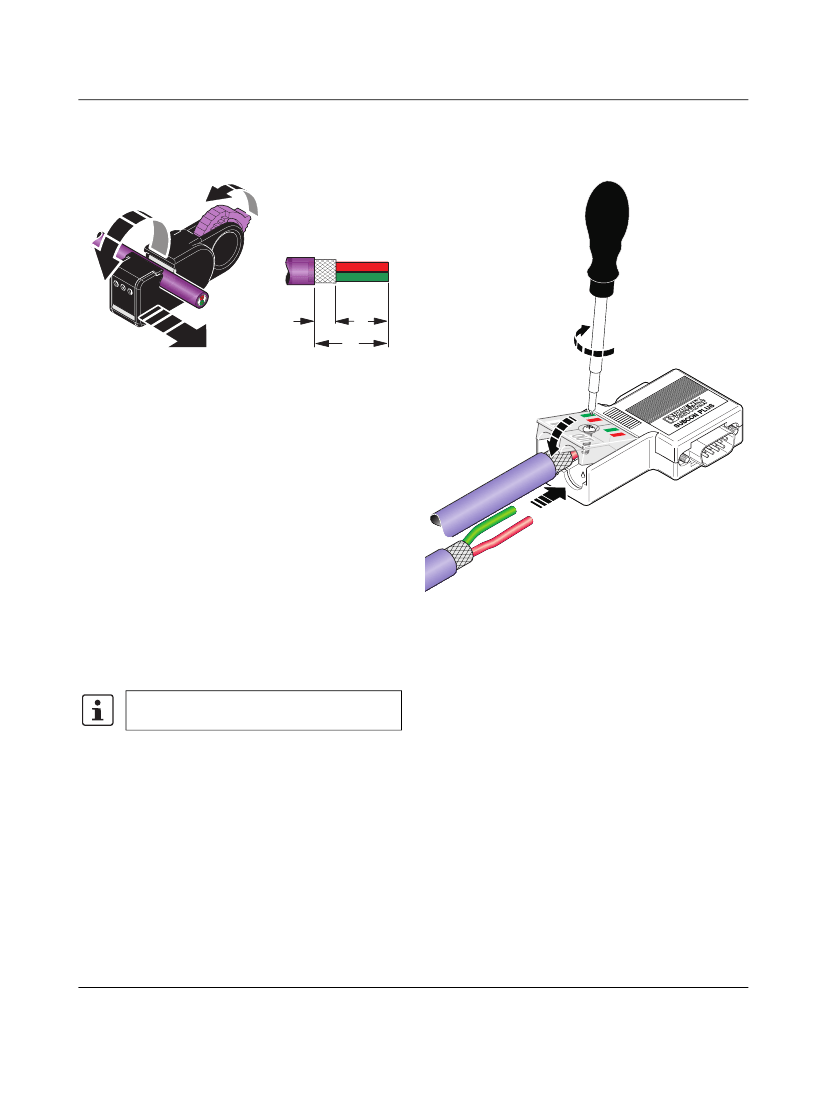

Figure 5
Connection
•
•
•
•
•
•
Strip the cable as per the specified stripping lengths
(see Figure 4).
Remove the separating foil if necessary.
Insert the individual wires into the connection terminal
blocks as far as they will go.
Always connect the incoming bus cable to terminal
block connections 1A/1B (even at the start of the bus
system).
The outgoing bus cable is always connected to terminal
block connections 2A/2B (see Figure 5).
Note the color-coding of the connection terminal
blocks.
Finally, mount and screw tight the connection terminal
blocks. This creates the shield connection and the
strain relief for the bus cable.
104390_en_00
PHOENIX CONTACT
5
